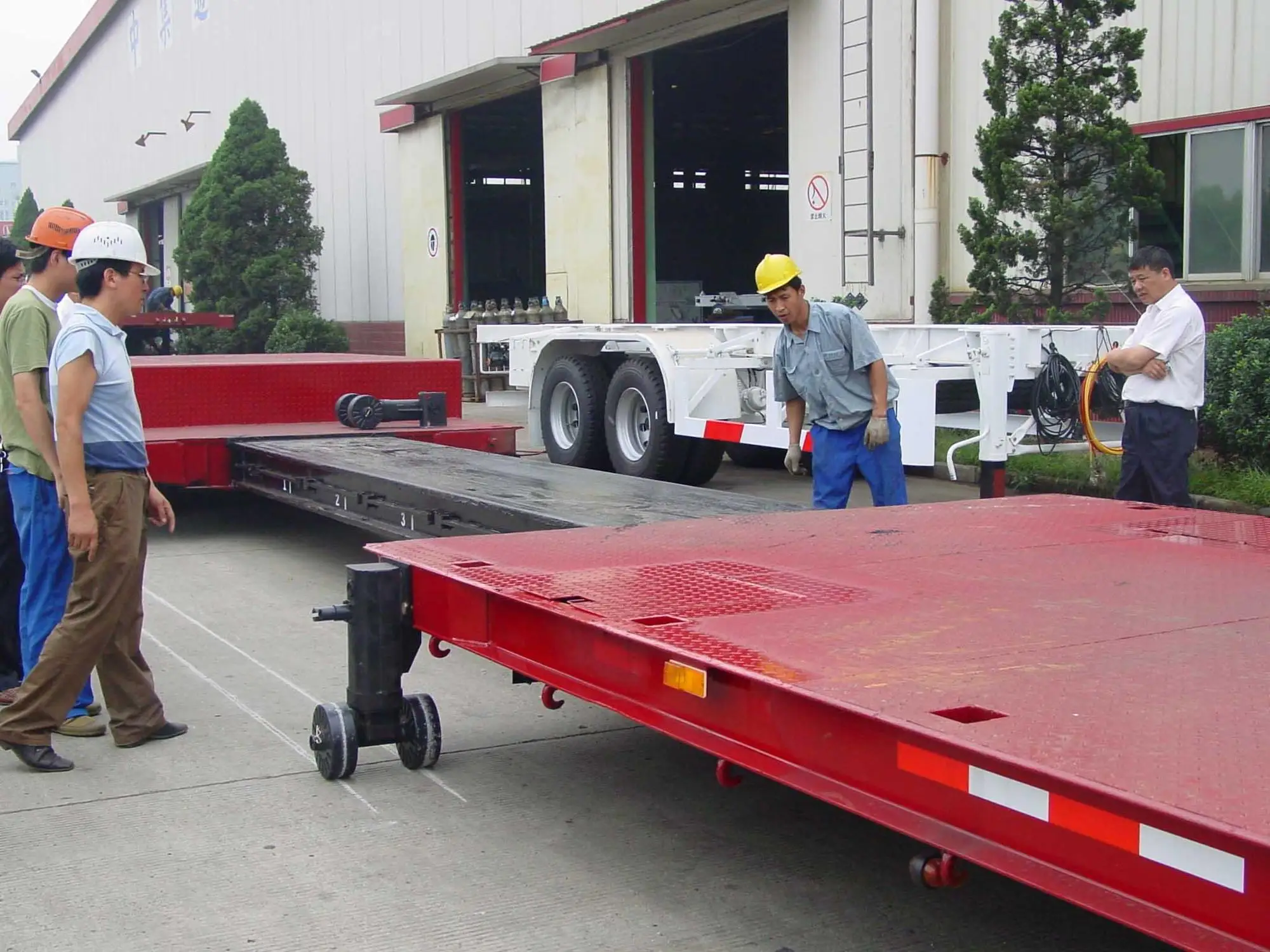

15 19m three axle 15m Extendable length platform low bed semi trailer

15M low bed with tri-axle and extendable length

Dimension:

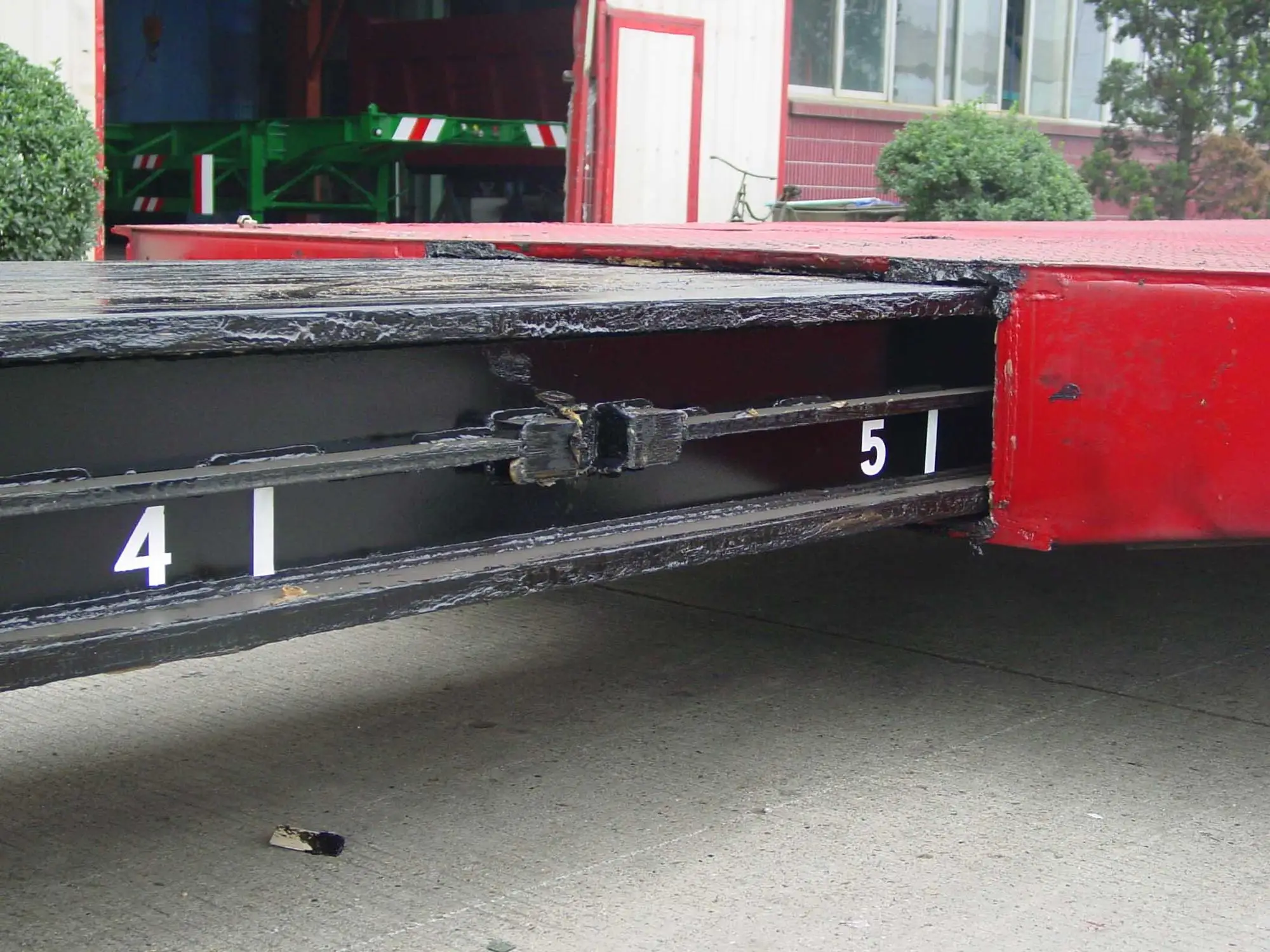

Length: Approx 14,915mm which can be extended to 19,915mm
Width: Approx 2,600 mm .
Height: Approx 1,810mm @ unload (ground to the gooseneck)
King Pin Location: Approx 500mm from the front face of the front bolster
Unladen platform length: Approx 11,515mm
Axle spacer: Approx 10,627mm + 1,310mm + 1,310mm
Lading gear location: Approx 2,350 from the kingpin position.
Fifth wheel (King Pin ) Height: Approx 1,341mm with the chassis level
(The above dimension will be adjusted according to the tractor specification)
Weight:
Tare Weight(Tolerance 0~-4%): Approx 17,000 kg
Max. Payload: Approx 40,000 kg(none extendable), Approx 20,000Kg(extendable)
Gross Vehicle Weight: Approx 57,000 kg
Steel Structure:
Material: High strength low alloy steel Q460 with 460 MPa yield strength is used for
welded I-beam and Q345(350Mpa) & Q235(235MPa) in other fabricated parts.
Loading Ramps: None



OEM Parts Configuration:
King Pin: 3.5” bolting king pin. Brand: JOST.

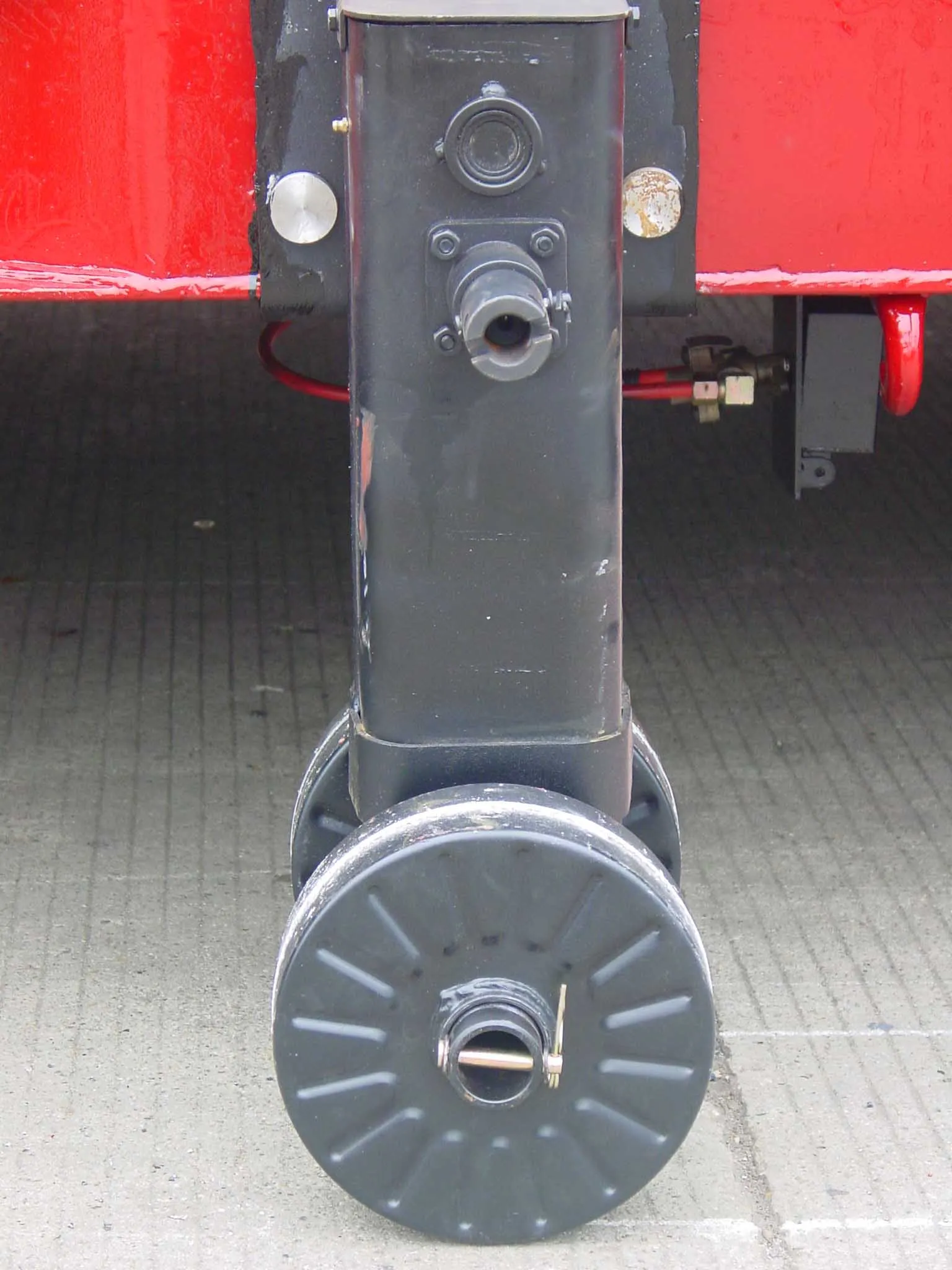

Landing Gear: two speed road side winding with sand shoe. lifting capacity
24ton,Stable capacity:70ton.Type:JOST . left operating.
Suspension: Heavy duty Air suspension within three axles with no alxe lifting.
Axles: Round axle with 12 ton capacity, brand: FUWA. made in china
Rims: 6.75-17.5, 10 Holes ISO, 12 pieces+2pcs. made in china
Tires: 235/75R17.5, 12 pieces+2pcs. made in china
Brake System: Dual air brake system, No ABS brake system. made in china
Brake chamber: Type 30/30 on the rear two axles. Type 30 on the first axle ,
Electrical System: 24 volt lighting system with modular wiring harness,7 way ISO
receptacle infront of the front bolster, norms NO.1185. Chinese standard . No E-mark
and SAE certificate. Made in China.

1. Payment:  Deposit , 1 year balance credit after the B/L date.

2. Assemble :  We assble the trailer on your company.

3. Working time :  Our team working in 24 hours, we copy with all of your questions and after service.

CIMIC Container and trailer has longest history. Businesses covering the manufacture of dry cargo container, refrigerated container and special container as well as the semi trailer. Its annual production capacity of containers and trailers exceeds 2.4 million

1.  Design code and certificates

ASME,GB,ISO,CE,ADR,BV,DNV

2.  Productivity

100units per day

3.  Logo

Design and painting as your request

4.Payment

50% deposit , 50% before shipment

5. Guarantee

Five (5) years and be based on standard “RE 3” of the “European degree of rusting standards”. Normal wear/tear, or corrosion caused by fish oil, animal and vegetable oils, strong solvents, impact and accident is excluded.The warranty shall be applied faults or failures affecting more than 10% of the painted surface.

Decal guarantee   Seven (7) years.
