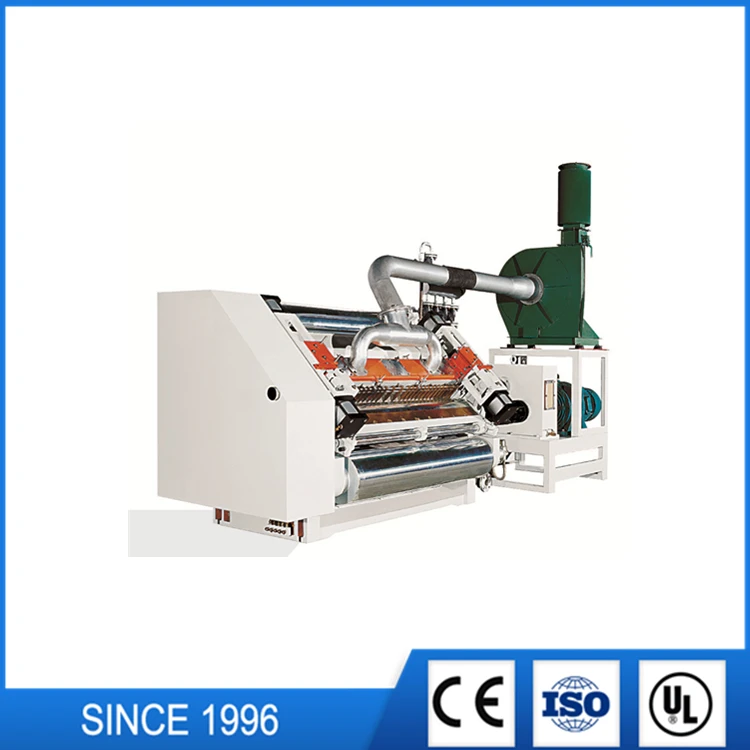

Corrugation Cardboard Production LIne Single/Cassette Facer For Carton Box

Dear Sir,

Pls find our specification and payment term as below:

If any questions, please feel free to contact us.

Thanks.

AVAILABLE BREADTH: 1400-2000MM

SPECIFICATION:

1.  FINGERLESS VACUUM SUCTION

2.  MAX MACHINE SPEED: 180M/MIN

3.  UPPER CORRUGATING ROLL DIA314MM, LOWER CORRUGATING ROLL DIAMETER 326MM. UPPER CORRUGATING ROLLS AND LOWER CORRUGATING ROLLS CAN BE INSTALLED AND REMOVE AS A UNIT, EASY TO BE CHANGED

4.  GLUE ROLL DIAMETER 254MM, STATION CAN BE REMOVED AS A UNIT.

5.  PLC AUTO GLUE MIX SYSTEM

6.  EQUIPPED WITH PRE-HEATER ROLL FOR LINER AND STEAM SPRAY DEVICE FOR MEDIUM

7.  LIFTING OF UPPER CORRUGATING ROLL AND PRESSURE ROLL, MOVING OF GLUE DEVICE PNEUMATIC CONTROLLED

8.  BEARINGS OF CORRUGATING ROLLS AND PRESSURE ROLLS USE HIGH TEMPERATURE LUBRICATE GREASE

9.  INDEPENDENT GEAR BOX, GIMBAL AXIS, OIL IMMERSED TYPE LUBRICATING TO REDUCE NOISE, KEEP RUNNING STABLE

10. WITH FREQUENCY CONVERT MOTOR TO MAKE STEPLESS SPEED REGULATION AND SYNCHRONIZED LINKAGE WITH FOLLOWING MACHINES. FREQUENCY CONVERT MOTOR IS FROM INTERNATIONAL FAMOUS BRAND WITH RELIABLE PERFORMANCE

11.  POWER OF MAIN MOTOR: 22KW (WIDTH 1200-1400MM)/ 30KW (WIDTH 1600-2000MM)

12.  POWER OF SUCTION BLOWER: 11KW(WIDTH 1200-2000MM)

13.  MAIN CONTROLLER AND LEFT-RIGHT MOVING OF RELATED ROLL STAND LINKAGE CONTROLLED
