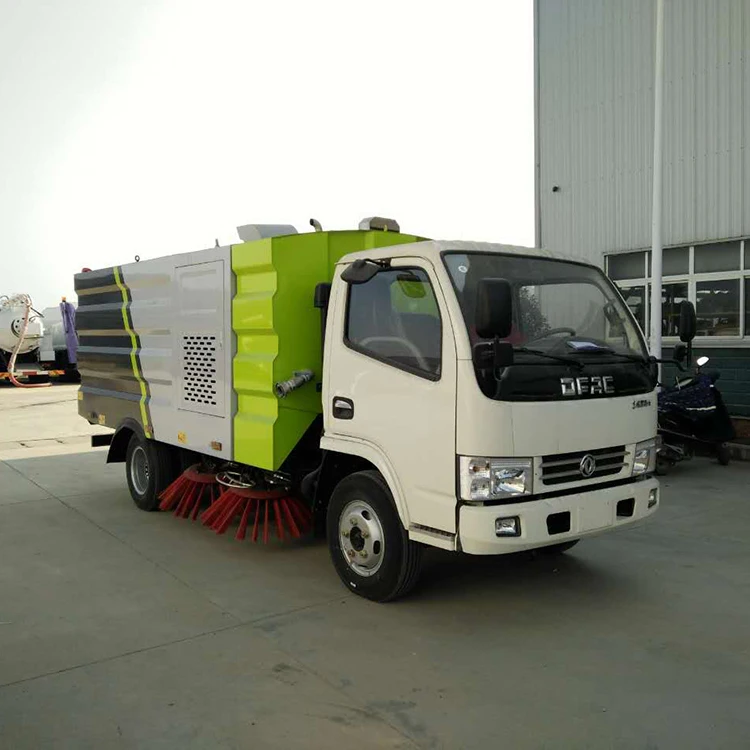

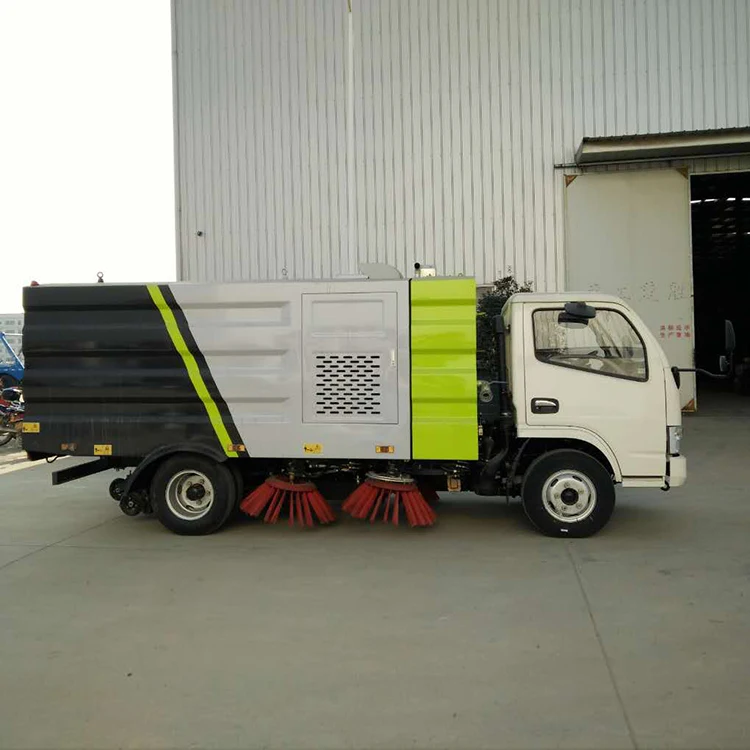

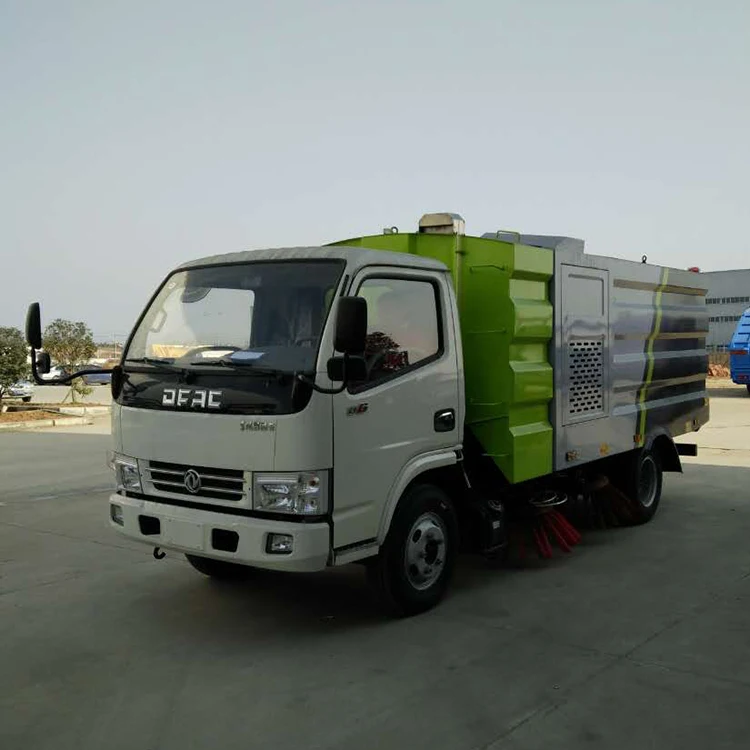

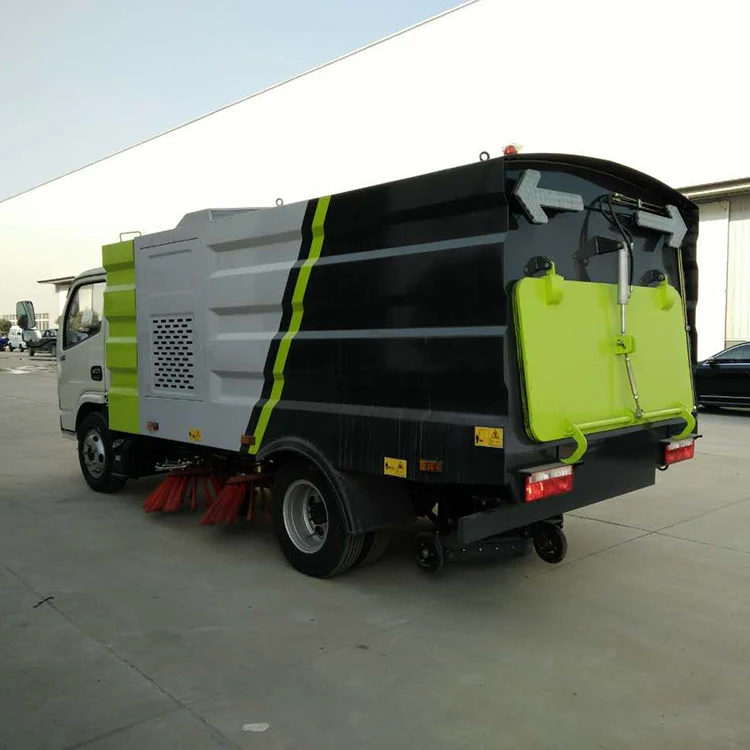

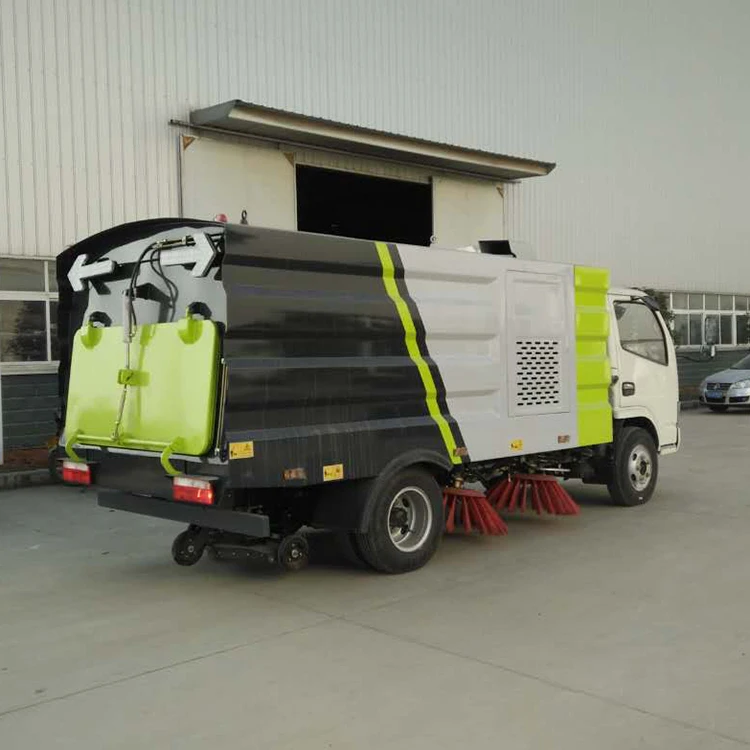

Dongfeng factory price of Road Sweeper and vacuum cleaner truck with Dongfeng

Vehicle parameters

Vehicle Model

EHY5060TSLE

Vehicle Brand

HUAYI

Overall dimensions

5970X2000X2400mm

Curb weight

4425kg

Dust tank volume

4200L

Water tank volume

1200L

Chassis parameters

Chassis model

EQ1060TJ20D3

Chassis brand

DONGFENG

Overall dimensions

5820x1940x2080mm

Wheel base

3300mm

Front/rear wheel track

1506/1466mm

Front/rear suspension

1032/1488mm

Approach/departure angle

19/15°

Maximum speed

80km/h

Chassis Manufacturer

Dongfeng Automobile Co.,Ltd

Cab

Configuration

Single row cab,allowable 3 passengers

Color

White,other color is optional

Engine

Model

CY4102-C3F

Emission

Euro 3

Type

in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine

Rated power

95hp,rated power speed 3200rpm

Displacement

3856ml

Bore x stroke

102x118mm

Manufacturer

Dongfeng Chaoyang Diesel Power Co. Ltd.

Tire

Size

7.00-16 nylon tire

Number

6+1 nos

Fuel tank

100L,steel

Front axle

2.0T

Rear axle

4.0T

Drive form

4X2

Rated voltage

24V,DC

Transmissions

5 speed forward 1 reverse.

Steering wheel

Left hand drive

Selective configuration

Air Conditioner,steel wire tire,power assisted steering

If there is a slight change in the chassis parameters above,please take the actual product as the standard

Road sweeper structure parameters

Dust tank volume

4200L

Water tank volume

1200L

Sweep width

3000m

Cleaning speed

3-20km/h

Cleaning ability

9000-60000 m2/h

Cleaning efficiency

98%

Maximum suction particle

120mm

Min. clearance of suction nozzle

200mm

Unloading angle

45°

Unloading height

970mm

Color and Logo

Optional

Standard configuration

Chassis,sub frame,body,4 sweeping brushes, stainless steel vacuum tank, water tank,5T fan, auxiliary engine, electromagnetic control valve, suction cup, sprinkler system, hydraulic system and electrical system.

Selective configuration

surveillance system,rolling brush.
