Industrial microwave dryer&sterilizer/Manufacture microwave drying machine

Product Overview

Description

Industrial microwave dryer&sterilizer/Manufacture microwave drying machine







 Why we choose Industrial microwave dryer&sterilizer/Manufacture microwave drying machine?

Answer:



1. Traditional heating device heat from outside in, relying on the conduction of the center of the material being heated. Microwave itself is not hot, but the microwave energy could penetrate material, resulting in the friction between polar molecules inside the material and generate internal heat.



2. Traditional heating device require higher external temperatures to heat the center of the product, the surface will become overheated, this will reduce the material's quality. With microwave energy, there is no excessive external energy applied to the surface for the product. It is heated evenly and get superior quality product.



3. Multi-function, apart from drying, it could also finish sterilization and Ripening. Besides, if you prefer, it could also be equipped with cooling system.



Application scope of Industrial microwave dryer&sterilizer/Manufacture microwave drying machine

1) Vegetable deep processing

2) Subsidiary agricultural products deep processing.

3) Herb and Flower, all kinds of tea

4) Nutlets

5)  Chemical material

6) Medical material

7) Spices

8) Powder and Particles

9) Healthy food



Main charaters of Industrial microwave dryer&sterilizer/Manufacture microwave drying machine



Microwave is advanced than traditional drying method, microwave drying from inside to outside, drying fast, uniform and efficiency etc.

Some other features of microwave equipment :

1)tunnel continuous conveyor belt type,work continuously;

2)while drying will sterilize at same time

3)easy to control,1~2 workers can operate ;

4)the temperature, transmission speed etc can ba adjustable

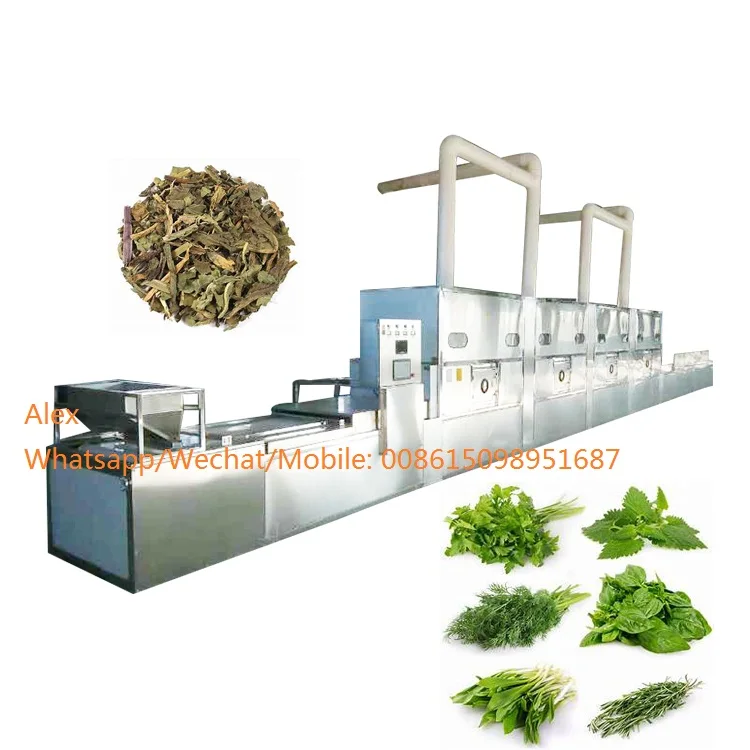

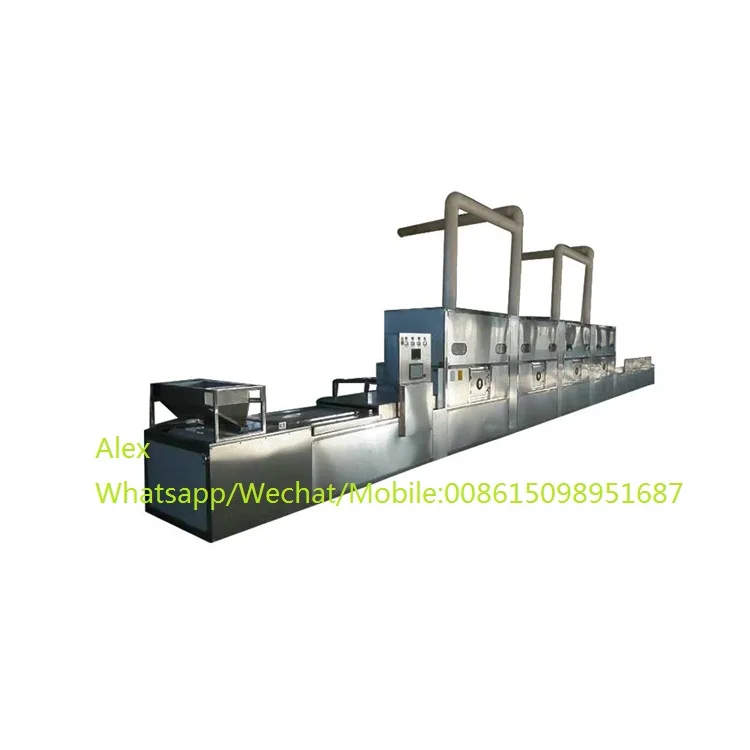

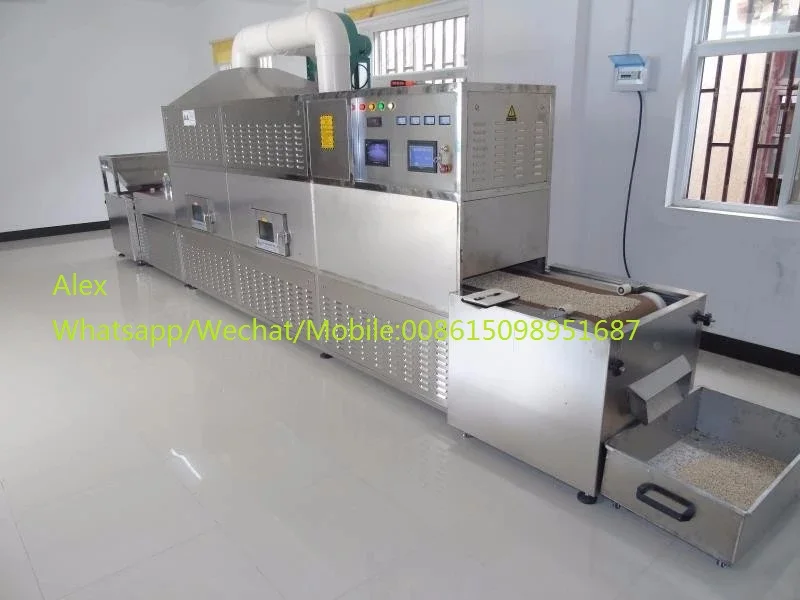

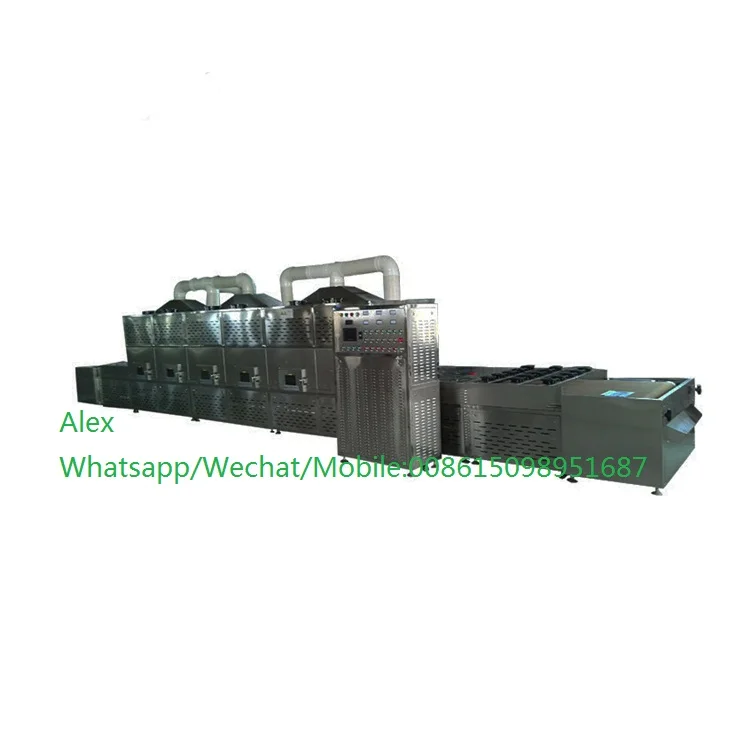

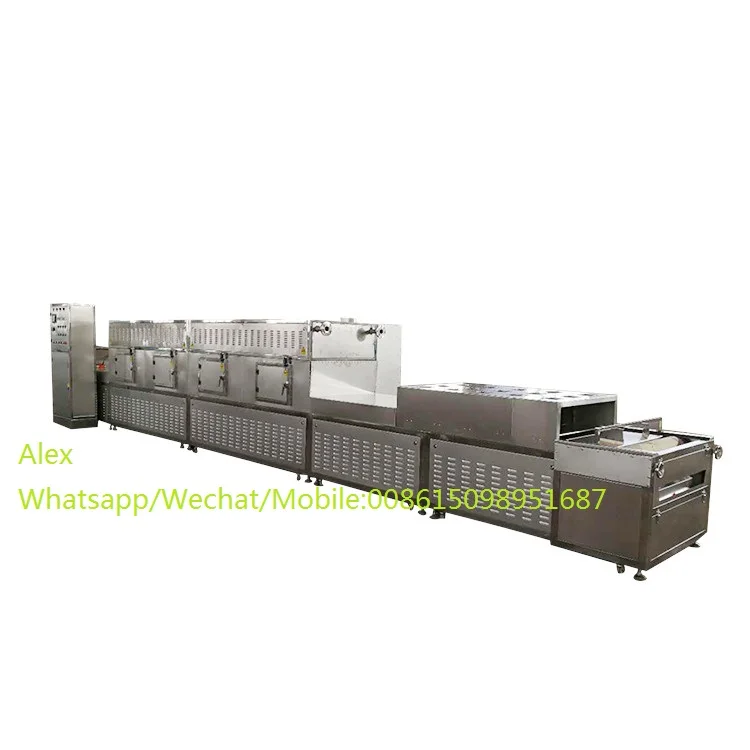

Pictures of Industrial microwave dryer&sterilizer/Manufacture microwave drying machine









Model	Working Frequency	Output Power	External Dimension	Productivity of drying	Productivity of steriliztion
JN-10	2450+-50MHZ	10	5850mm*820mm*1750mm	10-13kg/hr	80-150kg/h
JN-15	2450+-50MHZ	15	8300mm*840mm*2050mm	15-21kg/hr	150-200kg/h
JN-20	2450+-50MHZ	20	9400mm*840mm*2050mm	20-28kg/hr	280-350kg/h
JN-30	2450+-50MHZ	30	10500mm*1440mm*1750mm	30-42kg/hr	400-500kg/h
JN-40	2450+-50MHZ	40	10500m*1440mm*1750m	40-56kg/hr	550-700kg/h
JN-50	2450+-50MHZ	50	11600mm*1440mm*1750mm	50-55kg/hr	700-850kg/hr



Industrial microwave dryer&sterilizer/Manufacture microwave drying machine
