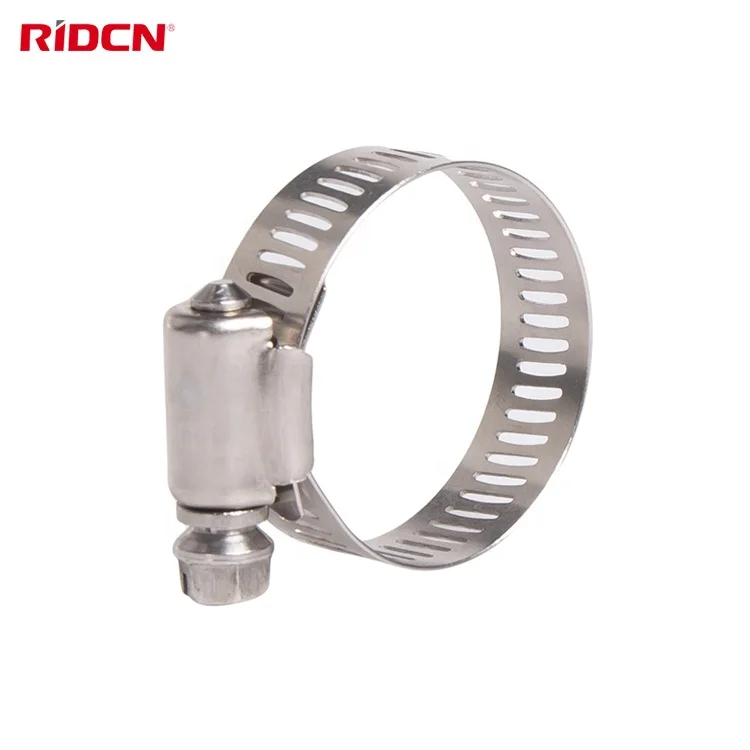

Small Diameter Stainless Steel Hose Clamp

Product Overview

Description



Features:

Most commonly used general purpose worm gear clamps

The bands have punched rectangular perforations that hold strong and connect easily.

Specifications:

Material: band and housing are 304 stainless steel ( 201stainless steel is available )

Band Width:12.7mm(1/2 inch)

Band Thickness: 0.7mm or 0.6mm

Screw: 8mm(5/16 inch) slotted hex head, plated with zinc for long lasting protection

Applications:

Worm drive hose clamps are designed to fasten the joint of two soft hoses.They are used in various fields such as automobile, motorcycle, industrial machine, fire-fighting, home appliance, cable,ship building, agricultural irrigation, etc.

Part NO.	Diameter Range	Band width	Thickness		Torque
	(mm)	(mm)	(mm)	(mm)	(N.m)
22B	12-22	12.7	0.6	0.7	4.9
27B	16-27	12.7	0.6	0.7	4.9
32B	22-32	12.7	0.6	0.7	6.4
35B	23-35	12.7	0.6	0.7	6.4
40B	25-40	12.7	0.6	0.7	6.4
Note:We customize clamps according to your special requirements.             Other sizes and alternate materials are also available.
