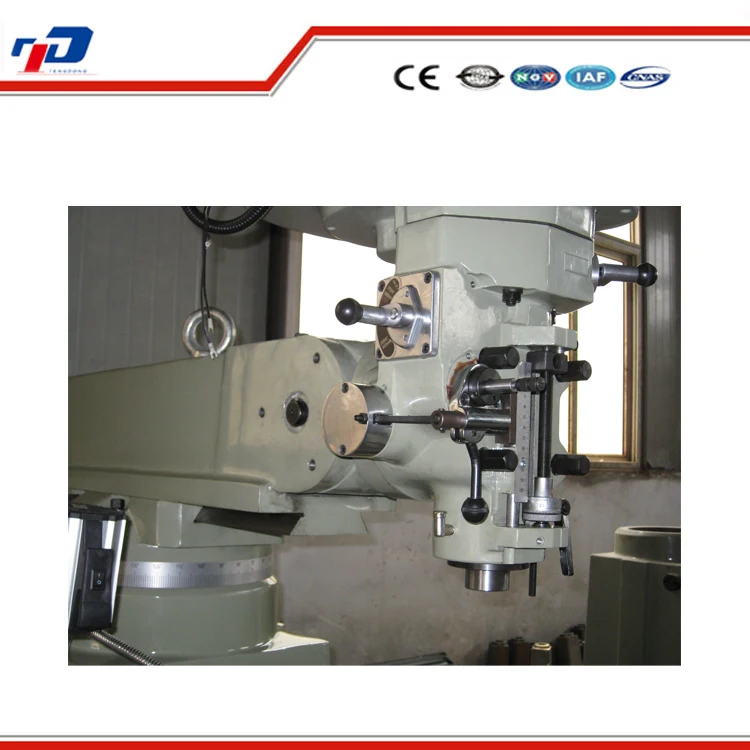

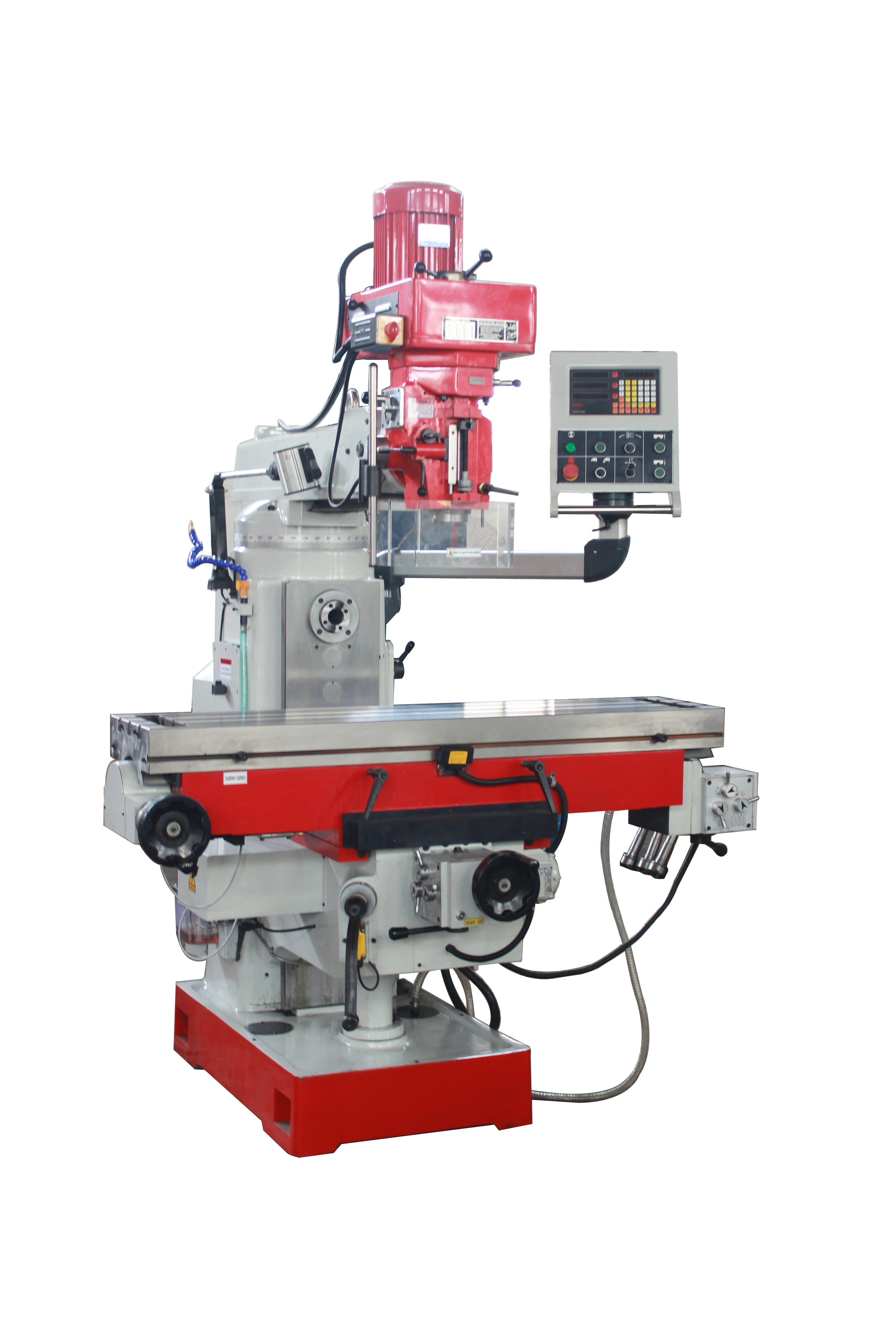

Turret milling machine 3H/3M milling machine manual milling machine
- Category: >>>
- Supplier: Zaozhuang City Tengdong Machine Tool Co. Ltd.
Share on (62047735308):
Product Overview
Description
Product Description
Specification
Specifications | Units | 4H | ||
Table size | mm | 1270x254(10”x50”) | ||
T- slot number and size | mm | 3x16 | ||
Working table stroke | X | mm | 780 | |
Y | 400 | |||
Z | 500 | |||
Telescopic arm stroke | mm | 470 | ||
Spindle nose to working table distance | mm | 0-405 | ||
Taper of spindle hole | r/min | Standard: R8 Optional: ISO30/ISO40 | ||
Spindle speed | Standard: 16(shift grade)50HZ:65-4500 60HZ:80-5440 | |||
Optional:(variable)65-4000 | ||||
Spindle travel | mm | 127 | ||
Spindle feed rate | mm/r | Three steps:0.04(0.0015”)/0.08(0.003”)/0.15(0.006”) | ||
Spindle motor power | KW/HP | 2.25/5HP | ||
Head rotation (left - right ) | ° | 90° | ||
Head rotation (front - rear) | ° | 45° | ||
Packaging size(Lx W x H) | Single package | mm | 1516x1550x2080 | |
Two sets of packaging | 1650x1790x2170 | |||
Three sets of packaging | 1650x2285x2235 | |||
Gross Weight | Kg | 1650 | ||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Tengdong Machine Tool Co., Ltd. is a set of lathes, milling machines, drilling machines, planers, presses and other machine tool
equipment consisting mainly of modern production group production enterprises.
Company under the three production bases, an import and export foreign trade companies
equipment consisting mainly of modern production group production enterprises.
Company under the three production bases, an import and export foreign trade companies
