Refractory C40 ladle Slide gate plate for steel plant

Product Overview

Description

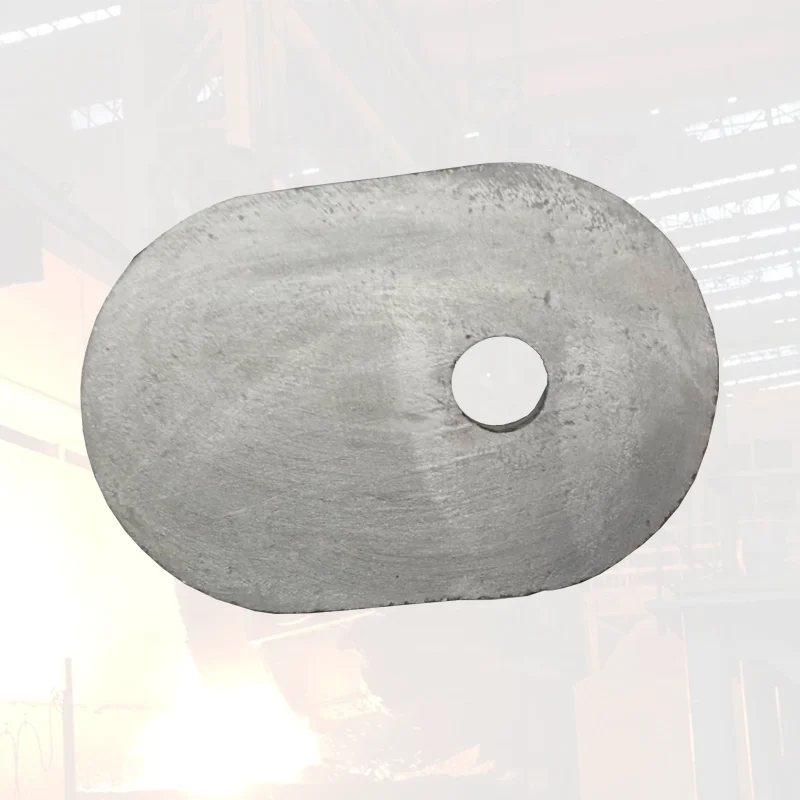

Refractory C40 ladle Slide gate for STEEL PLANT



Refractory ladle Slide gate (C40) supply to the Singapore STEEL PLANT is detailed as follow :

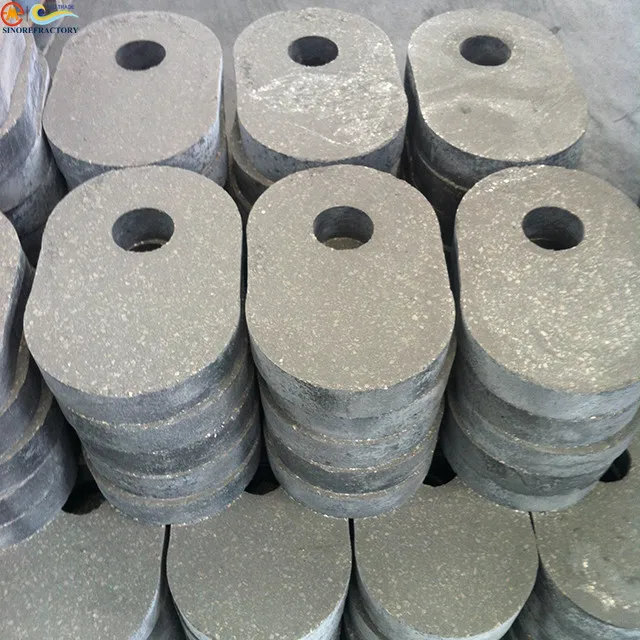

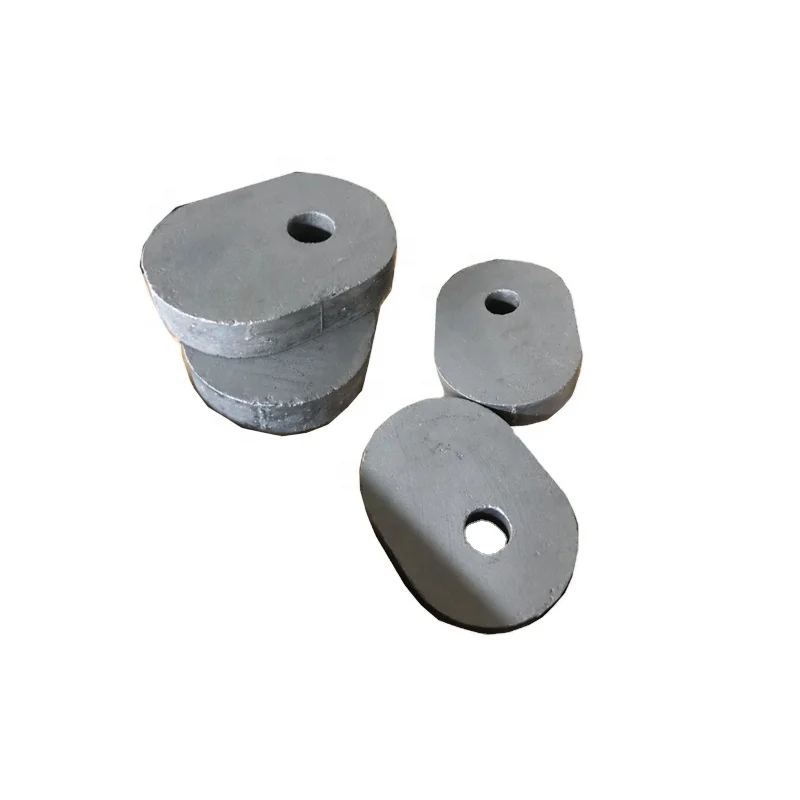

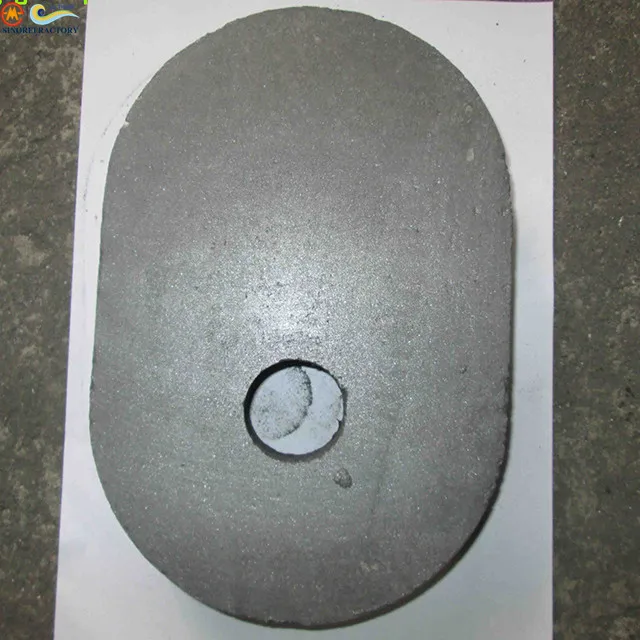

Slide gate plate for Large and Medium size ladles

This product adopts tabular alumina, carbonaceous material and zirconia-containing material as main raw materials,

adds in high performance antioxidants, uses phenolic resin as binder, formed under high-pressure and burned under

high temperature. The slide plates have the advantages of high strength, good erosion resistance, thermal shock

resistance and good stability etc., mainly used in large and medium-sized ladle.

alumina-zirconia-carbon slide gates for large-sized and middle-sized ladle with high performance of resistance to steel erossion ,

to thermal shock and to molten steel. The produsts lasts for up to six heats when used in 150T ladle, which are welcomed by customes because of the excellent application results.

Alumina, alumina carbon, magnesia, magnesia carbon, magnesia spinel slide gate also can be produce according customer request.



Al2O3 (% minm)	FC (% minm)	Apparent porosity (% max)	Bulk Density (gm./cc minm)	C.C.S (MPa minm)
75	4	14	2.85	75
85	3	14	2.9	80
90	3	14	2.95	80

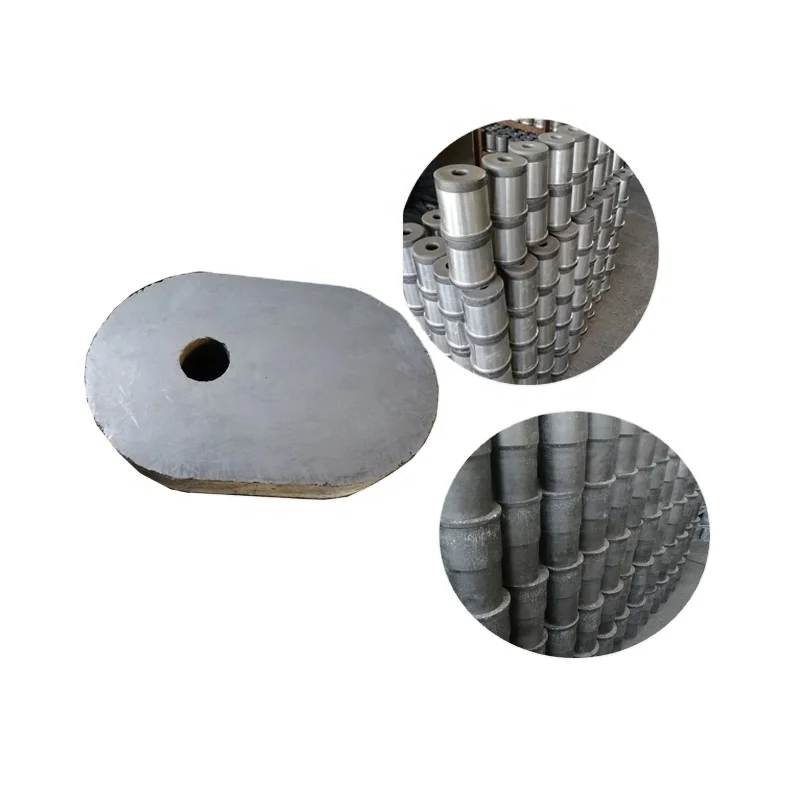

Complete set of ladle slide gate system refractories C10/20/40

Ladle slide gate refractories
Slide gate system consists of upper and lower slide plate and mechanical device.
It's installed outside of the ladle bottom. Upper slide plate is fixed, lower slide plate is removable.
There are mainly three operation methods:
1)Straight line reciprocating
2)Straight line pushing
3)Rotating
Through the drive rod, the slide plates keep straight line reciprocating movement, when the cast hole one slide plate stagger,

fill the upper nozzle with stuffing sand,fill ladle with molten steel, when the cast holes overlap, stuffing sand will flow out auto matically, and the casting starts. The speed of casting can be controlled by the extent of overlapping between the cast holes.



Keywords:
Ladle slide gate plate, slide gate plate, refractory slide gate plate, refractory slide plate, refractory slide gate value,continuous casting refractory slide gate set
Ladle nozzle, collector nozzle, upper nozzle, lower nozzle, inner nozzle, refractory nozzle
Ladle well block, ladle seating well block, seating well block, precast refractory block
Ladle purging plug, porous plug, slot plug, slit plug, segment plug, preassembled set, purging plug and well block
Ladle shroud, monoblock stopper, submerged entry nozzle, subentry nozzle
Tundish nozzle, tundish metering nozzle, Nonswirling tundish nozzle, tundish upper nozzle, tundish lower nozzle, tundish well block, tundish slide plate

Packaging: carton+ wooden case+pallet.

Transportation&storage:Keep dry and handle with case.
To be kept upright.

1) Location advantages

Jinan is one of the hub cities in China, in the east with the west's position in Shandong province. China's cross-center of Beijing-Shanghai Railway with Beijing-Guangzhou Railway, is an important cities of logistics nodes, the usual port for the export of

 Qingdao Port, Tianjin Port; it is also the gateway connecting East and North of China, and one of the most dynamic economic development cities in China today.



2) Scale advantages

Our company is the largest professional production base for sliding gate in china, with a total area of 300,000 square meters, more than 2,000 employees, including over 180 R & D personnel, grants and identified, by provincial and municipal, with the "leading enterprise for technology "" private Technology Enterprise "," high-tech enterprise "and" Shandong Famous Brand "," quality

Trustworthy Enterprise ", has five subsidiaries and production base, 37 high-quality suppliers, and 19 international distributors.



3) Technical advantages

The company has domestic leading production technology and production equipment, is a national high tech enterprise for three decades of growth. Provide with high quality, efficient industrial and service quality for customers.

More than 95% of R&D personnel are among the metallurgical industry leaders, with good work experience and high technical level. We are the patent owner of the sliding gate, is a pioneer of contracting services in steel. In strict accordance with ISO9001-2000

quality system standards and is certified. Have the leading position in the peer.

4) Service advantages

Our company is the largest supplier of refractory material in China, providing all in one-stop service of scientific research,

production, development, import and export, customer needs, providing customers with solutions to problems is always our goal.



Jinan Linquan Industry and Trade Group Co., Ltd. is a collection of scientific research, design, development, production, and import and export trade in one group of Companies, a national large-scale backbone enterprise for refractory materials.

Our company covers an area of more than 300 thousand square meters, have advanced technology and equipment, testing equipment and instruments.

We mainly produce fireclay refractories, high aluminum refractories, carbon containing refractories, and have the production line of

a variety of high-purity synthetic materials.



Our most popular products: All series of Ladle and Tundish refractories

Our annual production capacity of slide gate plates is more than 80,000 tons.

List of our main products: Ladle Slide plate, ladle and tundish nozzle, well block, porous block, refractory castable, refractory brick,

parts of raw materials.

Main Production Equipment:

Friction brick press 400t 1 units

Friction brick press 500t 2 sets

Friction brick press 630t 5 sets

Friction brick press 1000t 4 sets

Vacuum composite PRESS 1000t 3 sets

Hydraulic press 630t 2 sets

Wet grinding machine 8 sets

The mixing machine 4sets

Tunnel kiln 8 sets

Shuttle kiln 3 sets
