STMA new model FD30 lift truck diesel forklift truck 3 ton forklift price for sale
- Category: >>>
- Supplier: STMA Industrial (Xiamen) Co. Ltd
Share on (62047999282):
Product Overview
Description
Product Description
STMA new model FD30 lift truck diesel forklift truck 3 ton forklift price for sale
forklift price for sale
Detailed Image
SPECIFICATIONS FOR FD30 FORKLIFT | |||||||
Model | FD30 | ||||||
1 | Power Type | Diesel | |||||
2 | Rated Capacity | kg | 3000 | ||||
Load Centre | mm | 500 | |||||
Lift Height | mm | 3000 | |||||
5 | Fork Size (L×W×T ) | mm | 1070×125×50 | ||||
Mast Tilt Angle (F/R) | Deg | 6°/12° | |||||
Front Overhang (Wheel center to fork face) | mm | 490 | |||||
8 | Ground Clearance(Bottom of mast) | mm | 120 | ||||
Turning Radius (outside) | mm | 2445 | |||||
Min. Intersecting aisle | mm | 2235 | |||||
11 | Max.Gradeability (No load/Full load) | % | 19 | ||||
12 | Wheelbase | mm | 1700 | ||||
13 | Service weight | kg | 4390 | ||||
14 | Battery (Voltage/Capacity) | V/Ah | 12/90 | ||||
15 | Overall Dimension | Length to face of fork(Without fork) | mm | 2700 | |||
16 | Overall Width | mm | 1225 | ||||
17 | Mast Lowered Height | mm | 2125 | ||||
18 | Mast Extended Height(With backrest) | mm | 4150 | ||||
19 | Overhead Guard Height | mm | 2090 | ||||
20 | Travel (No load) | km/h | 19 | ||||
21 | Lifting(Full load) | mm/s | 410 | ||||
22 | Front | mm | 28x9-15-12PR | ||||
23 | Rear | mm | 6.50-10-10PR | ||||

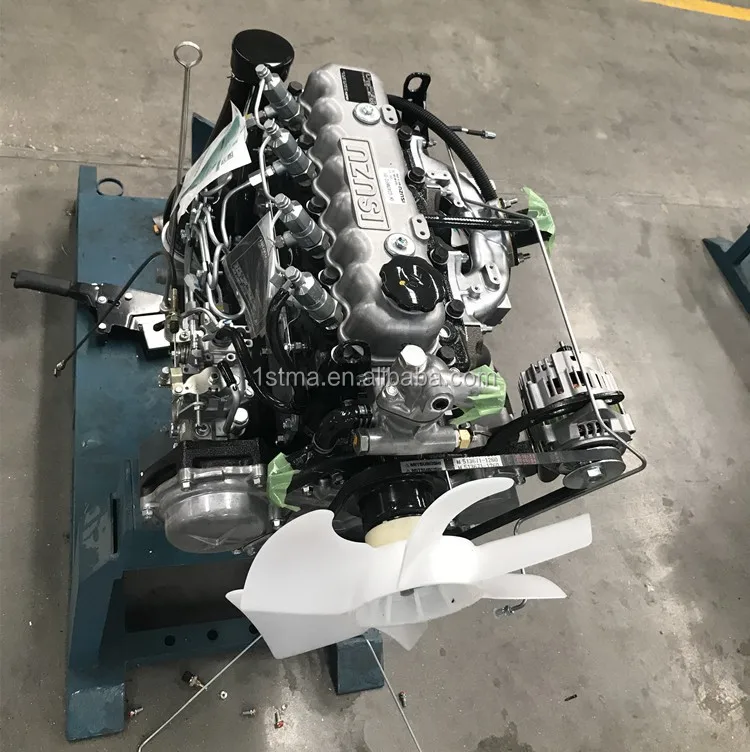

24 | Model | C240 PKJ | |||||
25 | Manufacture | ISUZU | |||||
26 | Rated output/r.p.m. | kw | 35.4/2500 | ||||
27 | Rated torque/r.p.m. | N·m | 139/1800 | ||||
28 | No.of Cylinder | 4 | |||||
29 | Bore×Stroke | mm | 86×102 | ||||
30 | Displacement | cc | 2369 | ||||
31 | Fuel Tank Capacity | L | 70 | ||||
32 | Type | Powershift | |||||
33 | Stage FWD/RVS | 43101 | |||||
34 | Operating Pressure for Attachment | Mpa | 17.5 | ||||
