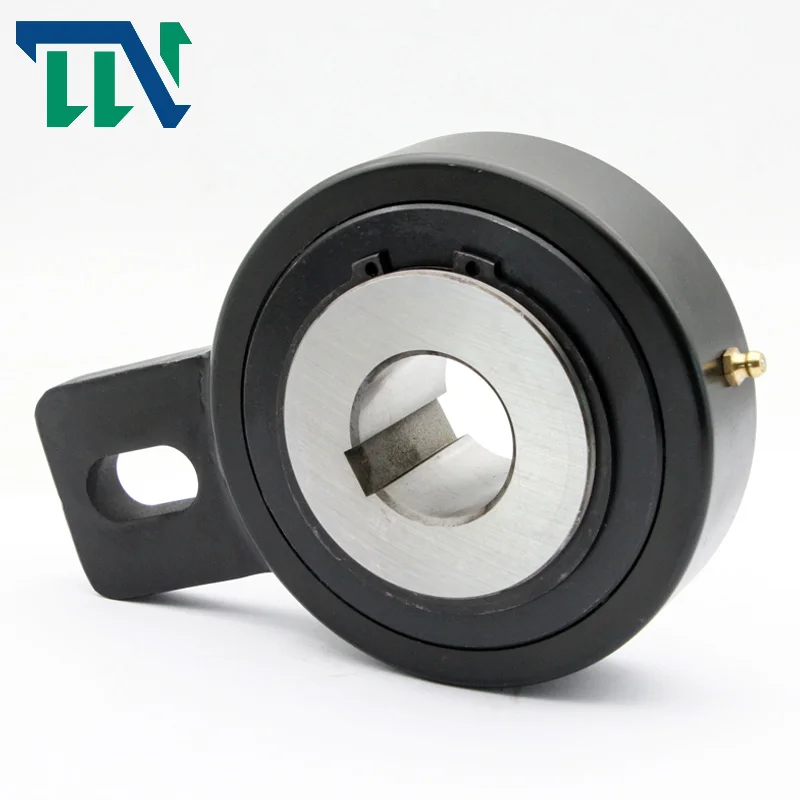

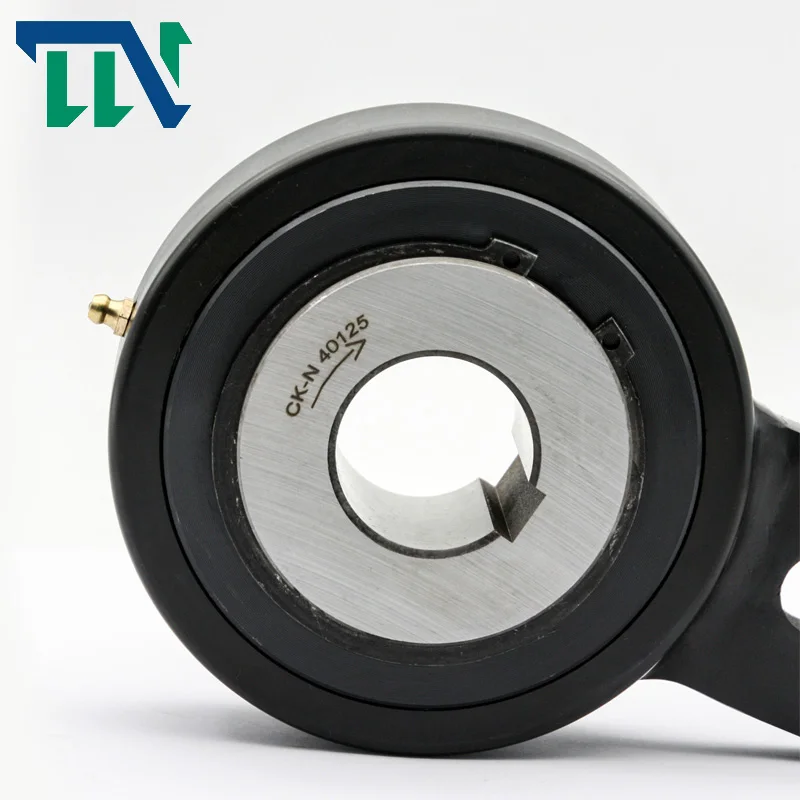

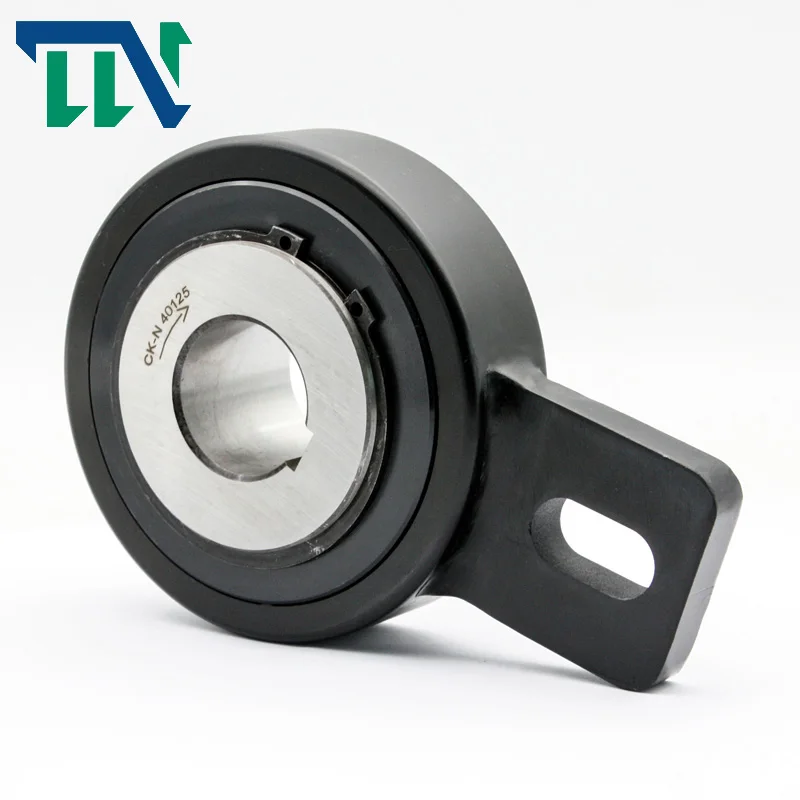

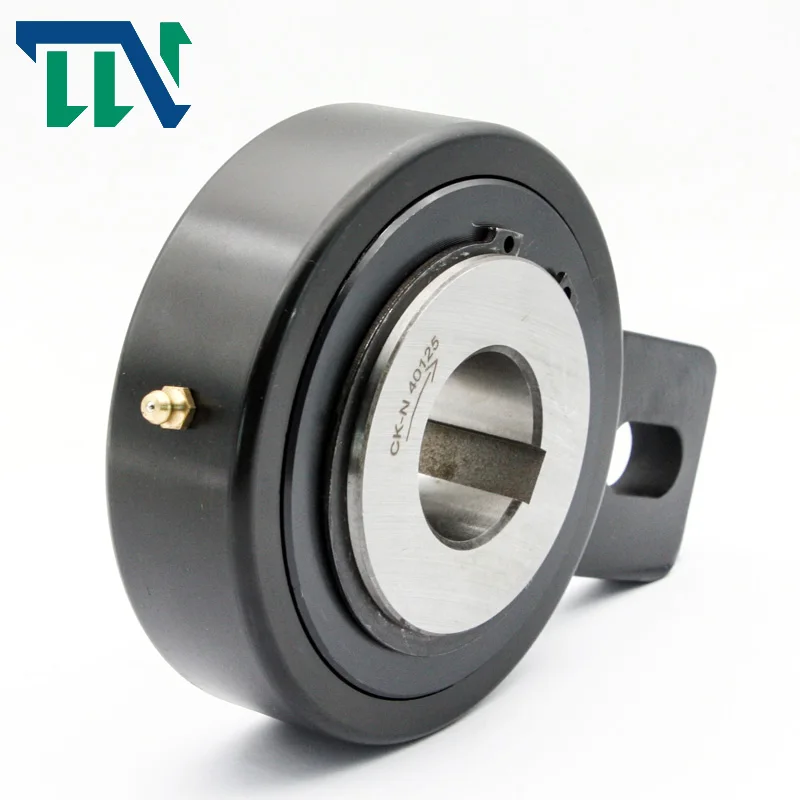

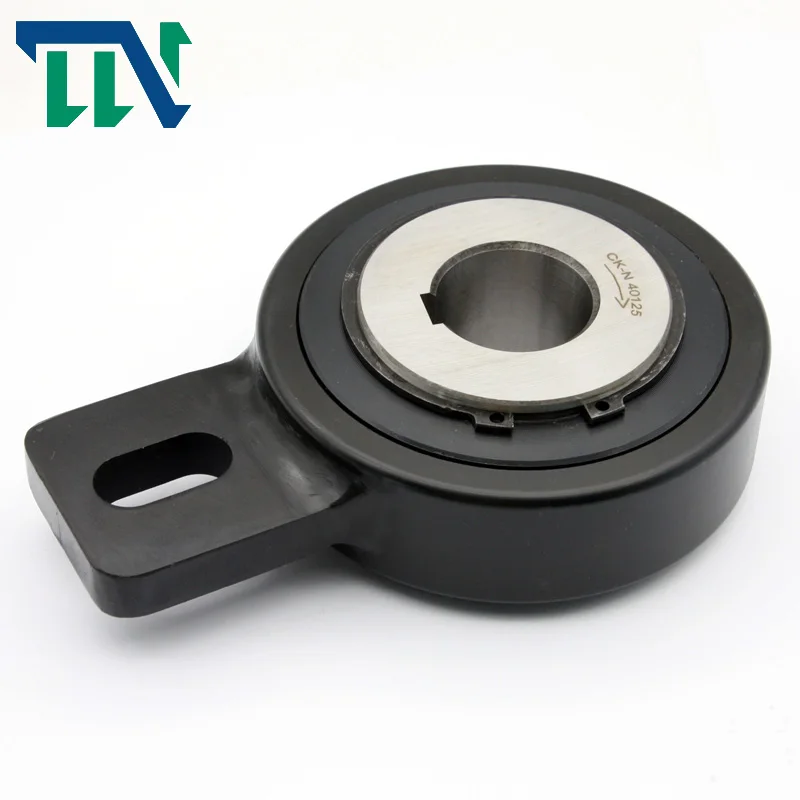

BSEU40 30 Roller Type One Way Cutch Bearing Conveyor Backstop New
- Category: Other Ball Bearings >>>
- Supplier: Changzhou Tianniu Transmission Equipment Co. Ltd.
Share on (62048097898):
Product Overview
Description
Product Description
Technical Datas
| Item | BSEU40-30 |
| Material | GCr15 |
| Bore dia. | 30 mm |
| Outer dia. | 118 mm |
| Width | 55 mm |
| Torque capacity | 1140 N.m |
| Overrunning limiting speed | 450 r/min |
| Weight | 3.363 kg |
| Package | Carton box, wooden box or as your requirements |
Features of BSEU Backstop
BSEU series Cam Clutch was developed as European style Backstopping Cam Clutch which has easy usage. It has Cam & Roller construction that the roller works as a bearing same as the small size BS series Cam Clutch. The outer race has special shape which was combined the torque arm, so only stopping the rotation is required.
You can select the correct model from various bore size from 20 mm to 90 mm in each 5 mm. Backstopping for the country elevator or the foods conveying conveyor which is used in the factory is the recommendation. We recommends BS series Cam Clutch in the very dusty environment condition or the inclined conveyor and the bucket elevator which are used in outside location.
Dimensions and Capacities
Bore Size | Torque | Max. |
|
|
|
|
|
|
|
|
|
|
Min kg |
kg | ||
Dia. |
| |||||||||||||||
BSEU25 | 20 | 6×2.8 | 216 | 500 | 83 | 42 | 35 | 12 | 40 | 90 | 15 | 35 | 5 | 1 |
0.999 |
0.948 |
BSEU25 | 25 | 8×3.3 | 216 | 500 | 83 | 42 | 35 | 12 | 40 | 90 | 15 | 35 | 5 | 1 | ||
BSEU40 | 20 | 6×2.8 | 1,440 | 450 | 118 | 60 | 55 | 15 | 40 | 110 | 15 | 35 | 8 | 1.5 |
3.781 |
3.363 |
BSEU40 | 25 | 8×3.3 | 1,440 | 450 | 118 | 60 | 55 | 15 | 40 | 110 | 15 | 35 | 8 | 1.5 | ||
BSEU40 | 30 | 8×3.3 | 1,440 | 450 | 118 | 60 | 55 | 15 | 40 | 110 | 15 | 35 | 8 | 1.5 | ||
BSEU40 | 35 | 10×3.3 | 1,440 | 450 | 118 | 60 | 55 | 15 | 40 | 110 | 15 | 35 | 8 | 1.5 | ||
BSEU40 | 40 | 12×3.3 | 1,440 | 450 | 118 | 60 | 55 | 15 | 40 | 110 | 15 | 35 | 8 | 1.5 | ||
BSEU70 | 45 | 14×3.8 | 3,140 | 350 | 165 | 90 | 59 | 20 | 80 | 140 | 18 | 35 | 10 | 1.5 |
7.607 |
6.541 |
BSEU70 | 50 | 14×3.8 | 3,140 | 350 | 165 | 90 | 59 | 20 | 80 | 140 | 18 | 35 | 10 | 1.5 | ||
BSEU70 | 55 | 16×4.3 | 3,140 | 350 | 165 | 90 | 59 | 20 | 80 | 140 | 18 | 35 | 10 | 2 | ||
BSEU70 | 60 | 18×4.4 | 3,140 | 350 | 165 | 90 | 59 | 20 | 80 | 140 | 18 | 35 | 10 | 2 | ||
BSEU70 | 65 | 18×4.4 | 3,140 | 350 | 165 | 90 | 59 | 20 | 80 | 140 | 18 | 35 | 10 | 2 | ||
BSEU70 | 70 | 20×4.9 | 3,140 | 350 | 165 | 90 | 59 | 20 | 80 | 140 | 18 | 35 | 10 | 2 | ||
BSEU90 | 75 | 20×4.9 | 4,700 | 250 | 190 | 120 | 63 | 20 | 80 | 165 | 20 | 40 | 15 | 2 |
10.046 |
9.265 |
BSEU90 | 80 | 22×5.4 | 4,700 | 250 | 190 | 120 | 63 | 20 | 80 | 165 | 20 | 40 | 15 | 2 | ||
BSEU90 | 85 | 22×5.4 | 4,700 | 250 | 190 | 120 | 63 | 20 | 80 | 165 | 20 | 40 | 15 | 2 | ||
BSEU90 | 90 | 25×5.4 | 4,700 | 250 | 190 | 120 | 63 | 20 | 80 | 165 | 20 | 40 | 15 | 2 | ||
Mounting Example
Product Display
Packaging & Shipping
Clients Visit
Company Information
Certifications
FAQ
Q: Why do we choose your company?
A: Quality is the soul of an enterprise. We can provide you with good-quality one way clutches also with good price.
Q: What is the delivery time?
A: For small quality or samll size of clutches, we can deliver upon receiving advance.
For large quantity or large size, we have to produce 10-15 working days.
Q: Can you supply with sample clutch?
Of course! We can provide with a sample to your checking quality.
Q: What is the warranty period of the clutches?
One-year Guarantee.
