10HP/7.5KW впускного клапана AIV 25 для промышленной частоты масло винтовой компрессор

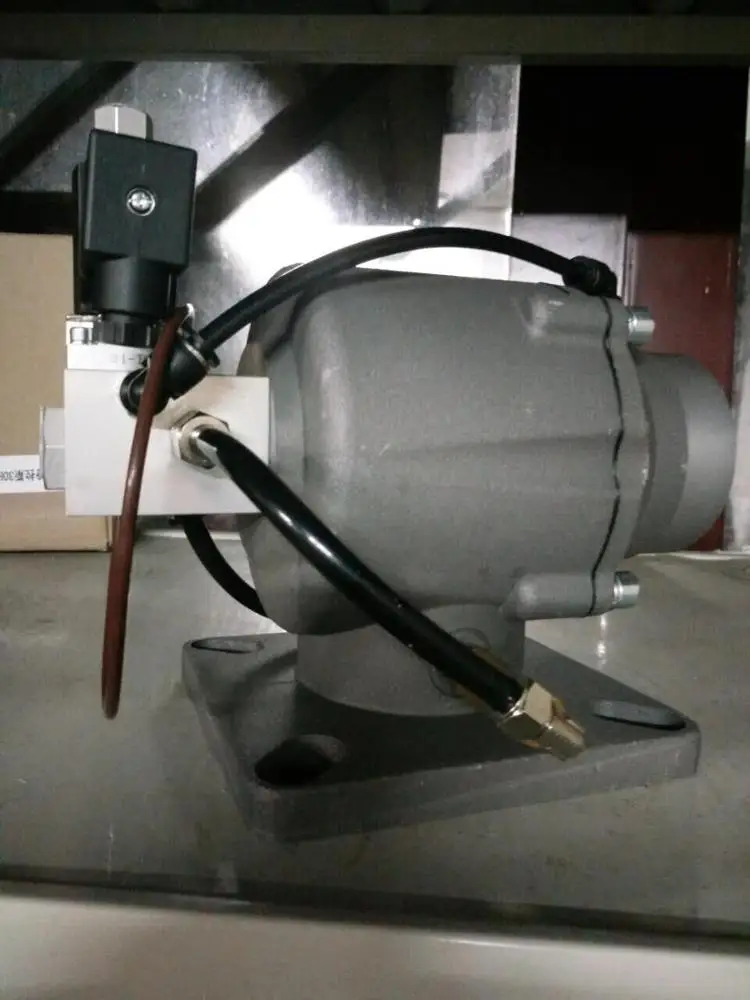

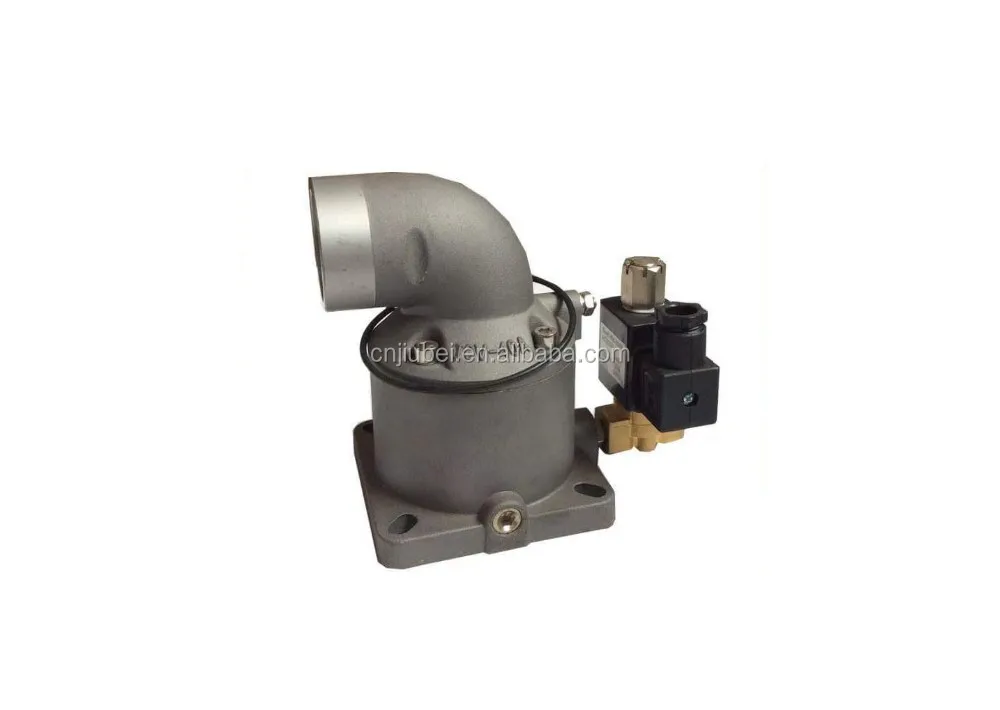

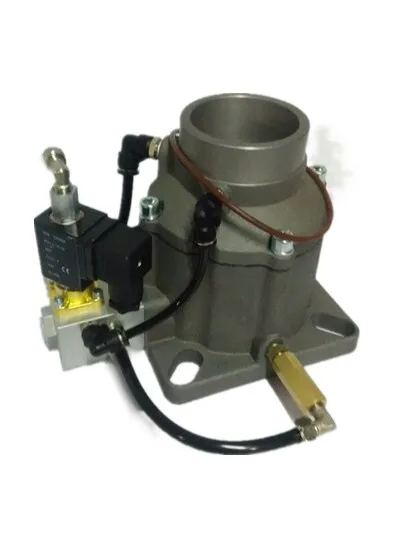

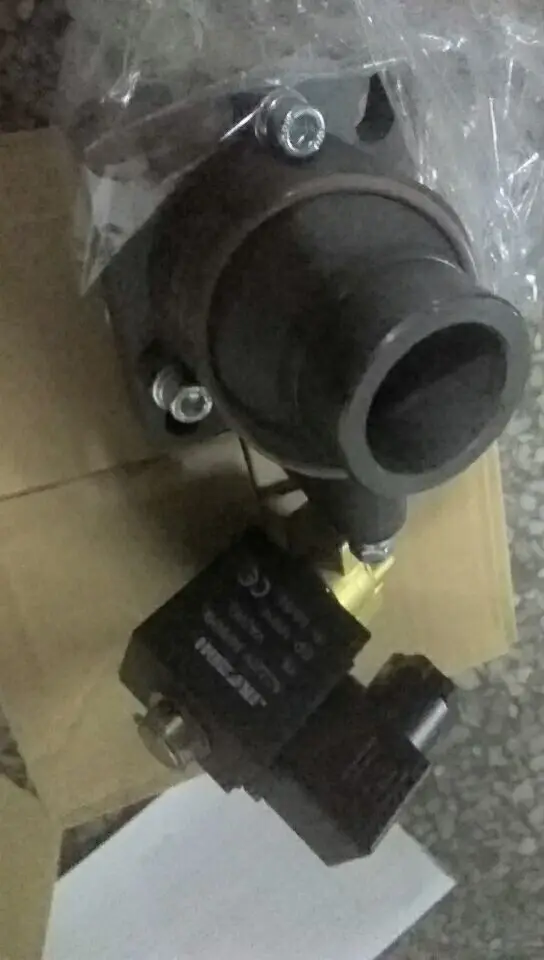

10HP/7.5KW Intake Valve AIV-25 for Power Frequency Oil-injected Screw Compressor

Features:

1,Application: Power Frequency Oil-injected Screw Compressor

2,It's N/O type and will close in response to a control pressure signal.

3,Special structure design solves the problem of high start load.

4,At shutdown, intake valve has check function to prevent oil injection through the compressor.

5,Intake valve can eliminate cavitation noise from air-end by air admission when unloading.

6,Integration of discharge valve, air admission valve, solenoid valve and proportional valve into an intake valve makes it install easily and quickly.

Technic Data


Model\tAIV-25\tAIV-40\tAIV-50\tAIV-65\tAIV-85\tAIV-100\tAIV-120

Nominal Diameter(mm)\t25\t40\t50\t65\t88\t100\t120

Working Pressure(bar)\t1~15

Working Medium Temperature(℃)\t-20~120

Working Environment Temperature(℃)\t-20~60

Check Function\t●\t●\t●\t●\t●\t●\t●

ON/OFF Control\t●\t●\t●\t●\t●\t●\t●

Flow Stepless Control\t―\t―\t○\t○\t●\t●\t●

Unload Air Admission\t○\t○\t●\t●\t●\t●\t○

Power of Solenoid Valve\tAC220V 50Hz(Power can be alternative.)

Certificate of Solenoid Valve\tCE(Certificate can be alternative.)

Inlet Direction\tVertical\tVertical/Horizontal\tVertical/Horizontal\tVertical/Horizontal\tVertical/Horizontal\tVertical/Horizontal\tVertical

● With ○ Optional ― Without

Model Description

AIV\t50\tB\tSR\tODE\tAC24\tUL

Series\tNominal Diameter\tFlange Size\tWith Unload Air Admission Valve or \tBrand of Solenoid Valv\tBlank:AC220V 50\tBlank:CE Certificate

\t \tInlet Direction\tInlet External Diameter\t \tAC110:AC110V 5\tUL:UL Certificate

\t \t \tWith Oil-return Hole or not\t \tAC24:AC24V 50H\t

\t \t \tPipeline Quantity from Oil-gas Tank\t \tDC24:DC24V\t

\t \t \tOther Demands\t \t
