USB 2.0 Full-Color LCD Display Tester

Model : UM25/UM25C

Technical Parameter:

Product Model:UM25/UM25C

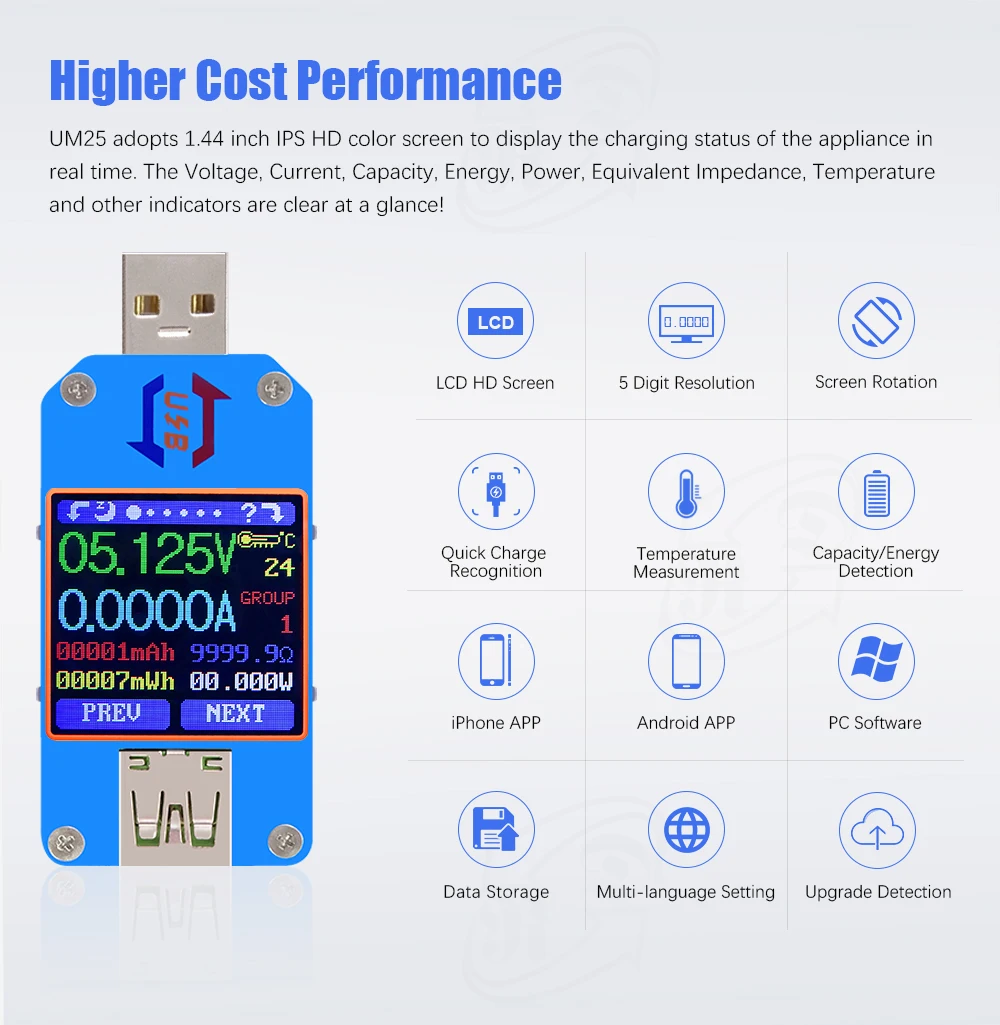

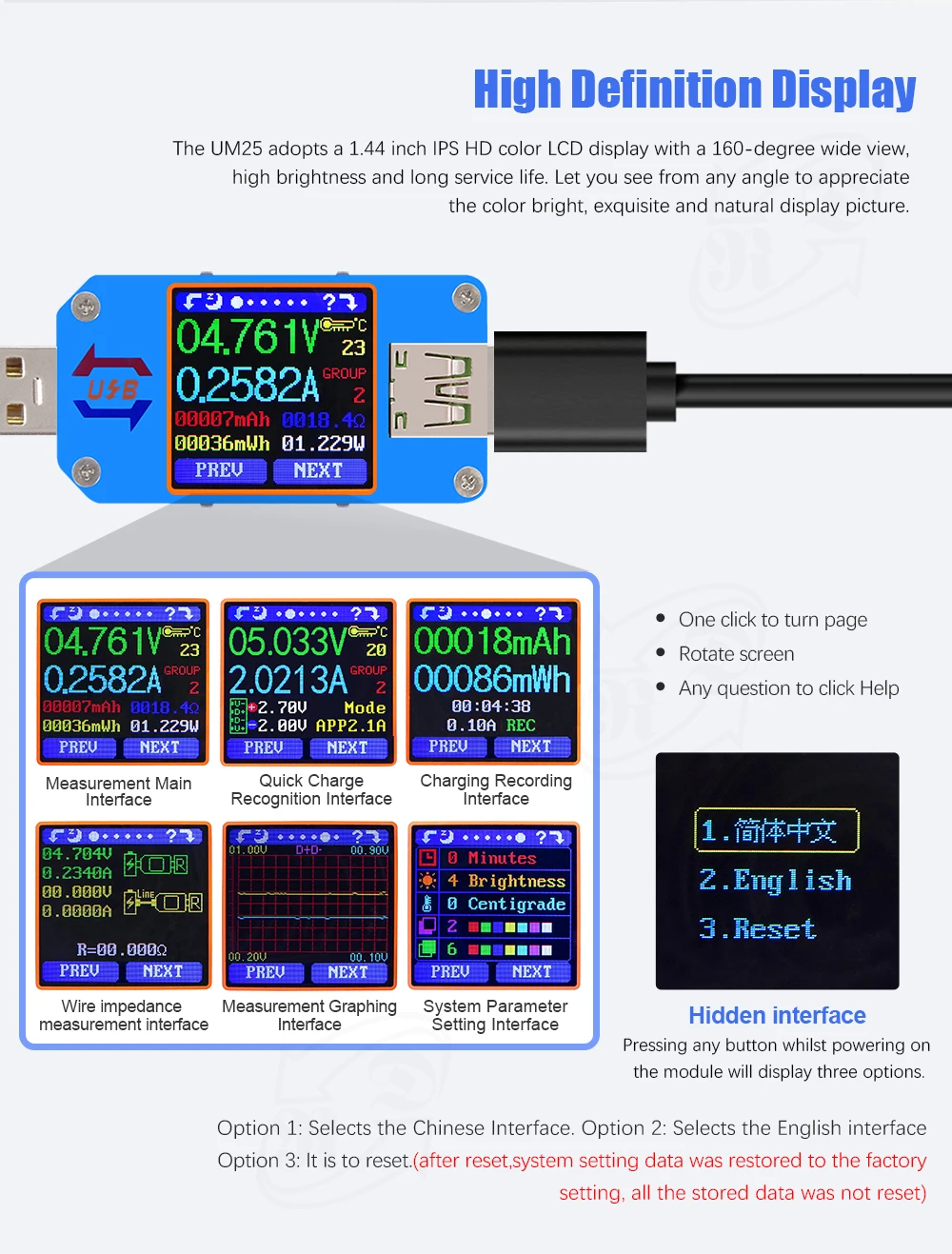

Display screen:1.44 Inch color LCD display

Voltage measurement range:4-24.000V

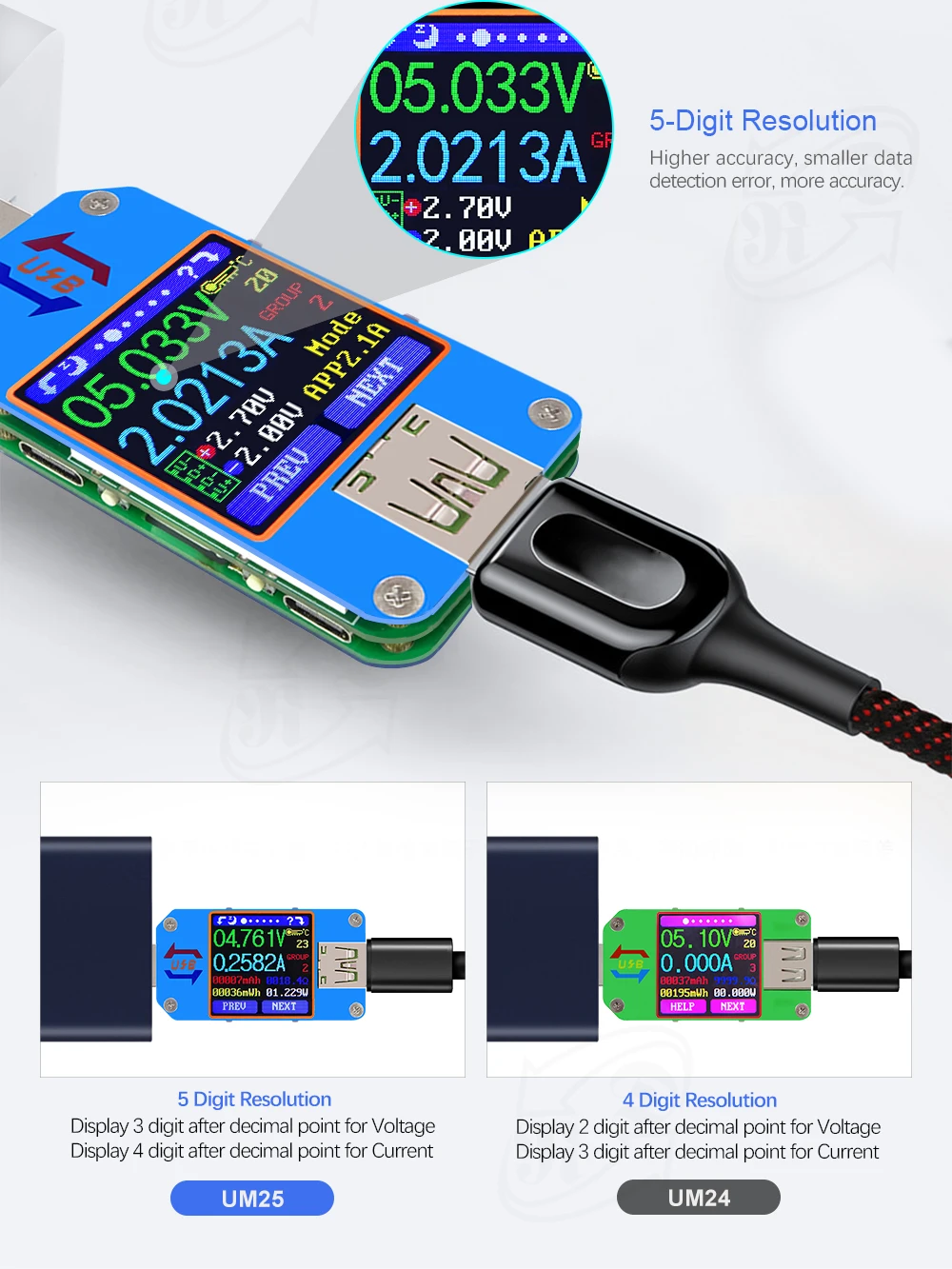

Voltage measurement resolution:0.001V

Current measurement range:0-5.0000A

Current measurement resolution:0.0001A

Capacity accumulation rannge:0-99999mAh

Voltage measurement accuracy:±(0.5‰+2digits)

Energy sccumulation range:0-99999mWh

Current measurement accuracy:±(1‰ +4 digits)

Load impedance range:0.8Ω-9999.9Ω

Time measurement range:0-99h59min59s

Temperature range:-10℃~100℃/0℉~200℉

Temperature measurement error:±3℃/±6℉

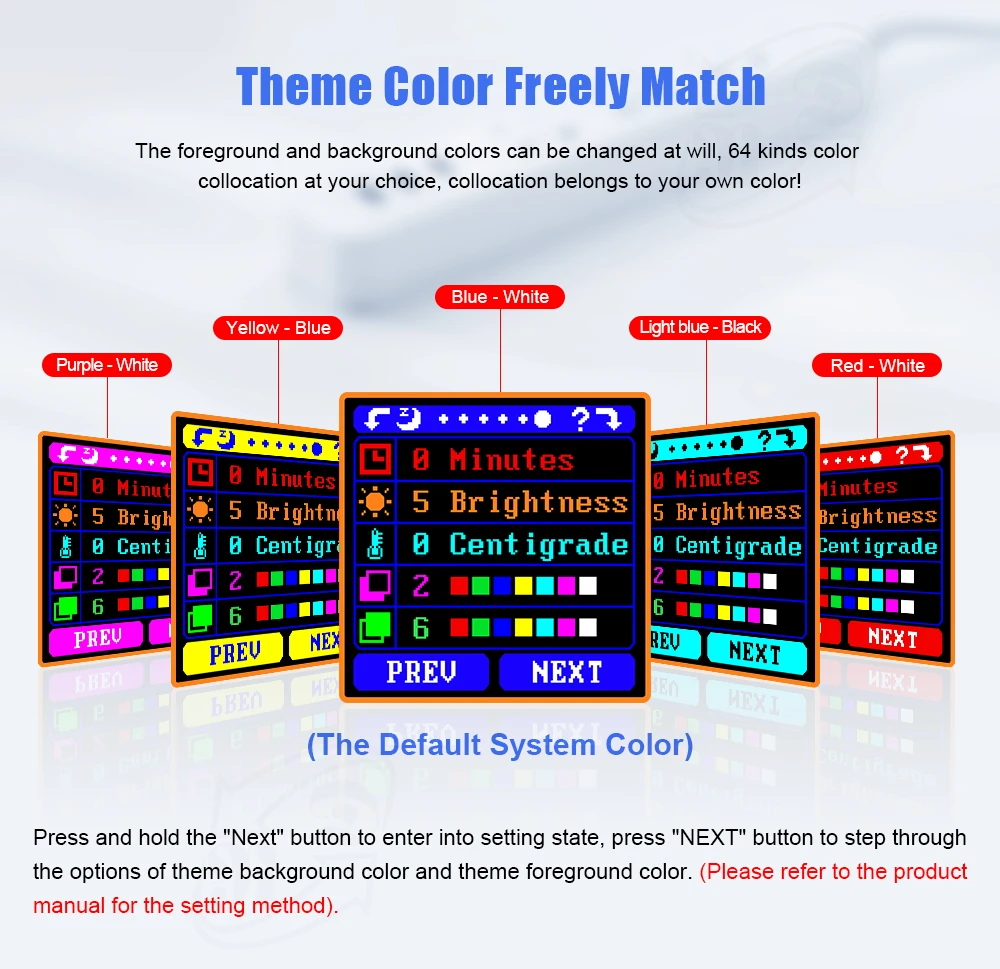

Screen brightness setting:0-5 levels

Auto screen off time:0-9mins

Voltage graphing range:0-24.00V

Current graphing range:-5.0000A

Refresh rate:2Hz

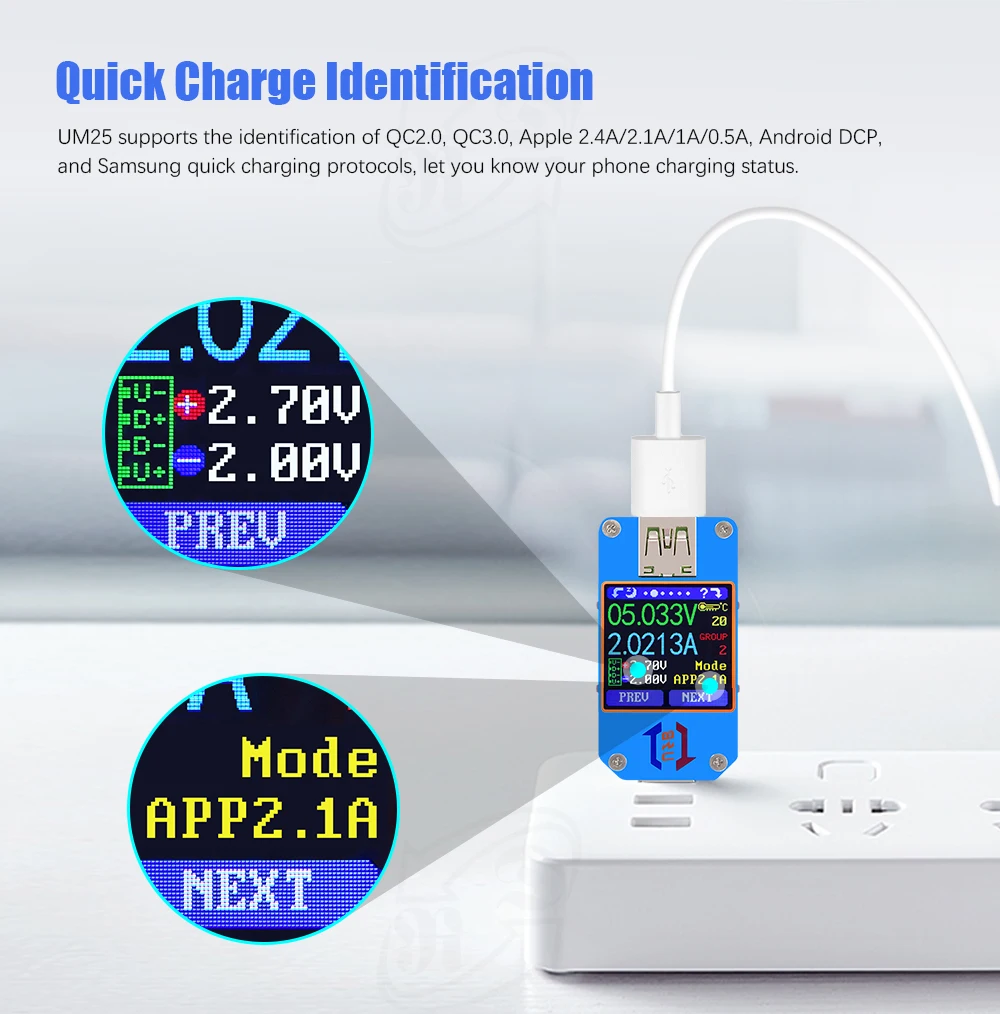

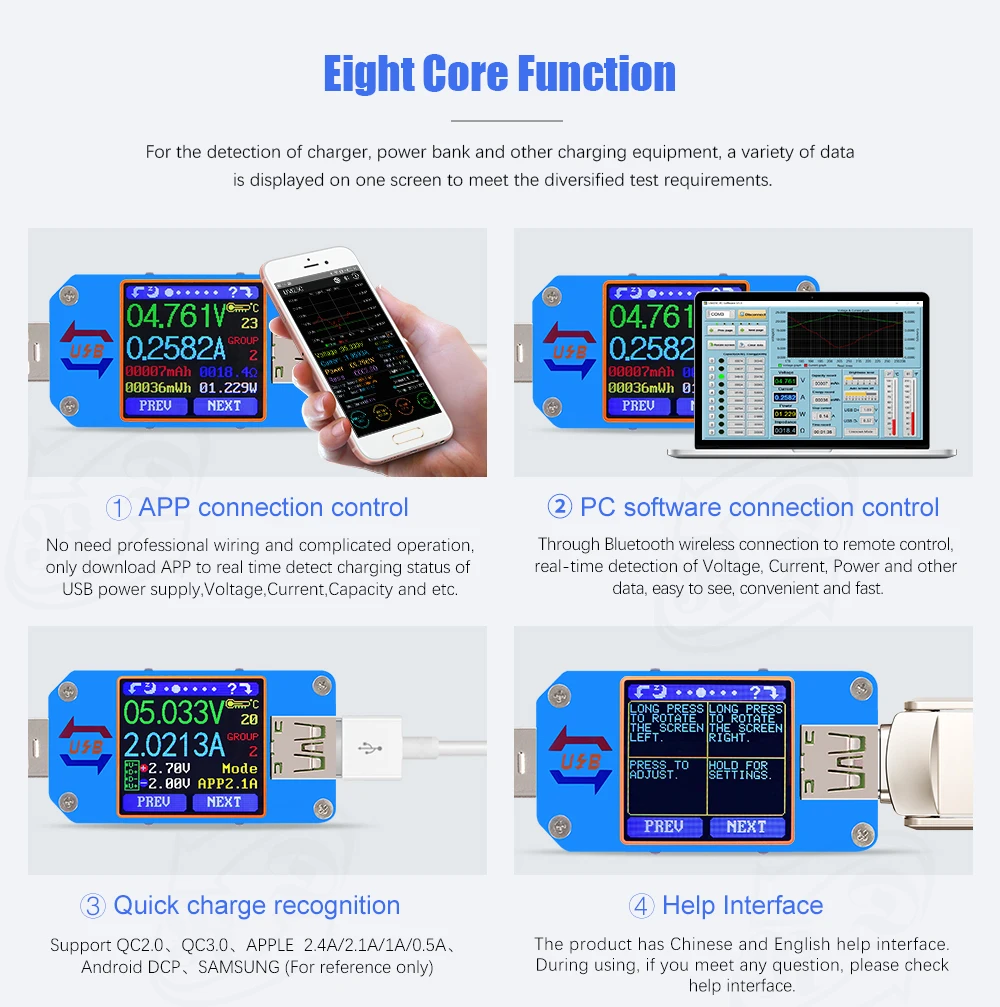

Quick charge recognition mode:QC2.0,QC3.0,APPLE 2.4A/2.1A/ 1A/0.5A,Android DCP,SAMSUNG

Product size:71.2mmx30.5mmx12.4mm(UM25C)/71.2mmx30.5mmx11.3mm(UM25)

Product weight:23.74g(UM25C)/19.26g (UM25)(No packaging);54.56g(UM25C)/50.08g (UM25)( With packaging)
