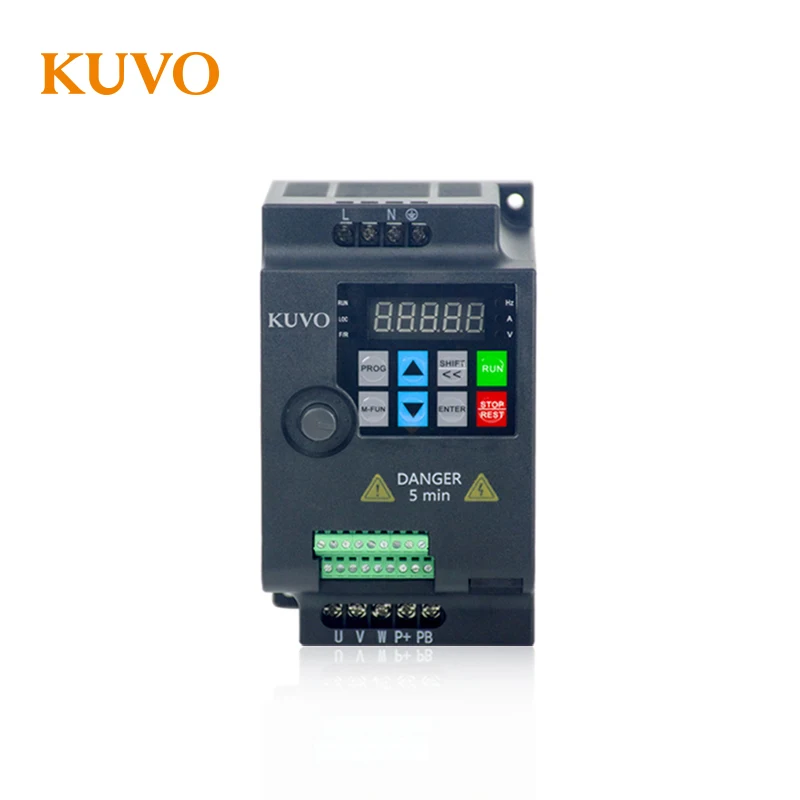

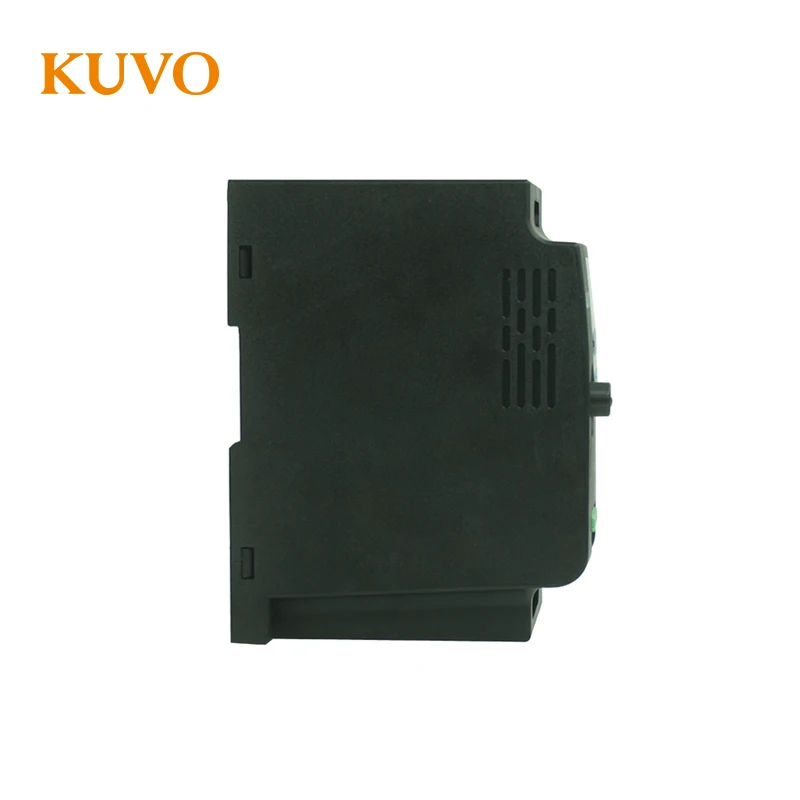

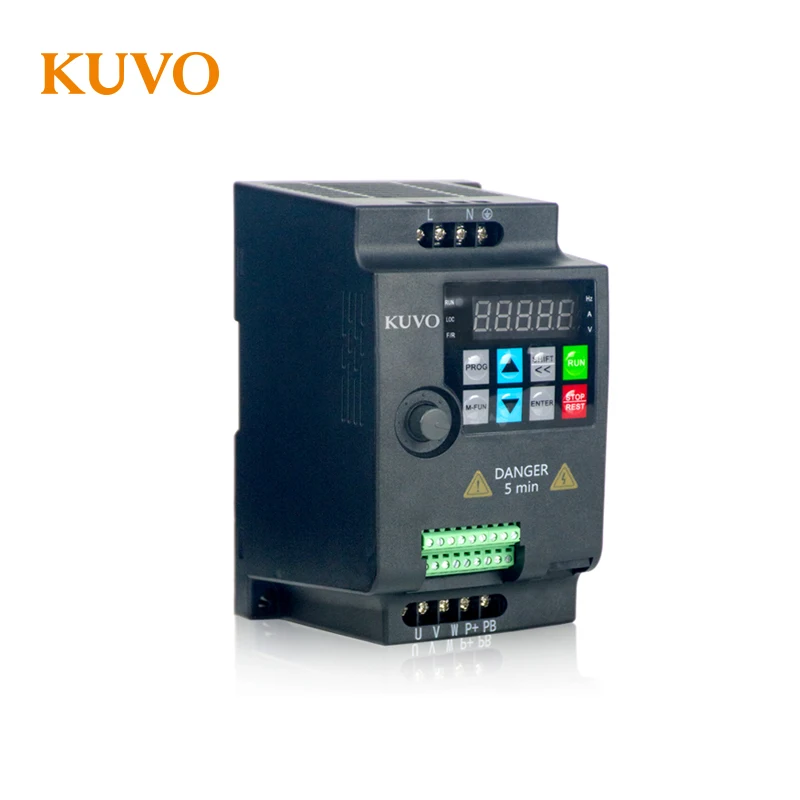

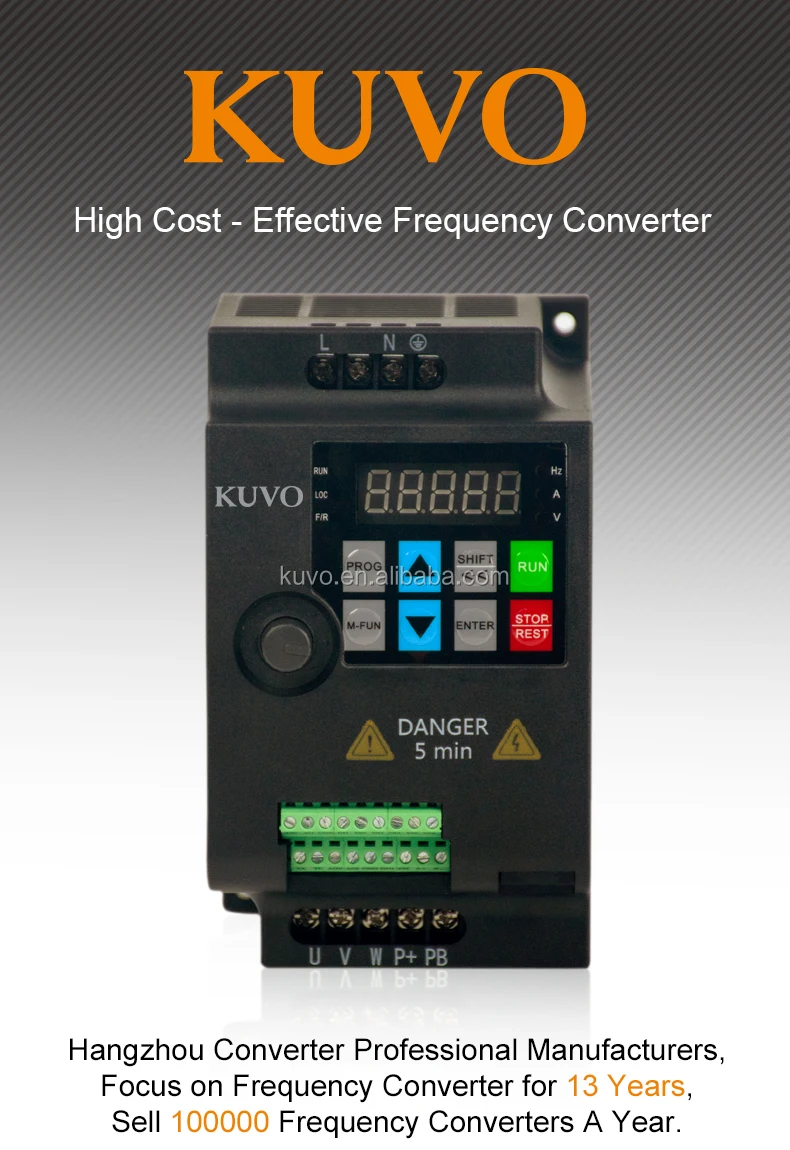

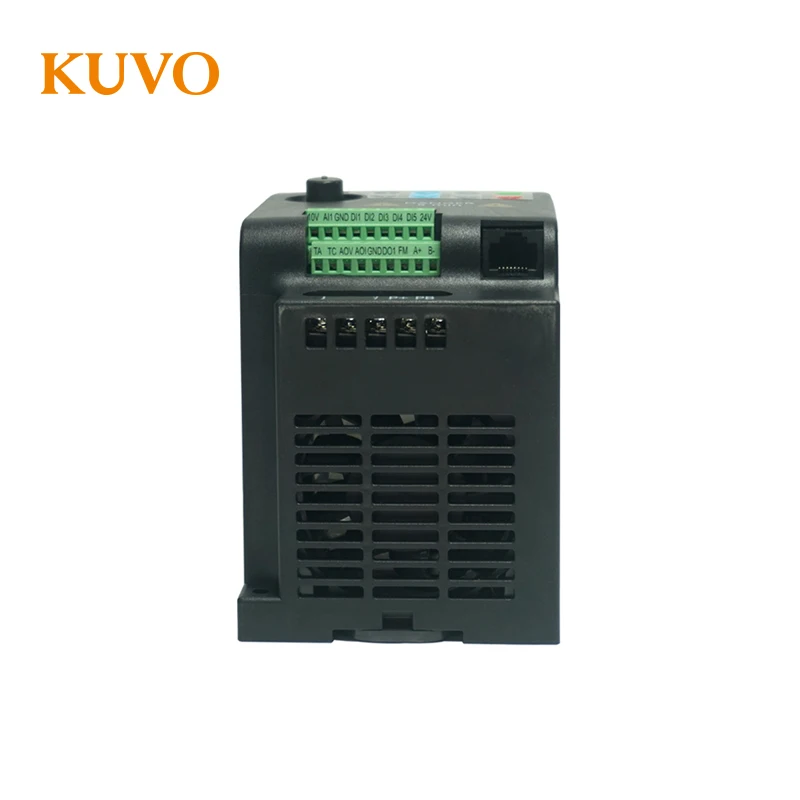

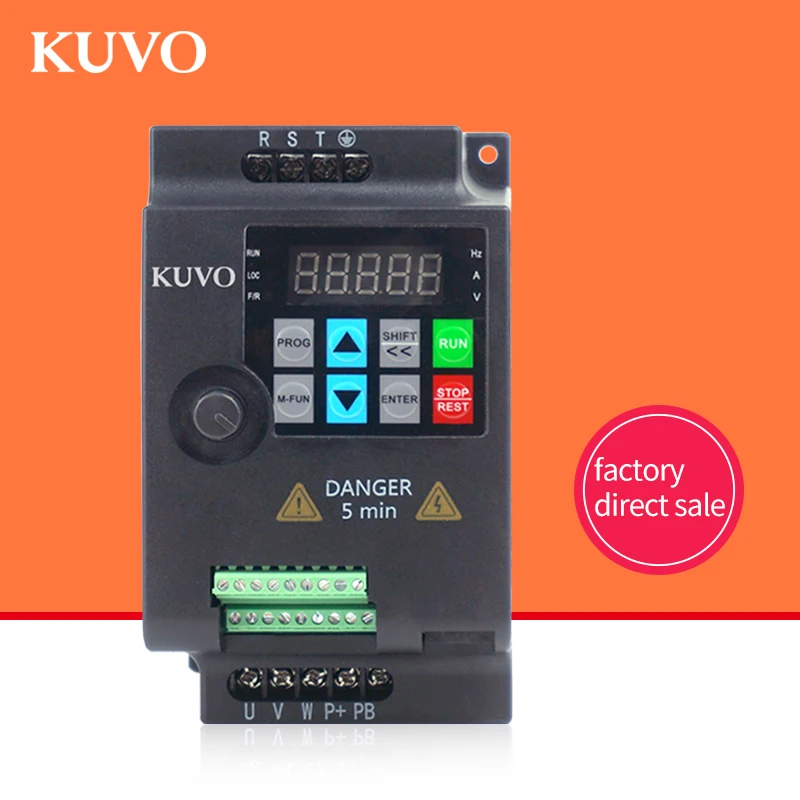

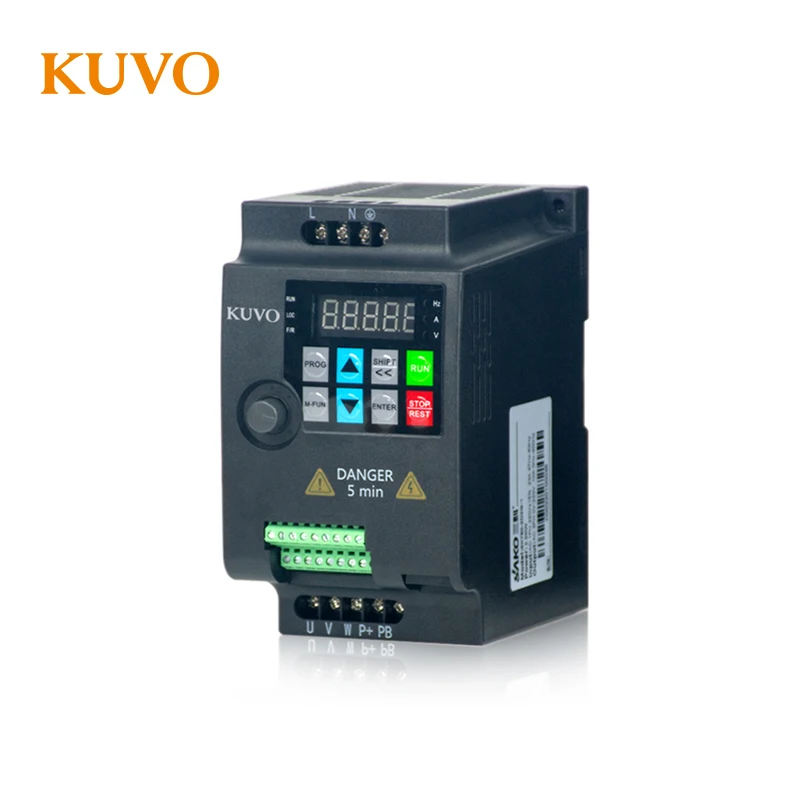

230V Single Phase Input 0.75kw 1HP Mini VFD Variable Frequency Drive Inverter for Motor Speed Control

Product Overview

Description

Technical Features

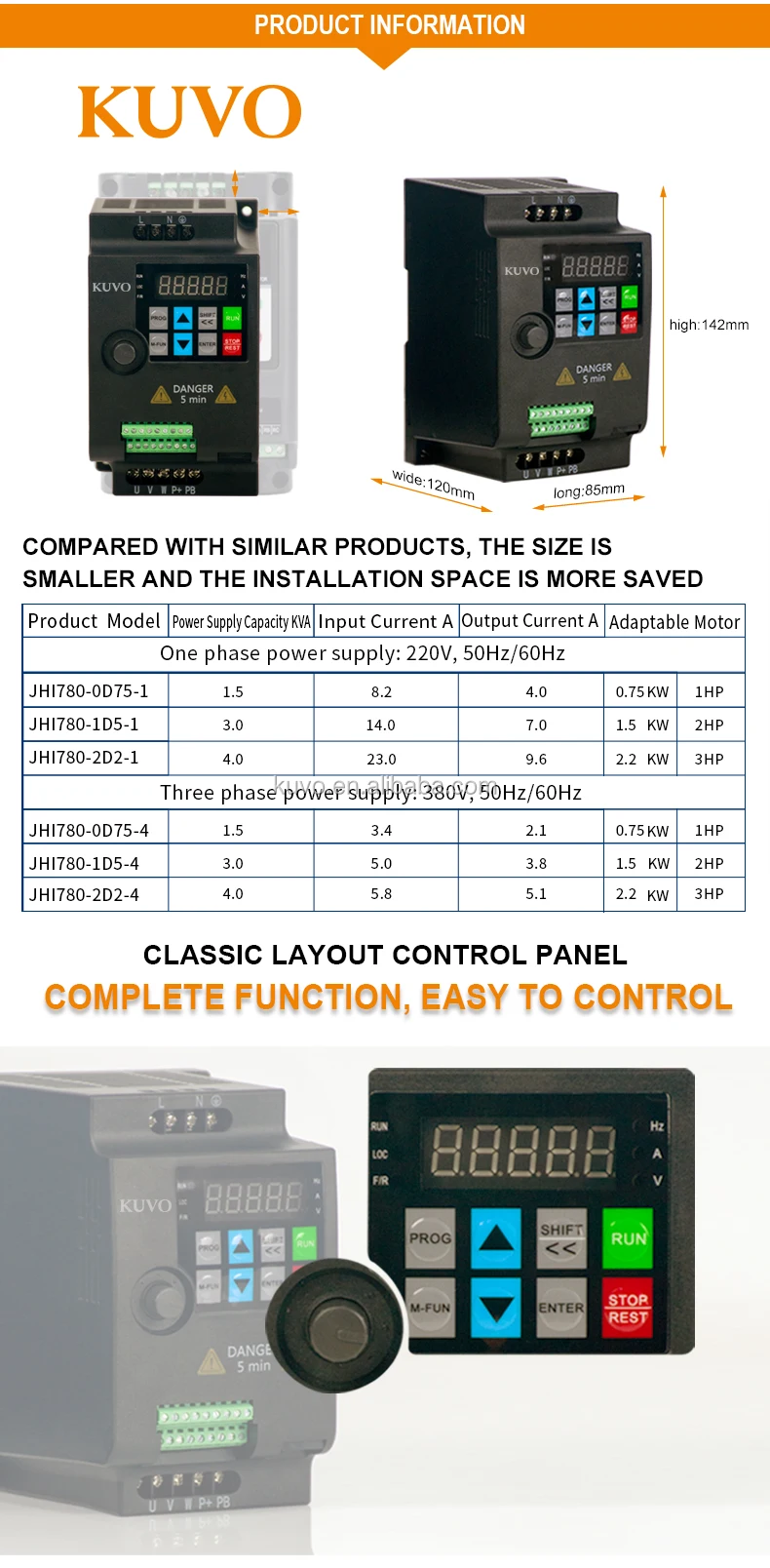

1. Rated Power Range: 0.75KW~2.2KW/380V; 0.75KW~2.2KW/220V
2. Output Frequency Range: 0~1000Hz
3. Control Mode: V/F Control, V/C Control
4. Overload Capability: G type, 60s with 150% of rated current, 5s with 180% of rated current;                                                        For 220% rated current, instantaneous protection.
5. PID control function

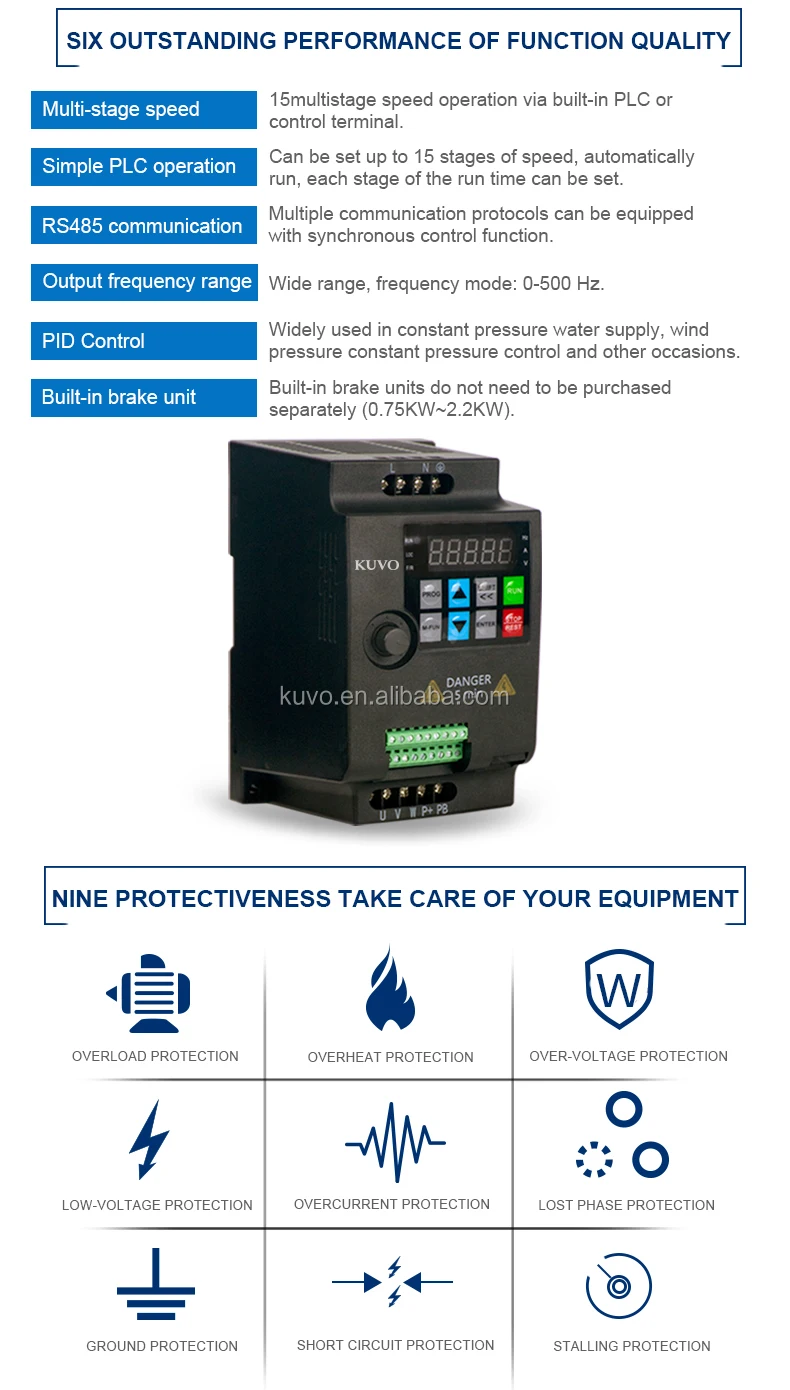

6. Multi-stage Speed Function: multi-stages speed could be set via PLC or connection port
7. Supporting multiple frequency setup methods: digital, PID, analog setup, modbus-RTU;
8. Speed Trace Function: smoothly restart the running motor
9. Automatic voltage regulation function(AVR)
10. Automatically keep the output voltage stable when input voltage fluctuating
11. Fault Protection: protect from over current, over voltage, under voltage, over temperature, phase failure, over load etc.
