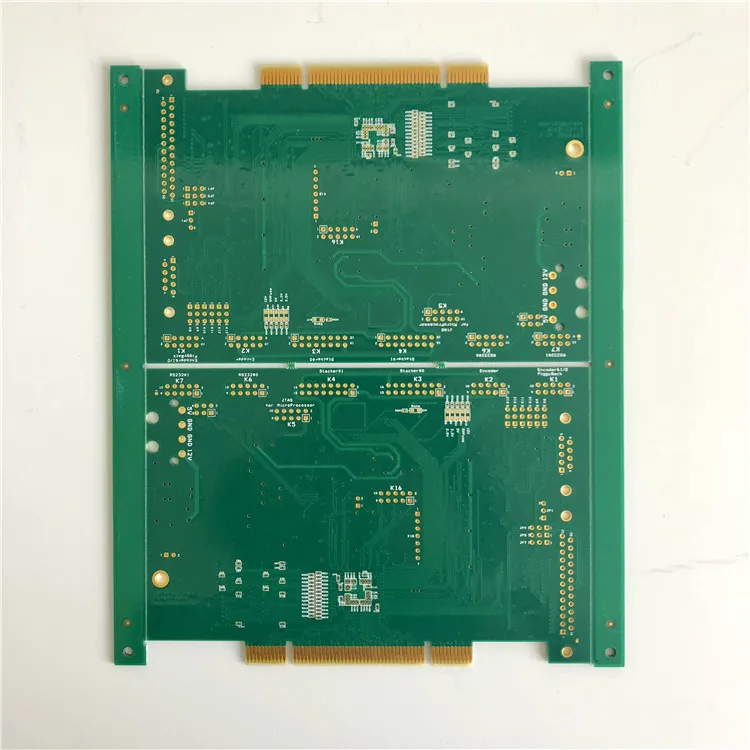

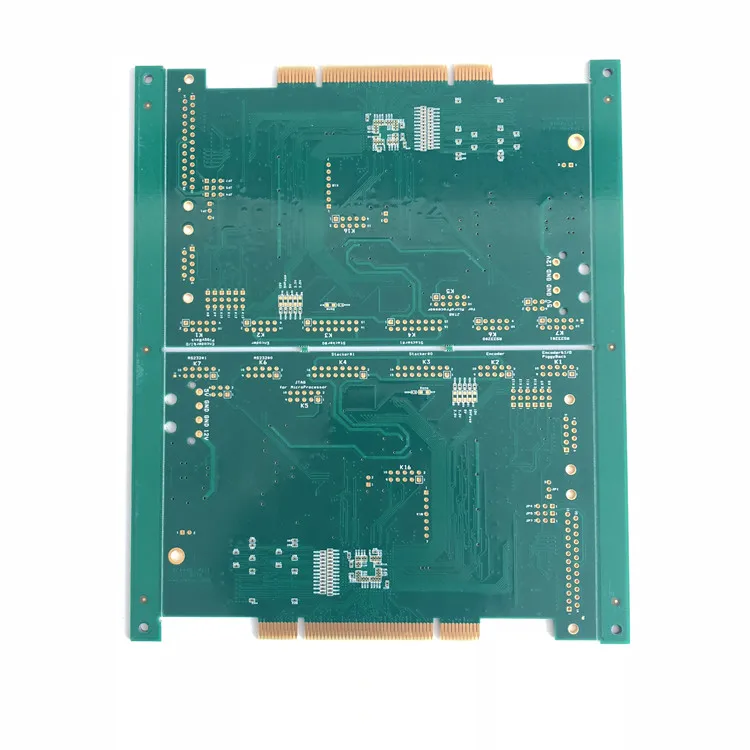

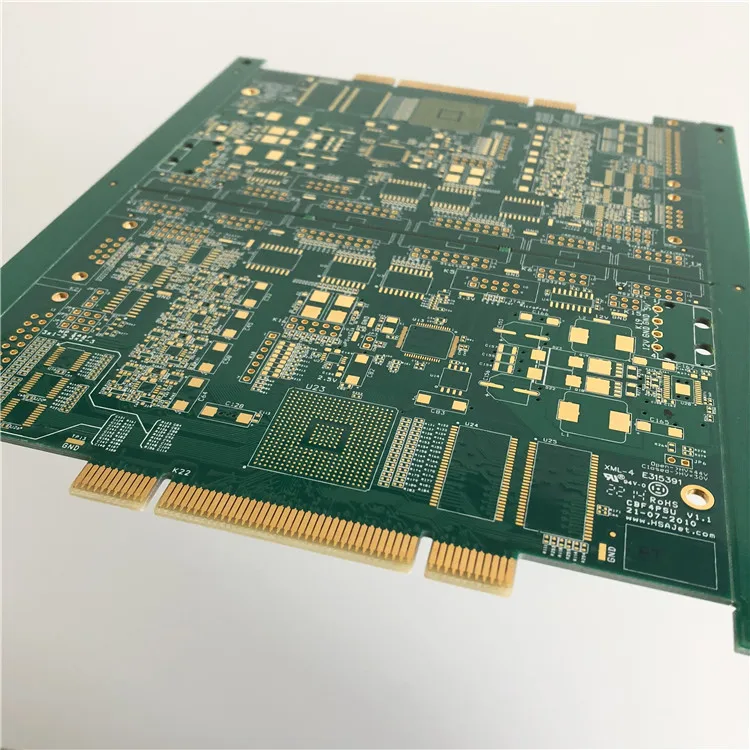

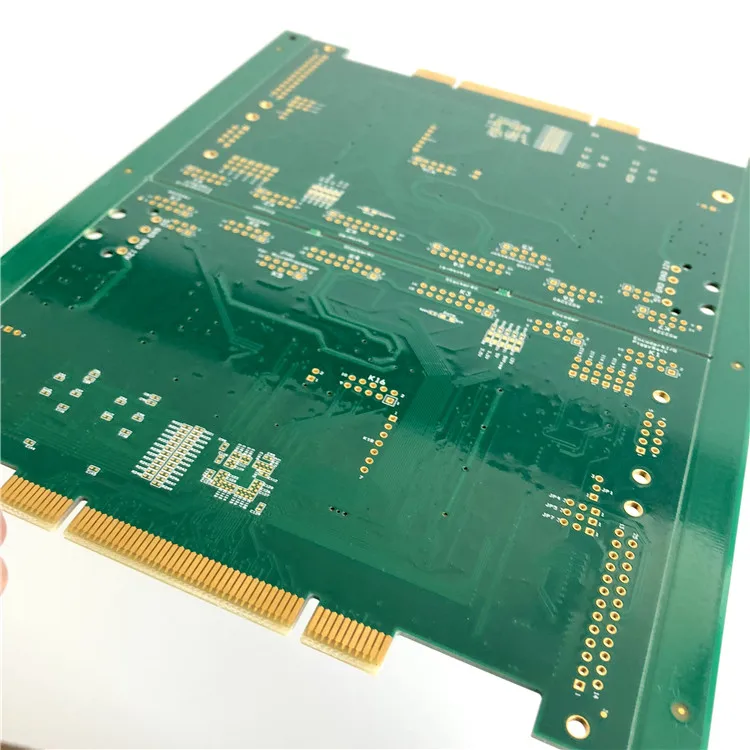

Customize FR4 tg180 ENIG printed circuit board gold finger PCB impedance PCB buried blind vias PCB
- Category: >>>
- Supplier: Tamingkee Electronic Technology Co. Limited [Guangdong China]Tamingkee
Share on (62048229873):
Product Overview
Description
Quick Details
| Port: | Shenzhen |
| Payment Terms: | Western Union,T/T,VISA |
| Supply Ability: | 4000 Piece/Pieces per Month |
| Board Thickness Tolerance: | ±10%(>1.0mm) ±8%(<1.0mm) |
| Place of Origin: | Guangdong China |
| Copper Thickness: | 6OZ(External) / 6OZ(Inner) |
| Min Bridge Width of Solder Mask Layer: | 5mils |
| Max Au Thickness of Immersion Gold: | 5u'' |
| Min. Hole Size: | 0.10mm |
| Model Number: | TMK-1900016 |
| Min. Line Spacing: | 0.07mm |
| Max Board Size: | 1200mm x 600mm |
| Min. Line Width: | 0.07mm |
| Brand Name: | DMQ |
| NPTH hole dia tolearance: | ±0.05mm |
| Max Au Thickness of Gold Finger: | 50u'' |
| PTH hole dia tolearance: | ±0.076mm |
| Hole Position Deviation: | ±0.05mm |
| Impedance Control Tolerance: | ±5%(≤50Ω) ±10%(>50Ω) |
| Base Material: | "FR-4/ Cem-1/ Cem-3/ Aluminum/ Flexible PCB/ |
| Board Thickness: | 0.10mm~3.2mm,0.10mm~3.2mm |
| Packaging Detail: | Box,pallet |
