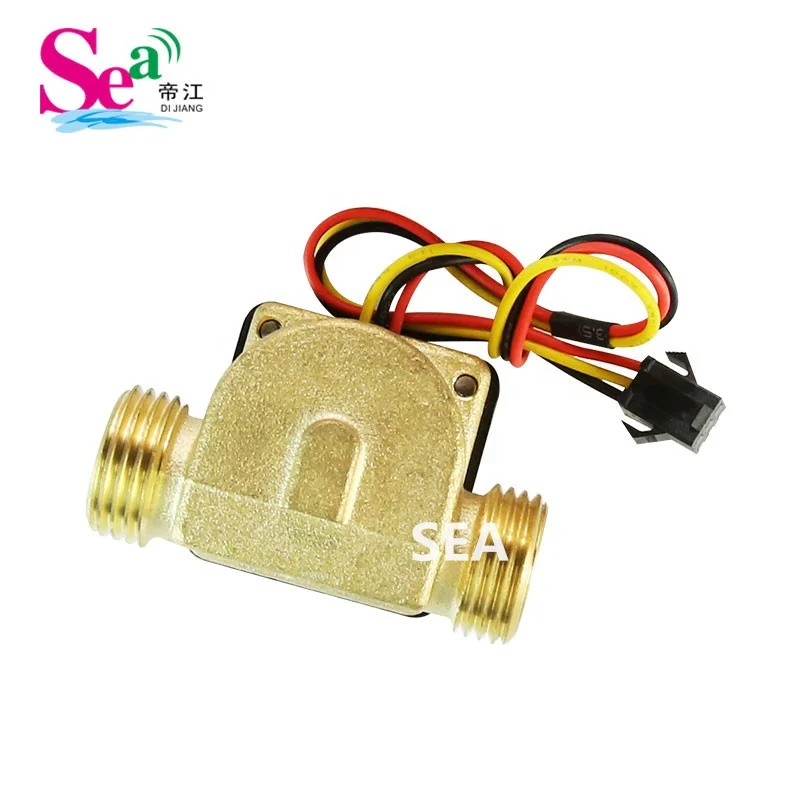

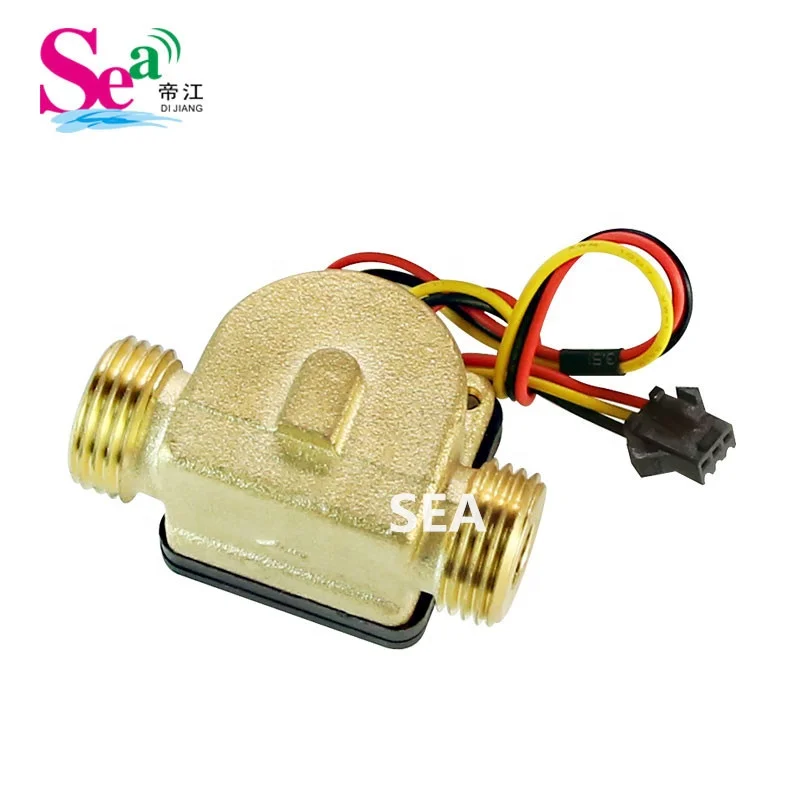

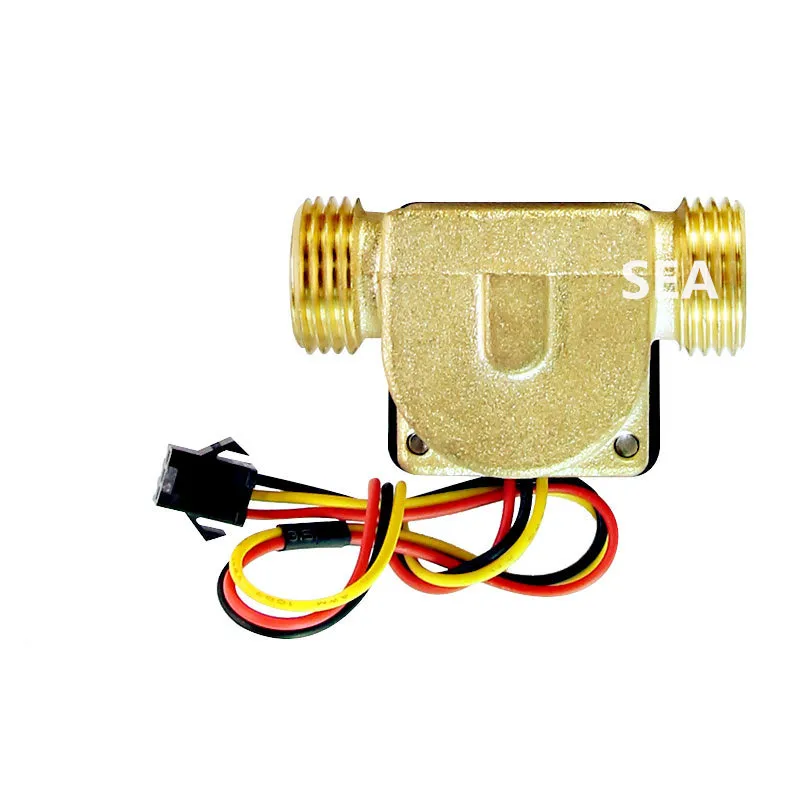

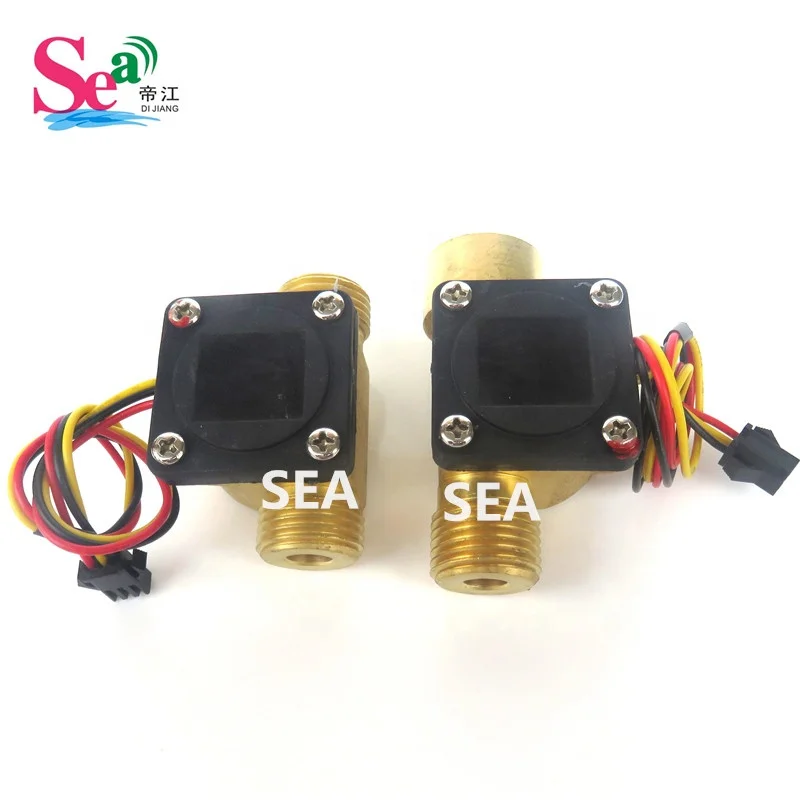

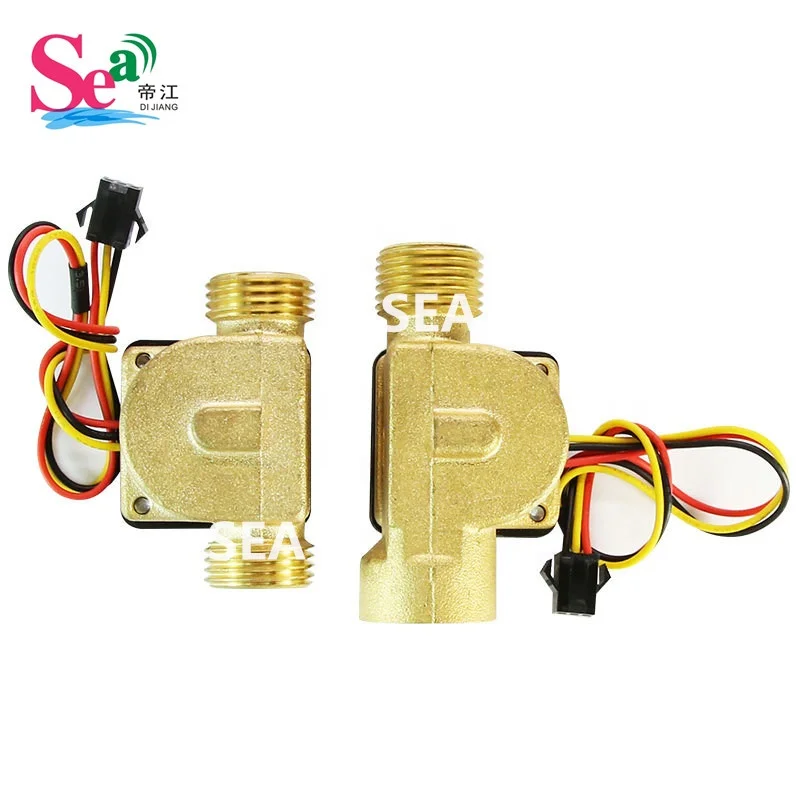

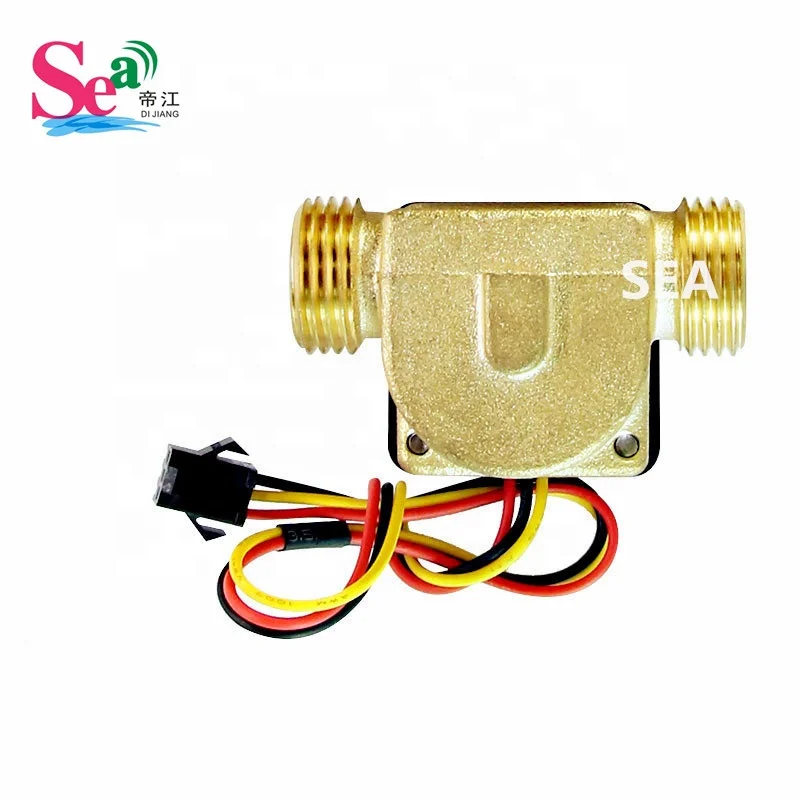

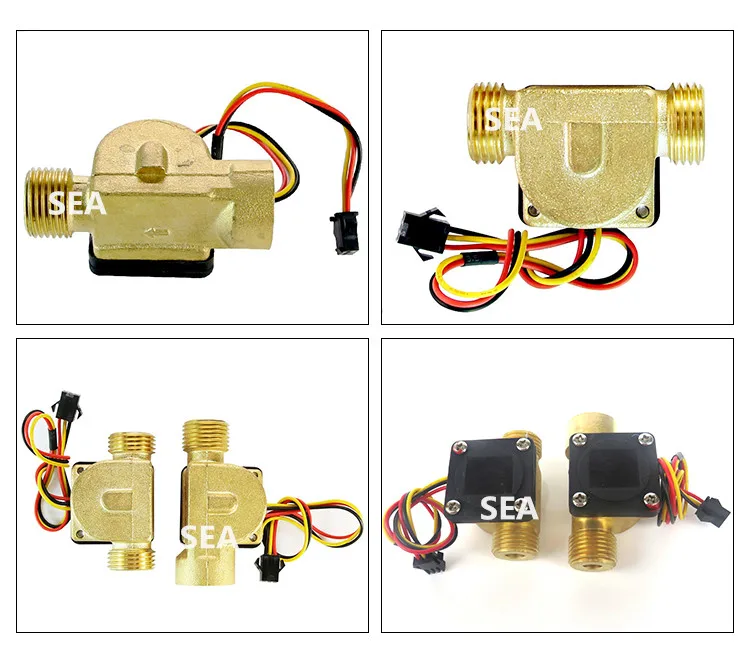

SEA YF B13 DN15 Male Male Thread Brass Turbine Flow Sensor Industrial Liquid Flow Measurement Sensor
- Category: >>>
- Supplier: Foshan Shunde Zhongjiang Energy Saving Electronics Co. Ltd.
Share on (62048424267):
Product Overview
Description
TOP 1 FLOW SENSOR MANUFACTURER with our own brand :
SEA , DIJIANG , ZHONGJIANG
WATER FLOW SENSOR
The water flow sensor is mainly composed by plastic valve body、rotor assembly and hall sensor.
It is installed at the inlet end of various water equipment and it used to detect the inlet flow rate. When water passing through the rotor assembly, the magnetic rotor rotates and the rotational speed changes according to the flow rate. The hall sensor output the corresponding pulse signal , feedback to the controller.
The main function of the controller is to measure cumulative flow and instantaneous flow ; single quantitative and total quantitative analysis, and water temperature detection.
It is installed at the inlet end of various water equipment and it used to detect the inlet flow rate. When water passing through the rotor assembly, the magnetic rotor rotates and the rotational speed changes according to the flow rate. The hall sensor output the corresponding pulse signal , feedback to the controller.
The main function of the controller is to measure cumulative flow and instantaneous flow ; single quantitative and total quantitative analysis, and water temperature detection.
Product Features
Food Grade Material
All Raw Materials Conform To ROHS Standard
Imported Hall Element and O Type Sealing Ring
Lead out fill with epoxy, not easy leakage (can be customized deep anti-leakage with epoxy full-fill on the PCB board)
Imported Hall Element and O Type Sealing Ring
Lead out fill with epoxy, not easy leakage (can be customized deep anti-leakage with epoxy full-fill on the PCB board)
Optional Interface
Diameters of 6.35mm / 7mm / 1/4 / 3/8 / 1/2 / 3/4 / 1'' / 1.25'' / 1.5'' / 2''
Connection Way of fast connection / gear type / PE fast / Barb / G thread / NPT thread
Operating Voltage: DC5-18V / 24V / low power version 3.3V
Connection Way of fast connection / gear type / PE fast / Barb / G thread / NPT thread
Operating Voltage: DC5-18V / 24V / low power version 3.3V
Flexible Customization
Wire Connection (can be customized)
RED - VCC (+)
BLACK - GND (-)
YELLOW - OUTPUT (NPN SIGNAL )
Connector ( can be customized )
XH / SM / STEREO / RJ45.....
Female / Male......
2Pins / 3Pins / 4Pins / 5Pins....
Cable Length （Can be customized )
RED - VCC (+)
BLACK - GND (-)
YELLOW - OUTPUT (NPN SIGNAL )
Connector ( can be customized )
XH / SM / STEREO / RJ45.....
Female / Male......
2Pins / 3Pins / 4Pins / 5Pins....
Cable Length （Can be customized )
Basic Parameters
Model No.: YF-B13 | ||||||
Sensor | Hall Effect ; Pulse Signal | Water Pressure | < 1.2MPA | |||
Pipe Connection | 1/2 male male thread | Output Pulse High Level | > DC 4.7V | |||
Material | Brass Copper | Output Pulse Low Level | < DC 0.5V | |||
Operating Voltage | DC5-18V / 24V | Output Pulse Duty Ratio: | 50%±10% | |||
Working Current | < 10mA (DC5V) | Insulation Resistance | >100MΩ | |||
Rated Voltage | DC5V | Medium | water / hot water | |||
Flow Range | 1-25L/min | Medium Temperature | -20°C~+120°C | |||

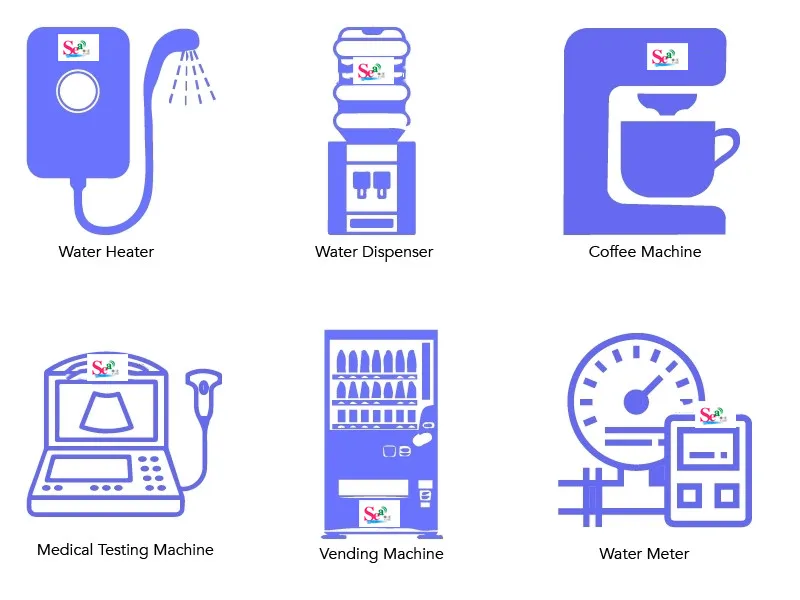

Accuracy | F=8.1*Q ±3% (Q=L/min=60) 【 F=pulse characteristic x 1 (contant) x Q = 8.1*1*60 = 486 pulse/LPM 】 | Apply for | Water Heater ; Solar Energy System ; Filling Machine | |||
