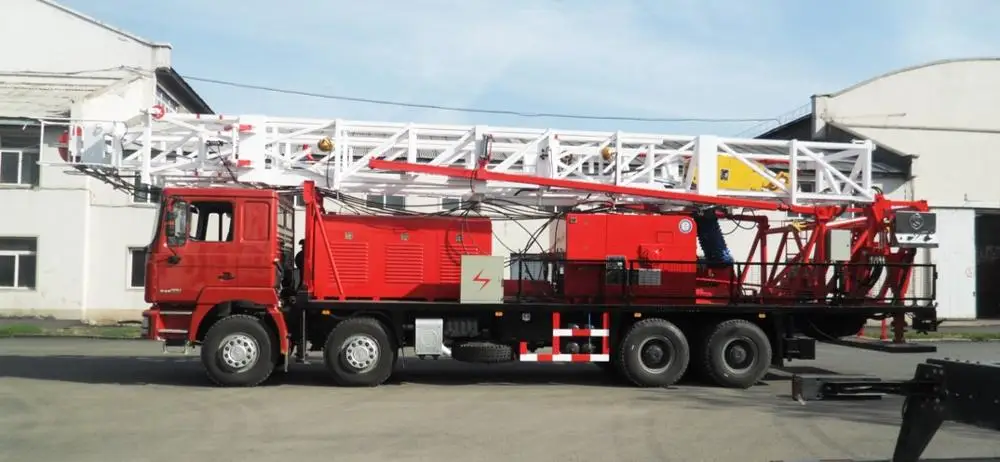

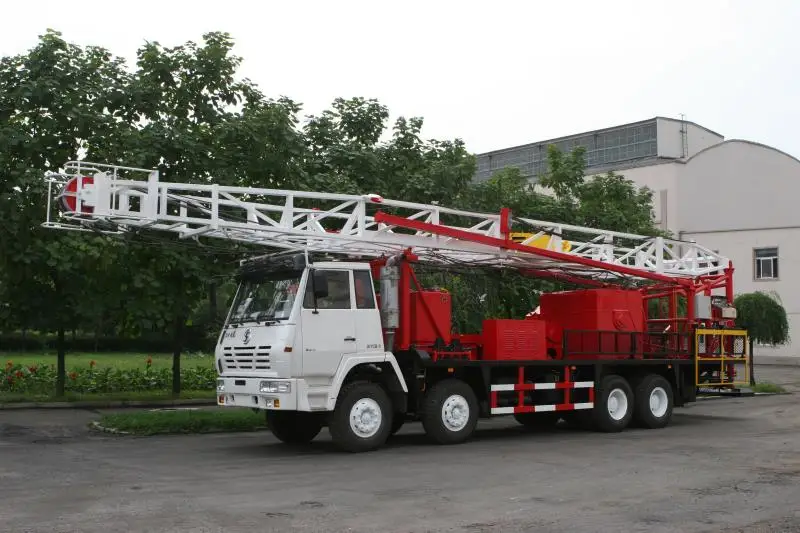

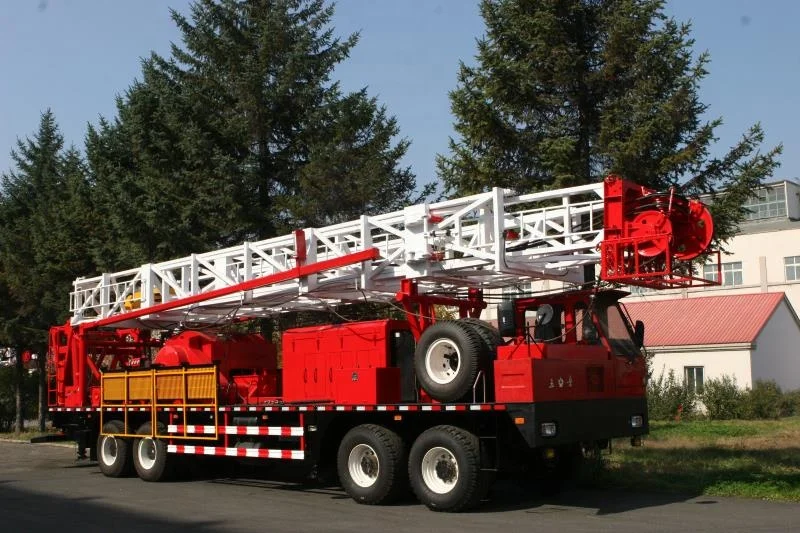

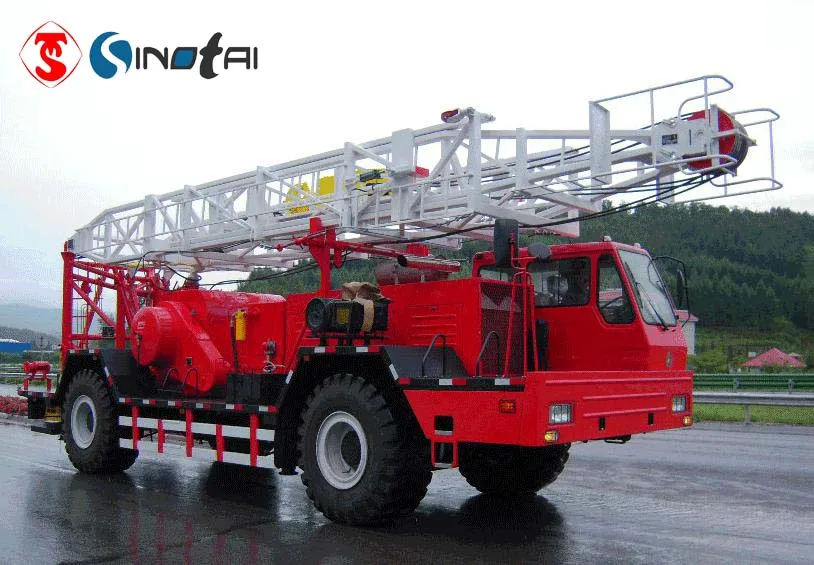

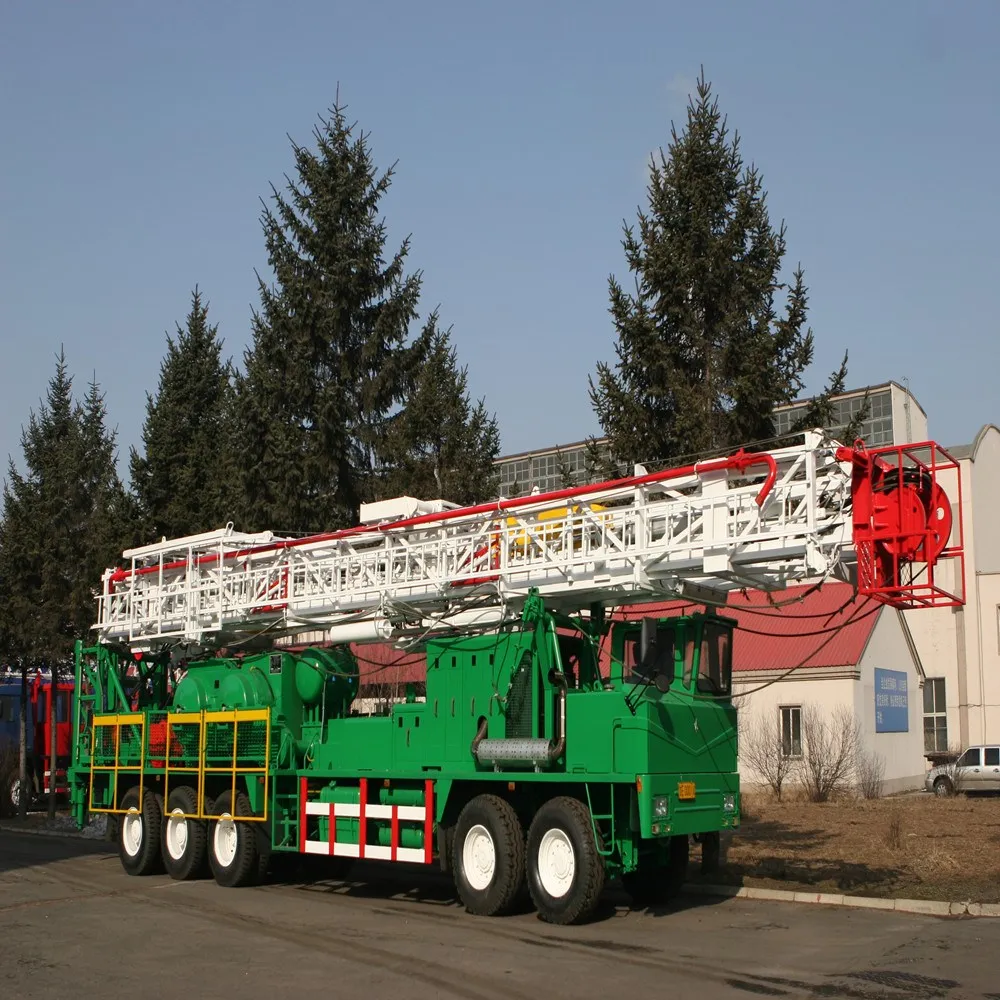

Single Mast Double drum 40ton XJ250 Fast Rapid No-Guyline pulling Unit hoist Workover rig
Product Description
The profile of mast is a trapezoidal structure, which increases the strength and stiffness of mass
The mast body and back bracket are connected by automatic pull rod to facilitate operation
The rear of chassis adopts a large span hydraulic telescopic jack, which increases the distance between the fulcrum and improves the stability of vehicle.
Technical Parameters
Technical parameters | Unit | XJ250(40T) | |
Nominal service depth | 73mm(2-7/8'')EUE Tubing | m | 3200 |
Nominal workover depth | 73mm (2-7/8'' )DP | m | 2000 |
Max. Hook Load | kN | 675 | |
Rated Hook Load | kN | 400 | |
Drawworks HP rating | kW | 206 | |
Mast Height | m | 18(single section) | |
Qty. of effective rope |
| 6 | |
Wirelines diameter | mm | 22 | |
Lifting speed of hook | m/s | 1—1.5 | |
Moving dimension (length x width x height) | m | ||
Weight | kg | 29460 | |
Chassis |
| Steyr | |
