Cat6/Cat12 4g 5g lte Ethernet openwrt wifi wireless router with sim card slot

Share on (62048479453):


Price:

Quantity:


Product Overview

Description


Product Description

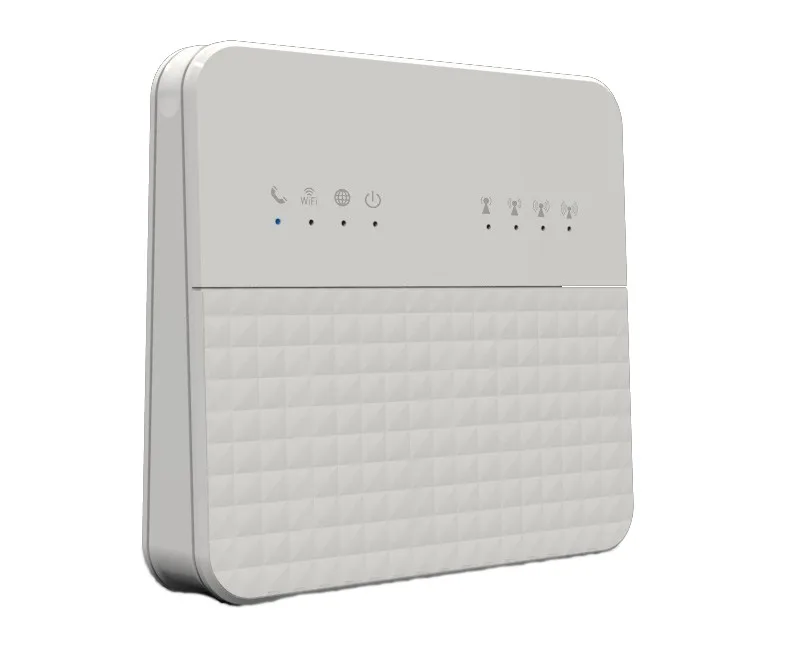

Cat6/Cat12 4g 5g lte Ethernet openwrt wifi wireless router with sim card slot

HDR1046i is a highly advanced 4G LTE CAT 6 indoor multi-service product solution specifically designed to meet integrated data, and 802.11b/g/n dual bands Wi-Fi access needs for residential, business and enterprise users. The product supports advanced Gigabit networking and dual bands Wi-Fi AP functionalities. It enables wide service coverage and provides high data throughput and networking features to customers who needs easy broadband access, hot-spot Wi-Fi connectivity.

Feature Highlights

1. Cost effective &compact design with built-in high gain 4G LTE\\3G indoor antenna
2. Full compliance to 3GPP TDD/FDD-LTE Release 10/11 specifications
3. Advanced MIMO support and Category 6 throughput
4. Giga ETH support
5. 802.11b/g/n MIMO Wi-Fi support
6. Router, bridge and by-pass networking, IPv4&v6 and Multiple PDN support
7. Built-in VPN and L2/L3 GRE client support
8. FTP, HTTP and TR-069 management support
9. SIM card authentication


\t
Item
\t
Description
\t
Chip Platform
\t
QCA4531+ Qualcomm MDM9640
\t
LTE Standard
\t
3GPP Release 10/11 CAT6
\t
Flash
\t
128Mb
\t
RAM
\t
512Mb
\t
Interface
\t
Two or three Gigabit RJ45 LAN Ports, 10/100/1000 auto-sensing, auto-MDI/MDIX
\t
LED
\t
8 LED, Power/2.4G WiFi/Telephone/Internet/4 Signal Strength
\t
SIM Card
\t
 1.8V/3V 3FF USIM
\t
Voice (Optional)
\t
VOLTE
\t
Button
\t
 Reset/Reboot
\t
Power Supply
\t
Supply DC 12V/1A
\t
Power Consumption
\t
<10W
\t
Weight
\t
<500g
\t
Dimensions
\t
187mm(H) x 168mm(W) x 55mm(T)
\t
Carrier Aggregation
\t
Inter/Intra 2CA
\t
DL MIMO
\t
2*2MIMO or 4*2MIMO
\t
Max. Transmit Power
\t
LTE: 23 ±2dBm (Power Class 3)
Wi-Fi: 18dBm
\t
LTE Antenna Gain
\t
700M~1GHz: 3dBi
1.5G~2.7GHz: 6dBi
\t
Wi-Fi Standard
\t
802.11b/g/n 2*2 MIMO 2.4GHz, 802.11n/ac 2*2 MIMO@ 5GHz
\t
Wi-Fi Antenna
\t
Build-in 3 dBi high gain Wi-Fi antenna, 2.4GHz, 5GHz separate
\t
Reliability
\t
Operating Temperature: -10~+45ºC
Storage Temperature: -20~+60ºC
Operating Humidity: 0~95%
Storage Humidity: 0~95%
\t
Frequency Bands - Cat 6 Version
\t
Version E

LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32
LTE-TDD: B38/B40/B41
2×CA: B1+B1/B5/B8/B20/B28;
B3+B3/B5/B7/B8/B20/B28;
B7+B5/B7/B8/B20/B28;
B20+B32①; B38+B38; B40+B40; B41+B41
WCDMA: B1/B3/B5/B8
\t
Version A

LTE-FDD: B2/B4/B5/B7/B12/B13/B25/B26/B29/
B30/B66
2×CA: B2+B2/B5/B12/B13/B26/B29①;
B4+B4/B5/B12/B13/B26/B29①;
B7+B5/B7/B12/B13/B26/B29①;
B25+B5/B12/B13/B25/B26/B29①;
B30+B5/B12/B13/B26/B29①;
B66+B5/B12/B13/B26/B29①/B66
WCDMA: B2/B4/B5
\t
Version LA (On planning)

LTE-FDD: B2/B3/B4/B5/B7/B8/B20/B28
2×CA: B2+B2/B5/B8/B20/B28;
B3+B3/B5/B7/B8/B20/B28;
B4+B4/B5/B8/B20/B28;
B7+B5/B7/B8/B20/B28
WCDMA: B2/B3/B4/B5/B8
\t
Version APAC (On planning)

LTE-FDD: B1/B3/B5/B7/B8/B18/B19/B21/B26
LTE-TDD: B38/B39/B40/B41
2×CA: B1+B3/B8/B18/B19; B3+B5/B19;
B7+B5/B7; B21+B19; B38+B38; B39+B39;
B39+B41; B40+B40; B41+B41
WCDMA: B1/B5/B6/B8/B9/B19
\t
Frequency Bands - Cat 4 Version
\t
Version CE

LTE FDD: B1/B3/B5/B8
LTE TDD: B38/B39/B40/B41
WCDMA: B1/B8
TD-SCDMA: B34/B39
CDMA: BC0
GSM: 900/1800MHz
\t
Version E

LTE FDD: B1/B3/B5/B7/B8/B20
LTE TDD: B38/B40/B41
WCDMA: B1/B5/B8
GSM: B3/B8
\t
Version EU.

LTE FDD: B1/B3/B7/B8/B20/B28A
LTE TDD: B38/B40/B41
WCDMA: B1/B8
GSM: B3/B8

EC25-EC:
LTE FDD: B1/B3/B7/B8/B20/B28
WCDMA: B1/B8
GSM: B3/B8
\t
Version A

LTE FDD: B2/B4/B12
WCDMA: B2/B4/B5

EC25-V:
LTE FDD: B4/B13

EC25-AF:
LTE FDD: B2/B4/B5/B12/B13/B14/B66/B71
WCDMA: B2/B4/B5
\t
Version AU

LTE FDD: B1/B2①/B3/B4/B5/B7/B8/B28

LTE TDD: B40

WCDMA: B1/B2/B5/B8

GSM: B2/B3/B5/B8
\t
Version J

LTE FDD: B1/B3/B8/B18/B19/B26
LTE TDD: B41

WCDMA: B1/B6/B8/B19
\t
\t
Our Company

Head Weblink Corporation is founded in 2008.We are expert of wireless M2M products and total solutions supplier in China. Since our foundation, we have focused on M2M data transmission field.Especially, we are the professional industrial 3G/4G LTE router,3G/4G CPE,2G/3G/4G LTE modem manufacturer and 2G/3G/4G LTE wireless module distributor. Our products and solutions are widely used in finance, transportation, telecom, electricity, power meter, water conservancy and other industrialapplications. Up to now, we have exported our products to more than 70 countries .

Packing & Delivery
Our most professional packaging
Transport of large trucks to the seaport
And international transport cooperation
Our Service

1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral boxes and brown cartons.

Q2. What is your terms of payment?
A: 1. Sample orders: 100% Clear before shipment.  2. Mass order: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, FCA.

Q4. How about your delivery time?
A: Generally, it will take 2~4 weeks after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
