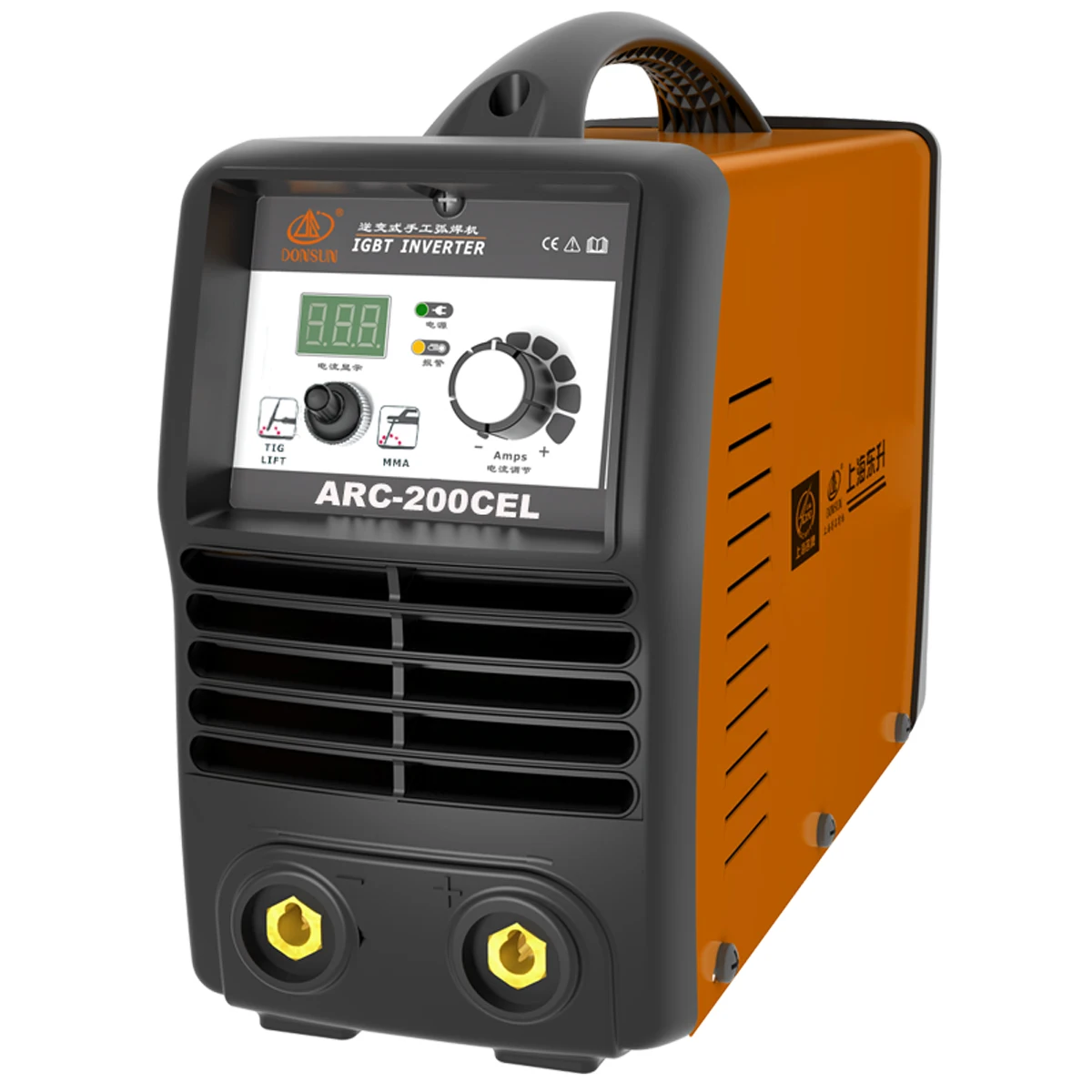

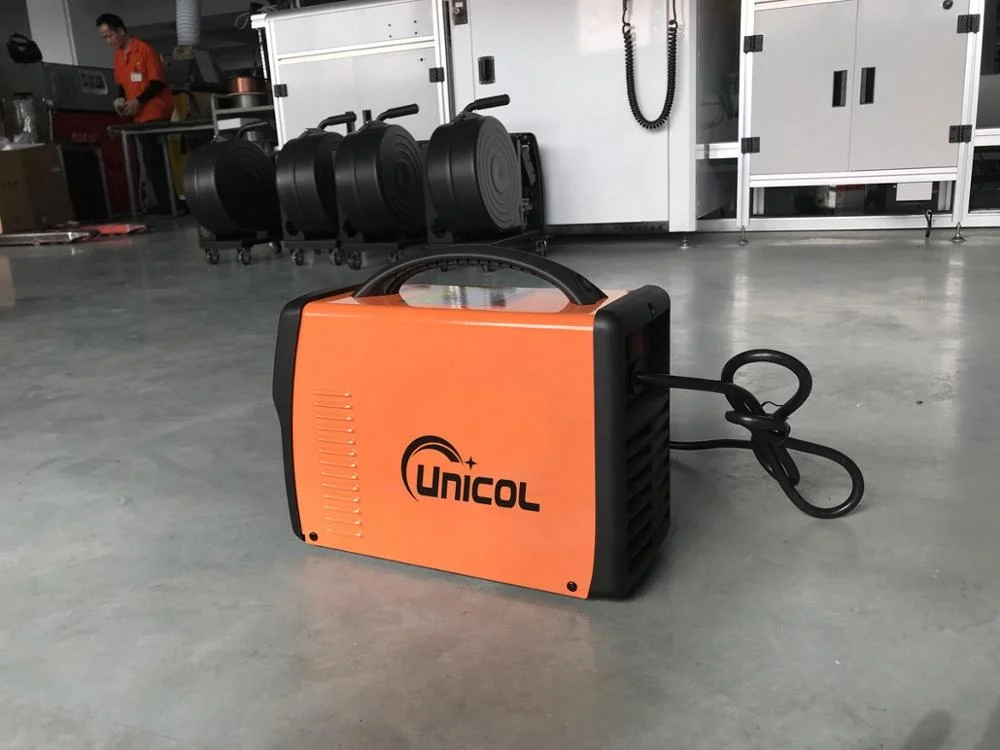

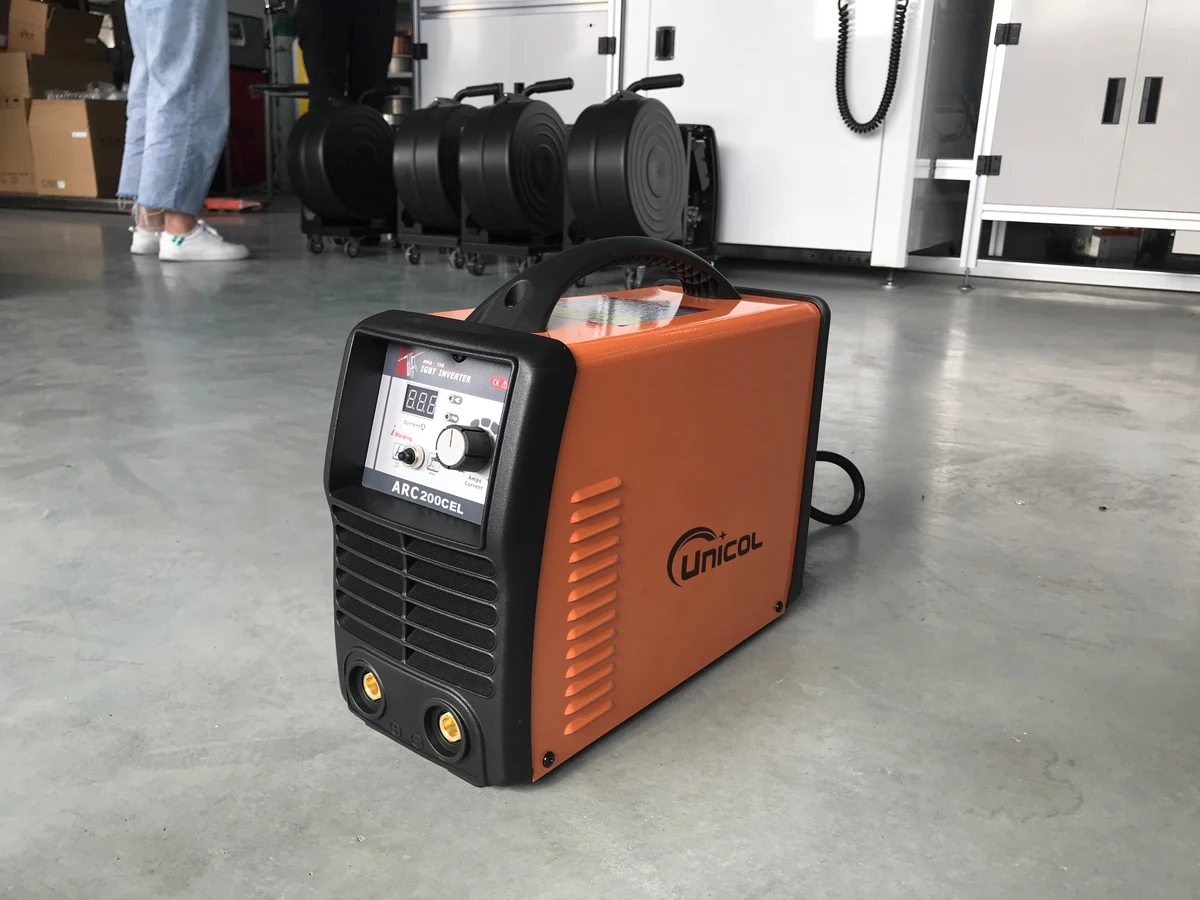

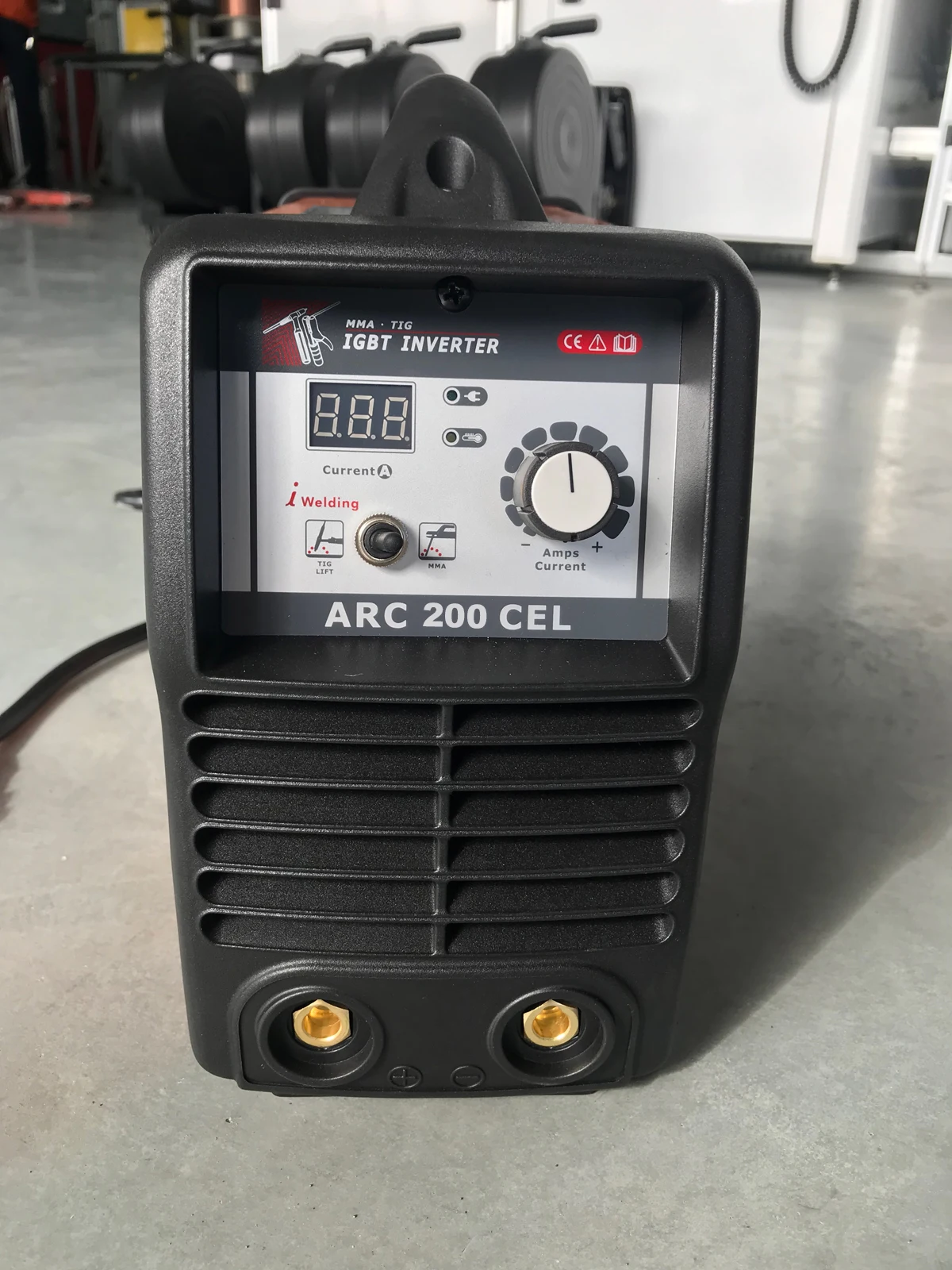

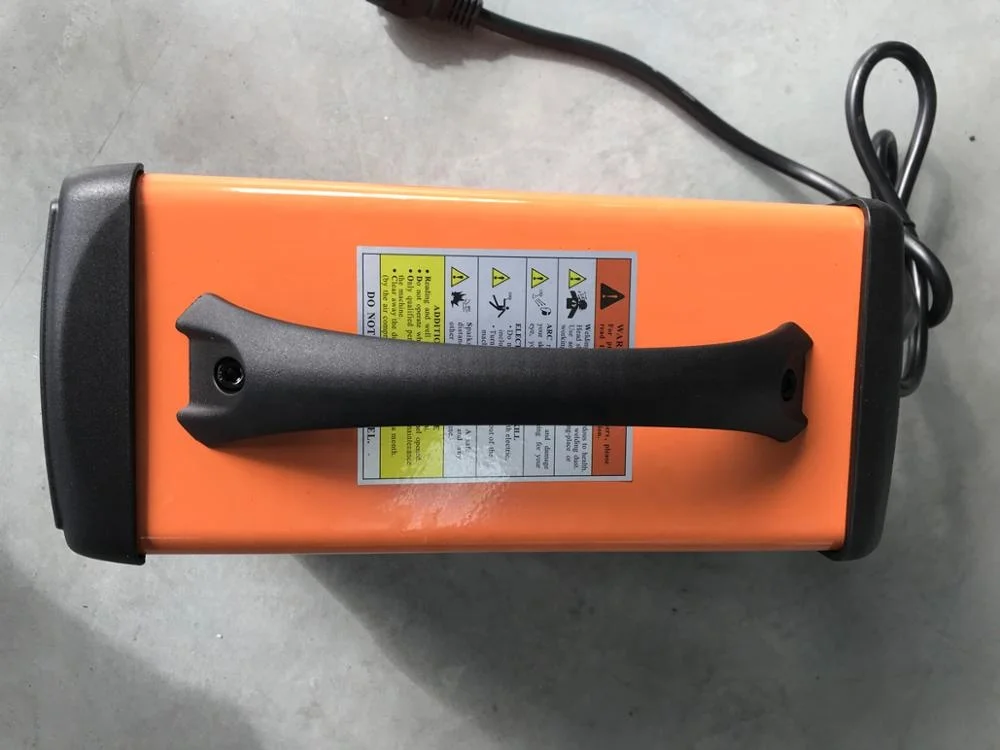

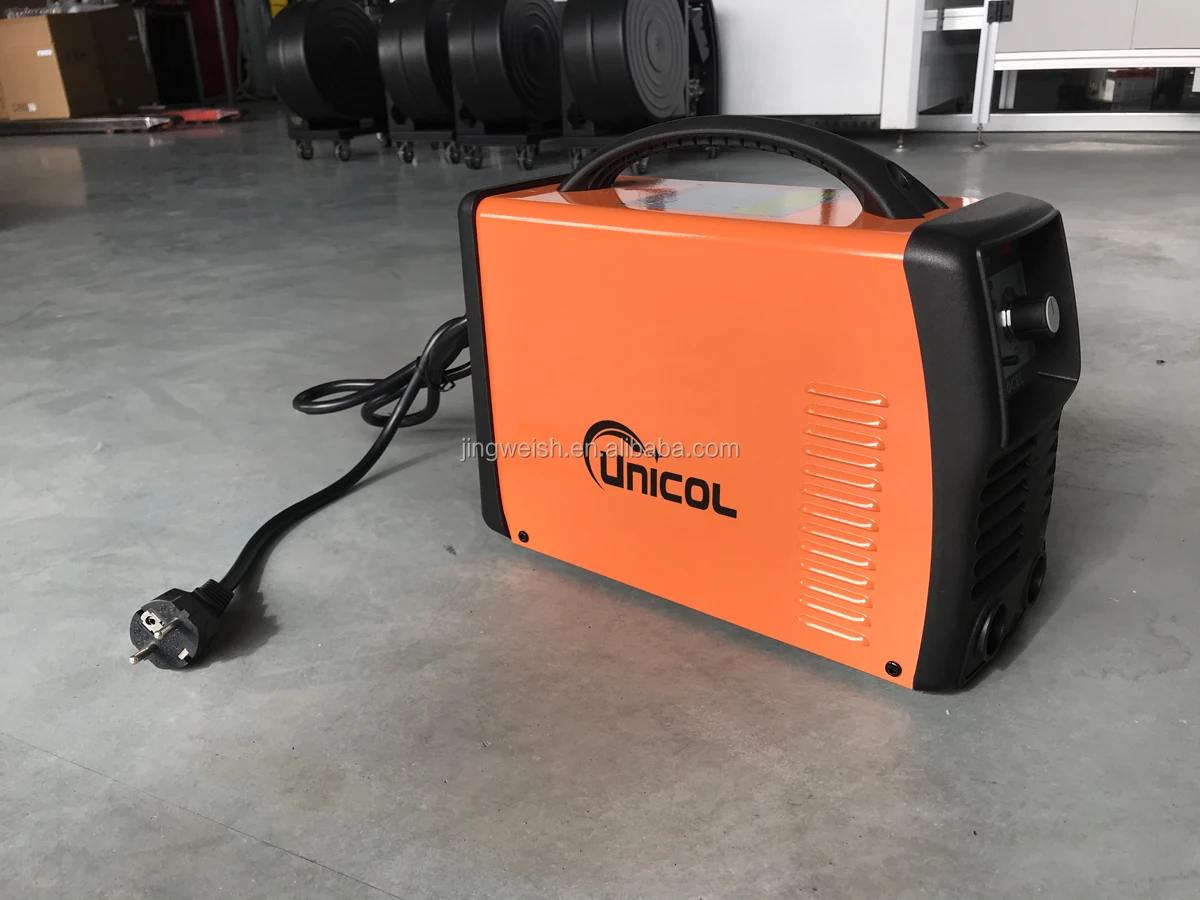

ARC 200CEL 160~275V 200A Portable Electric Arc Multiprocess Welder

Product Overview

Description

Tig Mode
Capable of welding with Lift Tig Mode.

Extra functions
“Hot Start” ,”Anti-sticking” and “Arc Force” built in.

Protections
Equipped with temperature, voltage and current sensors for high protection.

Digital display
Variable amperage control with digital meter, for a simultaneous welding current display.

Weight
Extremely low weight and versatility.

Generator friendly
Designed to work with diesel generators and to avoid failures due to its voltage spikes.

Model/Parameters	ARC 200 CEL
Power supply voltage(V)	160~275
Fre.(HZ)	50/60
Rated Input Power (KW)	6.8
Rated input current(A)	49
Duty Cycle(40℃ 10Min)	30% 200A 60% 145A 100% 125A
No Load Voltage(V)	74
Welding Current Range(A)	10~200
Efficiency	≥80%
Net Weight(Kg)	4.5
Dimensions(mm)	316x132x260
Electrode Diamerter(mm)	Φ1.6~Φ5.0
Electrode Type	6010,6011,6013,7018 etc.
power factor	0.65
Insulation Class	H
Protection Class	IP23
Cooling	AF
