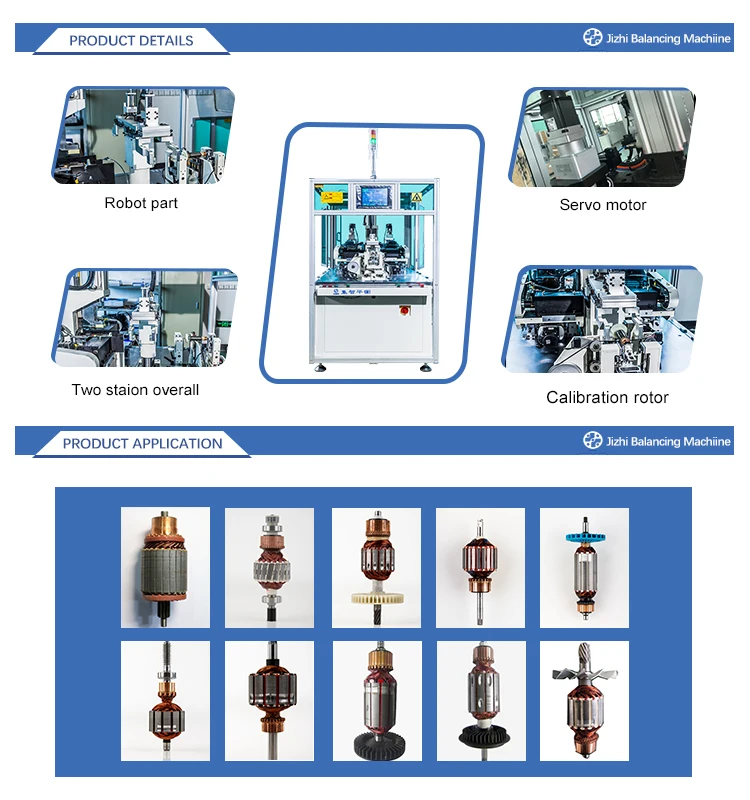

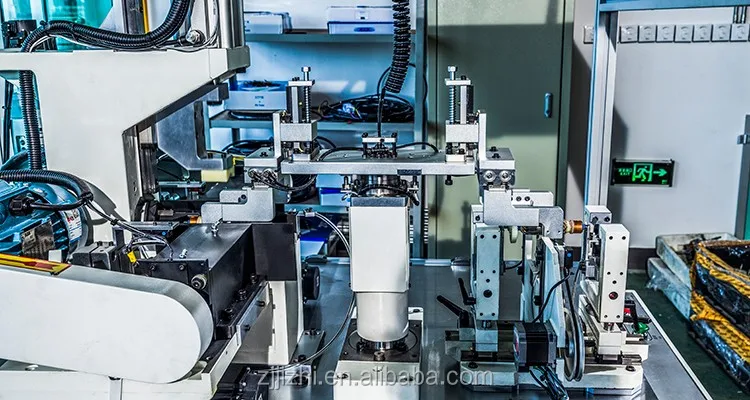

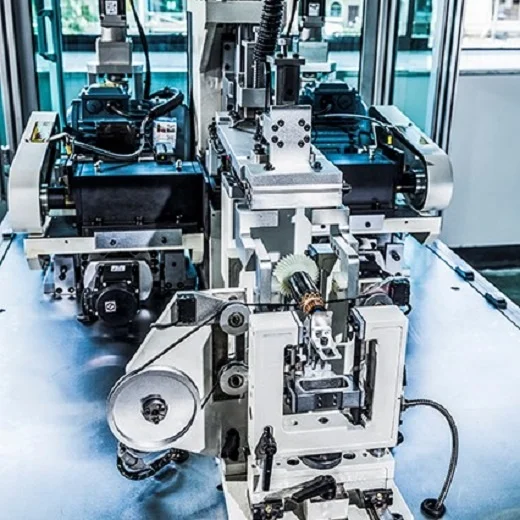

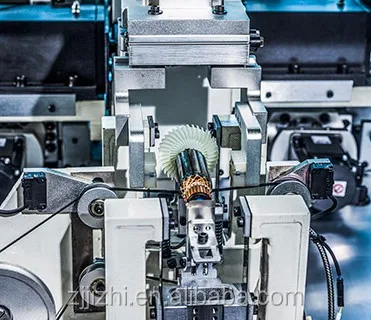

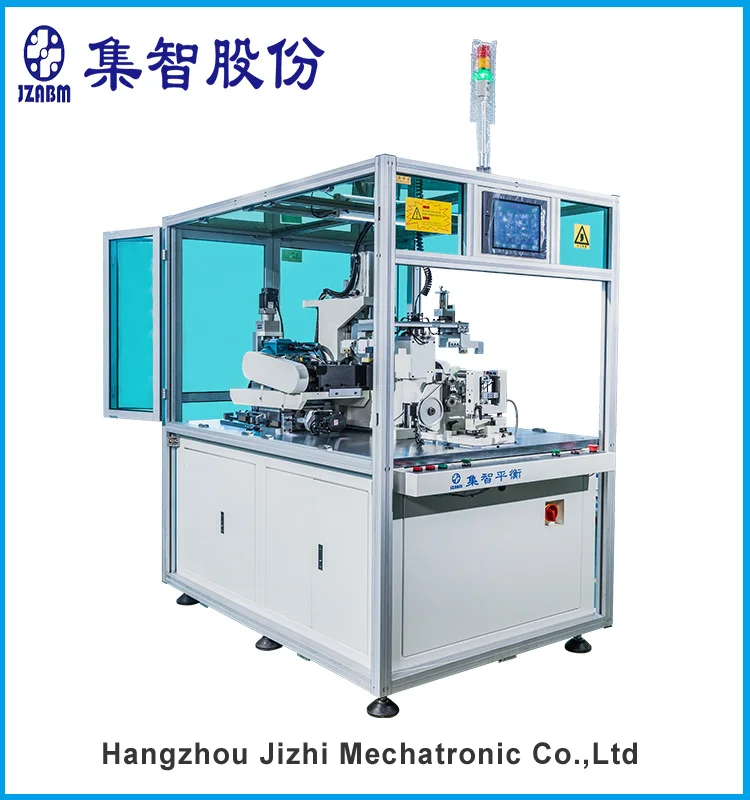

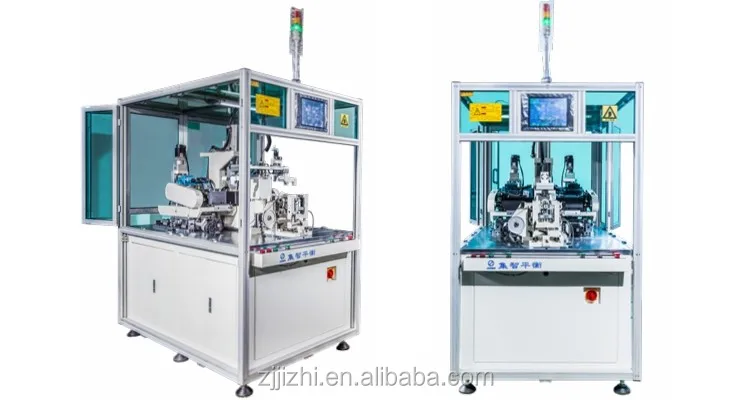

Two Stations Motor Armature Rotor Dynamic Balancing Machine for Electric Motor
- Category: >>>
- Supplier: Hangzhou Jizhi Mechatronic Co. Ltd.
Share on (62048566045):
Product Overview
Description
• Auto loading and unloading
•10-inch touch screen
• Advanced balancing measuring software
• Automatic measure,automatic milling and correction,automatic retest
• Rigidity structure design,with a longer use life
• Operator interface by industrial PLC.
• High level of flexibility and quick changeover.
|
Item |
Technical data |
|
Equipment name |
Generation II Two station Automatic balancing machine (including Jizhi balancing machine controlling software V3.0) |
|
Model No. |
BDXSR-2WIII-AX |
|
Main components |
Cylinder: SMC Servo motor: Mitsubishi Sensor: KEYENCE, OMRON, Kerui Touch screen : KEYENCE 10.4' Control PLC: KEYENCE KV-3000 Stepper motor: Oriental motor |
|

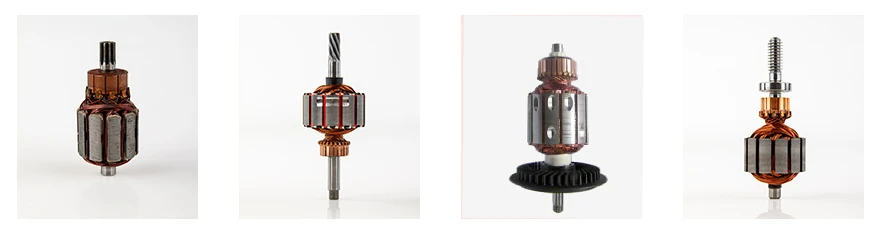

Rotor range |
Stack of rotor:20-60mm Diameter of rotor: Φ25-60mm |
|
Balancing speed |
1500-2100rpm |
|
Milling method |
R cutter or V cutter |
|
Power |
AC380V |
|
Pneumatic |
0.4~0.6Mpa |
|
Cycle time |
12s (cut one more stack in one plane increase 3s) |
|
Residual unbalance eccentricity |
Better than G6.3 |
|
Dimension |
1100 x 1600 x 1800 mm |
