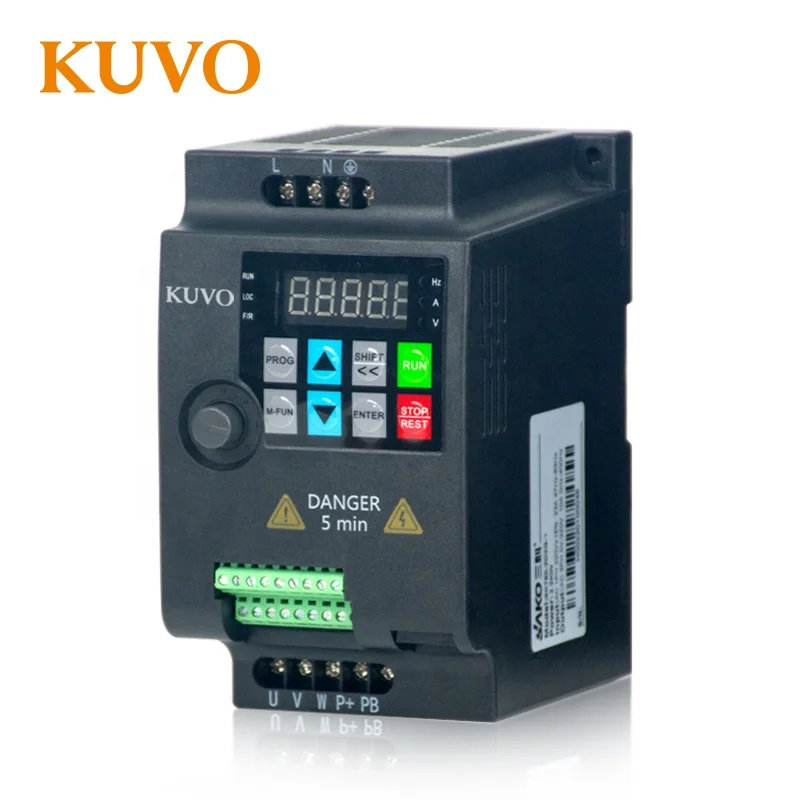

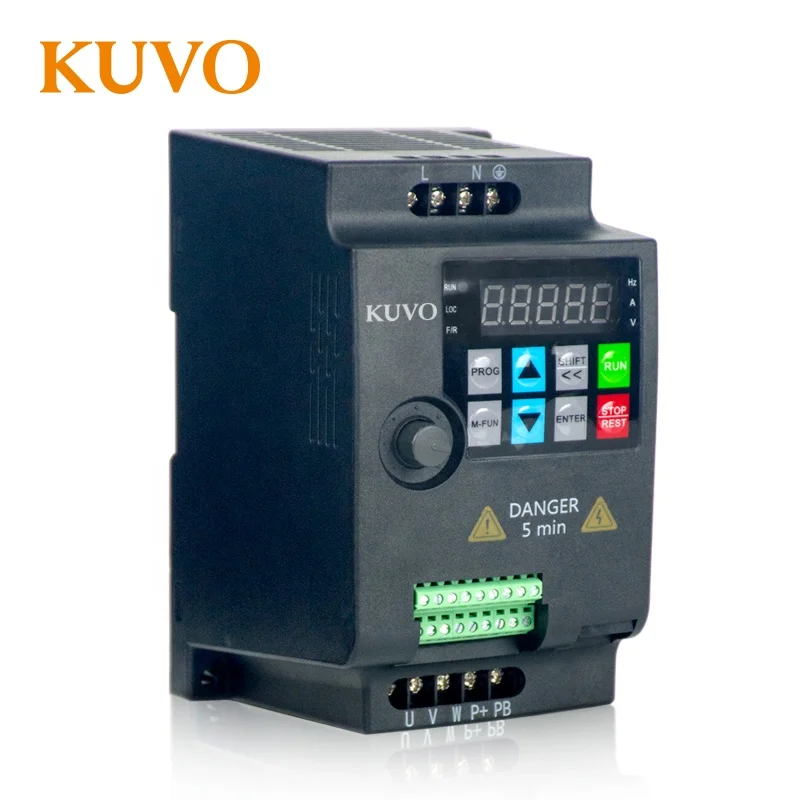

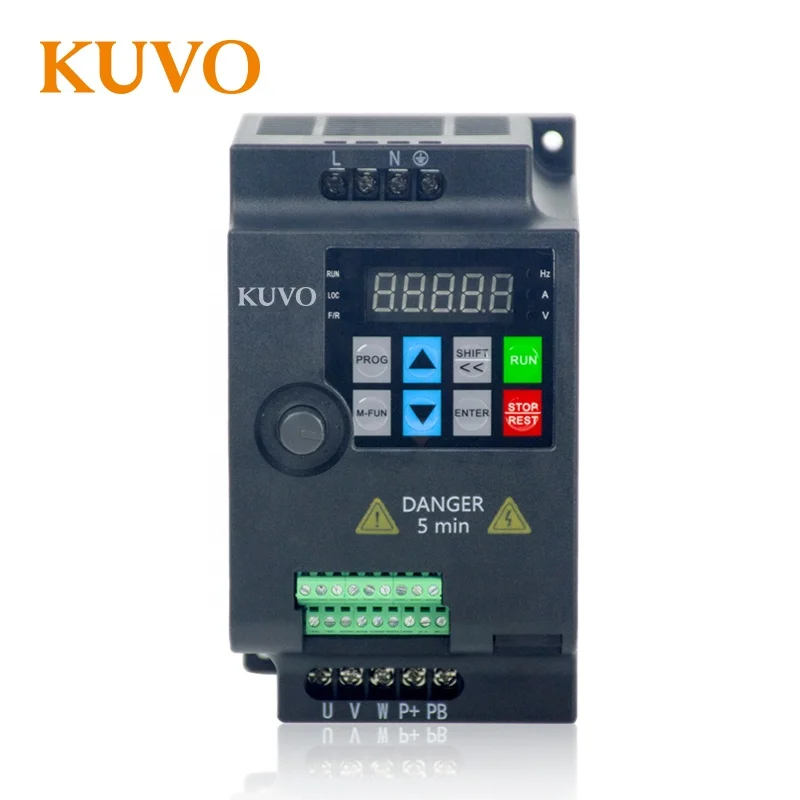

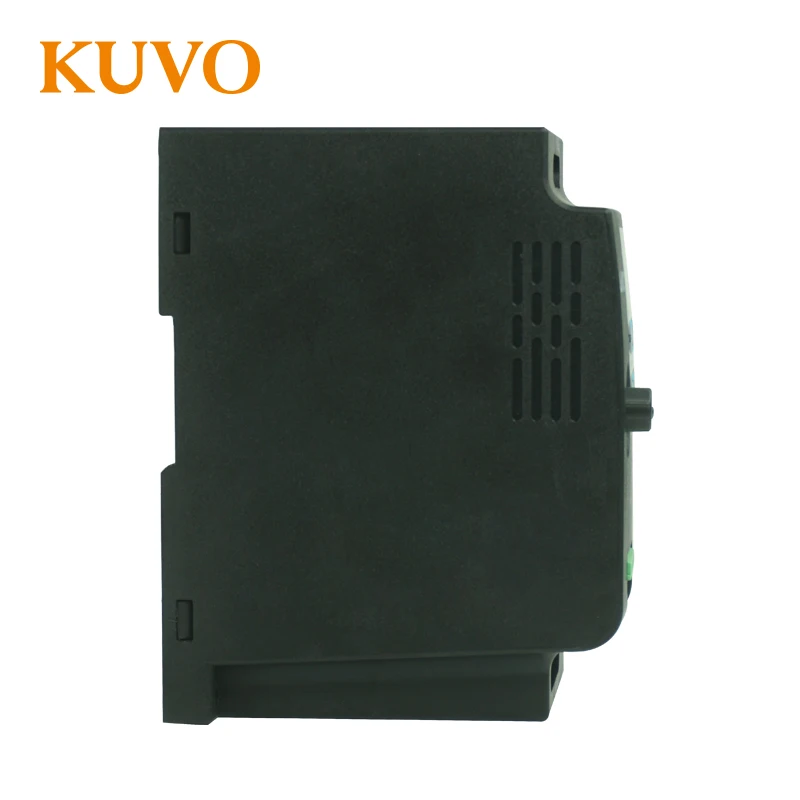

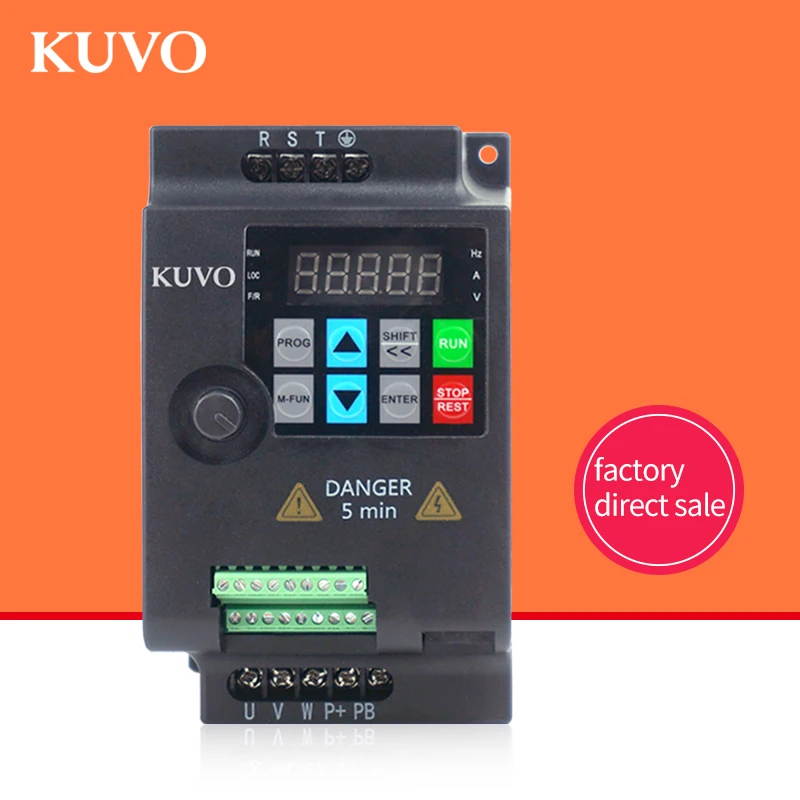

230V Single Phase Input 1.5kw 2HP Mini VFD Variable Frequency Drive Inverter for Motor Speed Control

Output Frequency

Range

G type, 60s with 150% of rated current, 3s with 180% of rated current;

For 220% rated current, instantaneous protection.

Frequency Setting

Resolution

V/F Curve (voltage frequency character)

Senseless Vector

Control

Voltage Frequency

Character

3.0 Hz 150% rated torque (VF control)

0.5 Hz 150% rated torque (SVC)

Operating speed precision in steady state: ≤±0.5% rated synchronous speed

Motor Parameter

Self-measurement

Being able to detect parameter automatically under static state and dynamic state of motor, thus guarantee an optimum control

Current and Voltage

Restrain

Current closed-loop control, free from current impact, perfect restrain function of overcurrent and overvoltage

Undervoltage Restrain

during Running

Specially for users with a low or unsteady voltage power grid: even lower than the allowable voltage range, the system can maintain the longest possible operating time based on its unique algorithm and residual energy allocation strategy

Multi-velocity and

Traverse Operation

16 segments programmable multi-velocity control, multiple operation mode. Traverse operation: preset frequency and center frequency adjustable, parameter memory and recovery after power cut

PID Control RS485

Communication

Direct voltage 0~10V, direct current 0~20mA (optional upper limit and lower limit)

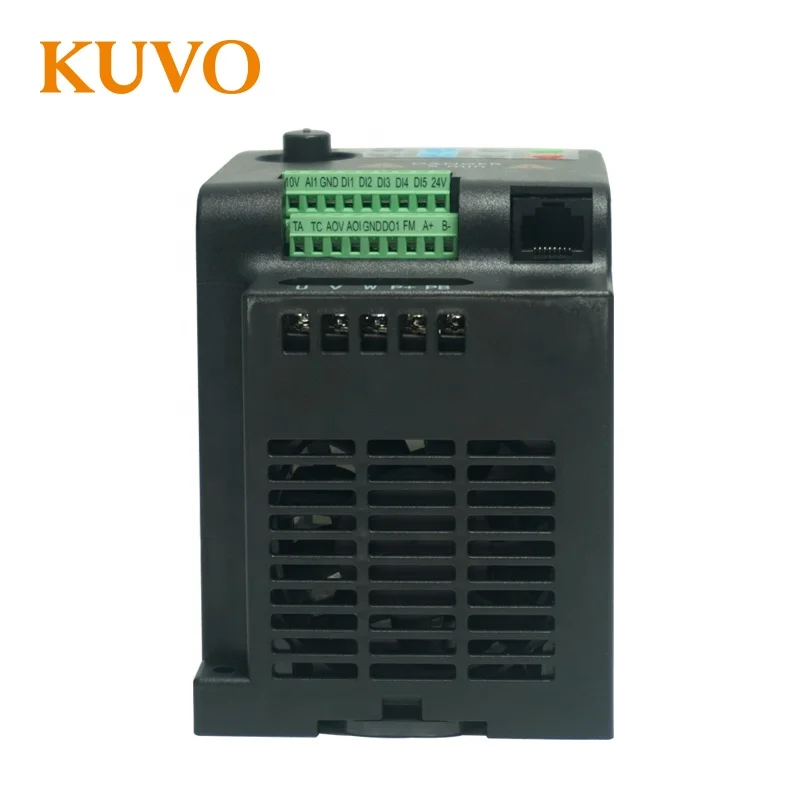

2 channel DO output and one channel relay output(TA, TC)

1 channel analog signal output, output ranging within 0-20mA or 0-10V with flexibly setting, achievable output of physical quantities like set frequency, output frequency

Automatic

Steady-voltage

Operation

Acceleration and

Deceleration Time

Setting

DC braking frequency: 0.00-[F0.16j upper limit frequency

Braking time: 0.0-36.0s;

Braking current: 0.0%~100.0% of rated current

Low Noise Running

Speed Tracking and

Restart Function

Operation Function

Protection Level

Cooling Method
