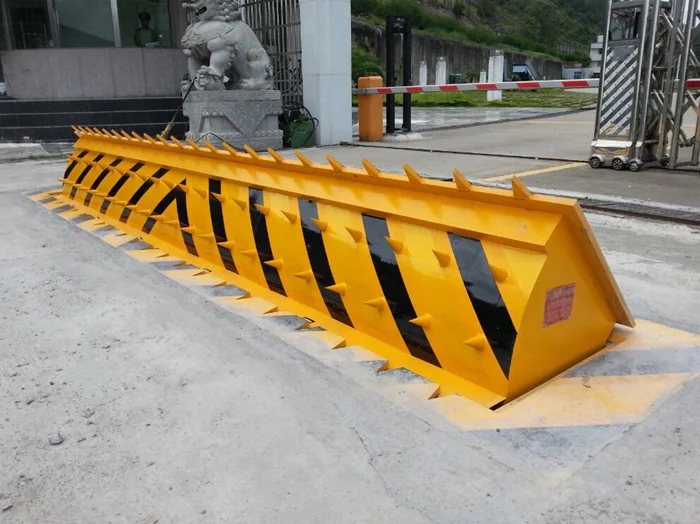

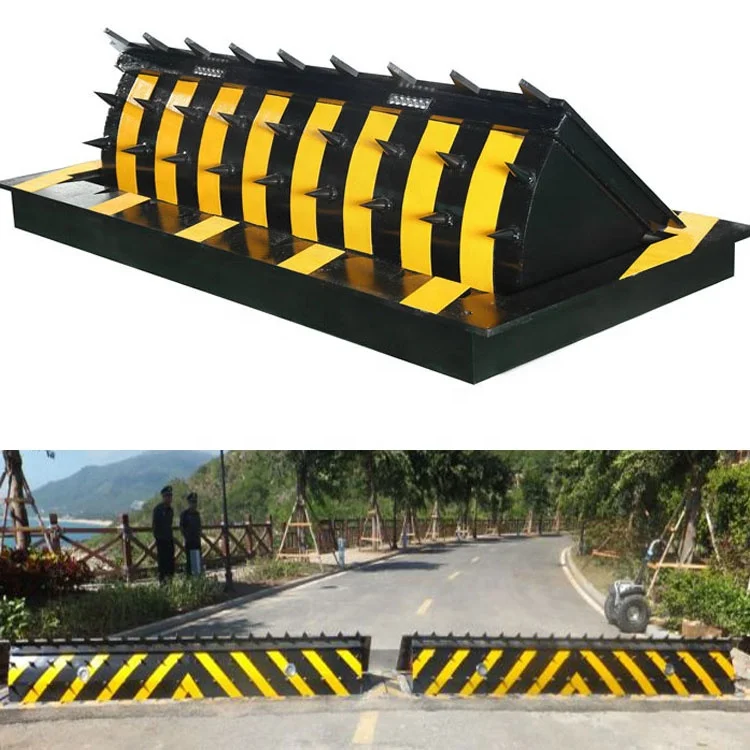

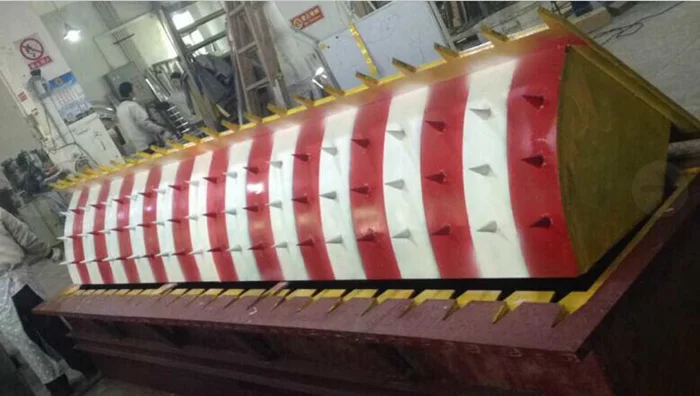

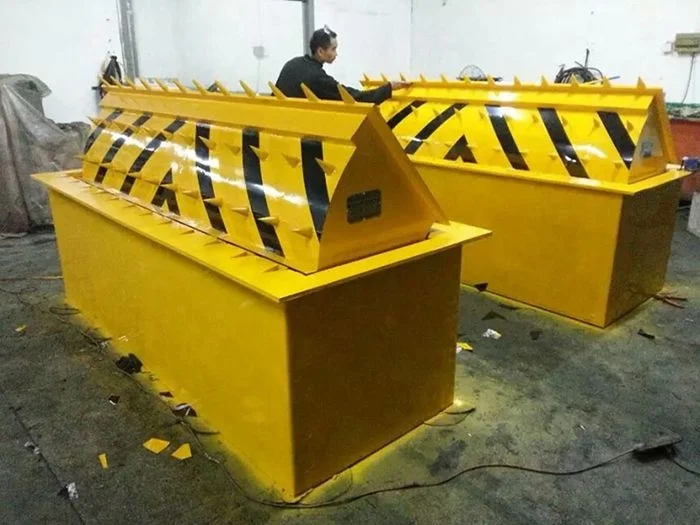

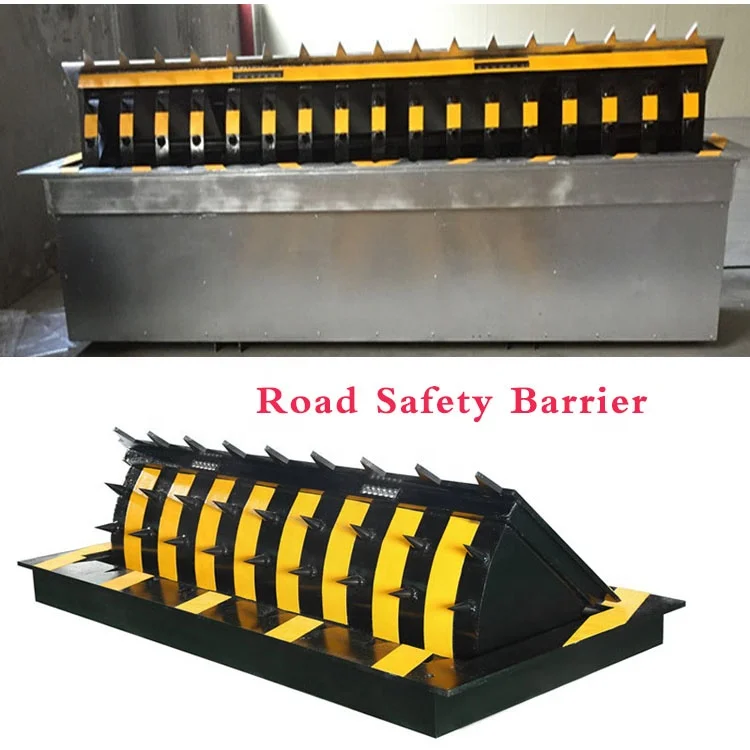

Factory Price Traffic Barrier Road Blocker Heavy Duty Hydraulic Road Blocker

Product Overview

Description



Product Description

The Hydraulic Road Blocker are widely used in highway toll stations, checkpoints, prisons, airports, government agencies, embassies, military bases, customs, banks, industrial and mining enterprises, ports, warehouses, parking lots, and all places where vehicle traffic is restricted. The placeman sends instructions through the control system, and the hydraulic transmission enables the roadblock device to quickly ascend and descend. After the vehicle passes, the roadblock is automatically lifted and lowered by the inductive detection automatic command of the roadblock device or the manual button operation; to control the lane, the door is released or closed. To effectively prevent vehicles from forcibly punching cards.
The product adopts hydraulic drive technology for mandatory interception, strong load-bearing and anti-collision capability, simple and flexible operation, hydraulic transmission, stable and fast action, low noise, strong traffic capacity, safe and reliable, strong carrying capacity and stable lifting.
The Hydraulic Road Blocker can be used together with the traffic barrier gate, the smart card charging management system and the access control attendance system to form a complete crossing management system. (added according to user requirements)











Features

• Durable,Overload,Operate Smoothly,Low Noise,Fast speed up&down


• Micro-control technology makes bollards work stable and reliable,Easy integrate to other systems


• Compatible with road barrier,Turnstiles and other access system control to achieve automatic control


• Advanced mature Hydraulic pressure technologies


• Remote control system realize wireless control up&down within 30 meters range


• Customized for different users requests


• Controller display : LCD and LED


• Swiping card system: built-in card reader to control bollards up&down


• Road barrier integrate with Bollards : built-in access control realize road barrier,A/C and bollards in one-card


• Connected with Computer Management OR Charging Systems



Specifications



1, control system: hydraulic (liquid crystal display,english,russian,turkish,spanish,different language menu,

the language is customized).
2, power supply voltage: 380V (control voltage 24V).
3. System Power: 3.7KW

4, pressure capacity: more than 120 tons of container trucks.
5, anti-collision: K12 (equivalent to 120KM / hour impact, the car is blocked, the equipment works as usual)
6,protection level: IP68 (dustproof, waterproof)
7,open time: 3~6S (adjustable).
8, closing time: 3~6S (adjustable).
9,communication: RS485 ≤ 1200M.
10,the degree of elevation: 450mm-800mm.
11,working temperature: -45 ° C --- 75 ° C.
12, hydraulic pressure is adjustable, normal pressure should be adjusted below 50KGF, the maximum can not exceed 70KGF.
13, Storage environment: -10 °C - 75 °C, rainproof, moisture proof and dustproof.

14, Weight:2200kg-5500kg approx

Model	Dimensions	Flip height	Remark
HZ-RL03	L3000*W1050*H600mm	450-600mm	Size can be customized
HZ-RL04	L4000*W1050*H600mm	450-600mm	Size can be customized
HZ-RL05	L5000*W1050*H600mm	450-600mm	Size can be customized



Schematic View



Our services

Use
1. Office space: commercial buildings, government offices, etc;
2.Science unit: universities, research institutes, libraries, etc;
3. Commercial service establishments: supermarkets, shopping malls, hotels, clubs, banks, etc;
4. Leisure and entertainment: parks, scenic areas, playgrounds, etc;
5. Transportation Sites: bus, train, subway stations, airports and so on.

Service
1. Any inquiries will be replied within 24 hours
2. Professional maufacturer. Welcome to visit our factory.
3. OEM/ODM available
You can have your own fashionable design at reasonable& competitive price
5. High quality:
1.) All products are stictly checked in warehouse before packing
2.) All products are well-packed before shipping
3.) All products have 2 years warranty
6.Payment:
T/T, Western Union, Paypal, Moneygram can be accepted
7. short lead time:
Sample order in stock, and 3--7 days for bulk production
8. Shipping:
Cooperate well with DHL, EMS, UPS, FEDEX, China Air Post
You can also choose your own shipping forwarder



certificate
