PSTN GSM to Analog Converter FXS local line FWT 8818

Product Overview

Description

ETROSS GSM Fixed wireless Terminal FWT-8818

SIM Slot *1, RJ11 FXS*1







1.General Description

GSM FWT-8818 is a GSM to Analog Converter(single port, insert 1 sim card only), the device can produce a FXS line to allow a regular phone to be connected and used just like a local landline(PSTN) except your calls will  go out the GSM network. This device can both receive and make calls.



The main application is: Connecting the RJ-11 FXS line to connect Ordinary telephone set for voice call; to connect PBX for call extensions; to connect billing systems for public phone use; to connect VoIP FXO gateway to realize VoIP call termination; to connect alarm system for security purpose, etc. It is not a VOIP gateway, nor a GSM+VOIP gateway, It is a GSM Fixed Wireless Terminal that produces an analog FXS phone line .



Available:

Employ Quectel M35 Module/Zhiwu 680F module

Frequency:Quad band GSM 850/900/1800/1900Mhz



2.Features:

1) It is a 1 channel GSM FWT which has 2 RJ-11 outputs for extensions;

2) It can connect with ordinary telephone set, Alarm system,PBX ,Billing meter, VOIP Gateway etc. ;

3) Dialing tone frequency:450hz;

4) Employ Industrial module to make;

5) Can adjust dial interval from 0.5sec to 9 secs by setting up from telephone set;

6) Can adjust voice volume by setting up from telephone set;

7) SIM card supported (1.8V, 3V);
8) Caller ID display;
9) DTMF Dialing;
10) Bell signal;
11) Polarity reversal;
12) The RJ-11 socket which connect the phone or billing system for metering purpose;
13) Antenna socket (SMA);
14) IP Presetting;
15) Working status and Signal Strength by LED indicator;

16) IMEI Change (optional).

17) PIN Lock&Network Lock(optional)

18) Back up Li-ion battery( Optional) 7.4V 900mAh.standby 24hrs,talking time: 2.5hrs.



3.Technical Specifications:

Air interface standard: GSM850/1900Mhz,900/1,800Mhz phase 2+ full band
Frequency ranges:
 A) GSM 850                                   GSM 1900:
 I) Transmission: 869.2 ~ 893.8MHz      I) Transmission: 1, 930 ~ 1, 990MHz
 Ii) Reception: 824.2 ~ 848.2MHz         Ii) Reception: 1, 850 ~ 1, 910MHz
 B) GSM 900:                                  GSM 1800:
 I) Transmission: 890 ~ 915MHz           I) Transmission: 1, 710 ~ 1, 785MHz
 Ii) Reception: 935 ~ 960MHz              Ii) Reception: 1, 805 ~ 1, 880MHz
Phone interface: supply RJ-11 Phone Interface
Hanging voltage: 45V
Picking off voltage: 30mA / 41mA
Dialing tone Frequency: 450Hz
Antenna interface: Antenna amplifying>2.5db
Sensitivity:<-104DBM
Transmitting power<3W

Color: White /Black (optional)
AC-Adapter interface: Input: AC 110~240VAC  50~60Hz;Output: 12DC 1A.

AC-Adapter type: EU,US,AU,British can be optional





 4. Application

1) The Installation for Connecting to Ordinary Telephone







2) The installation for connecting to billing device for metering





3) The installation for connecting to alarm system for Security





4) The installation for connecting to PBX for call extentions





5) The installation for connecting VoIP gateway for Call Termination

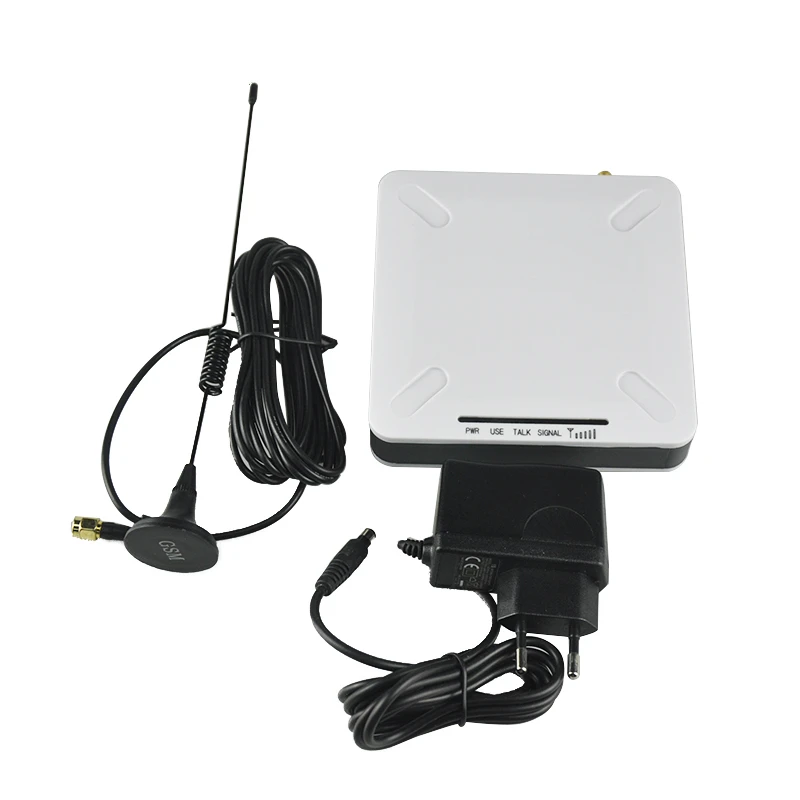

5.Packing List



Name	Quantity	Remark
GSM FWT 8818	1pcs	Dual band or Quadband
AC Adapter	1pcs	AC-110-240V, DC12V/1A
Antenna	1pcs	Magnetic Antenna with 3m cable
User Manual	1pcs	English

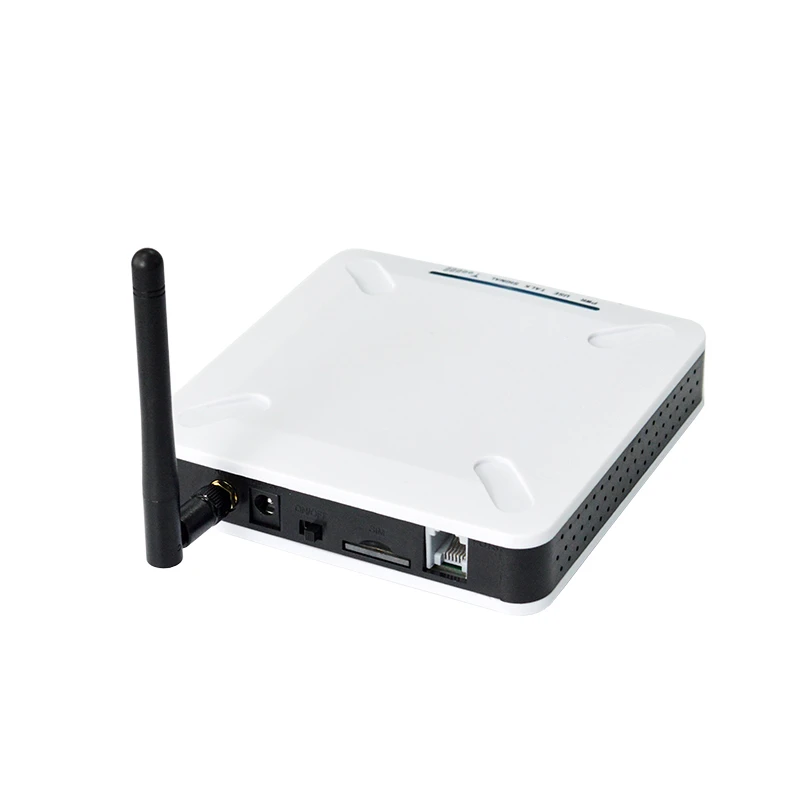

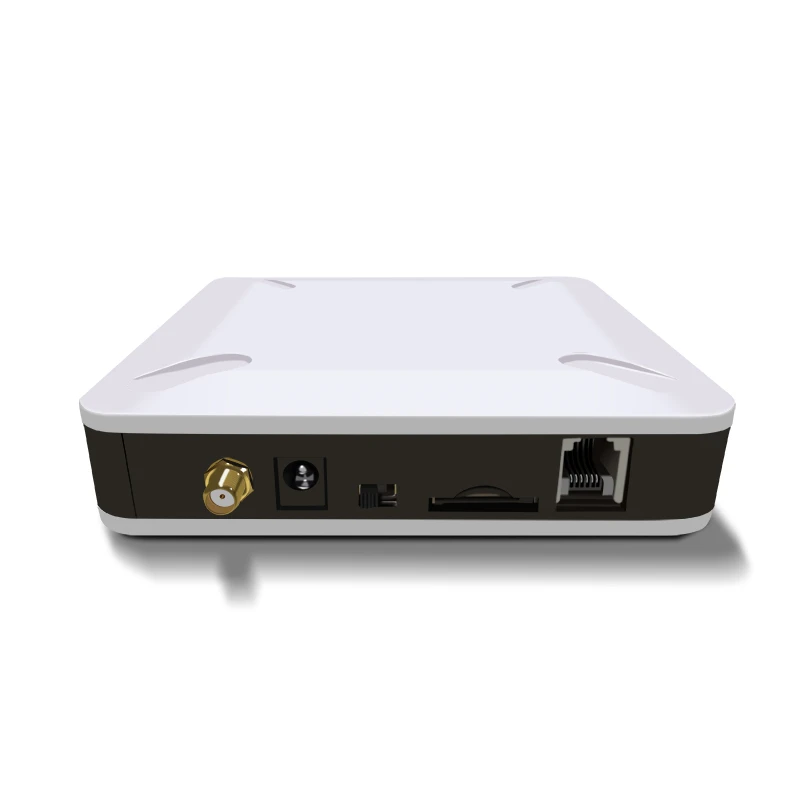

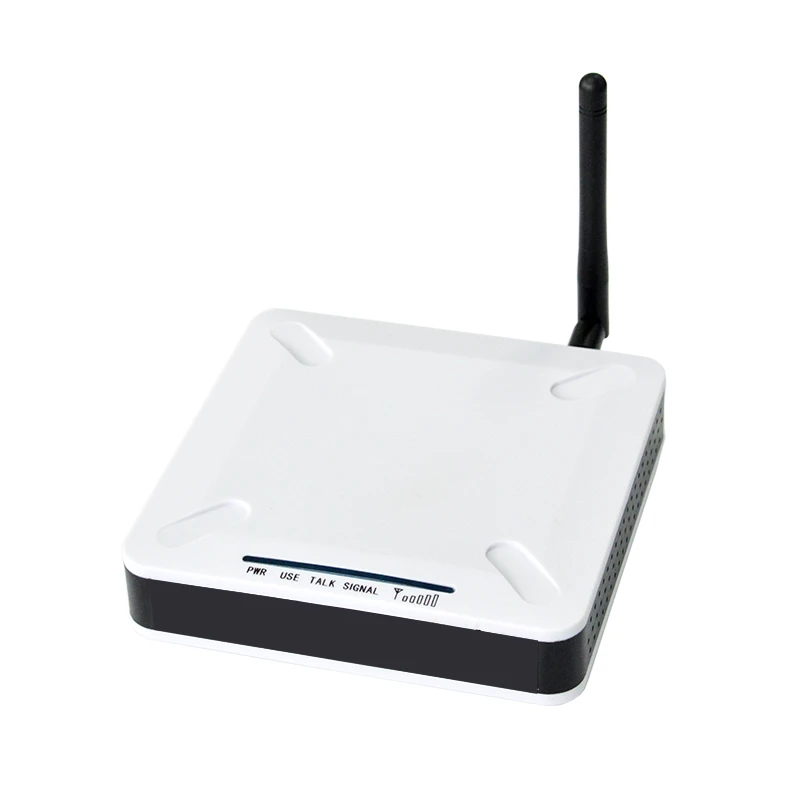

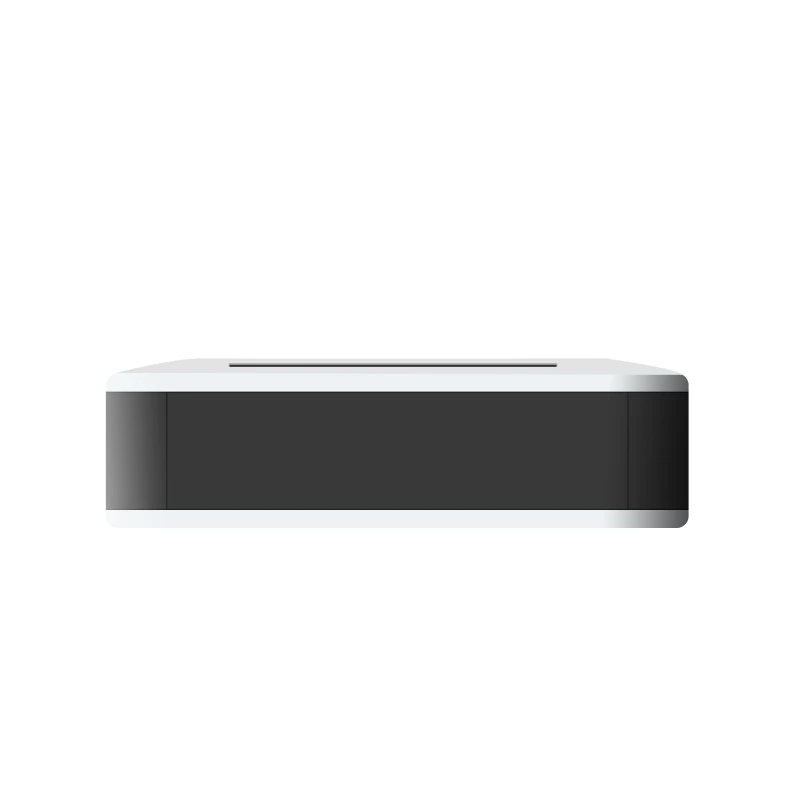

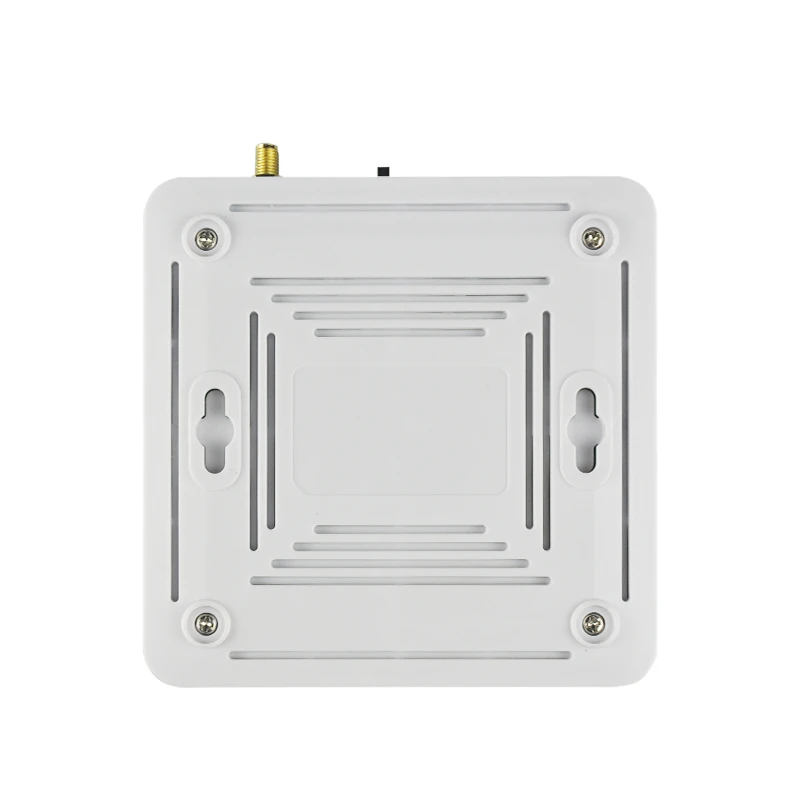

6. Pictures
