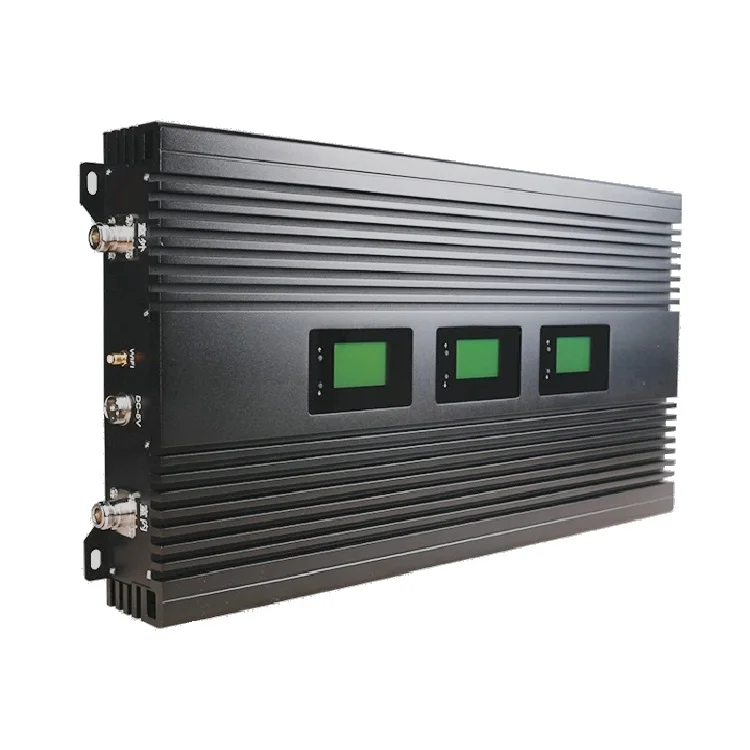

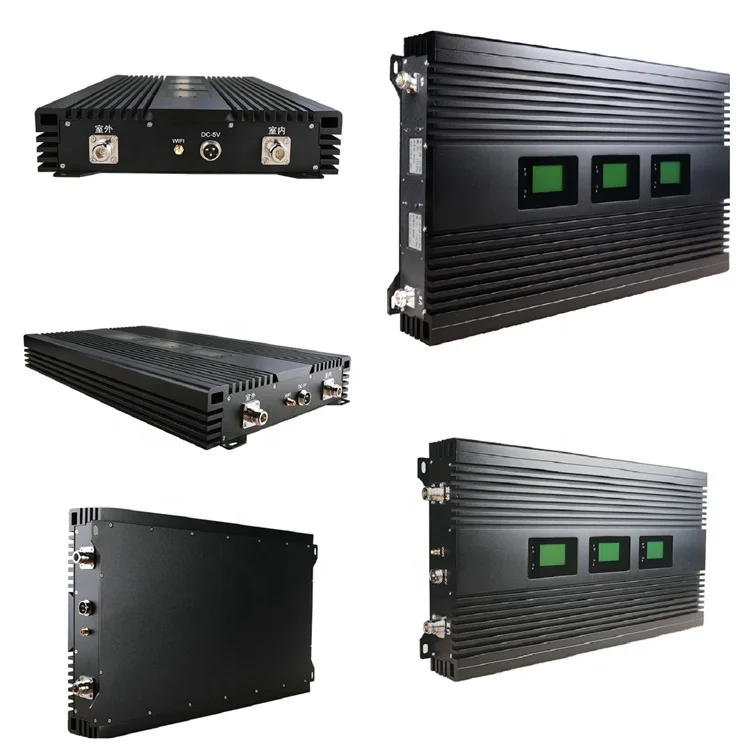

2 watt 900/1800/2100 Mhz SIGNAL AMPLIFIER rf signal repeater FOR GSM Booster 2G 3g 4g
- Category: >>>
- Supplier: Hwatel (Beijing) Technology Co. Ltd.
Share on (62049202181):
Product Overview
Description
HWATEL KINGKONG HIGH POWER INDUSTRIAL BOOSTER TRI-BAND 900+1800+2100MHz
| |
BAND 8, 3, 1 TRI BAND INDUSTIAL BOOSTER FOR EUROPE ASIAPASIFIC AFRICA MIDDLE EAST 27DBM 80 DB GAIN |
| Technical Specification | |||
| Tech Parameter | Uplink | Downlink | |
| Frequency Range | 900M/band 8, 1800M/band 3, 2100M/band 1 | ||
| Output Power | 23 ±2dBm | 27 ±2dBm | |
| Gain | 75 ±2 dB | 80±2dB | |
| Ripple in Band | GSM≤4dB | ||
| Spurious Emission | 9KHz~1GHz | ≤ -36 dBm | |
| 1GHz~12.75GHz | ≤ -30 dBm | ||
| Intermodulation Products | 9KHz~1GHz | ≤ -36 dBm | |
| 1GHz~12.75GHz | ≤ -30 dBm | ||
| VSWR | ≤3 | ||
| MTBF | >50000 hours | ||
| Power Supply | AC:100~240V, 50/ 60Hz; DC:28V | ||
| Power Comsumption | 10~50W | ||
| Impedance | 50 ohm | ||
| Mechanical Specification | |||
| RF Connector | N-Female | ||
| Dimensions (D*W*H ) mm | 270x360x60 | ||
| Net weight | 8 Kg | ||
| Packing size (D*W*H ) | 470x360x150 | ||
| Environment Conditions | IP65 | ||
| Humidity | < 90% | ||
| Operating Temperature | -10℃ ~ 55℃ | ||
