Product Overview
Description
Product Details

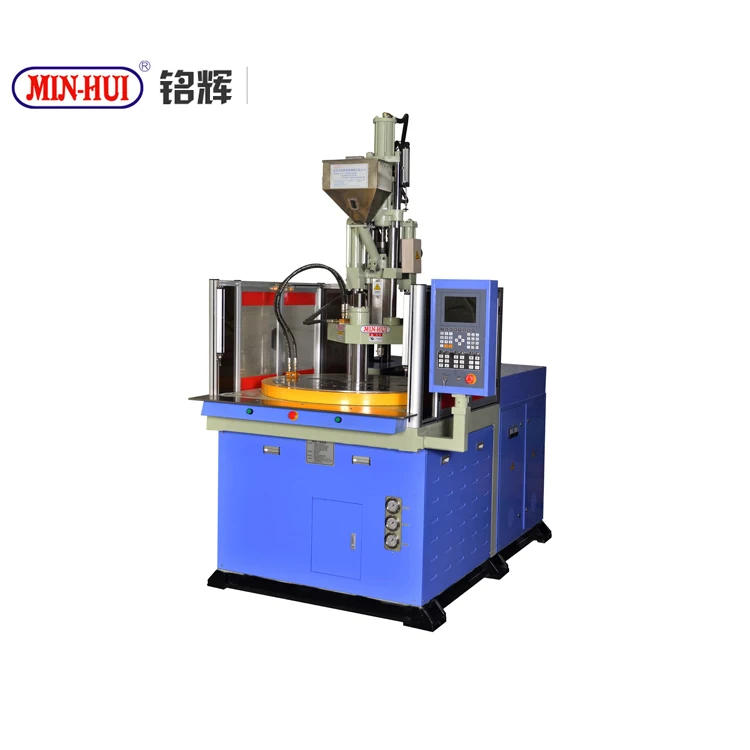

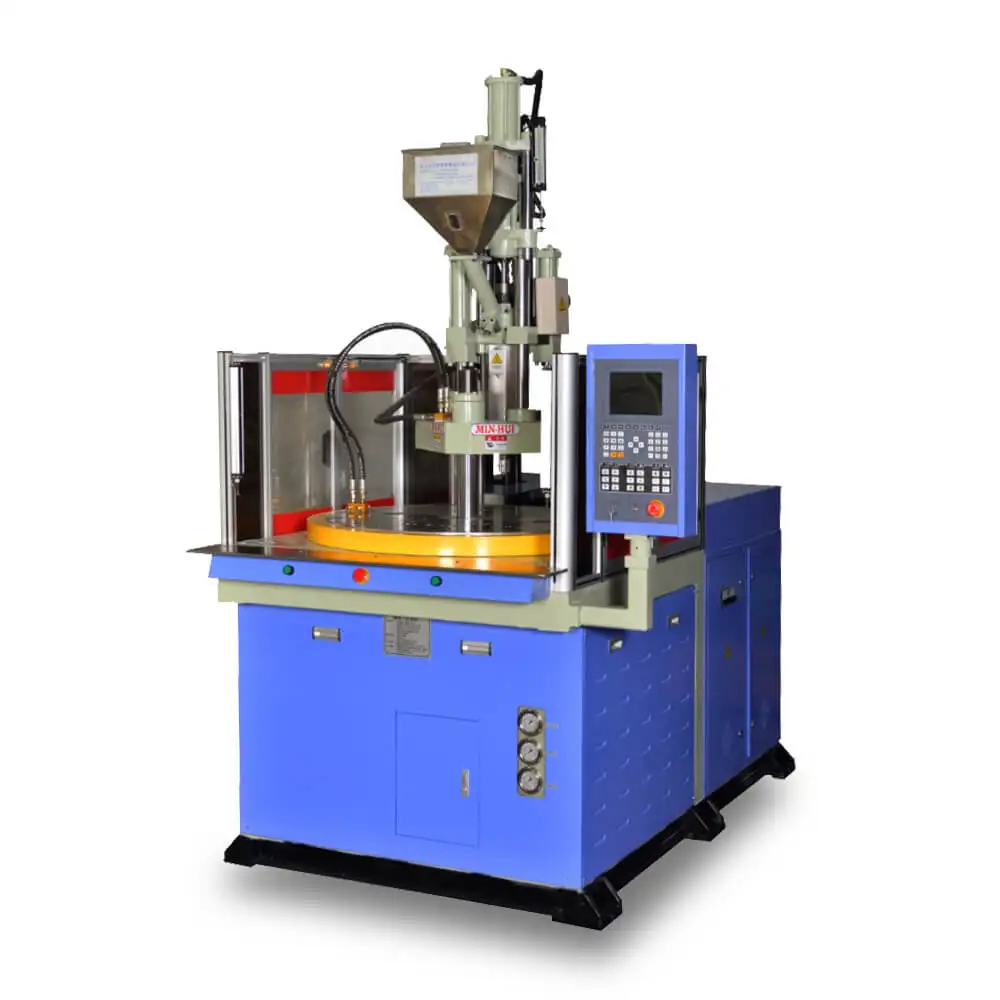

MH Rotary Machine Series
Clamping force: 45T to 500T
Injection weight: 35g to 850g
Vertical four columns clamping, vertical injection
Suitable for insert injection molding process.
1 top mold,2 bottoms mold design,Turn out the
Clamping area by Rotation.
put insert part into outer mold and inner mold injection
at the same time,
We can upgrade to servo motor for customer's need,
The actual energy save 50% ~ 70%.
Injection weight: 35g to 850g
Vertical four columns clamping, vertical injection
Suitable for insert injection molding process.
1 top mold,2 bottoms mold design,Turn out the
Clamping area by Rotation.
put insert part into outer mold and inner mold injection
at the same time,
We can upgrade to servo motor for customer's need,
The actual energy save 50% ~ 70%.
Details Images
Product Paramenters
MODEL | UNIT | MH-2R-60T | ||||||
Injection Unit | Screw Diameter | mm | Φ28 | Φ32 | Φ36 | |||
Theoretical Injection Volume | cm | 80 | 104 | 132 | ||||
Injection Weight (PS) | g(oz) | 74.4(2.6) | 96.7(3.4) | 122.9(4.3) | ||||
Max.Injection Pressure | Mpa(kgf/cm | 212(2170) | 162(1661) | 128(1312) | ||||
Injection Rate | cm/s | 73 | 95 | 121 | ||||
Injection speed | mm/s | 118 | ||||||
Speed Improvement | mm/s | 164(45T) | ||||||
Screw Rotation Speed | r.p.m | 0~240 | ||||||
Nozzle Out From Platens | mm | ≥45 | ||||||
Clamping Unit | Clamping Force | KN(tf) | 588(60) | |||||
Clamping Stroke | mm | 200 | ||||||
Min.Mold Thickness | mm | 180(260) | ||||||
Max.Opening | mm | 380(460) | ||||||
Max.Mould Site(L*W) | mm | 320*320 | ||||||
Diameter Of Rotary table | mm | Φ880 | ||||||
Ejection Distance | mm | 100 | ||||||
Ejector Force | KN(tf) | 26.5(2.7) | ||||||
Others | System Pressure | Mpa(kgf/cm | 13.7(140) | |||||
Oil Tank Capacity | L | 230 | ||||||
Motor Power | KW(HP) | 11(15) | ||||||
Machine Dimensions | M | 2.1*1.6*3 | ||||||
Machine Weight | tf | 2.6 | ||||||
Our Factory
Industry Applications
Exhibition
PACKAGING LOGISTICS
FAQ
Are you a manufacturer or Trade Company?
We are a professional vertical injection machinery manufacturer
We are a professional vertical injection machinery manufacturer
Under normal circumstances, the following information must be collected before purchasing a vertical injection molding machine,
and the more detailed, the better.
1. Mold size (length, width, and height), weight, exceptional design, etc., mold guide post-stroke, with or without hot runner and
thimble device.
2. The characteristics of using plastics.
3. The size and weight of the injection product.
4. Molding requirements, including the production cycle of a few (a few holes in a mold), product quality requirements, product
appearance, size requirements, etc.
What is the clamping force of Min-Hui vertical injection molding machines?
The clamping force of the product ranges from 15 tons to 500 tons.
What industries can use Min-Hui vertical injection molding machines?

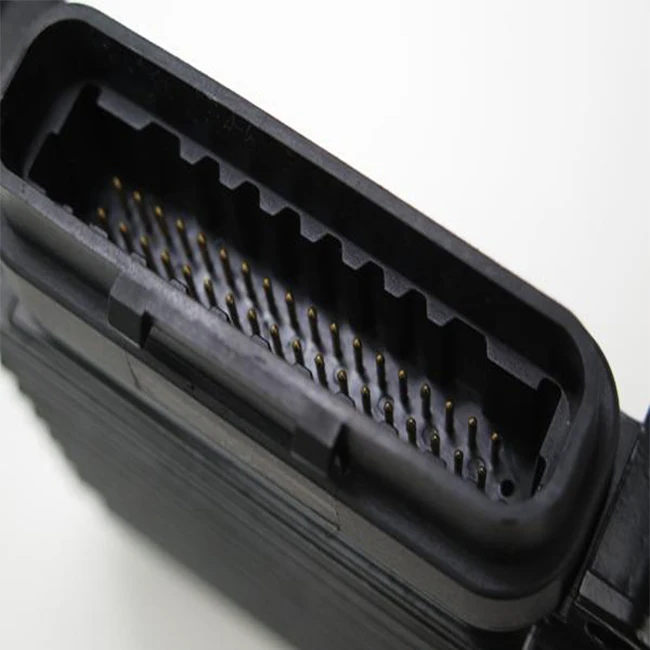

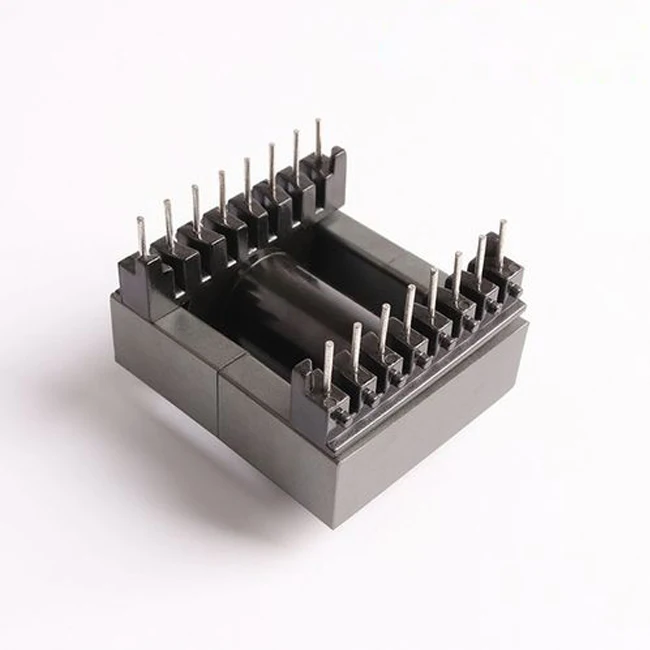

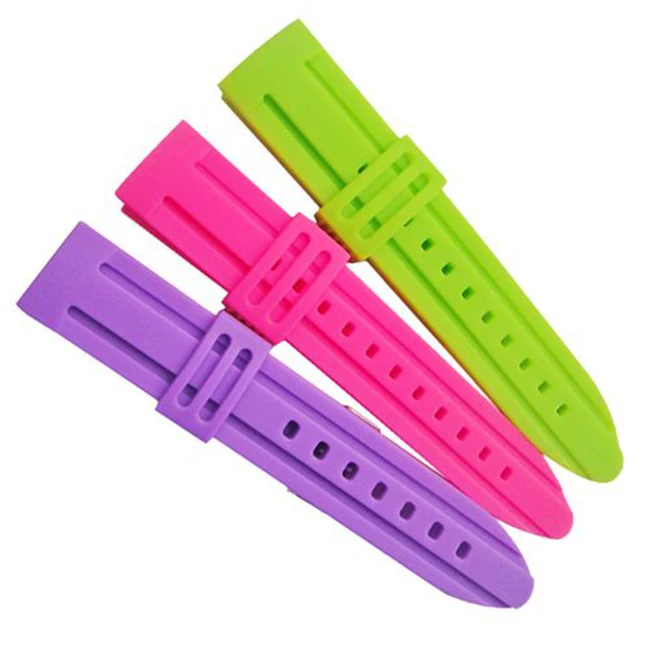

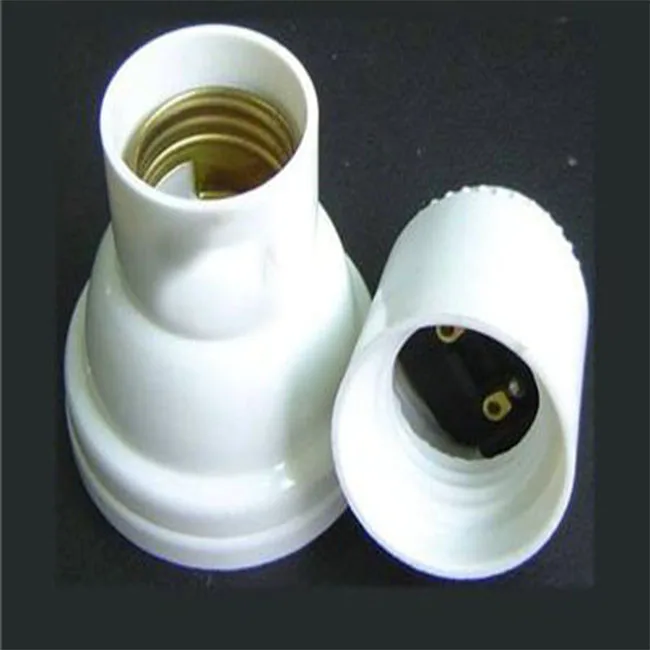

Automobile manufacturing, medical equipment industry, cosmetics industry, knives, sanitary ware, furniture, toys, daily
necessities, baby products, electronic connectors, optical lenses, backlight boards, watch movement gears, shoe soles, color
plates, hoses, rigid tubes, etc. Production of plastic products in various industries.
necessities, baby products, electronic connectors, optical lenses, backlight boards, watch movement gears, shoe soles, color
plates, hoses, rigid tubes, etc. Production of plastic products in various industries.
