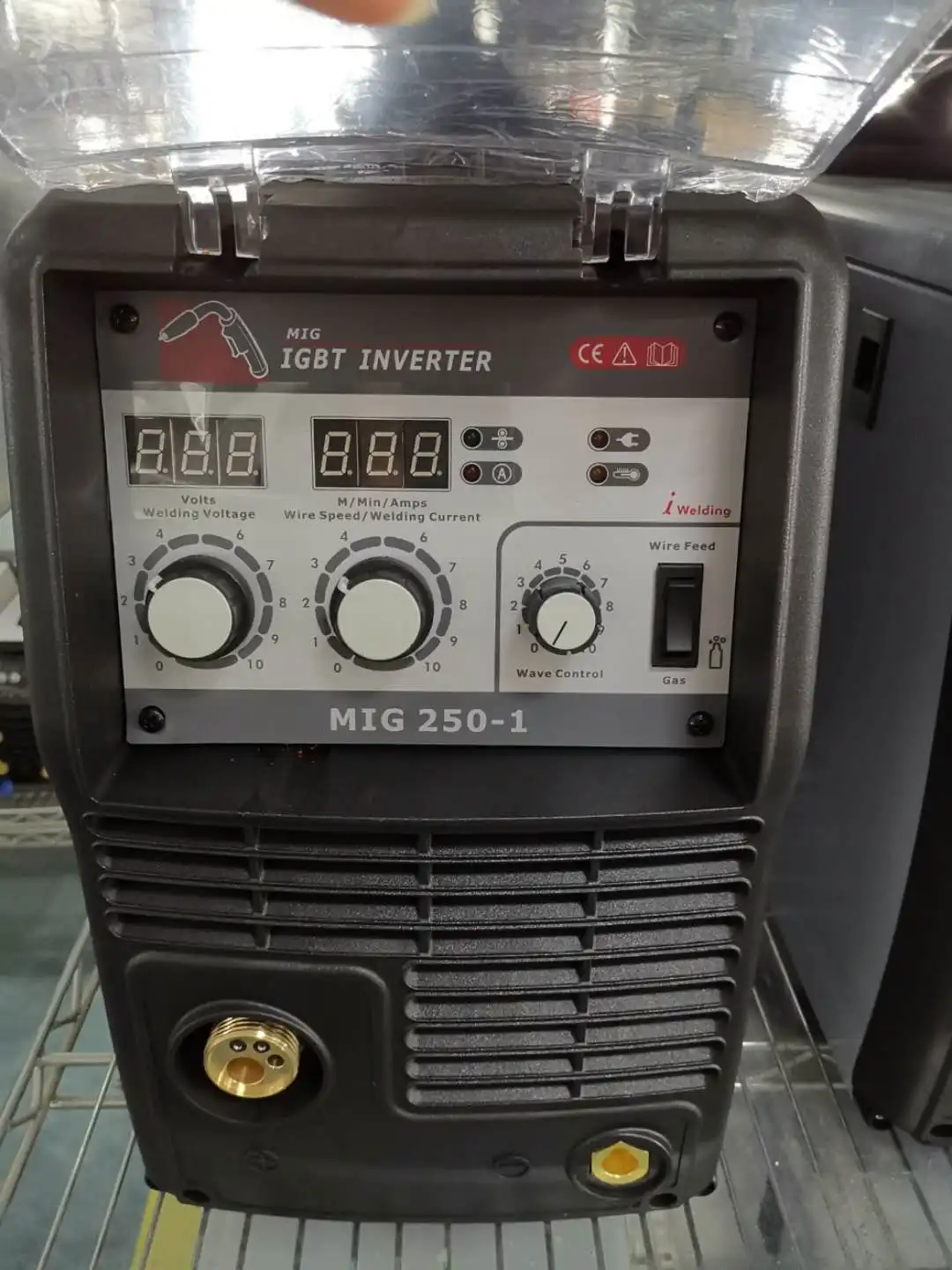

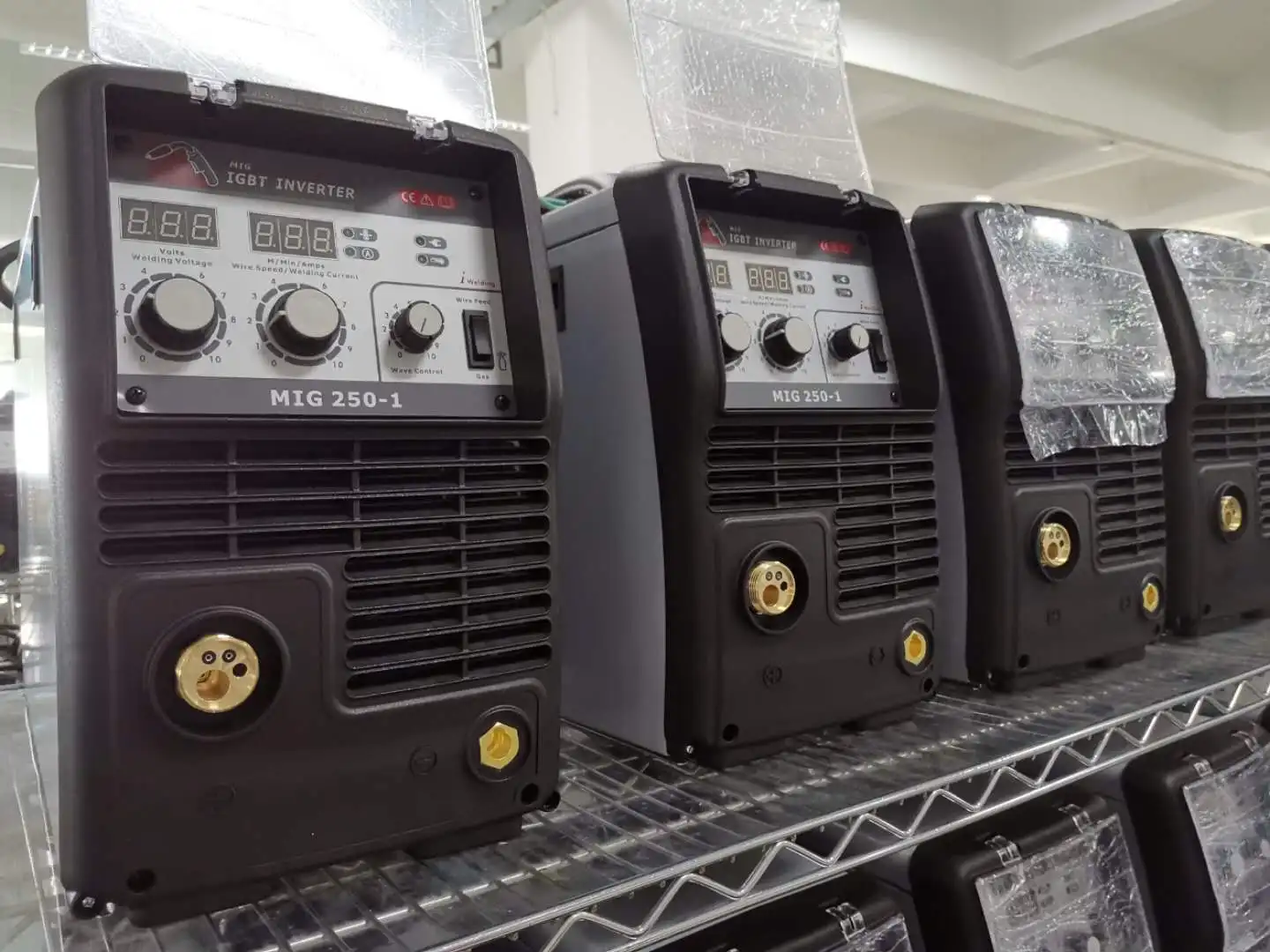

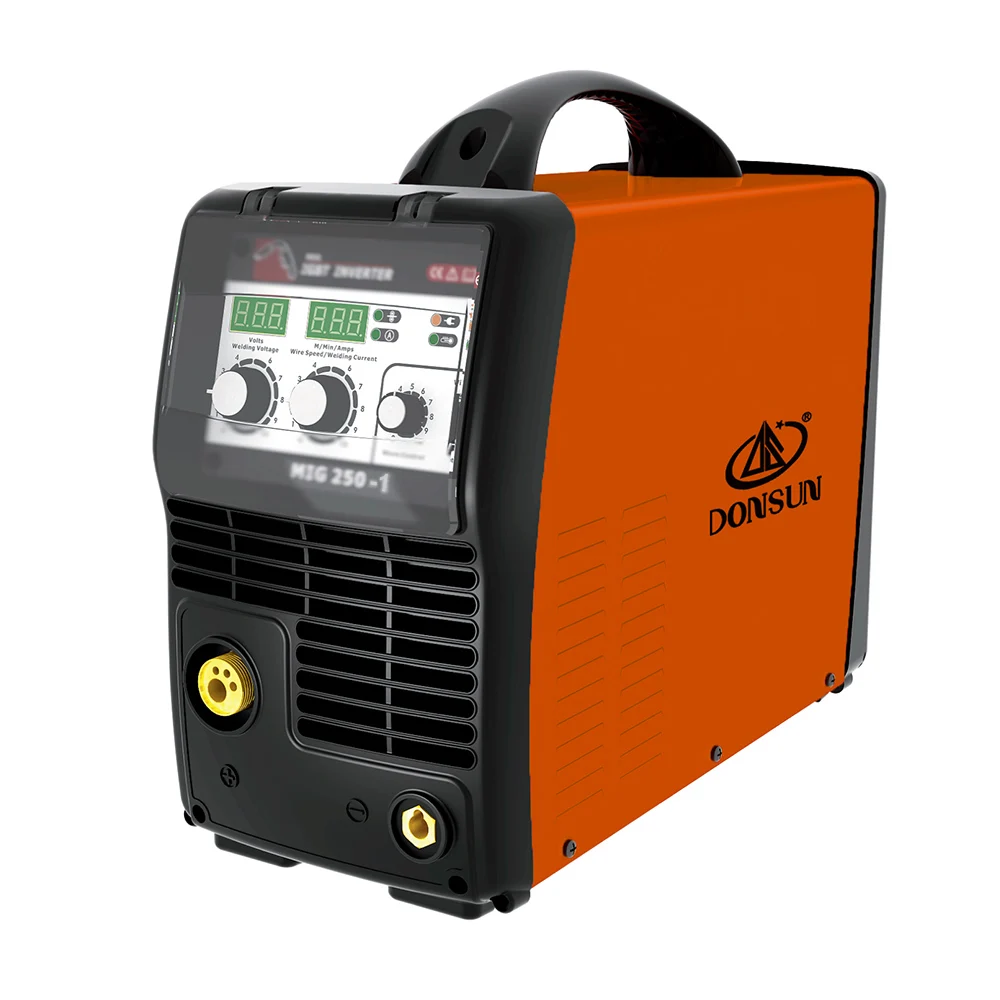

MIG 250 1, Portable Electric High Efficiency Inverter Multifunction Mig Welder
- Category: >>>
- Supplier: Shanghai Donsun Welding Equipment Co. Ltd.
Share on (62049247783):
Product Overview
Description
Product Description
Features:
Arc Stability
Waveform control,for added stability of the arc, even at low current.
Protections
Equipped with temperature,voltage and current sensors for high protection.
Big Spool
Capable of loading up to 20KG spool.
Wire Feeder
4 rolls wire feeder available on request.
| Model | MIG 250-1 |
| power supply voltage(V) | 1~220/230/240 ±10% |
| Fre.(HZ) | 50/60 |
| Rated Input Power (KW) | 7.3 |
| Rated input current(A) | 50 |
| Duty Cycle(40℃ 10Min) | 60% 250A |
| 100% 200A | |
| No Load Voltage(V) | 47 |
| Welding Current Range(A) | 50~250 |
| Welding Voltage Range(A) | 13.5~26.5 |
| Wire Diameter(mm) | Fe:0.6/0.8/0.9/1.0/1.2 Ss:0.8/0.9/1.0/1.2 Flux-cored:0.6/0.8/0.9/1.0/1.2 |
| Efficiency | ≥85% |
| Net Weight(Kg) | 23 |
| Dimensions(mm) | 618x240x445 |
| power factor | 0.7 |
| Insulation Class | H |
| Protection Class | IP23 |
| Cooling | AF |
