Textile weaving machine high and low double beam air jet loom price
- Category: >>>
- Supplier: Qingdao Jinxin Hejia Machinery Co. Ltd.
Share on (62049285701):
Product Overview
Description
Product Description
Product Application

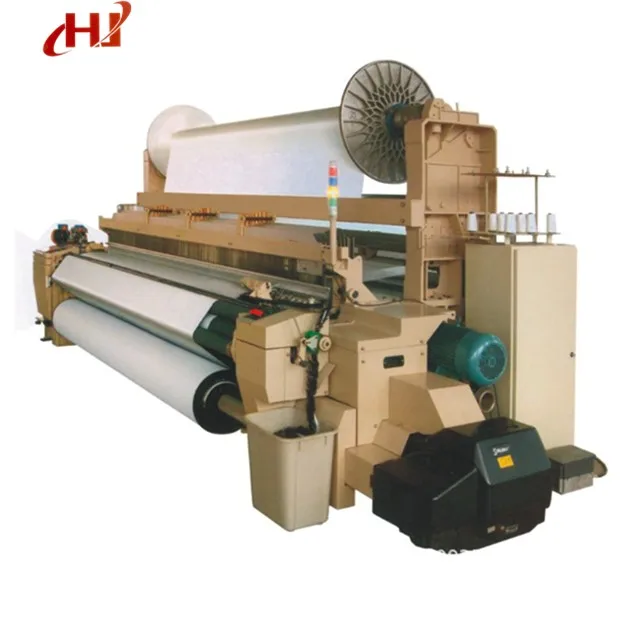

Textile weaving machine high and low double beam air jet loom price
Product performance index: Nominal reed space is 190-360 cm(according to user requirements production corresponding box picture), high-low weaving shaft disc diameter of 800mm(or 914mm, 914mm). the main shaft of 400-750 RPM (actual speed according to fabric specification), reed width adjustable range of 0-800mm, suitable fabric yarn or fiber, cloth 550mm diameter, doubl servo control, electronic multi-arm opening(16 pieces), electronic take-up(mechanical take-up), 10 touch LCD display controlled by the intelligent computer.
SPECIFICATIONS OF AIR JET LOOMS | ||||||
Reed Space(cm): | 190,210,230,280,340,360cm | |||||
Weft selection: | electronic feeder( Single or double nozzle electronic feeder) | |||||
Motor: | 3.0-4.5KW | |||||
Running speed: | 500-700RPM | |||||
Weft insertion method: | 1.2.4.6 nozzles,electromagnetic control | |||||
Shedding: | crank/cam/dobby | |||||
Let- off: | electronic | |||||
Take-up | electronic | |||||
Selvage: | air tuck in device | |||||
Main Features
Fold into the side of pneumatic devives
Pneumatic device with left right and middle tuck-in device.
Controlled by the jet stream make yarn end inside the fold, realize optical margin weaving fabric, simple structure, easy to use, will not damage the reed due to mechanical trouble. also won 't because of mechanical parts wear and affect the quality of the edge.
Packing & Delivery
Company Profile
Qingdao JinXin HeJia Machinery Co, LTD. IS specialized manufacturers of textile machinery, have a strong engineering and technology team, can realize the design and manufacture of textile machinery independently, the main products are: JX series air jet looms, JX series 851, JX series 408 heavy and high-speed water jet looms.
Our company has passed Iso9001: 2015 quality system certification, the company formed a complete quality assurance system, has strict quality assurance in the whole process of product design, raw material purchasing, fitting and assembly, process assembly design, manufacturing, inspection, site installation and commissioning and after-sales service, has quality management, quality inspection,measurement and physical and chemical testing, product performance testing and other technical quality institutions and metrology testing facilities, to ensure the stability of product quality and continuous improvement of quality assurance system.
The company always regards innovation and development as its top priority, has the satisfaction of users as the goal of lifelong pursuit, always adhere to the principle of quality first and users first. Our high level of design and production, strict quality assurance system, reliable after-sales service, let you choose our company's products to be truly satisfied and reassuring.
We warmly welcome new and old friends from home and abroad to visit our company and negotiate business.
Factory And Workshop
Exihibition
Certifications
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
