HOT SALE Micro Chemical Diaphragm Pump
- Category: >>>
- Supplier: Shanghai Haoyang Pump Valve Manufacturing Co. Ltd.
Share on (62049288599):
Product Overview
Description

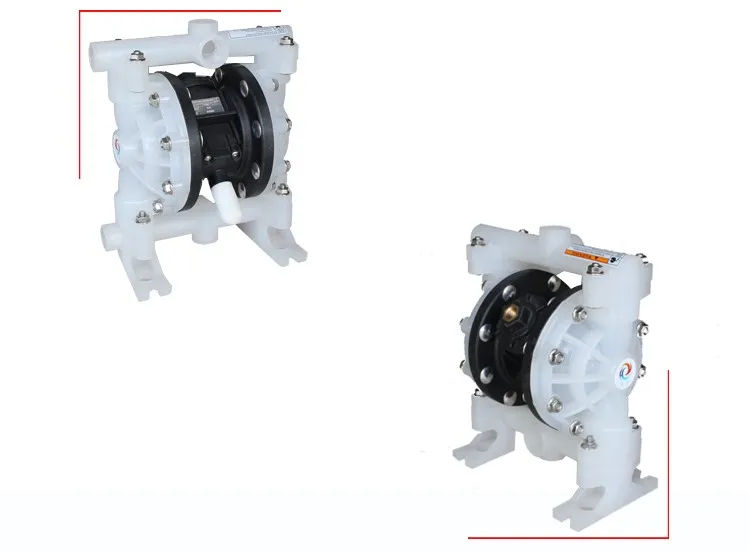

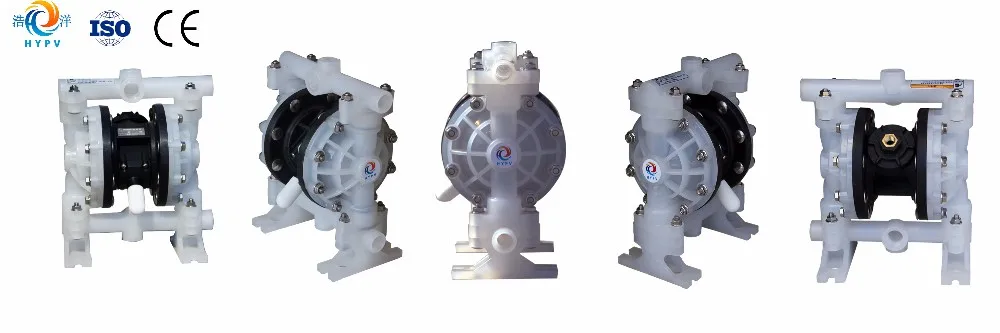

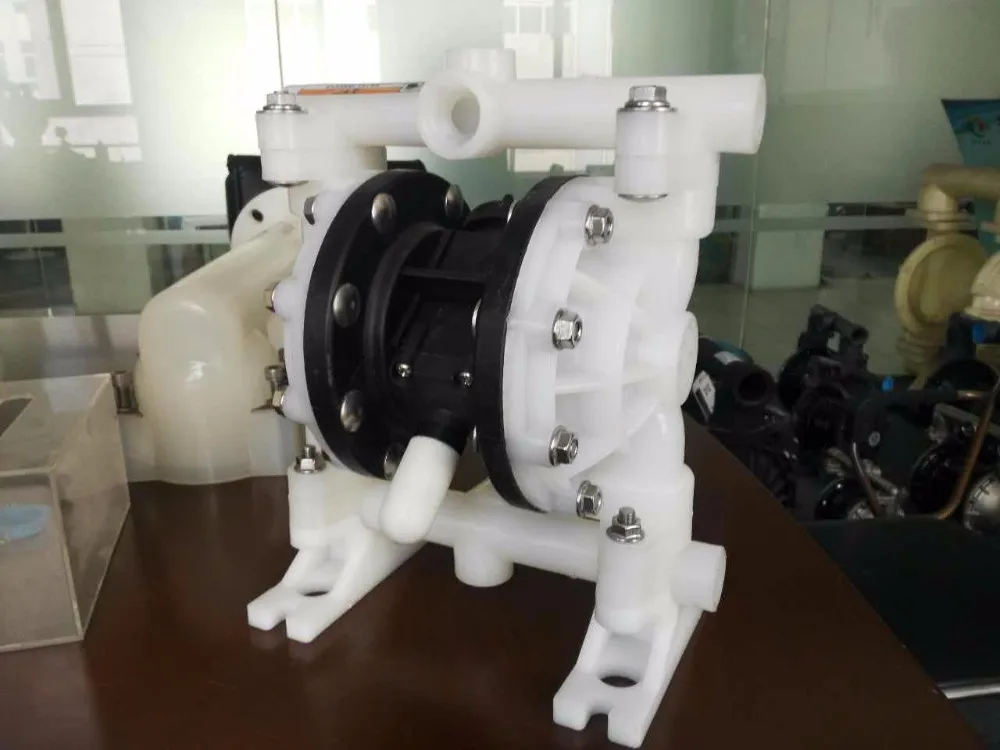

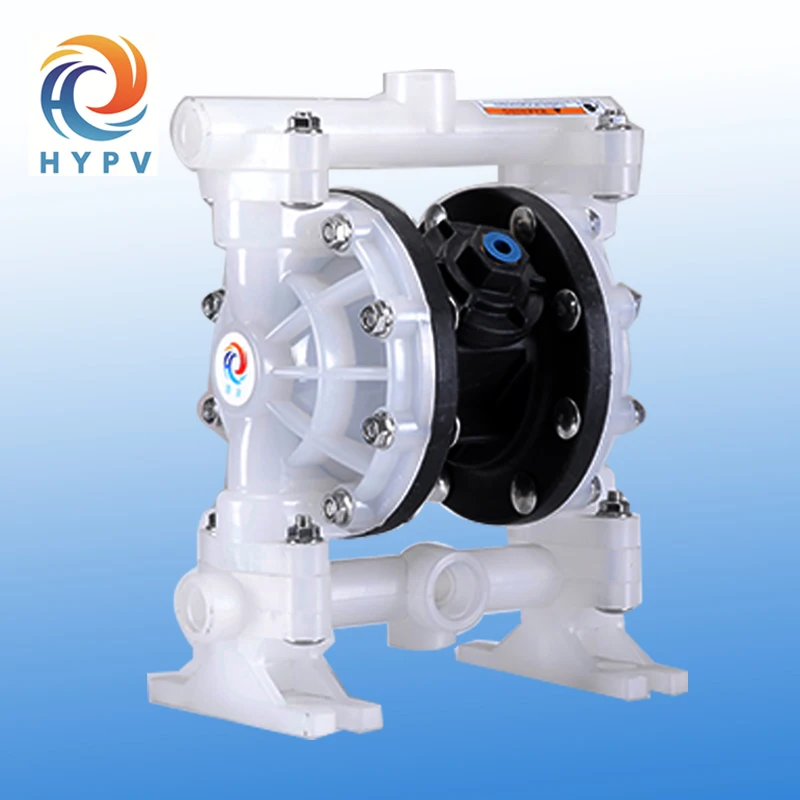

Micro Chemical Diaphragm Pump
| HY Air-Operated Diaphragm Pump Features |
Pneumatic Diaphragm Pump Advantages:
Idling ,Self-priming , Submerse capability.
Provide stall-free, ice-free zero leak operation.
Epoxy-coated air section for tough environmental conditions.
Bolt joint design provides even sealing pressure for optimal performance.
Diversity of material,no rotating parts,applicable to various erosive situations.
Modular air valve,low pulsation operation,providing smooth and rapid changeover.
No electricity . It's safe and realiable while using in the flammable and explor place .
Can deal with all kinds of corrosive, volatile, flammable, poisonous fluids with particles and high viscosity.
| Product Marking | Function Description |
| A | Simple structure,reliable connection ,easy assembly and disassembly. |
| B | Modular design,low air consumption,no dead spots and no need lubrication. |
| C | Enhanced the chamber strength,has long_term durability. |
| D | Bolts connection design,good seal. |
| E | Adopt special grinding machine to process in high roundness and good seal. |
| F | Accurately calculatethe diaphragm moving distance to reduce the force to diaphragm. |

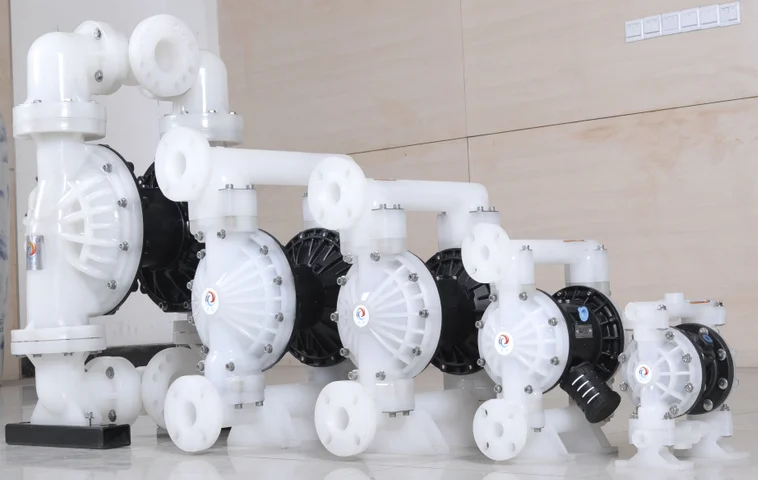

| HY Air-Operated Diaphragm Pumps Selection |
| Technical parameters |
| Mode | Max.Suction Lift (dry\\wet,m) | Max. particle diameter (mm) | Suction and discharge size (inch) | Air inlet size (inch) | Max. flow rate (L/min) | Max. air consumption (m3/min) |
| HY-15/20 | 4 \\ 7.6 | 2.5 | 1/2 3/4 | 1/4 | 57 | 0.672 |
| HY-25 | 4 \\ 8 | 4 | 1 | 1/2 | 157 | 1.7 |
| HY-40 | 5 \\ 8 | 5 | 1½ | 1/2 | 358 | 3.5 |
| HY-50 | 5 \\ 8 | 6 | 2 | 1/2 | 587 | 4.9 |
| HY-80 | 5 \\ 8 | 9.4 | 3 | 3/4 | 1060 | 9.1 |
| Performance curve |
| Model sheet |
| HY Air-Operated Diaphragm Pump Installation |
HaoYang AODD pumps are suitable for an endless variety of applications . Our pumps can be deployed in fixed installations within a process flowsystem, or used as portable or mobile units that can be transported to where it is to be used.
 |  |
| Pump, self-priming | Pump with positive suction |
 |  |
| Pump, submerged | Pump for drums |
| HY Company information |
Shanghai Haoyang Pump Valve Manufacturing Co., Ltd.designed and manufactured for over 10 years in Shanghai,China. HaoYang Air-Operated Double Diaphragm (AODD) pumps have earned industry recognition for premium quality and innovative design. And we supply accessories and components suitable for most AODD pump installations.To ensure suitability for a variety of media, wetted parts are available in numerous optional materials.
Focus on customer satisfaction is supported with quality and reliability, validated by CE certifications.We specify only the most durable materials that are dependable and long-lasting. When we combine the highest-quality products with topnotch customer care, we get outstanding value.
HY have attented China (Shanghai) International Architectural Coatings&Chemical Materials Expo and IE expo for several times, our product are highly recognized by customers
FAQ
| FAQ |
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: What're your payments ?
A: T/T,Western Union,L/C etc.
3. Q: What about the package ?
A: Standard export plywood case or carton.
4. Q: How long is the warranty ?
A: According to international standards, products in standard operation is 1 year,except wearable parts.
5. Q: The use of products have?
A: The pump can suck the peanut, pickles, tomato slurry, red sausage, chocolate, hops and syrup etc.
The pump can suck the paint, pigment, glue and adhesive etc.
The pump can suck various glazed slurries of tile, porcelain, brick and chinaware etc.
The pump can suck various toxin and flammable or volatility liquid etc.
The pump can suck various strong acid, alkali and corrosive liquid etc.
6. Q: How product quality and service?
A: Our pump have CE certificate, quality assured, can accept OEM, provide various personalized needs.
If you want to know more details, Please send inquiry to me,
We are very glad to hear from you !
Click " Send " Now!
