3ml 5ml 10ml Vial liquid filling capping machine for cosmetic ,Hot sale glass bottle filling capping machine

Product Overview

Description

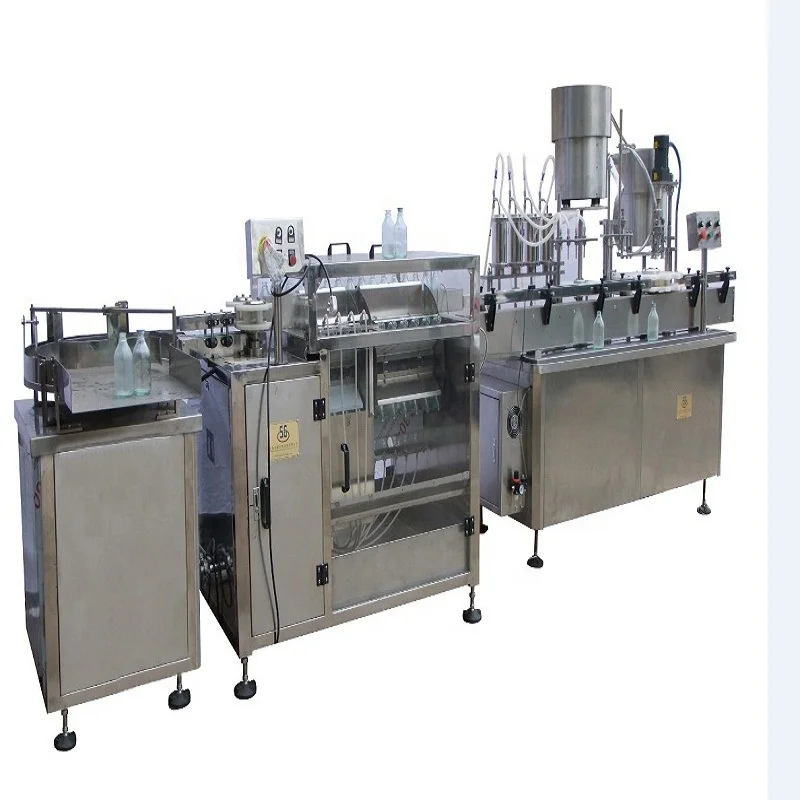

 The technological process:bottle feeding, washing,Two times water wash and 1 time air clean bottle  outside,Filling and capping(roll), labeling etc

This production line performance stable,operstion is very simple,According to customer technological requirements configuration can satisfy different specifications and production speed.

 The machine is suittable for medical,chemical and food industries. The filling head is 4 or 8 heads. The filling precision is high.(the applicable specification is from 20ml to 100 ml. Increase the pumps can be increased the production capacity.) It can use positioned filling. The pumps and the parts which contact the liquid are made of 316L stainless steel or health material. The whole machine is made of stainless steel material.

Product No	SGGZ-4	SGGZ-8
Applicable specification	5-55ml	5-55ml
Production speed	40-60bottle/min	80-100bottle/min
Filling error	±1~2%	±1~2%
Water pressure and water consumption	0.3-0.5MPa,0.6~1m³/h	0.3-0.5MPa,0.6~1m³/h
Purify compressed air pressure and air consumption	0.3-0.5MPa,5~15m³/h	0.3-0.5MPa,10-25m³/h
Power supply	380/220v,42.5KW	380/220v,45KW
Exhaust volume	2600m³/h	2800m³/h
Dimension	11000*1550*2000mm	15000*1750*2000mm
Weight	1200kg	1300kg
