Share on (62049499761):


Price:

Quantity:


Product Overview

Description



Product Description




Model
Smart Wasp X300
Spare Parts
 Brand
 Maximum wrapping speed
20-35 loads/hour
(1x1.2x1.8 m 2 layer NOT include loading and Unload time)
Inverter
X-LINE
Maximum pallet size
1.2*1.2 m
Position sensor
SICK(Germany)
Maximum Wrapping Height
2400mm(for pallet height:2300mm +100mm over top)
PLC
SIEMENS
Turntable Speed
0-13RPM(Adjustable)
Travel Switch
OMRON(Japan)
Turntable Size
1650mm(1500mm/1800mm/2000mm optional)
Motor
GPG Taiwan
Top Pressure
Have(30KG Pressure Force)
Relay
OMRON(Japan)
Film Cut & Clamp
Automatic (Mechanical type)
Touch screen
SIEMENS
Max Load Weight
2000KG
Switch
Schneider
Standard Film Width
500mm
Photoelectric sensor
Autonics
Constant Film Delivery Force
Standard
Terminal block
Weidmuller(Germany)
Standard Pre-Stretch
250%
24V power supply
OMRON
Film Capacity
250mm Diameter

Up&down Drive system
Up&down Drive system

Fix Film on Pallet
Manual
OPTIONAL FUNCTION

Roping system
Have
Ramp
Optional
Muti-layer function
Have
weighing scale
Optional
Machine Size
2.8*1.65*2.74m

Machine weight
680KG

Voltage
110-240V/50HZ/60 HZ 1/3P

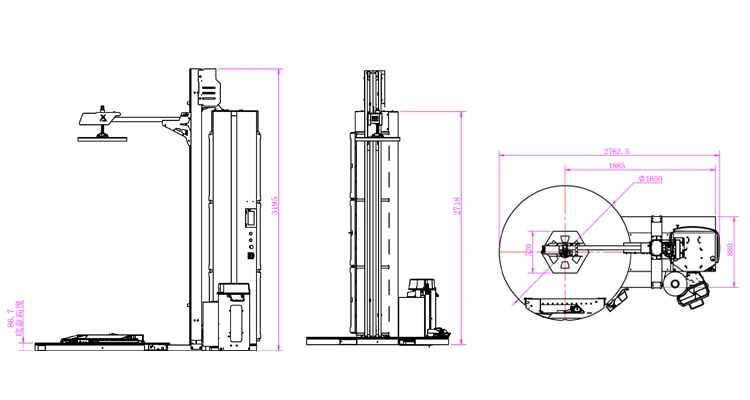

ENGINEER DRAWING




Detailed Images

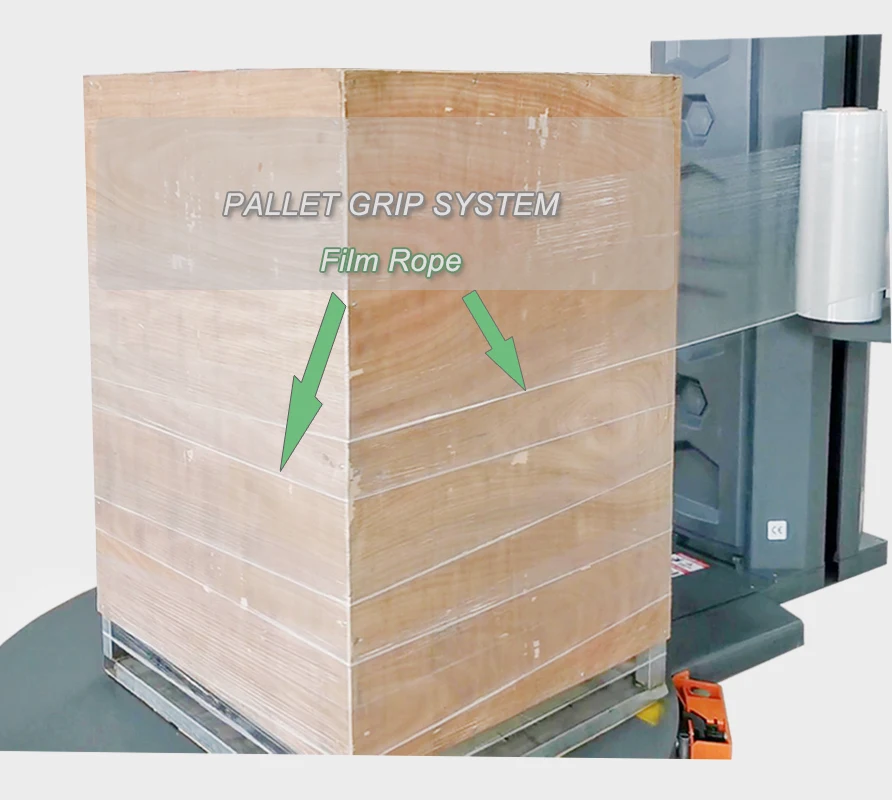

Automatic Rope Grip System
Automatic rope technology can roll up a circle of film rope, and attach it to hold the goods.Ensure goods not slide out.

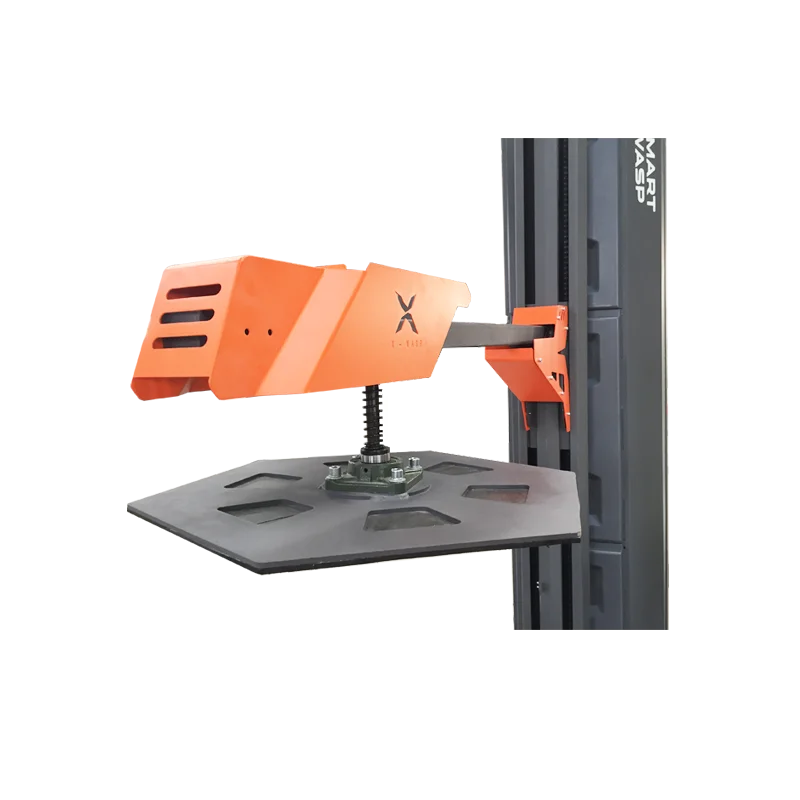

Top Pressure Device
Electric pressurizing system is adopted to prevent the scattering and displacement during the wrapping process of goods, and the pressurizing stroke is 500mm-2000mm. Compared with the traditional pneumatic pressure, the range is doubled, suitable for a winder range.

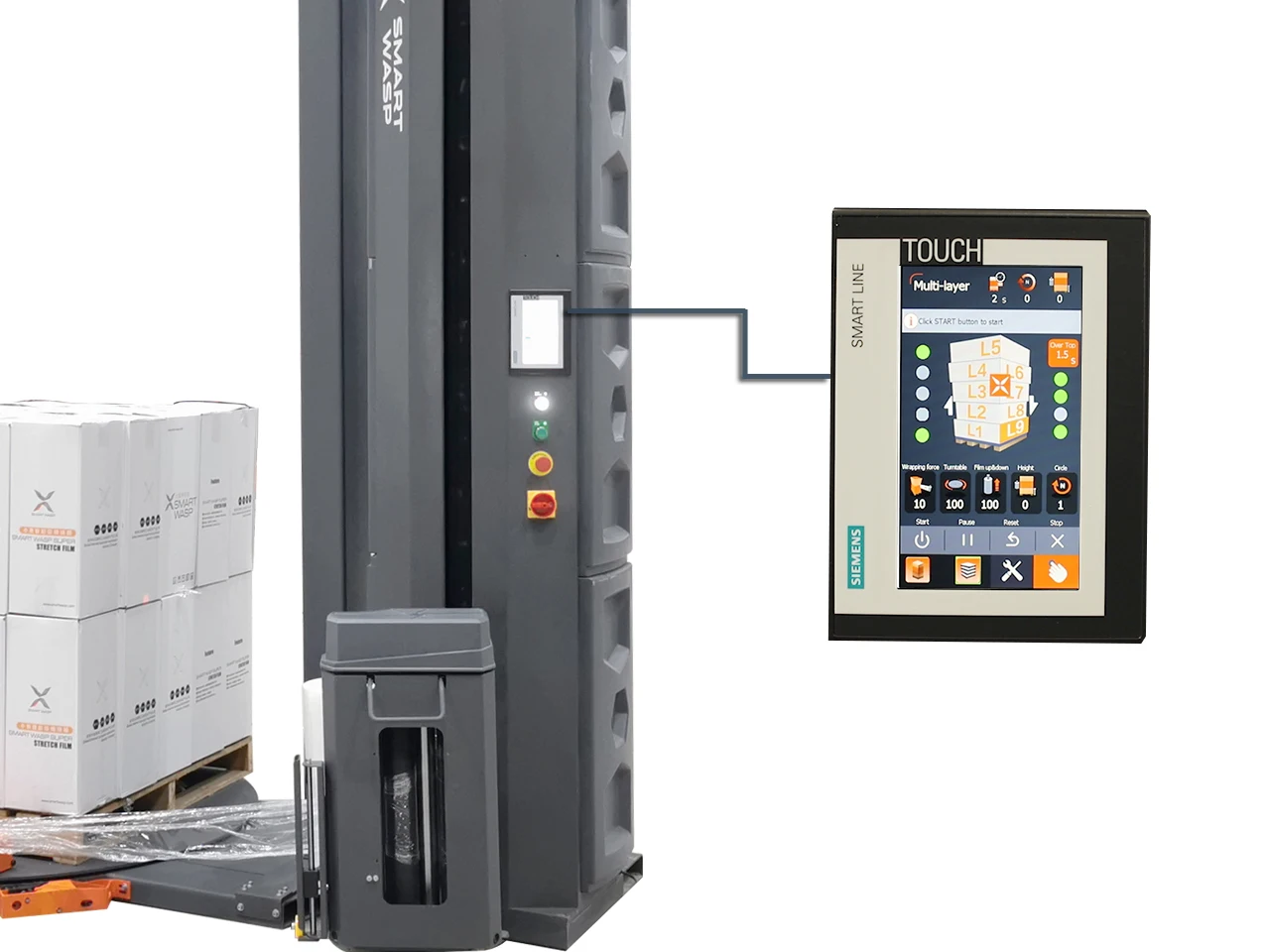

LCD Touch Operating System
Intuitionistic, easy to operate

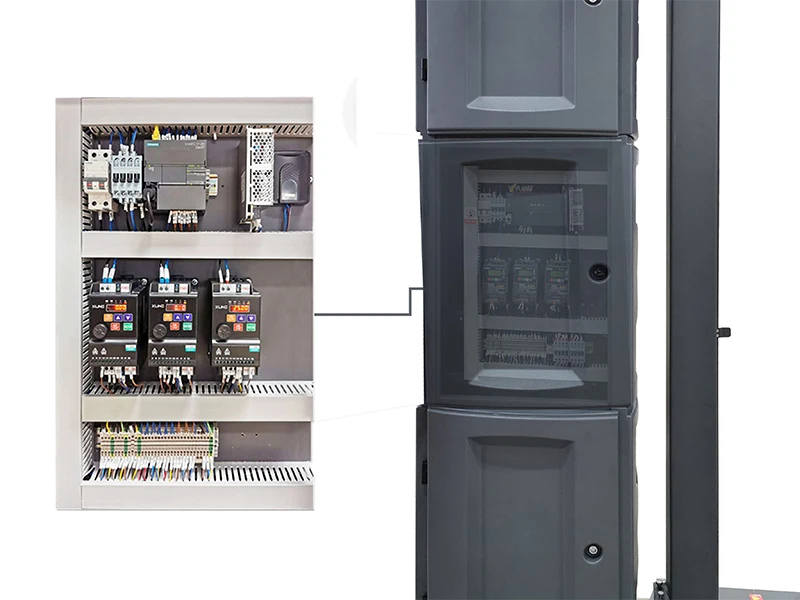

SIEMENS Control System
SIEMENS PLC, X-LINE Inverter，SIEMENS AIR Breaker，SIEMENS Contactor， Germany SICK Brand Sensor， Germany Weidmuller terminal black, OMRON 24V power supplier， Schneider button ,Better spare parts, better products.

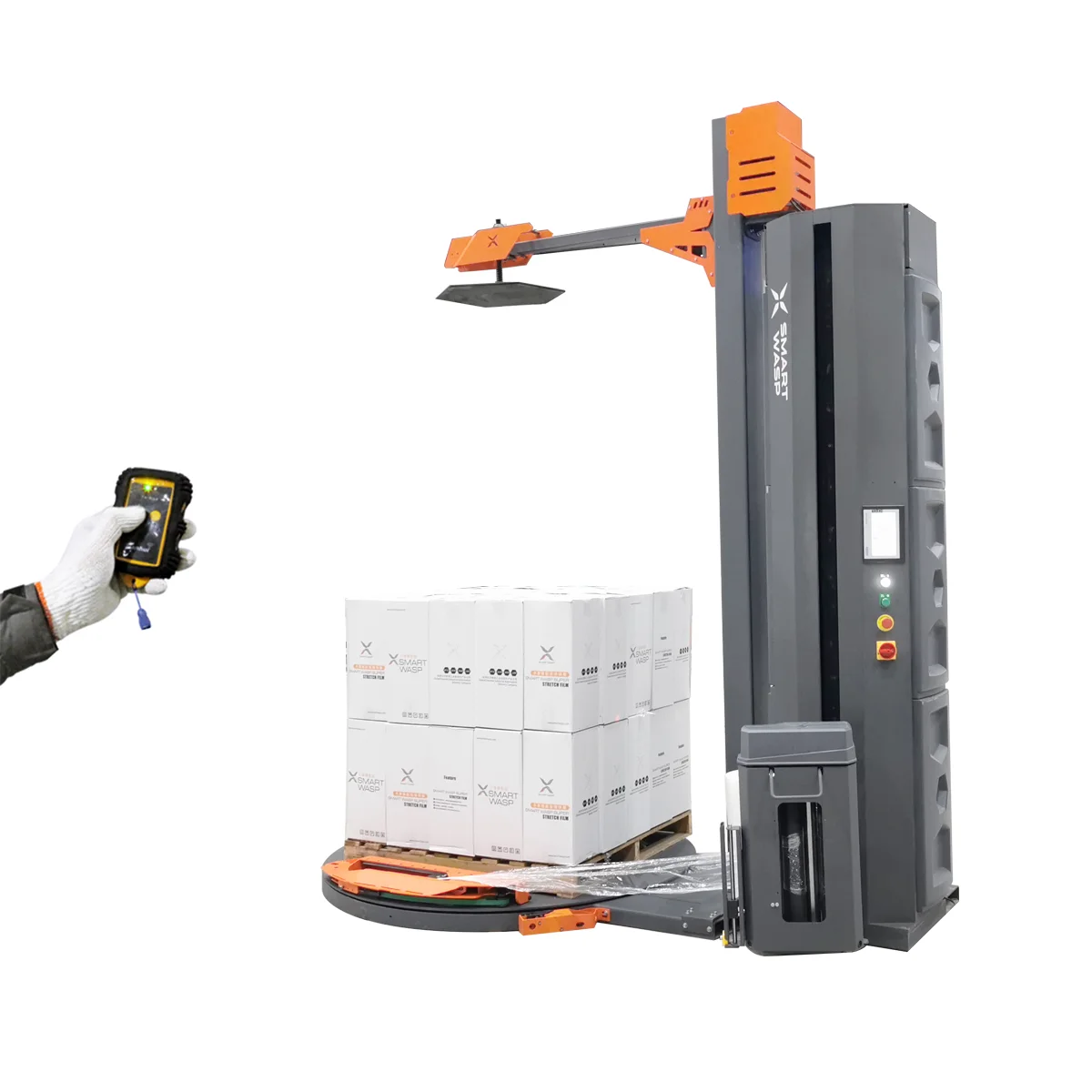

Remote Control System
X300 Intelligent Fully Automatic Top Pressure Pallet Wrapping Machine can be easily operated and stopped by the remote control.





 Advanced Safety Technology
1.Safety device under film carriage to protect
the foot or head of the operator
2.Transparent board makes it easy to find problems without opening the door.
3.Up and down belt deviation and damaged alarm system gives alarm in time to avoid carriage dropping down.


CUSTOMER CASES

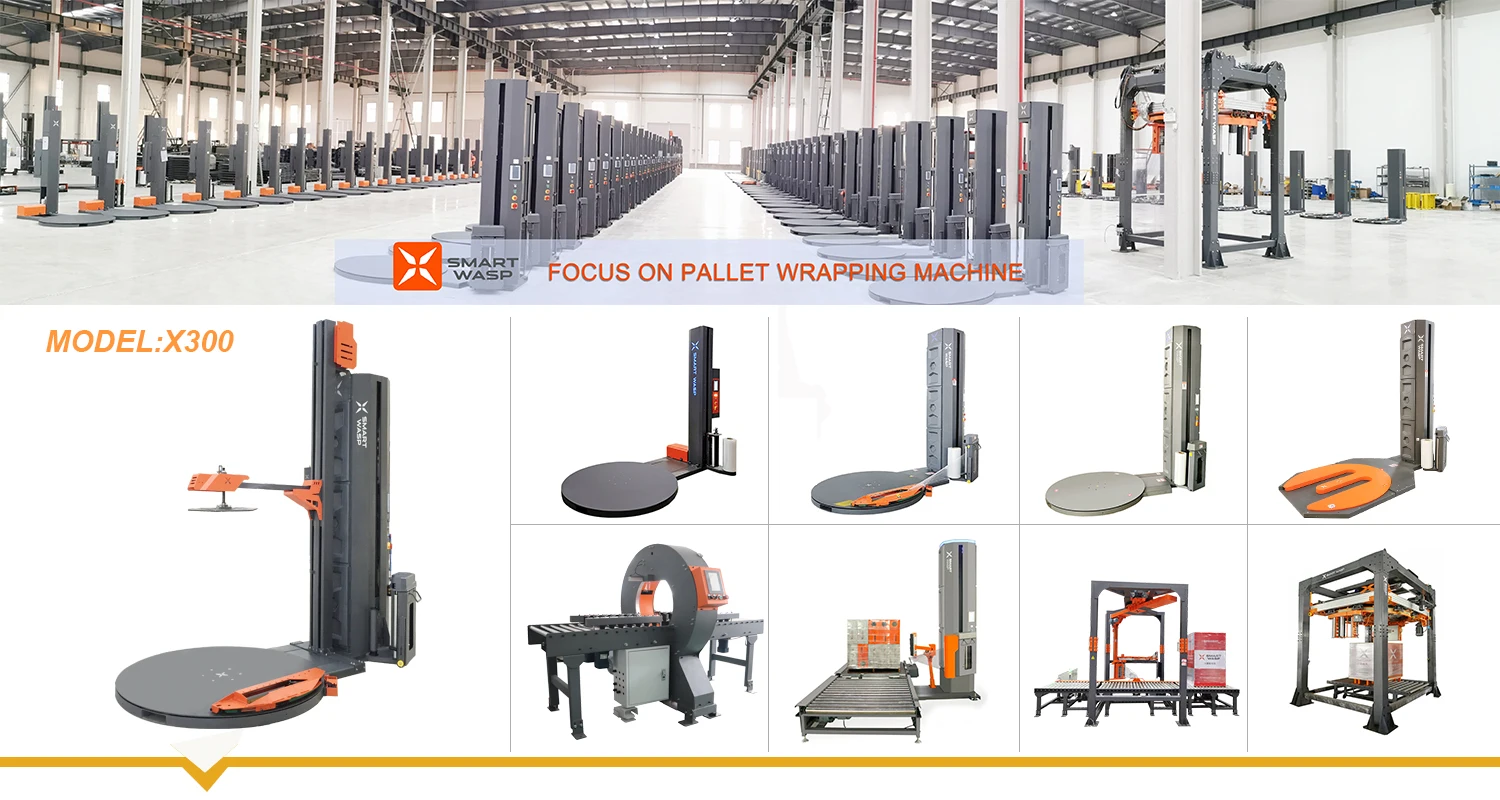

SMART WASP standard machine series include the x0ms X0ps X1 X100 X3 X300 X5 X500
All series machine will provide you with all the wrapping solution




SMART WASP have provide automatic wrapping solution for LG ,Sharp.Heineken ,china tobacco ,we sue our professional design and rich experience let our customer use reliable automatic wrapping machine



WE PACK MACHINE MORE SAFETY
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.




Shipping Type
1set machine/crate
(size/weight)
2sets machines /crate
(size/weight)
Mix packing
(just for FLC shipping type)
LCL Shipping

2.98x1.8x0.9m
800KG
2.98x1.8x0.95m
1500KG
Turntable /crate
Carriage/crate
Tower/crate
Quantity crates in 20 FT

4sets
8sets
12sets
Quantity crates in 40 HQ
8sets
16sets
24sets


Exhibition


WELCOME TO VISIT US
SMARTWASP Attend Exhibition in JAPAN UKRAINE THAILAND MALAYSIA GERMANY POLAND MEXICO..Over 10 countries And attend China Professional Exhibition Every Year





2021 SMARTWASP EXHIBITION LIST

The 27th China International Exhibition on Packaging Machinery & Materials ProPak China
Time： 2021/6/23-25
Address: National Exhibition Convention Center (Shanghai), China


The 17th China (Qingdao) International Packaging Industry Exhibition CIPI
Time： 2021/7/18-22
Address：Qingdao red island international convention and exhibition center
The 22nd Asia International Logistics Technology and Transportation Systems Exhibition CeMAT
Time：2021/10/26-29
Address：Shanghai New International Expo Center


OUR TEAM
SMART WASP Team have 210 people ,we have over 30 mechanical engineer and electric engineer ,SMARTWASP international team in Ukraine Thailand Mexico Malaysia USA Ireland Poland Panama ..for promoting and doing service for Smart wasp machine .we hope more and more partner join us .







Smart Wasp Intelligent Technology (Suzhou) Co., Ltd., specializing in designing, researching and manufacturing intelligent pallet
wrapping equipment and providing packaging automation solutions.Smart Wasp has a professional design and development team. The new factory covers an area of 50 acres.Smart Wasp standard pallet wrapping machine series, fully automatic pallet wrapping machine, high speed ring pallet wrapping machine series popular in the United States, Germany, Canada, Mexico, Australia, South Korea, more than 60 countries and regions, and ZF, Kraft Foods, LG, Panasonic, etc. Well-known companies establish long-term cooperative relationships. Smart Wasp is committed to building products with Chinese brands and world-class quality and strives to become a respected company.
