Material shape: Woven bags, printed LDPE film (rolls, loose, bundled), agriculture film, foamed plastics and raffia, etc.
Note: we can help you choose the suitable feeding way, pelletizing way, one stage or two stage according to the waste material you want to produce.
plastic granulator Main Parameter
Single-stage PE PP film pelletizing machine (with agglomerator)
Model
CL-85
CL -100
CL -130
CL -160
CL -180
Screw Dia. (mm)
85
100
130
160
180
L/D Ratio
25-42
25-42
25-33
25-33
25-33
Output (kg/hr)
120-180
250-350
400-500
550-700
800-1000
Double- stage PE PP film pelletizing machine(with agglomerator)
Model
CL -85/85
CL -100/100
CL -130/130
CL -160/160
CL -180/180
Screw Dia. (mm)
85
100
130
160
180
L/D Ratio
25-42
25-42
25-33
25-33
25-33
Output (kg/hr)
120-180
250-350
400-500
550-700
800-1000
Machine's photos

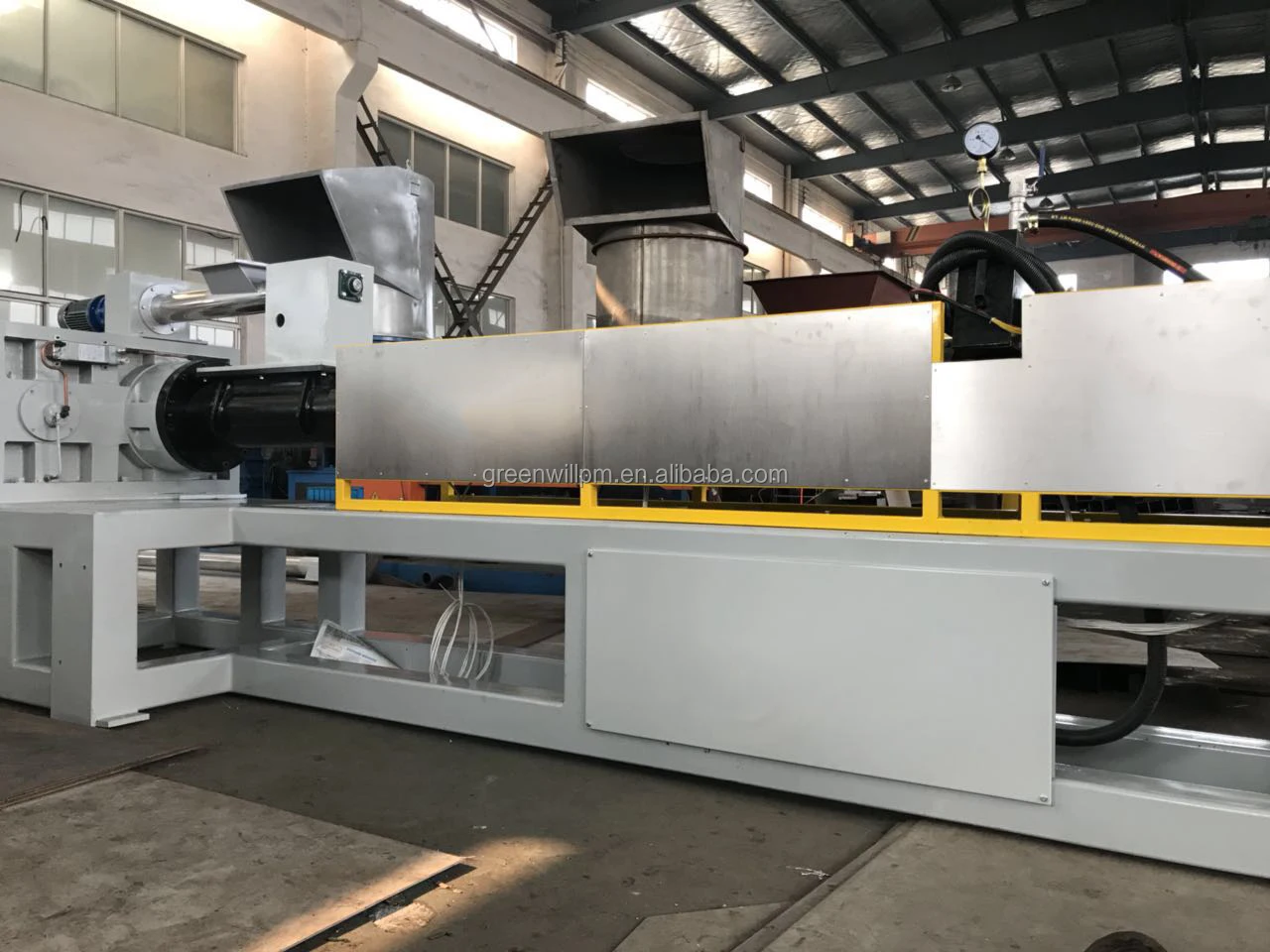

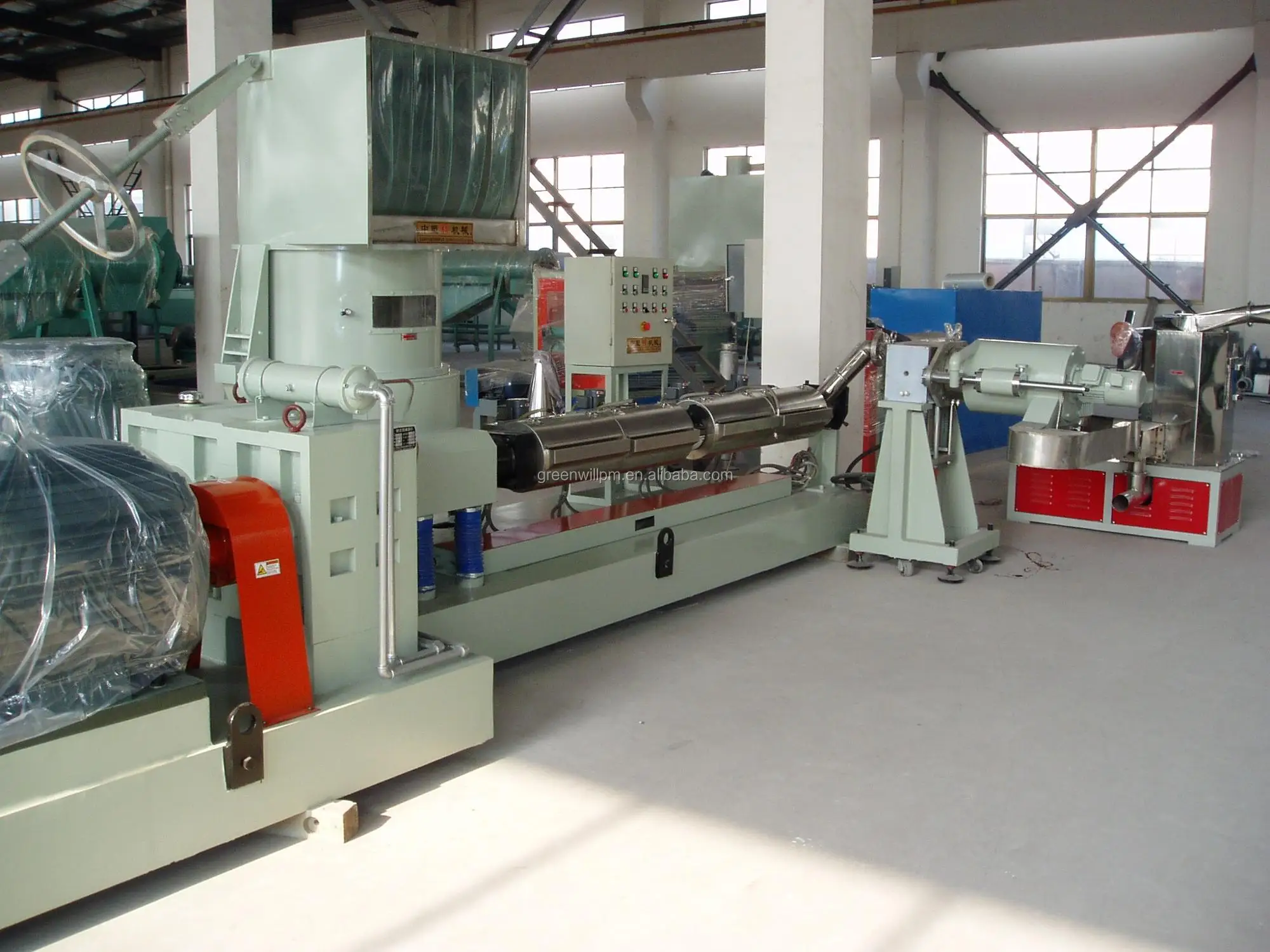

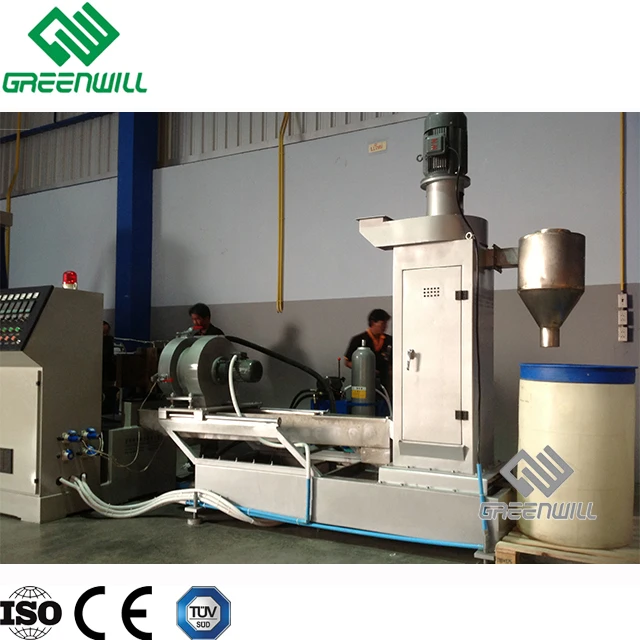

Compactor and mother extruder

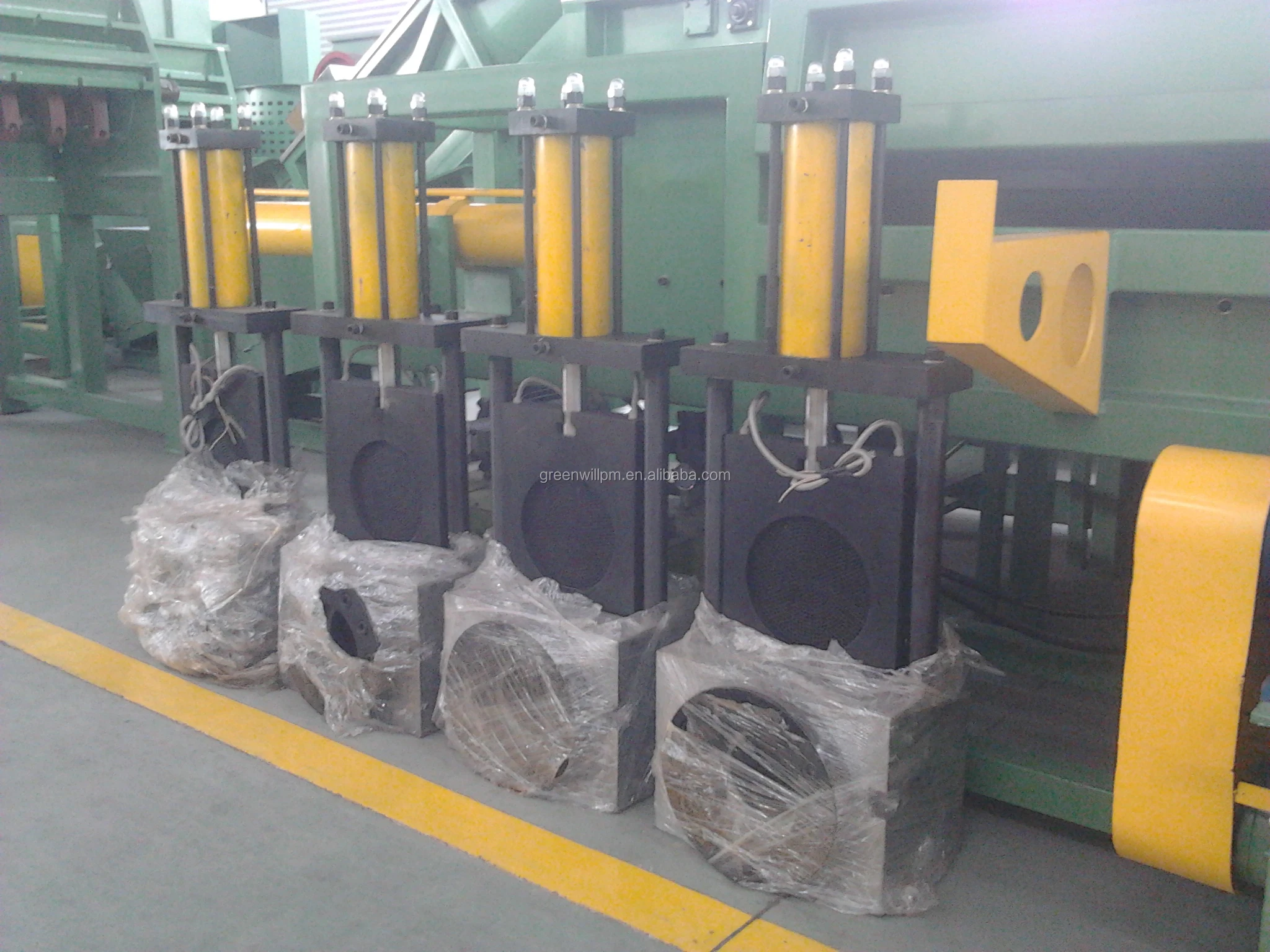

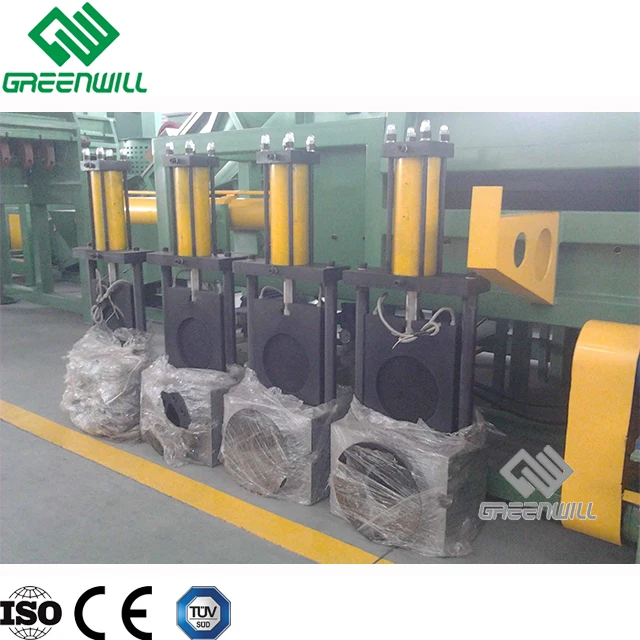

Screen Changer

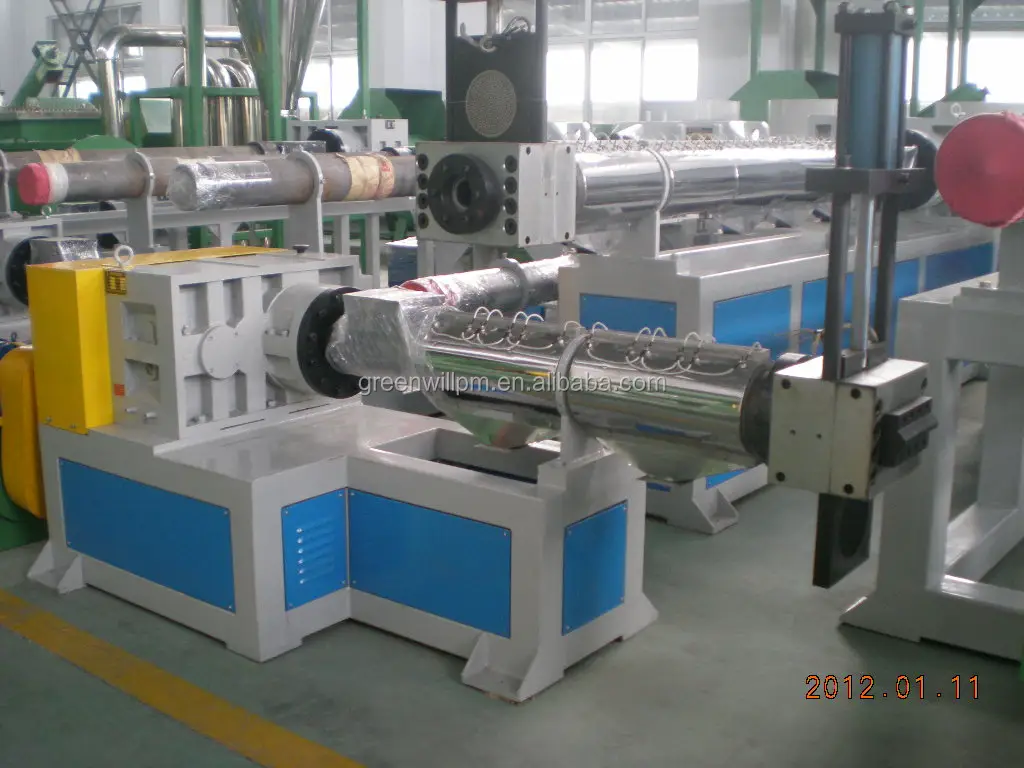

Baby extruder

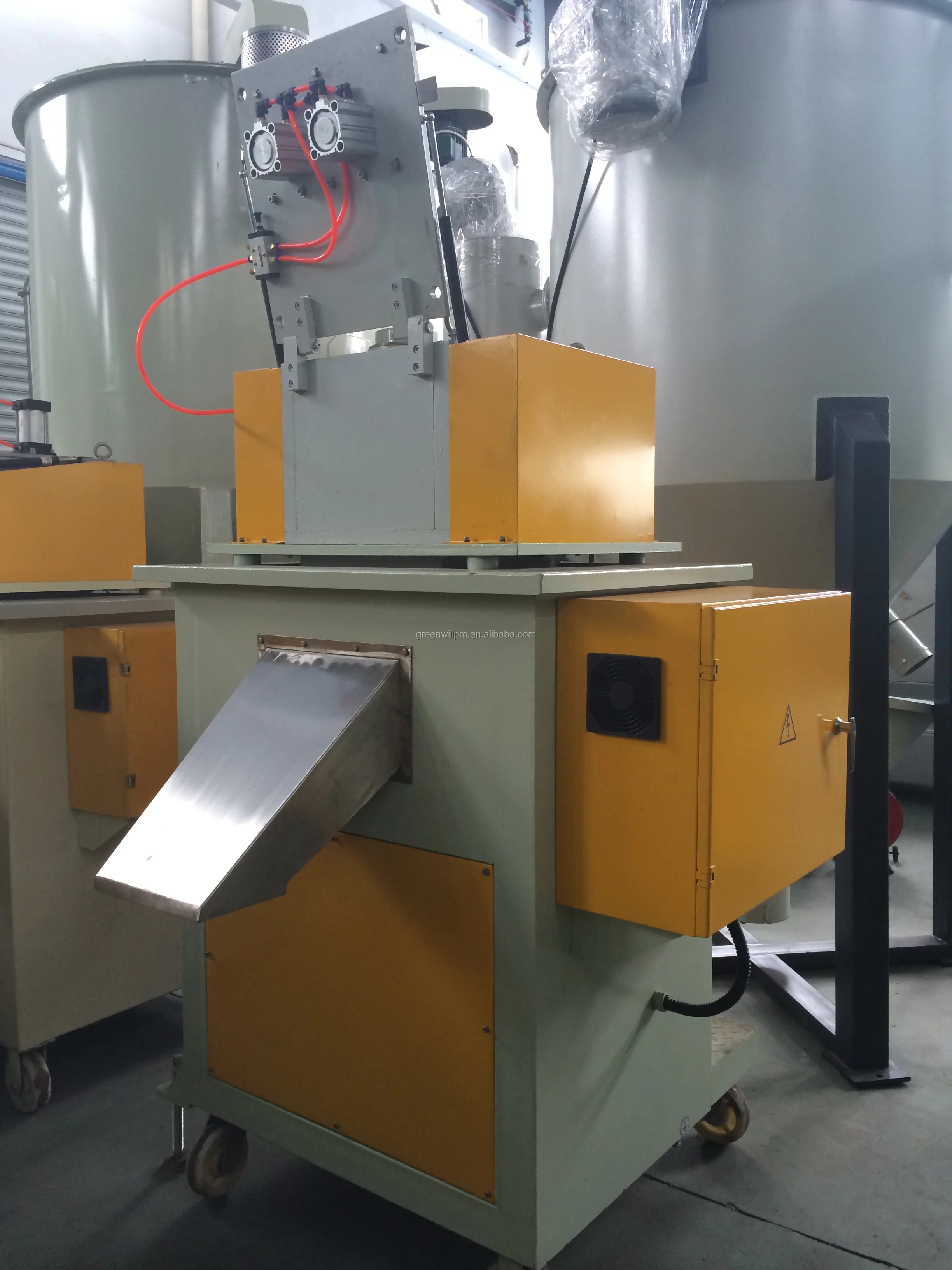

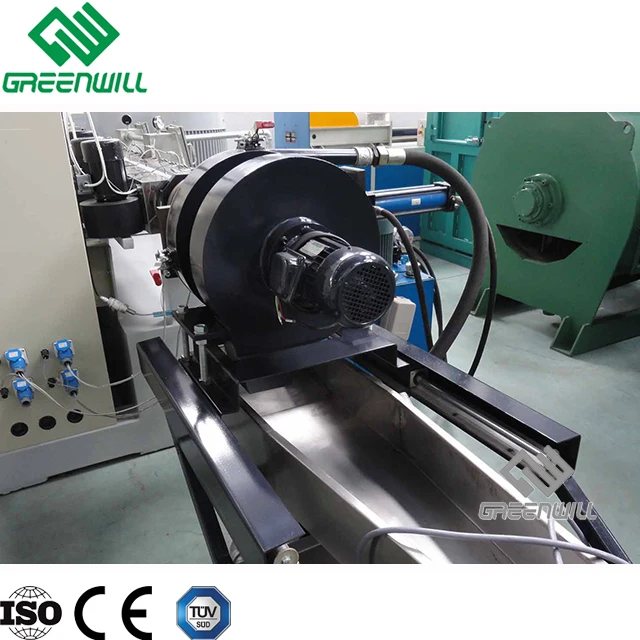

Cutting device

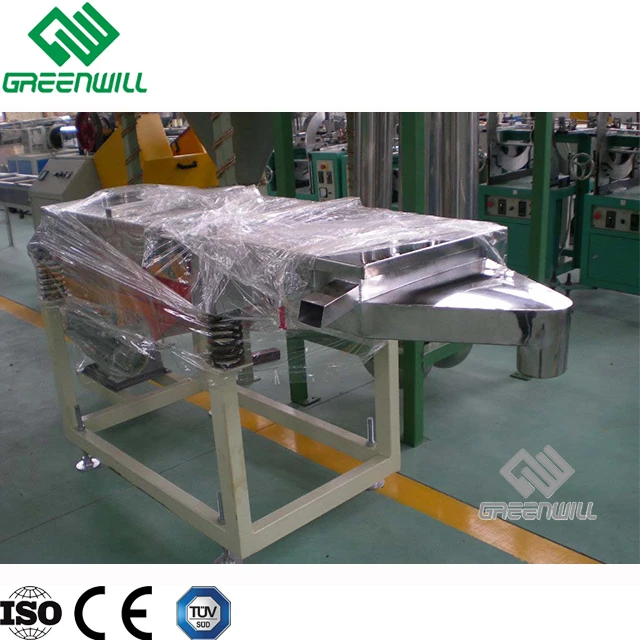

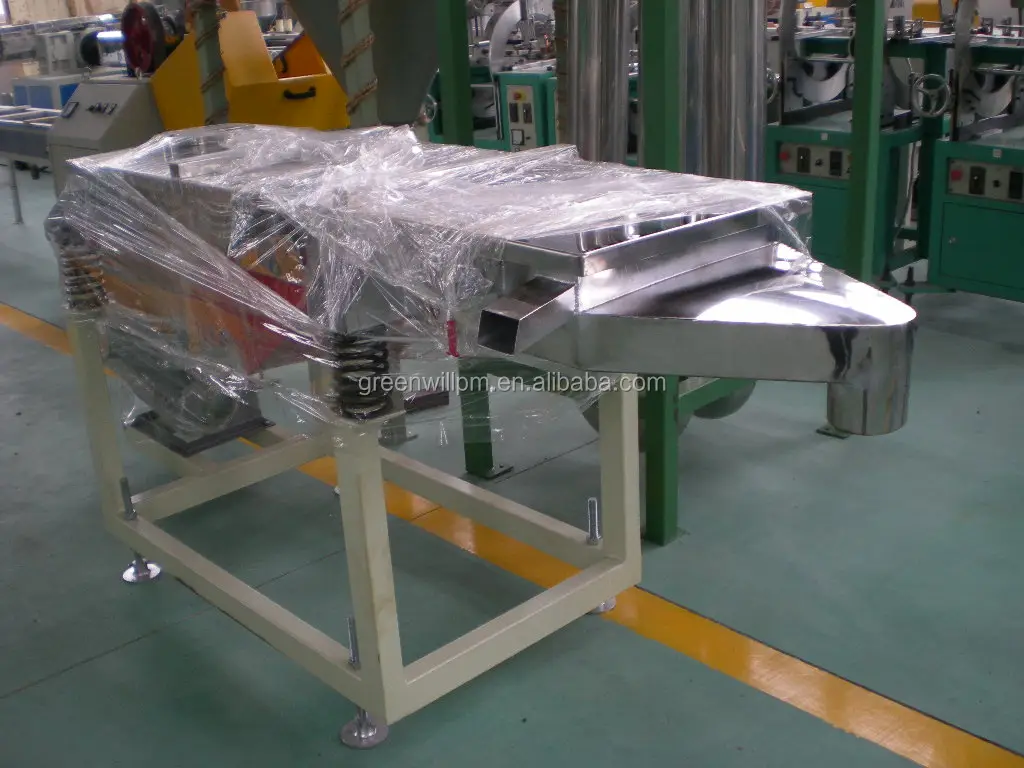

Vibrator sieve

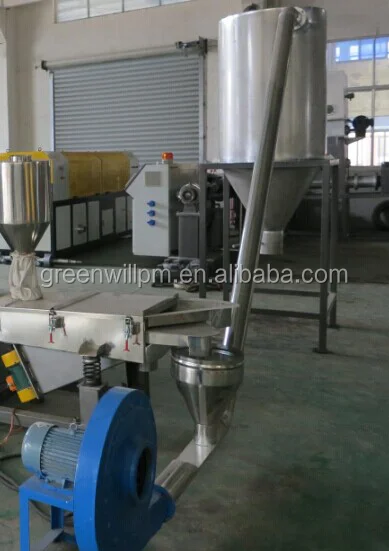

Fan and silo
Packaging & Shipping
FAQ
Why choose us:
1.low cost : all the machine ,we make it ourself to reduce the cost of our customer. 2.Genuine product with excellent quality : we choose our material very strict, all the material come to our factory must pass the quality test substandard goods are returned to the supplier. 3. Engerneers available to serve oversea
4.quick delivery: the company provide just in time delivery with its streamlined supply chain 5.cost saving: we take strong attention to every detail in the manufacturing process, the quality control in our factory is very strict, all defective semi-manufactures must be treated again or reject. all the machine must be checked out ,then deivered to our customer. all about that pushing up the price, what we want to do is give our customer a good quality product with stable working and long lived.
