High Quality Hot Sale Full Automatic Double Door Autoclave Steam Sterilizer Price
- Category: >>>
- Supplier: Guangzhou Top Medical Equipment Co. Ltd.
Share on (62049792143):
Product Overview
Description
High Quality Hot Sale Full Automatic Double Door Autoclave Steam Sterilizer Price
Product Description
Pulsating Vacuum Sterilizer with the features of PLC and HMI automatic program control, automatic temperature recording and printing, vacuum drying, etc. It is suitable for hospitals, pharmaceutical factories, scientific research institutes and other units to sterilize and dry clothing, dressings, metal instruments, culture medium, etc.
Main Parameters and Utilities
Design Pressure | 0.6-0.8Mpa | Vacuum | -0.095Mpa |
Working Pressure | 0.22Mpa | Steam Pressure | 0.4-0.6Mpa |
Design Temperature | 139℃ | Tap Water Pressure | 0.2-0.3Mpa |
Working Temperature | 134℃ | Compressed Air Pressure | 0.6-0.8Mpa |
Heat equilibrium | ≤±1℃ |
|
|
Structure & Capability & Characteristics
Vessels is designed to the China National Standard -GB150 <Steel Pressure Vessel>
National patent door interlock device.
National patent sealing technology- closed inflatable seal ring with compressed air.

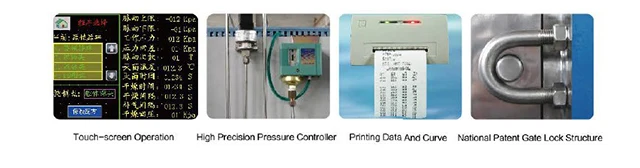

Control system is integrated by PLC+ HMI, advanced function for recording,printing and storing.
The GMP validation port is provided for insertion of 16 temperature sensors for validation.
Independent temperature monitoring system
The steam condenser is fitted in the exhaust/vacuum line to condense the steam before entering inside the vacuum pump.
Optional Size & Utilities
Model | Overall Size L*W*H (mm) | Chamber Size L*W*H(mm) | Steam Consumption (kg/cycle) | Power (Kw) | Tap Water Consumption (kg/cycle) | Net Weight (kg) |
TOP-F1201 | 825*1080*1600 | 630*400*480 | 15 | 1.0 | 80 | 380 |

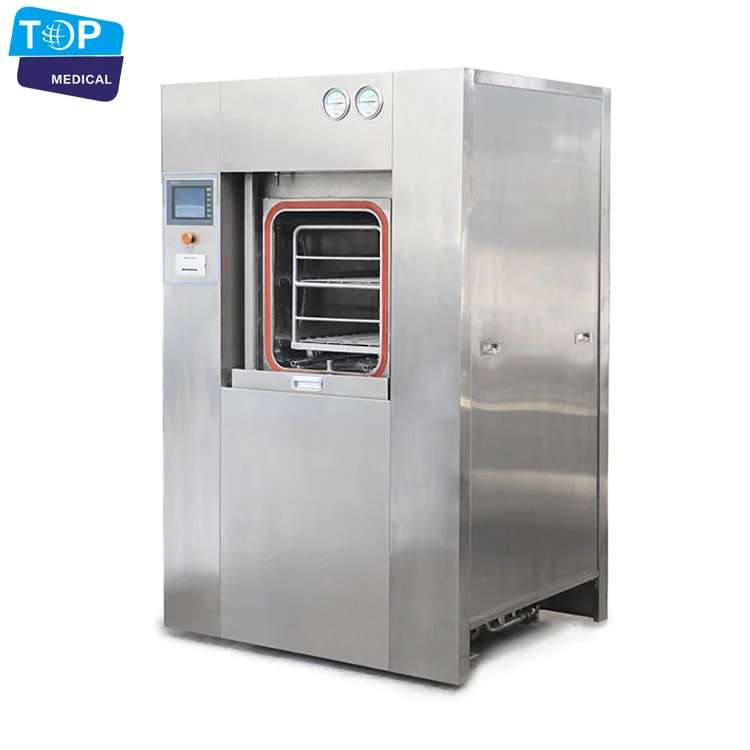

TOP-F1202 | 895*1220*1720 | 700*600*600 | 20 | 1.5 | 150 | 650 |
TOP-F1203 | 1195*1220*1720 | 1000*600*600 | 25 | 1.5 | 150 | 760 |

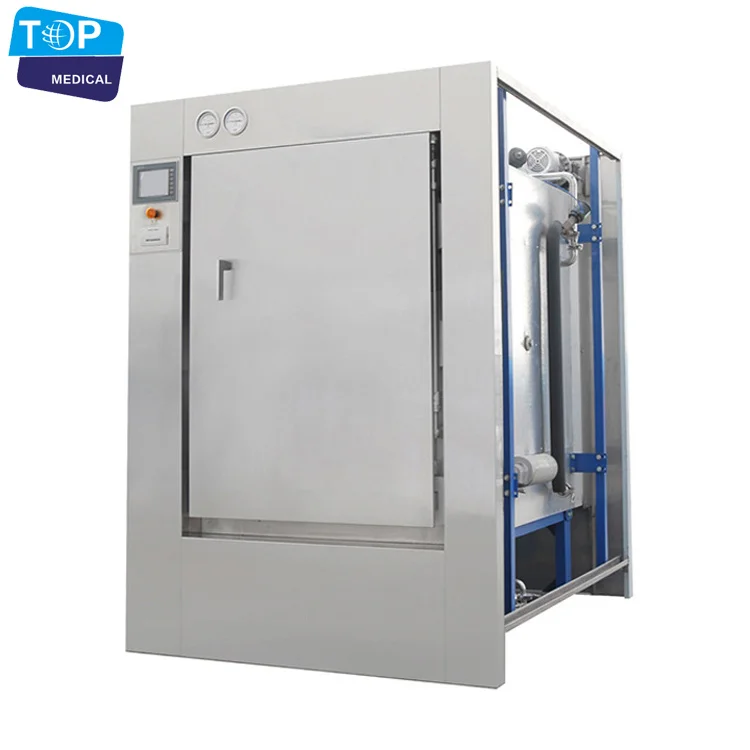

TOP-F1204 | 1245*1300*1880 | 1050*680*850 | 30 | 2.0 | 200 | 1100 |
TOP-F1205 | 1595*1300*1880 | 1400*680*850 | 35 | 3.0 | 250 | 1300 |
TOP-F1206 | 1695*1370*1960 | 1500*750*1100 | 40 | 3.0 | 300 | 1900 |
TOP-F1207 | 3195*1370*1960 | 3000*750*1100 | 75 | 4.5 | 450 | 2800 |
TOP-F1208 | 3635*1800*2200 | 3400*1000*1500 | 150 | 7.5 | 600 | 4500 |
Related Products
Company Information
Packaging
Payment & Shipping
Delivery Time:7-15 working days after payment
Packing:Standard export wooden or thick carton packing with foam inside professional goods shipping forwarder
Contact Us
FAQ
FAQ:
1. Can I have a sample order?
Yes, we welcome sample orders to test and check.
2. What are your trading terms?
We usually accept FOB Guangzhou, T/T 30% deposit, and 70% balance before shipment.
3. How do you ensure your products quality?
Production or inspection report before the goods packing. And we got CE, ISO certification.
4. What about your after-sale service?
We have a professional team for after-sale service. Our team will follow the order once you ordered.
5. What is your warranty policy?
1-2years due to different products and lifetime maintaining.
