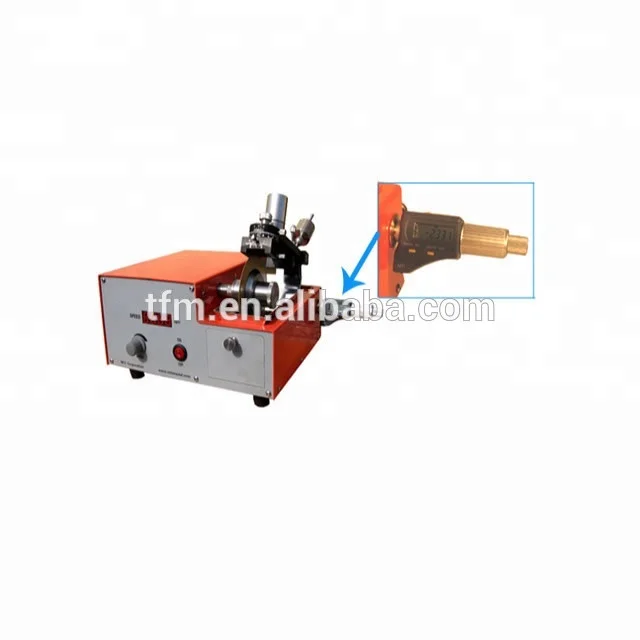

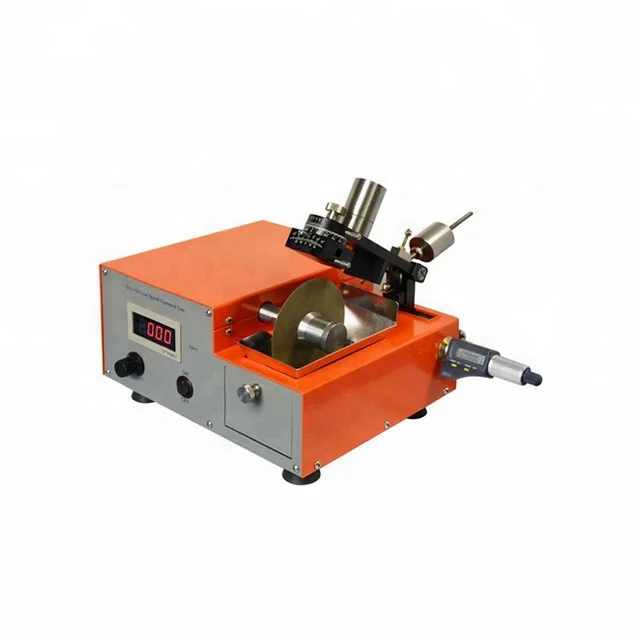

Hot sale Lab precision Digital display low speed diamond cutting machine for brittle crystals/ceramics and TEM samples

Product Overview

Description

Hot-sale Lab precision  Digital display low speed diamond cutting machine for brittle crystals, ceramics and TEM samples



Product Description

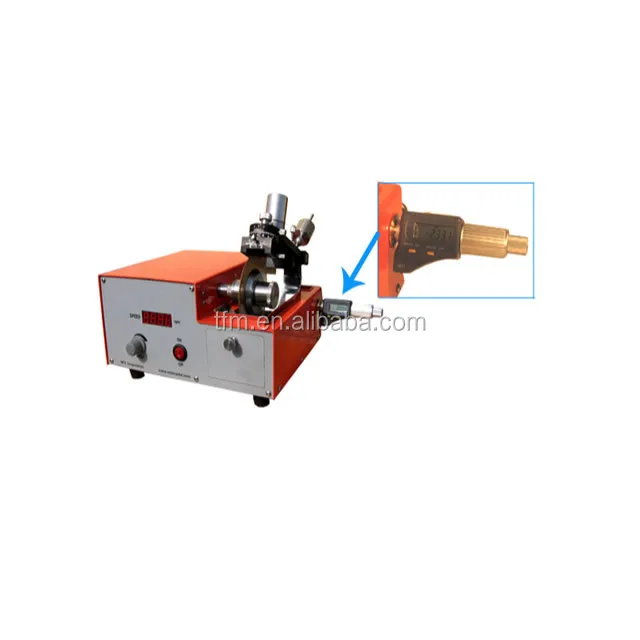

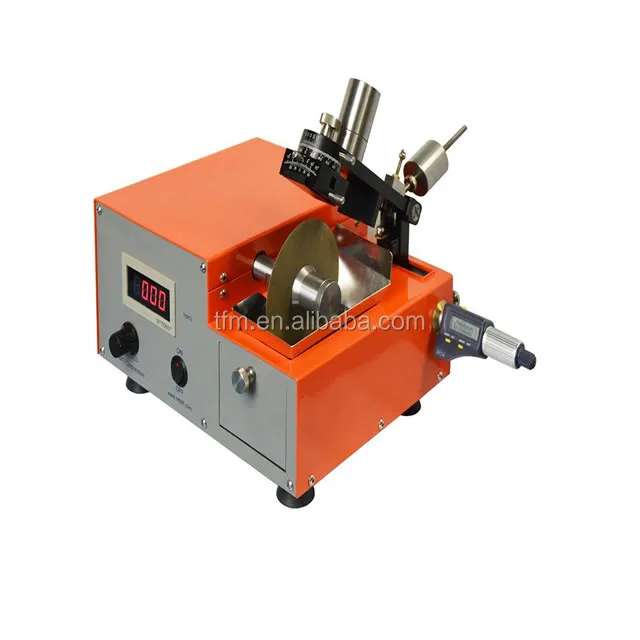

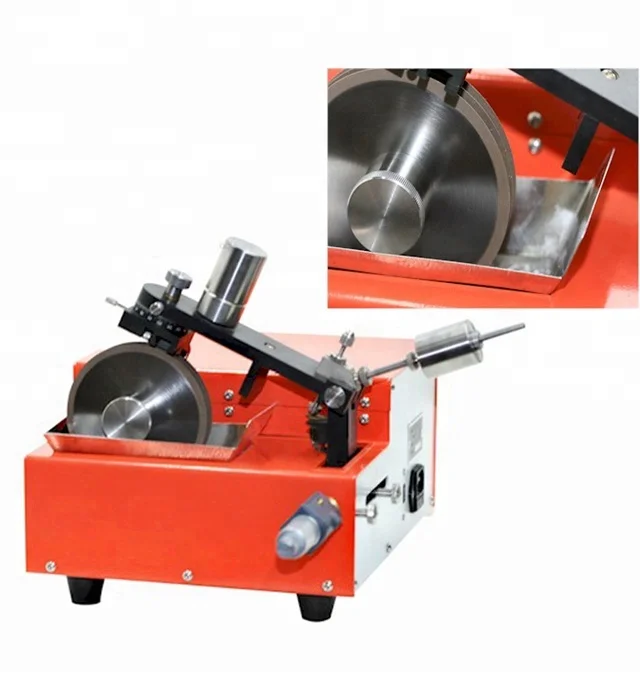

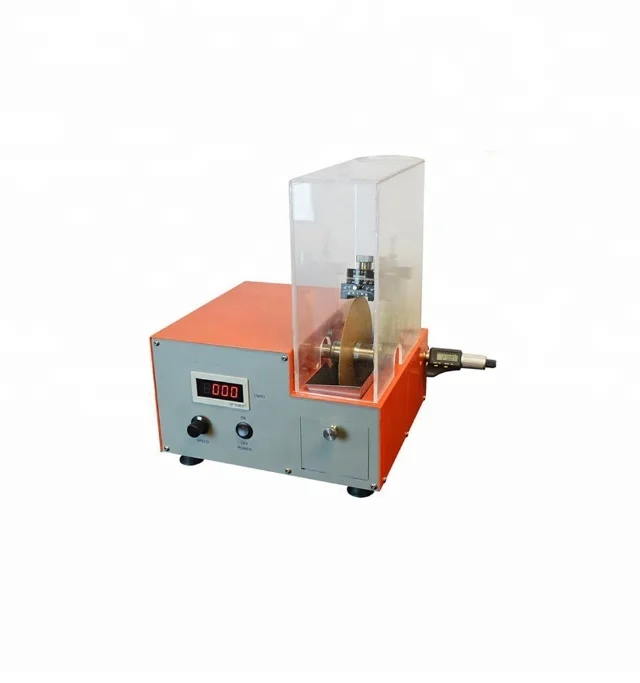

TN-SYJ-160 is CE certified low-speed diamond saw. It comes with a digital micrometer, digital speed display as well as complete accessories. It accepts 6-inch cutting blade and will be a suitable tool for cutting, dicing and slicing all kinds of materials especially for brittle crystals, ceramics, and TEM samples. The latest version of TN-SYJ-160 is with Protective Plexiglass shield.

Specifications:

Power	110V or 220V AC switchable for worldwide use High torque 110VDC motor (70W Max.)
Speed range	0-600 rpm with digital display.
Position Thickness & accuracy	Cutting thickness is controlled by digital micrometer with accuracy of 0.003mm The LCD micrometer is waterproof with a resolution of 0.001 mm and accuracy of +/-0.003 mm. Thinnest cutting thickness is 0.35mm for most materials
Cutting Width	The cutting width of the slice is controllable from 1mm ~ 24mm by adjusting the LCD digital micrometer.

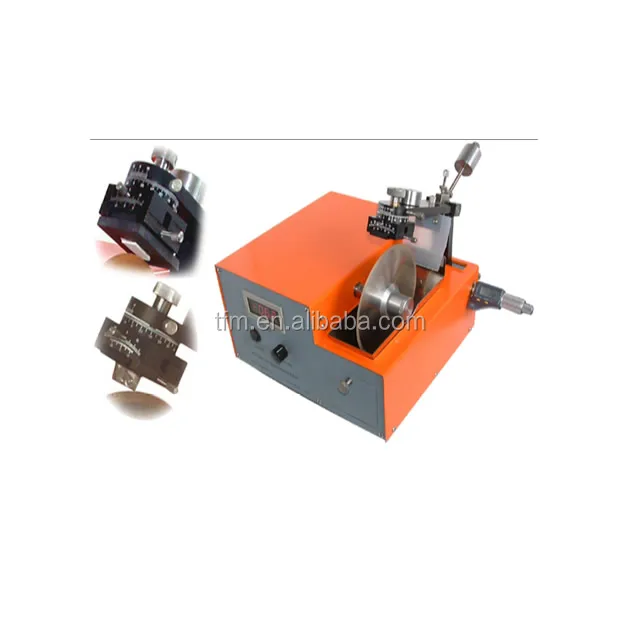

Sample holder	Two angle adjustable sample holder is included,
Cutting Blades	Max 6" diameter blade (it can also adapt 3" and 4" Dia. cutting blade ) Max cutting depth is 50mm. Three pcs total 6" cutting blades are included for cutting various materials: 6" Dia x 0.5 mm t x0.5" Arbor Impregnated Diamond Cutting Blade 6" x 0.5mm t x 0.5" Arbor Abrasive SiC Blade for Cutting Non-ferrous Metals 6" x 0.5mm t x 0.5" Arbor Abrasive Al2O3 Blade for Cutting Ferrous Metals One plastic water-proof box is included to protect water from splashing during cutting Complete accessories are included
Warranty & Compliance	One year limited manufacturer warranty with lifetime support. Rusting and damage due to improper storage condition or maintenance are not covered by warranty.
Certification	CE certified. With additional certification fee.

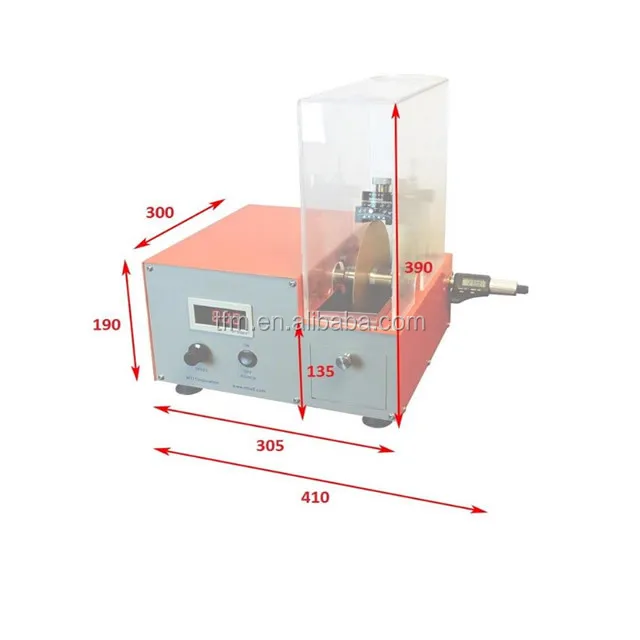

Package dimension	21" x 15" x 18"

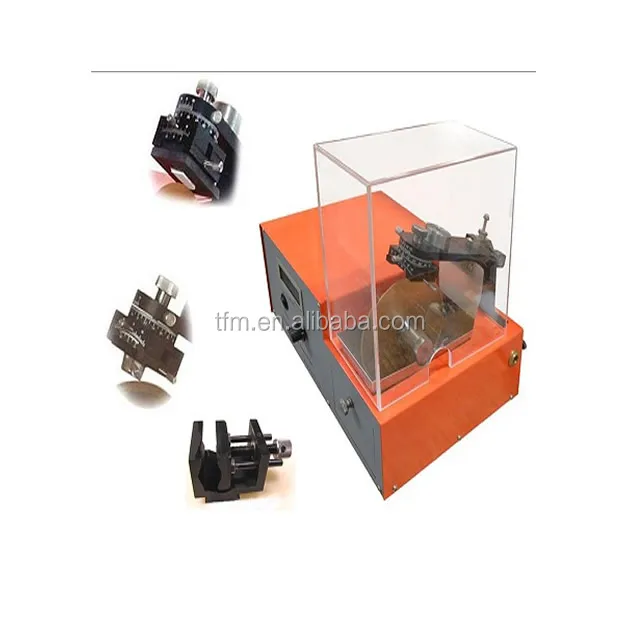

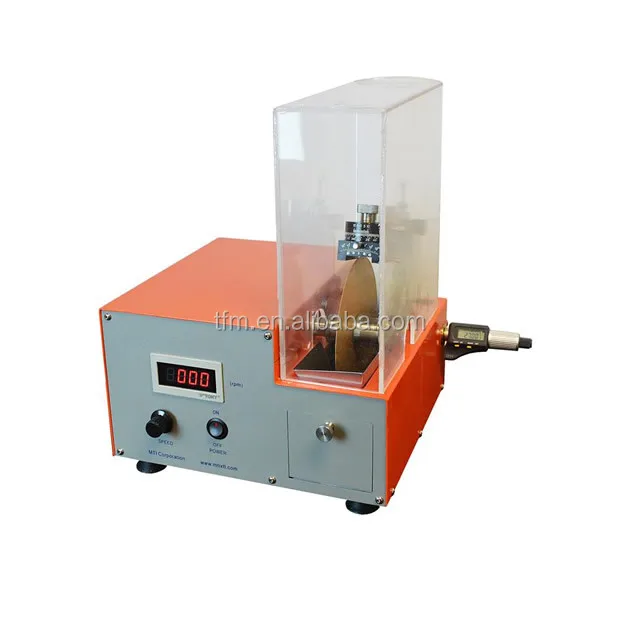

Accessory	Plexiglass protective shield
Balance Weight	LSS002: 0.57lbs LSS003: 0.52lbs
Shipping weight:	40lbs
Application Notes	Must use anti-corrosion coolant during cutting to avoid rusting the lead screw. Please never use water as a coolant during cutting. You may select our LubeCool-150 lubricant as a coolant which will make diamond blade cut more efficiently and prevents corrosion. Also, you can use W10-30 motor oil as a coolant,  Always clean machine, especially the lead screw by WD40 lubricant after each use. Applications on various materials sing spacers to make gang saw, you may section multi-sample  in one time
Warning	It is required to use proper cutting fluid with the saw to prevent corrosion of the machine components. We strongly recommend you use oil based coolant or lube cool lubricant with the water. Do not use tap water directly, otherwise, the rusting component is not part of the warranty. Never cut any materials without the use of proper cutting fluid. If you do so, serious damages can be caused by the spooler driving mechanism.  For cutting the sticky materials such as non-ferrous alloy, epoxy, and plastic, you must sharpen diamond blade frequently. We suggest that cutting sample along with the included dressing stone (Glue sample and the dressing stone side by side and cut them together, this process will help keep the blade sharp enough for efficient cutting.  The saw can be used inside a glovebox with N2 gas, but no Ar gas, please.



Packaging & Shipping

Our Services
1. Factory prices with the best quality.
2. One year free-of-charge maintenance for all the dental equipment
3. Customized service for special demand
4. Fast and flexible delivery, by sea, by air, by express
5. Quick response within 24 hours
How to order
1. If you are interested in our products, please tell us the model number and quantity.
2. We will make a proforma invoice for your order.
3. We will deliver the product ASAP on receipt of the payment
Guarantee
1. Guarantee for one year after shipment.
Payment
1. Western Union
2. PayPal
3. Secure Payment through Alibaba
4. Telegraphic transfer
5. L/C

Company Information

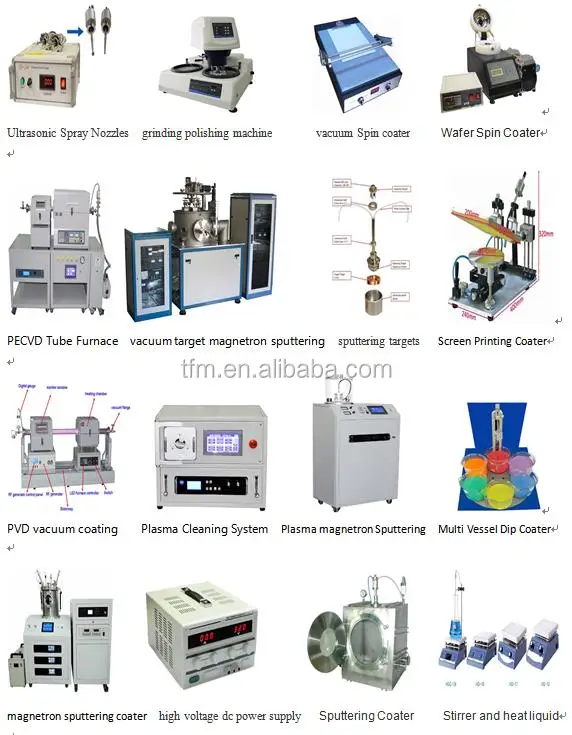

Zhengzhou TAINUO Film Materials Co., Ltd is mainly engaged in the research and development, design, manufacturing and sales of equipment used in scientific researches. Independence and innovation is the company's tenet.Our main products include:?tube furnace, muffle furnace, plasma cleaner, vacuum furnace, atmosphere furnace,coting equipment,film coater,smelting furnace,vacuum pump,magnetron sputtering,plasma equipment,high voltage power supply,tablet press,ball mill grinding machine,polishing machine,cutting machine,CVD&PVD system and customized?lab equipment.Welcome you come to visit us.
