Arch on fair tentshape 10 40m width outdoor trade show exhibition tent

Product Overview

Description



The design of this artistic roof line has brought both of the exterior and interior appearance of tent to the upper lever. Span width is available from 10m to 40m in this series, with a standard eave height of 3m and 4m, length is unlimited.

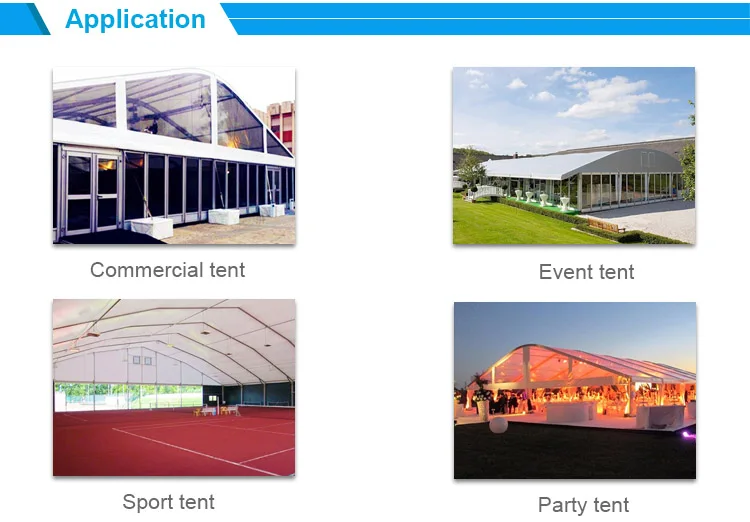

Applications:

party tent / outdoor tent / marquee tent / event tent / exhibition tent / wedding tent / fair tent / celebration tents / tents for storage / warehouses tent / banquet tents / huge tents / European tent / large tents

PRODUCT SPECIFICATION
Brand Name	T-SUN Tent
Certificate	ISO 9001:2008/SGS
Frame Material	Hard Pressed Extruded Aluminum Alloy
Connectors	Hot-dipped Galvanized
Roof Cover	850g/sqm PVC-coated fabric, Block Out
Sidewall Cover	650g/sqm PVC-coated fabric
Fabric Color	White, Red, Green, Clear or Customized Color
Side Wall	PVC Walls, Glass Walls and etc
Wind Resistance	100km/h
Fixing Solution	Expansion Bolts, Tent Pegs, Weight Plate
Temperature Resistance	-30 degree Celsius to +70 degree Celsius
Flame Retardant	DIN4102, B1, M2
MOQ	1 Set
Sample	Provide After Negotiation
Model Number	AST; ART; CRT; PLT; SFT; CCT; MST; MXT; GBT
Features	Flame Retardent, UV Resistant, Waterproof
Function	Event, Wedding, Party, Ceremony and etc
Service Life	More Than 15 years
Logo Printing	Available
Manufacturer	Yes

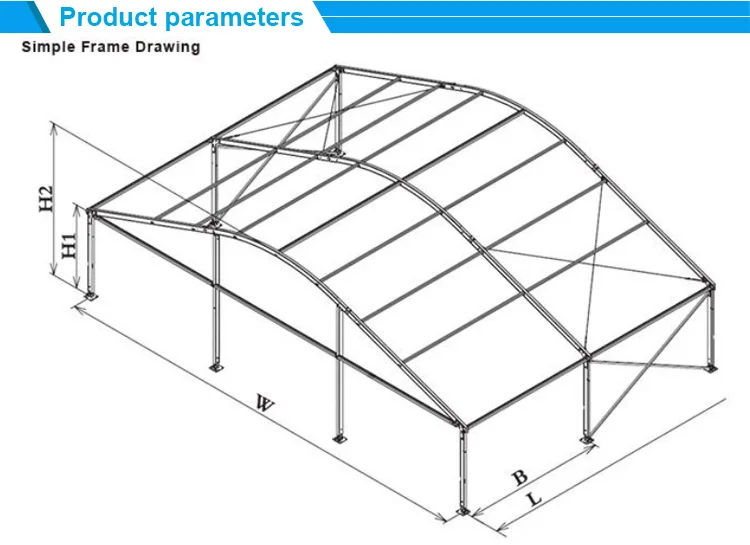

Standard Size Available:

Model	Span width	Length	Bay	Eave height	Ridge height	Main profile size
ART10	10m	unlimited	5m	3.0m	4.4m	122x68x3mm
ART12	12m	unlimited	5m	3.0m	4.7m	122x68x3mm
ART15	15m	unlimited	5m	3.0m	5.3m	166x88x3mm
ART20	20m	unlimited	5m	4.0m	6.4m	204x110x4mm
ART25	25m	unlimited	5m	4.0m	7.2m	204x120x4mm
ART30	30m	unlimited	5m	4.0m	8.0m	256x121x5mm
ART40	40m	unlimited	5m	4.0m	8.8m	300x120x5mm

System Features:

1.Four channel aluminum frame, hard pressed extruded reinforced

2.No poles inside, 100% interior space is available

3.Galvanized steel connection parts

4.Fabric is fire retardant and NFP92-507 standard approved by SGS

5.Bar tensioning roof system

6.Interchangeable parts between sizes

7.Various sizes available

8.Full accessories available such as hard solid wall system,glass door units etc.





 A:Yes, we can make the tent according to our customers different need.



Q2.Does your company is a factory?

 A:Yes, we are a factory, so our price is really reasonable, but with high quality.



Q3. Does your company provide any help to install the tent?

A:Yes, usually we will send manul instruction and CD to help our customers to install the tent.



Q4. Does your tent can move to the other place after set up?

 A:Yes, the main frame of our tent is aluminum, so it is light in weight but with high strength, that is very easy to set up and dismantle.



Q5. How can I go to visit your company ?

A:Our company is locate in Guangzhou, south china  city, when you in Guangzhou you can take the Metro 3 to Panyu Square then we pick you up there or you can take the taxi to our factory.
