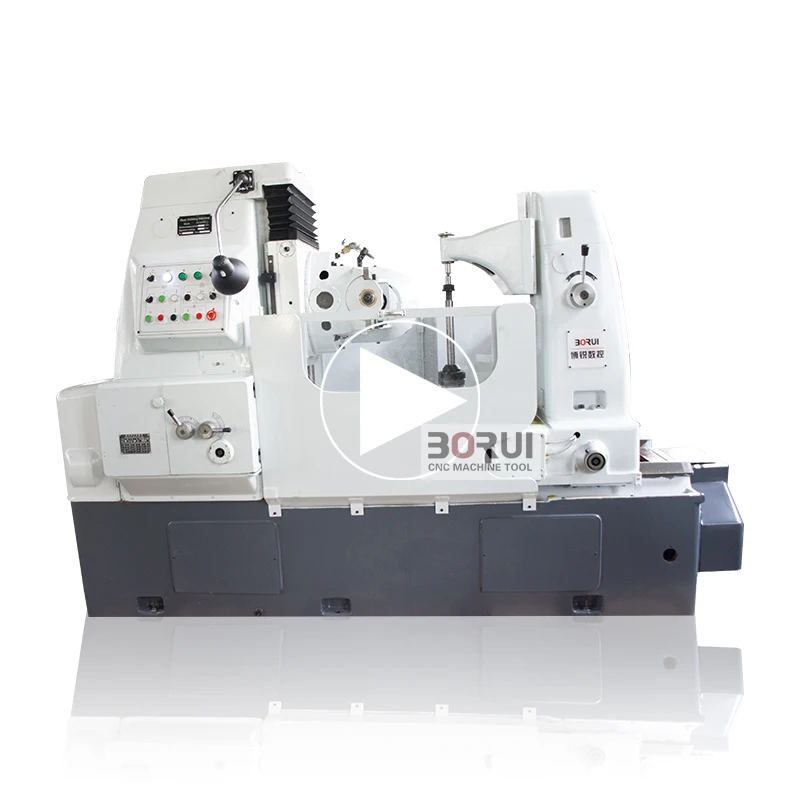

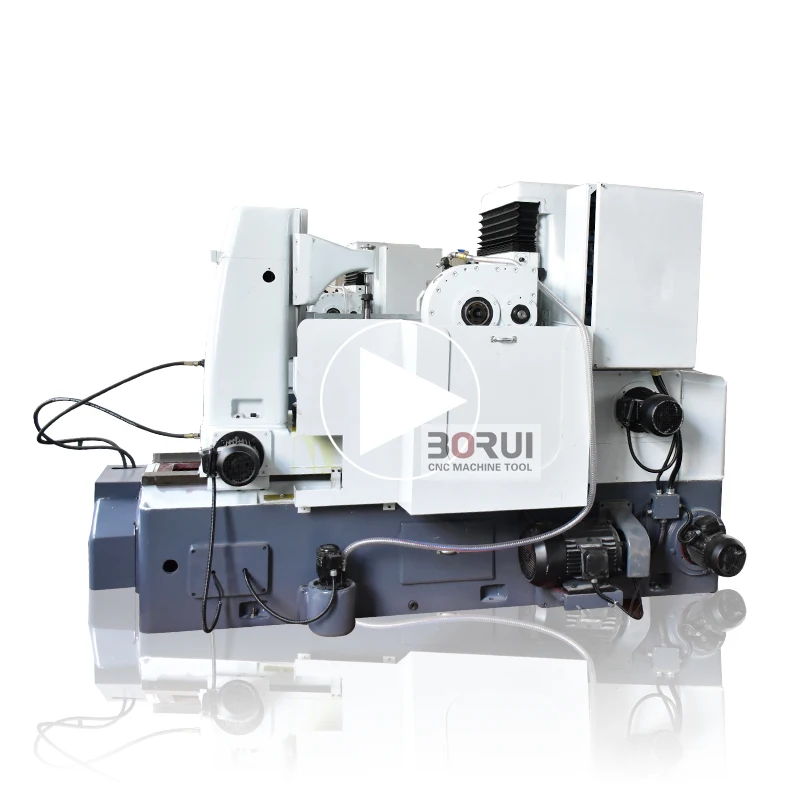

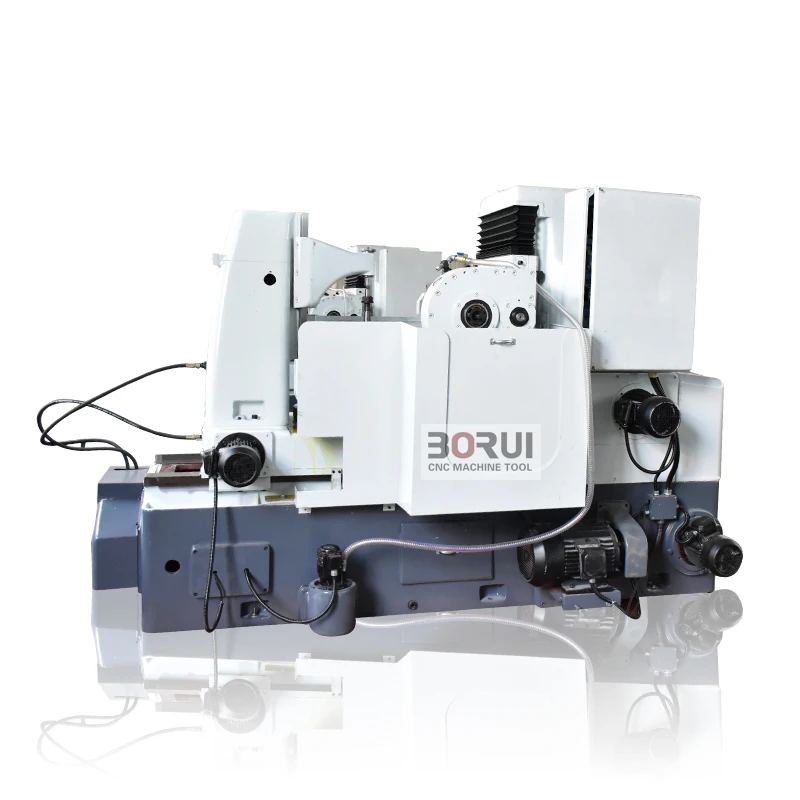

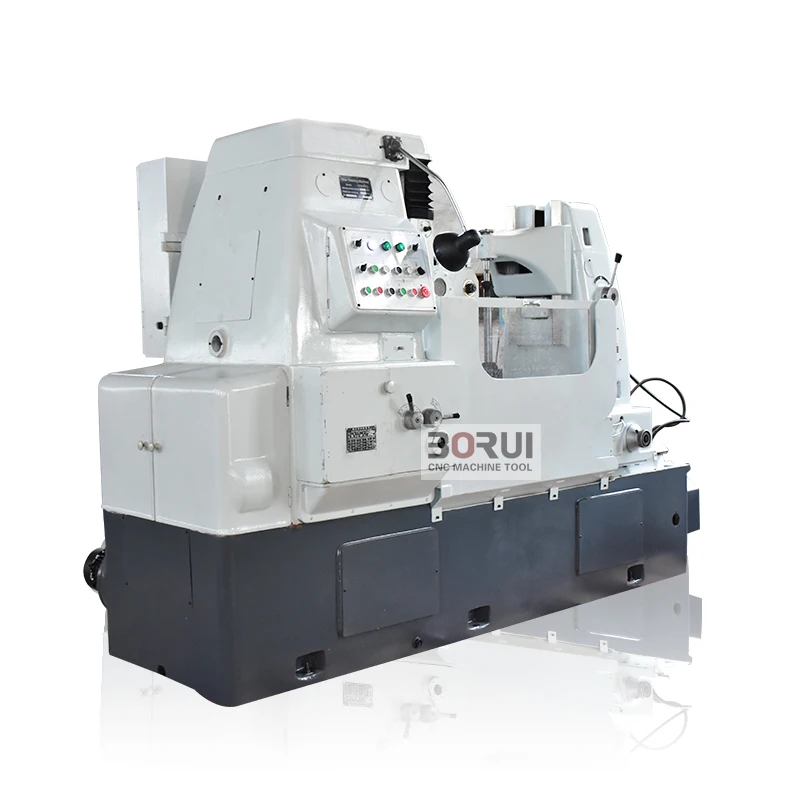

Y3180h is a general precision gear hob machine The machine is applied for multiple batch production, small batch production and Single part production for cylinder gear, and worm gear. 1. Raised height of vertical column and increased stroke effectively expand the working range. 2. Mechanism with electric tool leap allows longer hob and greatly increases service life of the cutting tool . 3. Worm gear of a high precision over five grade features long service life and steady accuracy. 4. Traditional bearings along the hobs are replaced with rolling bearings to enable greater speed of the tools. 5. External support of the small column tailstock adopts the hinge structure and can be easily opened outward, convenient to hang components of large diameters.
pecifications
Unit
Parameter
Max. hobbing modulus
mm
10[8]
Max. workpiece diameter when processing straight gear
mm
With rear column: 550 Without rear column: 800
Max. workpiece width when processing straight gear (width between centre≥400)
mm
500
Max. processing helix angle
°
±45
Distance from hob cutter center to worktable face
mm
Max.585 Min.235
Distance from hob cutter axes center to worktable axes center
mm
Max. 550 Min. 50
Spindle bore
Morse 5
Max. dimension of cutter
mm
Diameter: 180 Length: 180
Diameter of changeable hobbing centre axis
mm
22, 27, 32, 40
Worktable hydraulic move distance
mm
50
Diameter of work table
mm
650
Hole diameter of worktable
mm
80mm
Max work piece width
mm
300
Min number of teeth of work piece
12
Tool head max vertical travel
mm
350
Taper bore of workpiece mandrel
Morse 5
Degree of spindle rotation
8 gears
Rotary range of spindle
r/min
40~200
Main motor power and rotate speed
N:5.5KW, 1500 r/min
Power and rated speed of rapid motor
1.1kW,1500 r/min
Power and rated speed of motor of hydraulic oil pump
1.1kW, 940 r/min
Power and rated speed of motor of work table
0.55kW, 1500 r/min
Power of motor of cooling pump
0.25kW
Overall dimensions of machine (L× W ×H)
mm
2752×1490×1870
Machine weight(appr)
kg
5500
