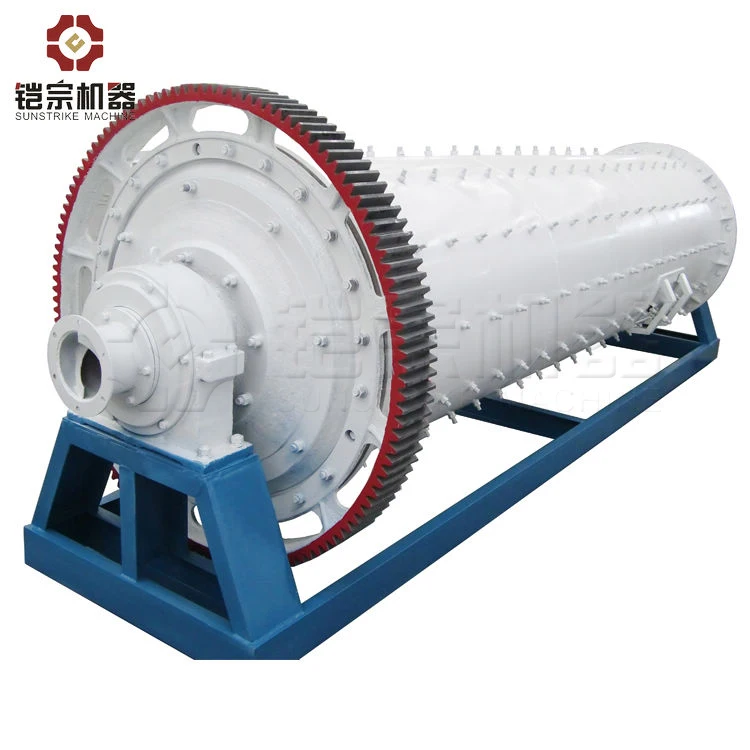

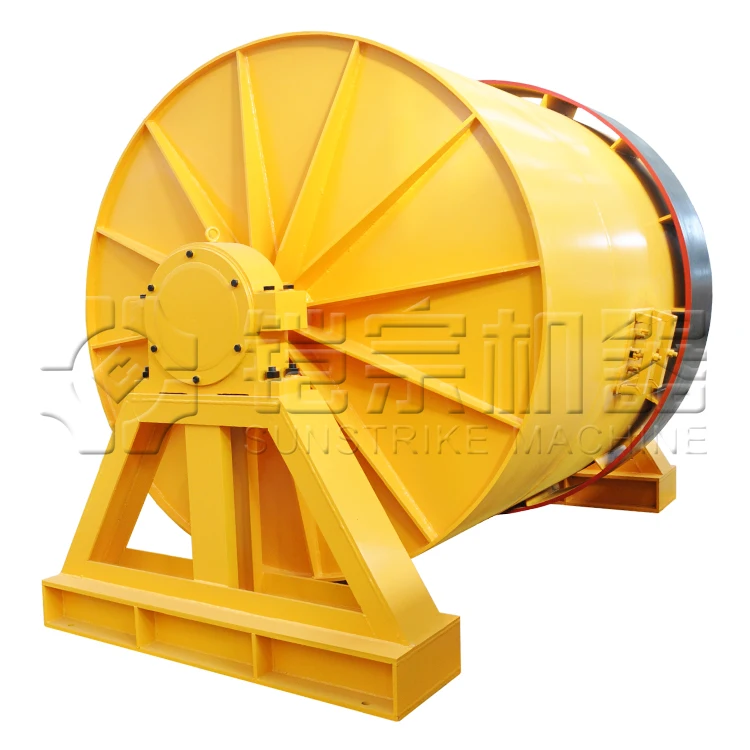

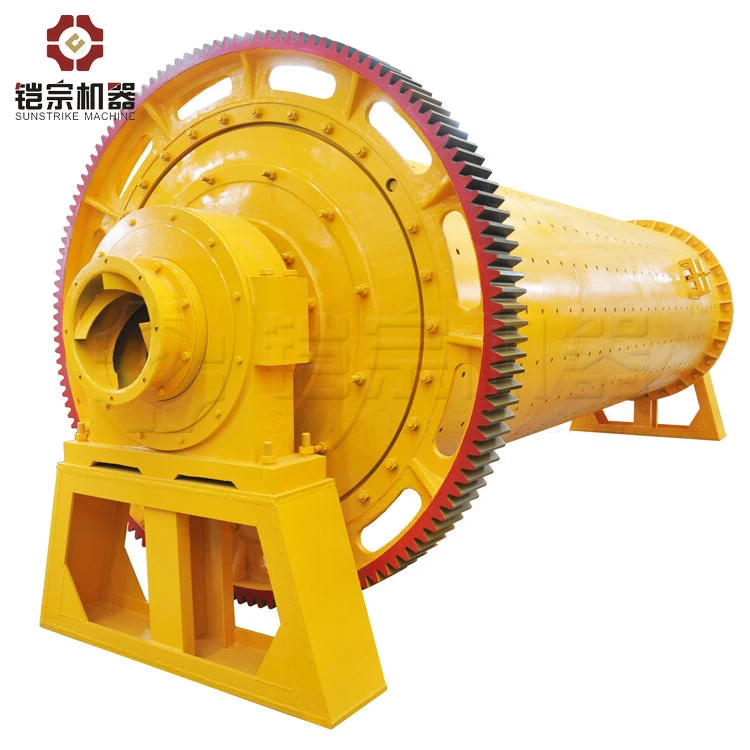

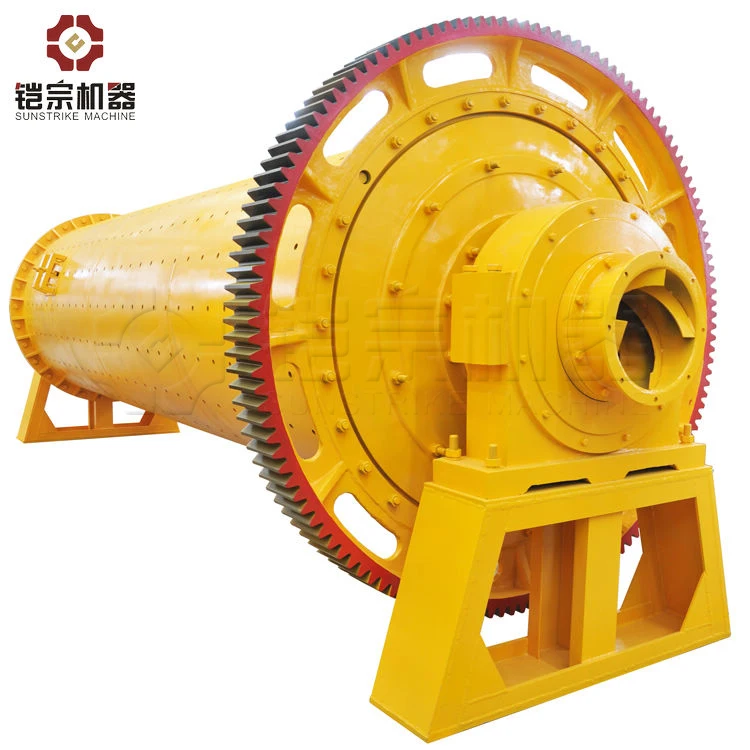

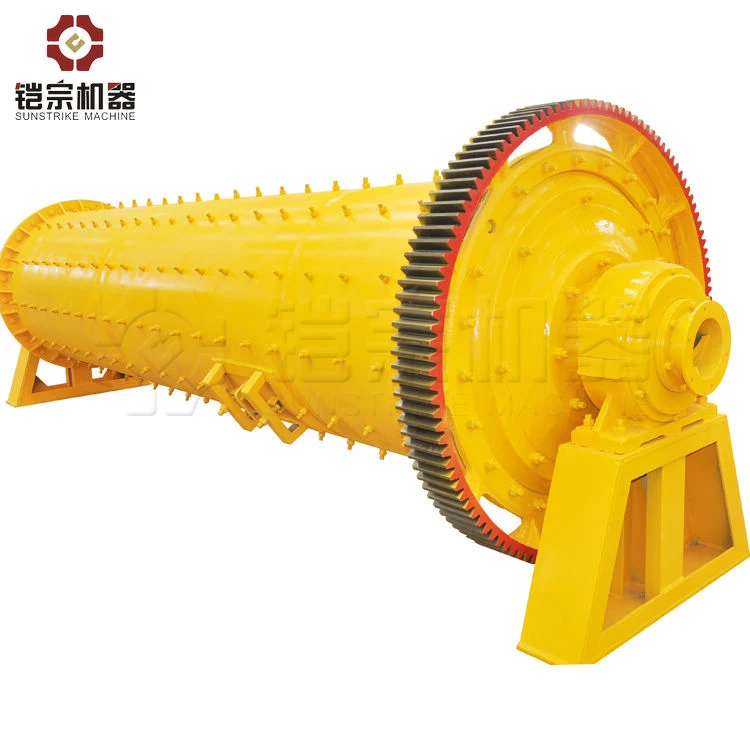

Ceramic Liner Ball Mill Machine Price Ball Grinding Mill Small Ball Mill

1. Large application range, simple structure and convenient maintenance;

2. Large capacity and continuous work are obvious advantages;

3. Various barrel lining and grinding media, excellent corrosion resistance;

4. Installation and adjustment are very convenient and easy to operate.

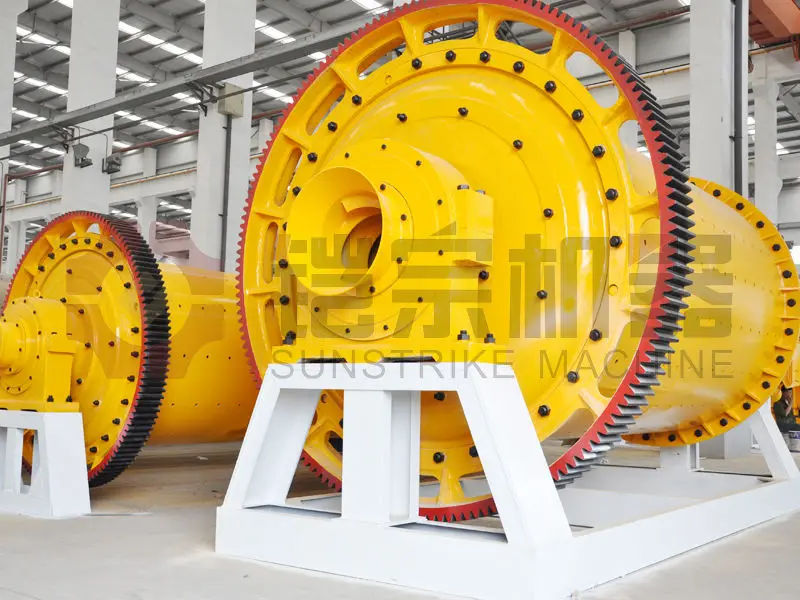

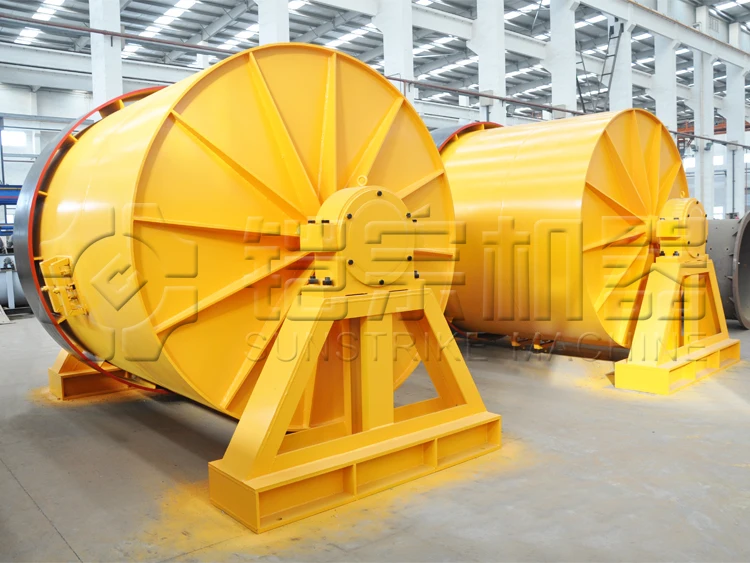

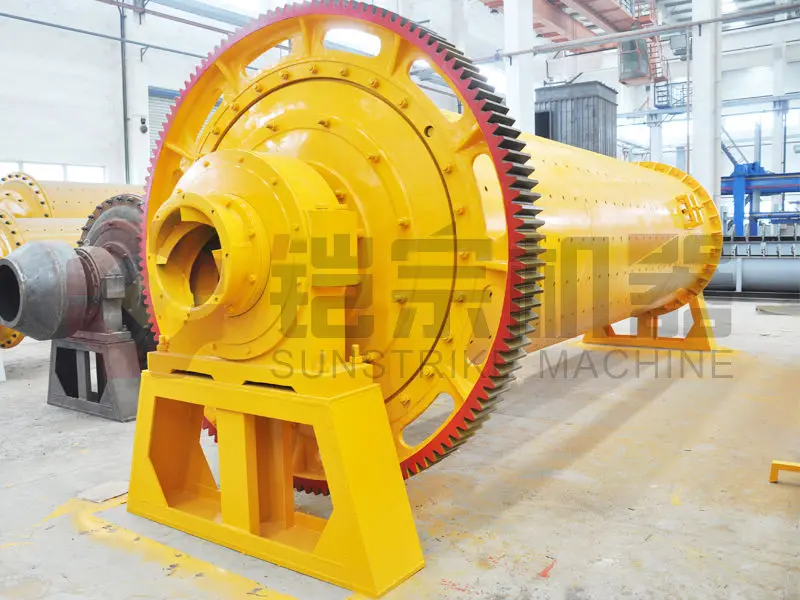

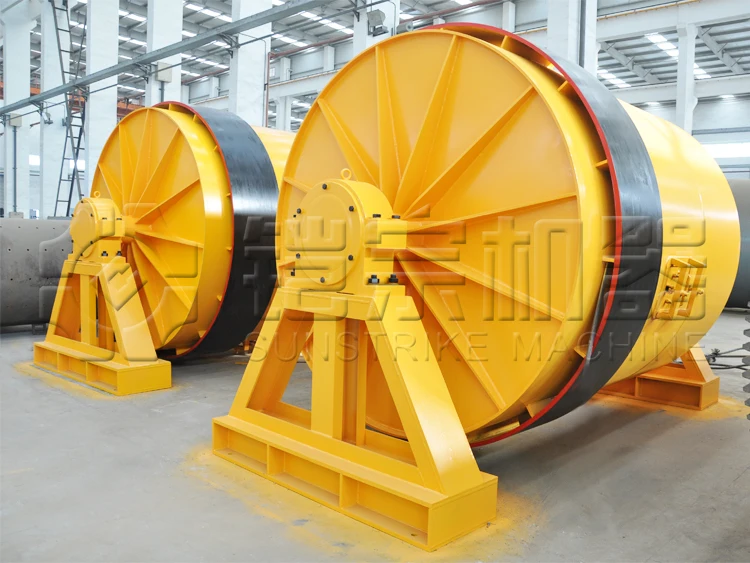

Detailed Images

Ball Mill Machine Price Ball Grinding Mill Small Ball Mill Technical Parameters:

Model	Speed (r/min)	Max. weight of balls (t)	Input size (mm)	Output size (mm)	power (kw)	Capacity (t/h)	Weight(t)
Φ900×1800	37	1.8	≤15	0.075-0.89	15	0.5-2	3.4
Φ900×2100	37	2.3	≤15	0.075-0.4	18.5	0.4-2	3.9
Φ900×3000	35	3.85	≤25	0.075-0.4	30	1.1-2.5	7.78
Φ1200×2400	35	4.6	≤25	0.075-0.4	30	1.3-3.2	8.65
Φ1200×2800	35	5.4	≤25	0.075-0.4	37	1.5-3.7	10.02
Φ1200×4500	35	8.6	≤25	0.075-0.4	45	2.7-6.79	14
Φ1500×3000	29	9	≤25	0.047-0.4	75	3.3-8.2	14.12
Φ1500×3500	29	10.5	≤25	0.047-0.4	75	3.3-8.5	15.64
Φ1500×4500	29	13.5	≤25	0.047-0.4	90	4.5-12	20
Φ1500×5700	29	17	≤25	0.047-0.4	110	2.6-14	21.5
Φ1830×3000	24	13.5	≤25	0.047-0.4	135	4-15	28
Φ1830×3600	24	14	≤25	0.047-0.4	135	4-15	29
Φ1830×4500	24	20	≤25	0.047-0.4	155	4-19	32
Φ1830×7000	24	31.5	≤25	0.047-0.4	210	6-22	37.5
Φ2100×3000	22	18	≤25	0.047-0.4	210	6.4-28	40.79
Φ2100x3600	22	20	≤25	0.047-0.4	210	7-28	42
Φ2100×4000	22	21.5	≤25	0.047-0.4	210	7.6-28	43.45
Φ2200×3600	21.7	25	≤25	0.047-0.4	245	5.2-32	44
Φ2200×7000	21.7	46	≤25	0.047-0.4	380	15-38	63
Φ2400×3600	21	28	≤25	0.047-0.4	320	8-60	47
Φ2400×4500	21	35	≤25	0.047-0.4	380	8.5-60	70.5
Φ2700×3600	20.7	40	≤25	0.047-0.4	400	12-80	75.5
Φ2700×4500	20.7	48	≤25	0.047-0.4	450	12-90	102
Φ3200×4000	18	65	≤25	0.047-0.4	800	30-180	137

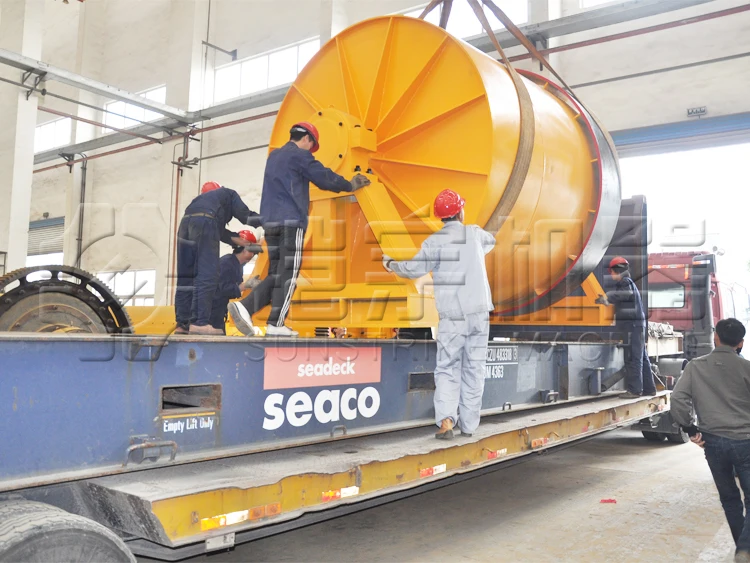

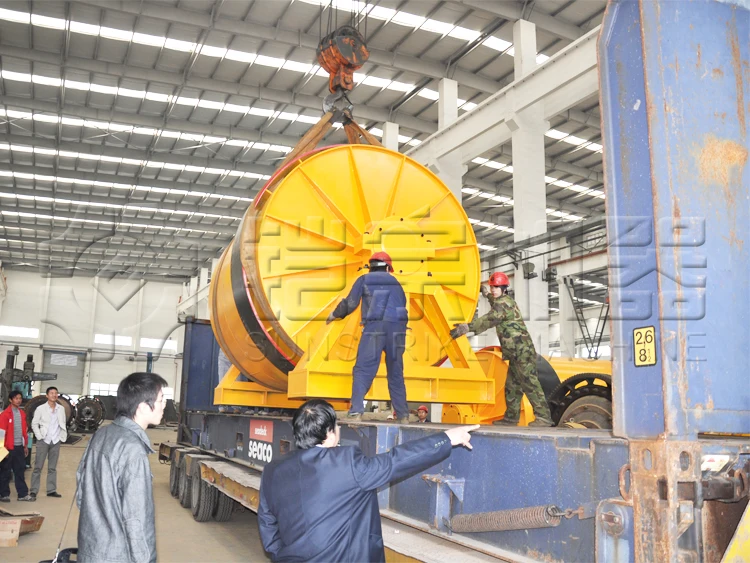

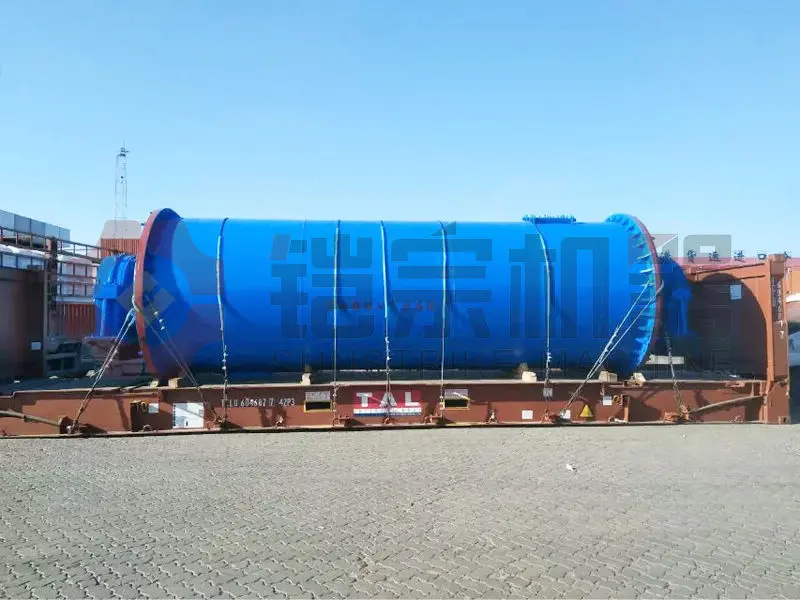

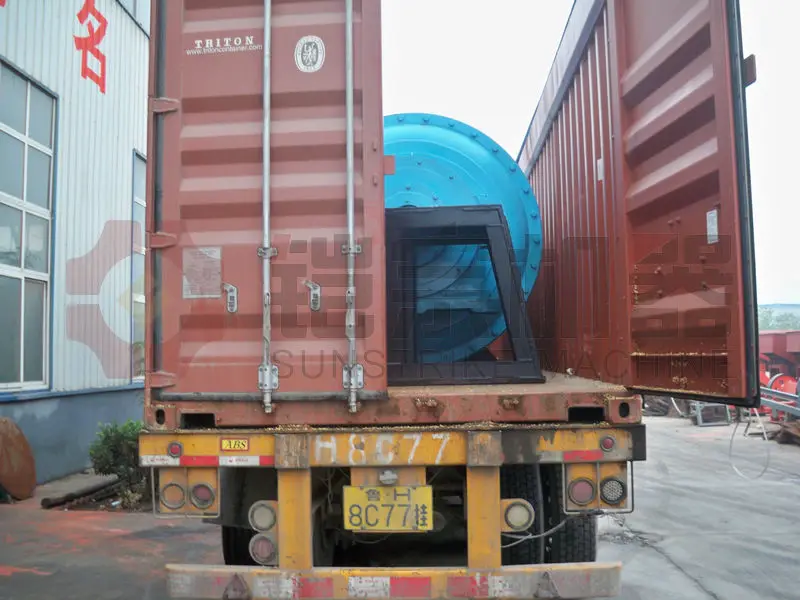

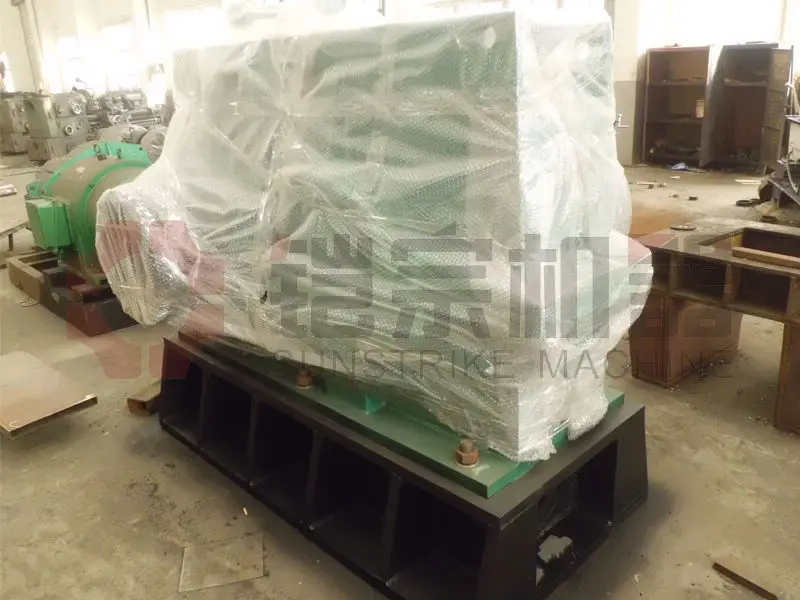

Packing & Delivery

Certifications

Company Profile

Our Advantages

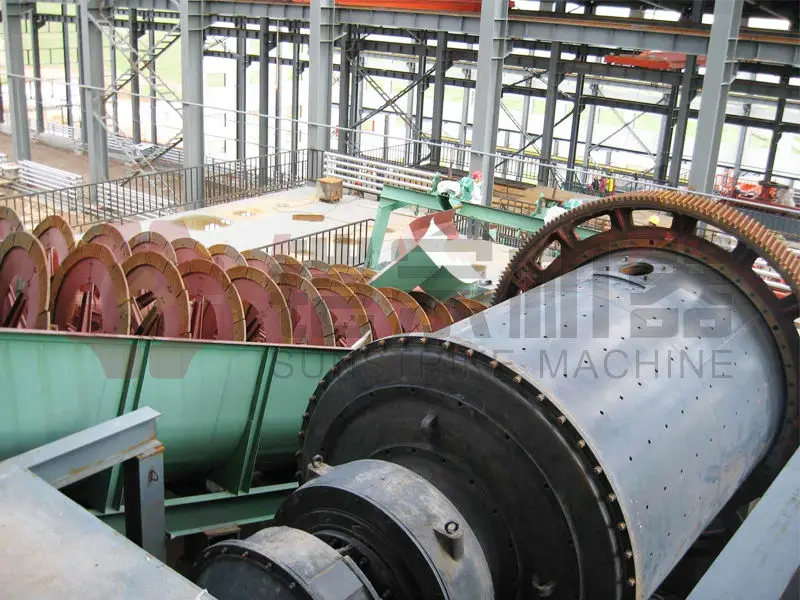

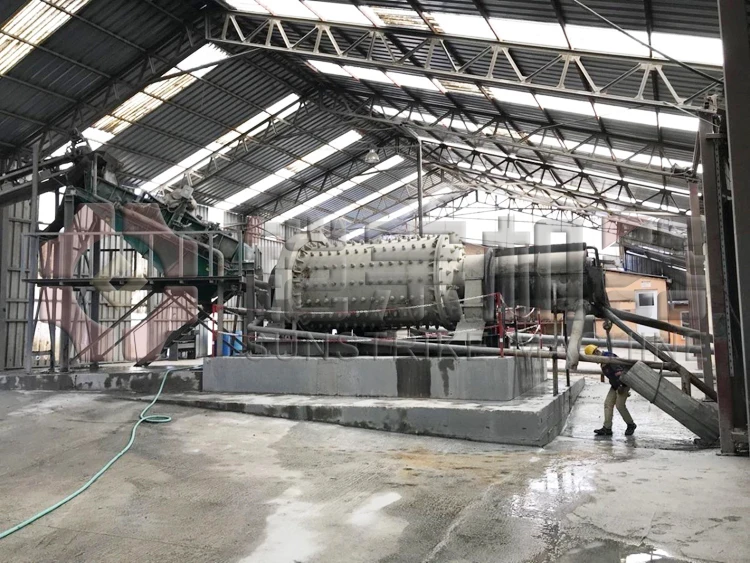

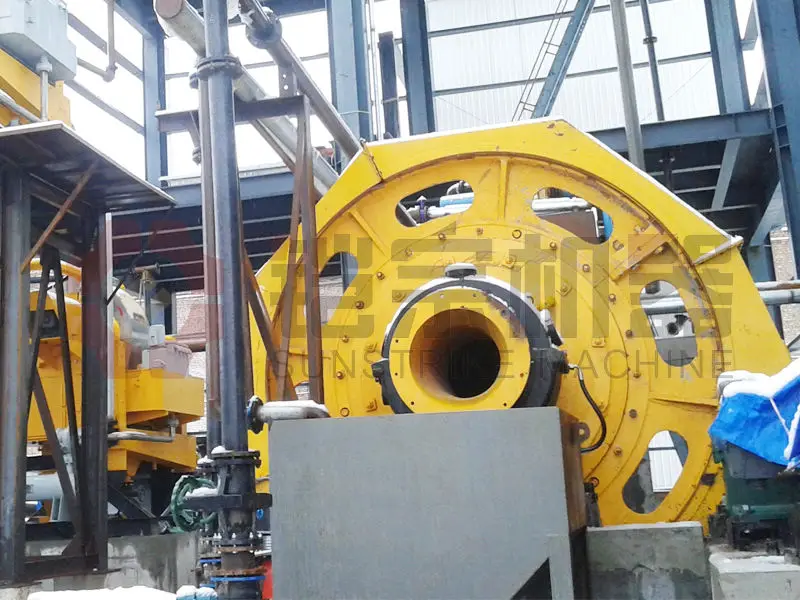

Customer Site
