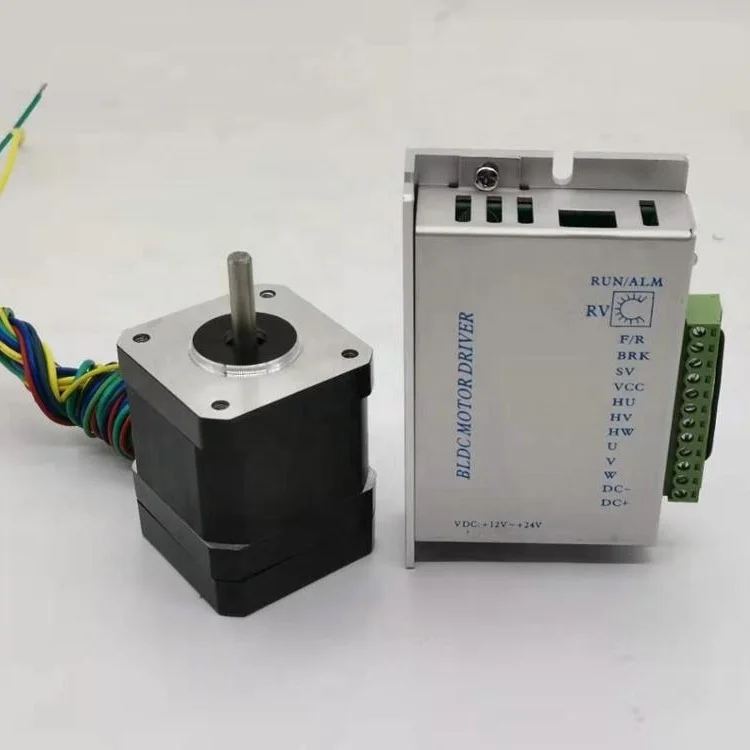

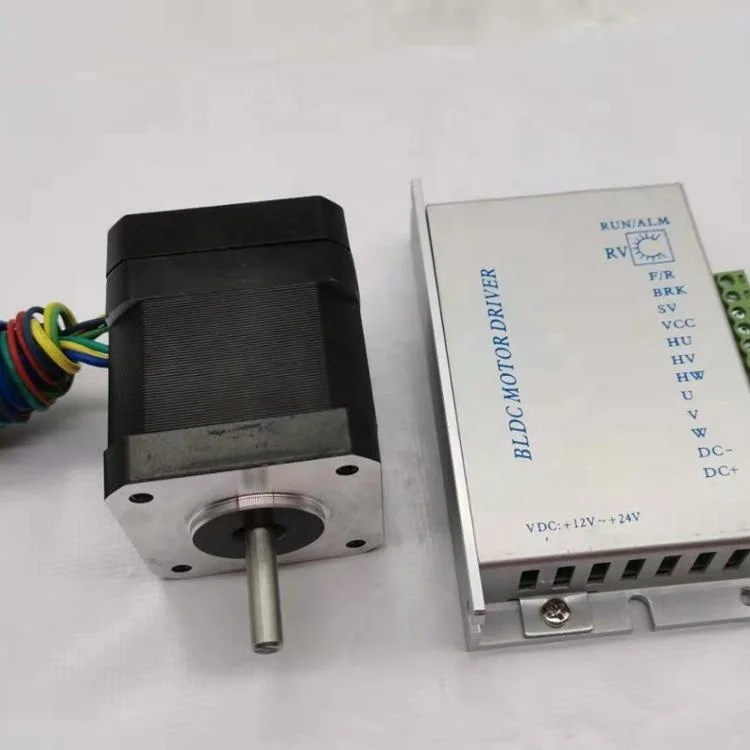

36V DW42BL50 340 4000rpm bldc motor brushless dc motor with high torque
- Category: >>>
- Supplier: Changzhou Dewo Motor Co. Ltd.
Share on (62050162255):
Product Overview
Description

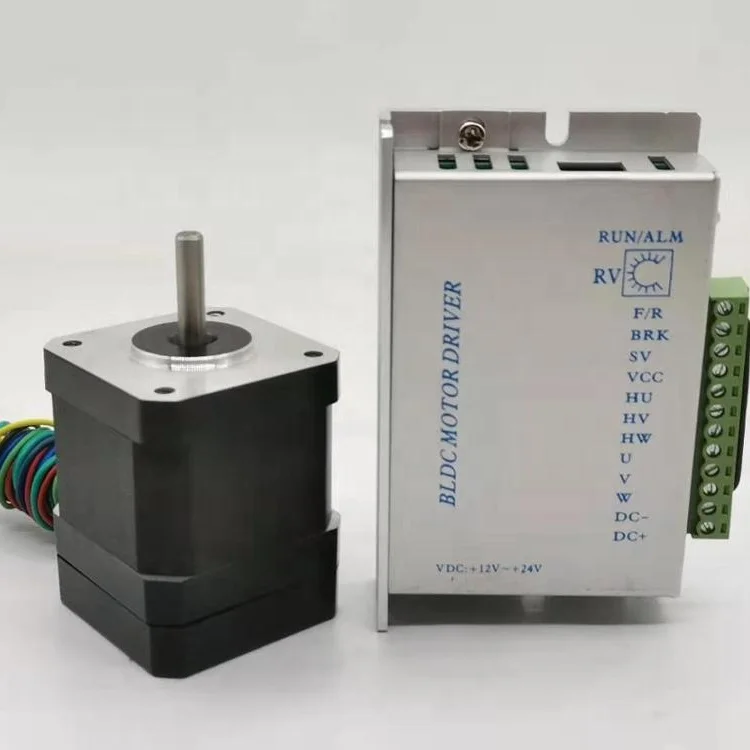

36V 4000rpm bldc motor brushless dc motor with high torque
BLDC motors are replacing classic DC motors and stepper motors in more and more applications. The BLDC motors from Dewo are three-phase and have digital Hall sensors in the standard version, so that speed control is possible with simple servo controllers.
The most important features of Dewo BLDC motors are:
high efficiency
low operating voltage: the windings of Dewo BLDC motors are designed for low supply voltages
flange sizes available: Nema 17 (42mm), Nema 23 (57mm) and Nema 34 (86mm), can be customized
customization options: encoder, shaft , flange, insulation, bearing, environmental conditions
high efficiency
low operating voltage: the windings of Dewo BLDC motors are designed for low supply voltages
flange sizes available: Nema 17 (42mm), Nema 23 (57mm) and Nema 34 (86mm), can be customized
customization options: encoder, shaft , flange, insulation, bearing, environmental conditions
Item | Specifications |
Type | Brushless Dc Motor |
Certification | CE, ISO9001 |
Winding type | Star/Delta |
Hall effect angle | 120° |
Shaft runout | 0.025mm |
Radial play | 0.02mm/450g |
End play | 0.08mm/450g |
Max radial force | 28N/20mm from the flange |
Max axial force | 10N |
Insulation class | Class B |
IP class | IP 40 |
Dielectric strength | 500VDC for one minute |
Insulation resistance | 100MΩ min 500VDC |
Products Description
Electrical Specifications
Model | Phase No. | Rated Voltage (VDC) | Rated Current (A) | Rated Speed (RPM) | Rated Torque (N.m) | Peak Torqure (N.m) | Rated Power (W) | Mass (Kg) | Body Length (mm) |
DW42BL50-230 | 3 | 24 | 1.8 | 3000 | 0.1 | 0.3 | 31 | 0.35 | 51 |
DW42BL70-230 | 3 | 24 | 3.4 | 3000 | 0.2 | 0.6 | 62 | 0.55 | 71 |
DW42BL90-230 | 3 | 24 | 5.2 | 3000 | 0.3 | 0.9 | 94 | 0.65 | 91 |
DW42BL50-340 | 3 | 36 | 1.6 | 4000 | 0.1 | 0.3 | 42 | 0.35 | 51 |
DW42BL70-340 | 3 | 36 | 3.1 | 4000 | 0.2 | 0.6 | 84 | 0.55 | 71 |
DW42BL90-340 | 3 | 36 | 4.6 | 4000 | 0.3 | 0.9 | 125 | 0.65 | 91 |

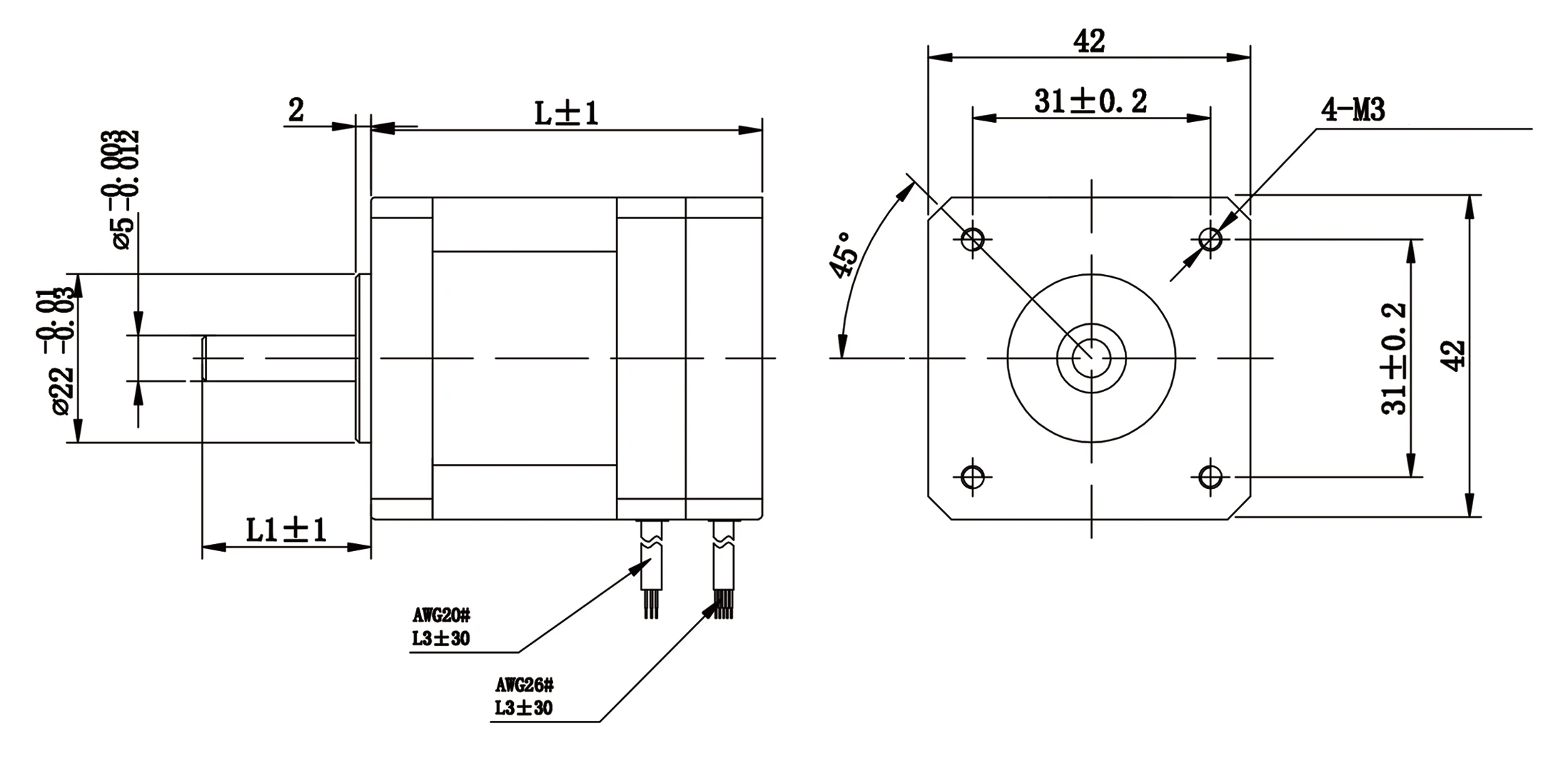

Dimensions(mm)
Electric Connection
Lead gauge | Color | Function | Description |
UL3266/26AWG | Red | VCC+5VDC | Supply voltage hall sensors |
Black | GND | Ground for hall sensors | |
Yellow | HALL A | Signal of hall A | |
Green | HALL B | Signal of hall B | |
Blue | HALL C | Signal of hall C | |
UL3266/22AWG | Yellow | PHASE U | Motor phase U |
Green | PHASE V | Motor phase V | |
Blue | PHASE W | Motor phase W |

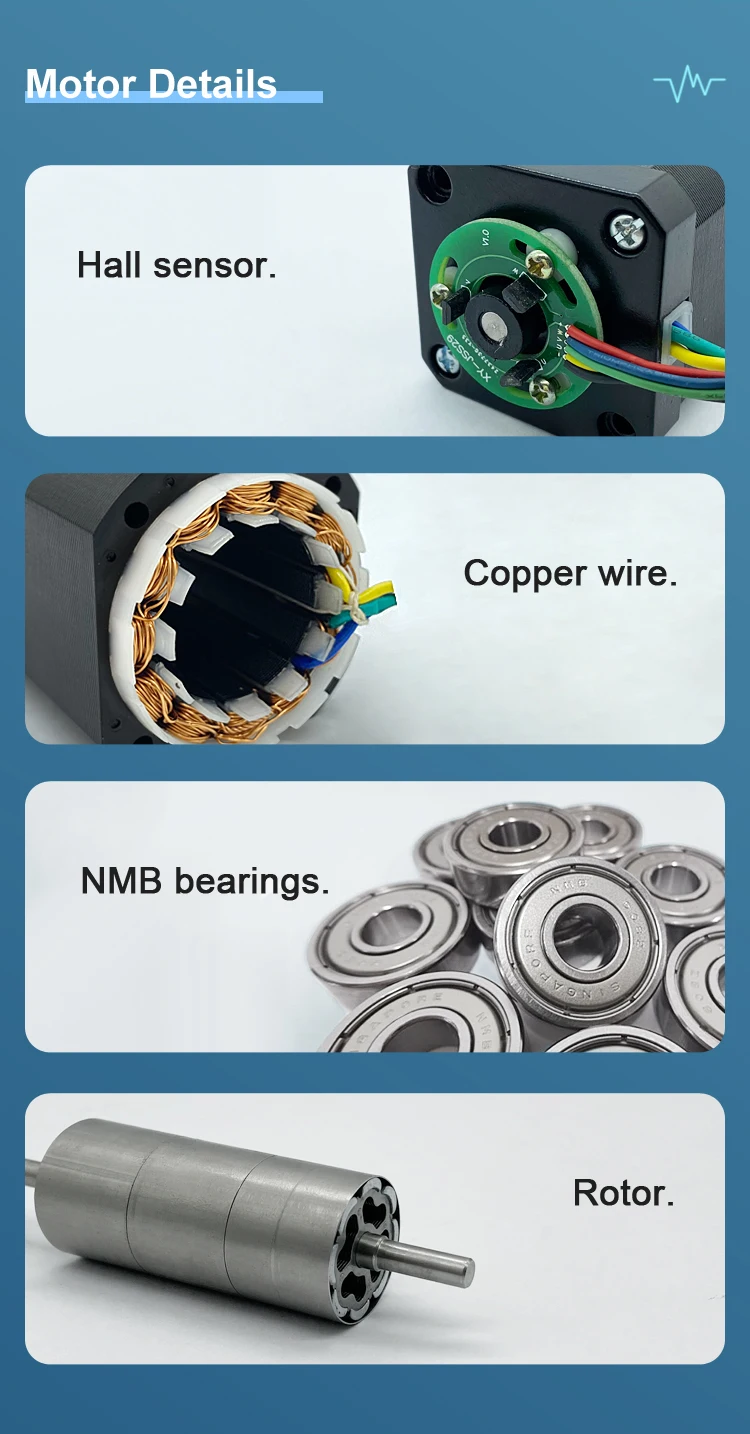

Details
Company Profile
Changzhou Dewo Motor Co.,Ltd. located in Changzhou city close to Shanghai of China, specialized in acting as produce Hybrid Stepper Motors and its drivers, also agent spindle motor,servo motor, brushless dc motor, related drivers, swith power supply and accessories etc. We accept OEM and ODM orders！
Our main products include from size Nema8, Nema11, Nema14, Nema16, Nema17, Nema23, Nema24, Nema34, Nema42, Nema52 series hybrid stepper motor, and variable sizes linear stepper motor, stepper motor with gear box, stepper motor with brake. And we have products about closed loop systems for nema23, nema24 and nema34 sizes. In addition, we can produce suitable drivers for all the motors. And we always research and develop new products.
Our products are widely applied in printing equipment, engraving machine, textile machine, computer external application equipment, medical instruments, stage light equipment, robot, CNC machine and other automatic controlling system.
We have pass ISO9001:2008, and have got the certification of CE. On the way of development, the principle of "efficiency is the life, quality is the fundamental. We take the market as guidance, provide high quality products and good service to customers. We also designs and builds products and provides factory-direct support to Original Equipment Manufacturers (OEMs). We are expecting the cooperation with more friends from home and aboard in the near future.

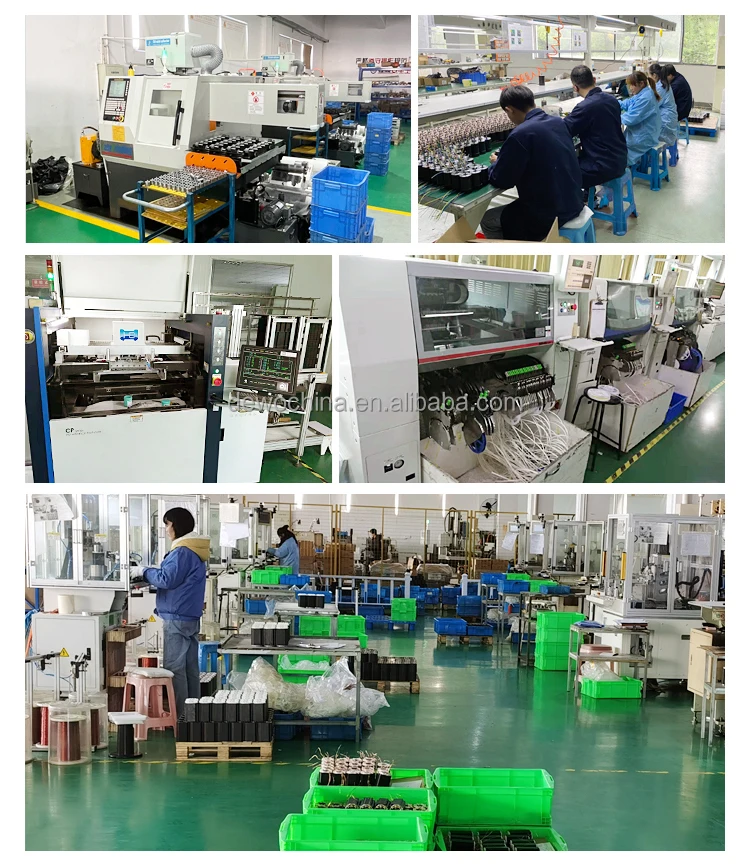

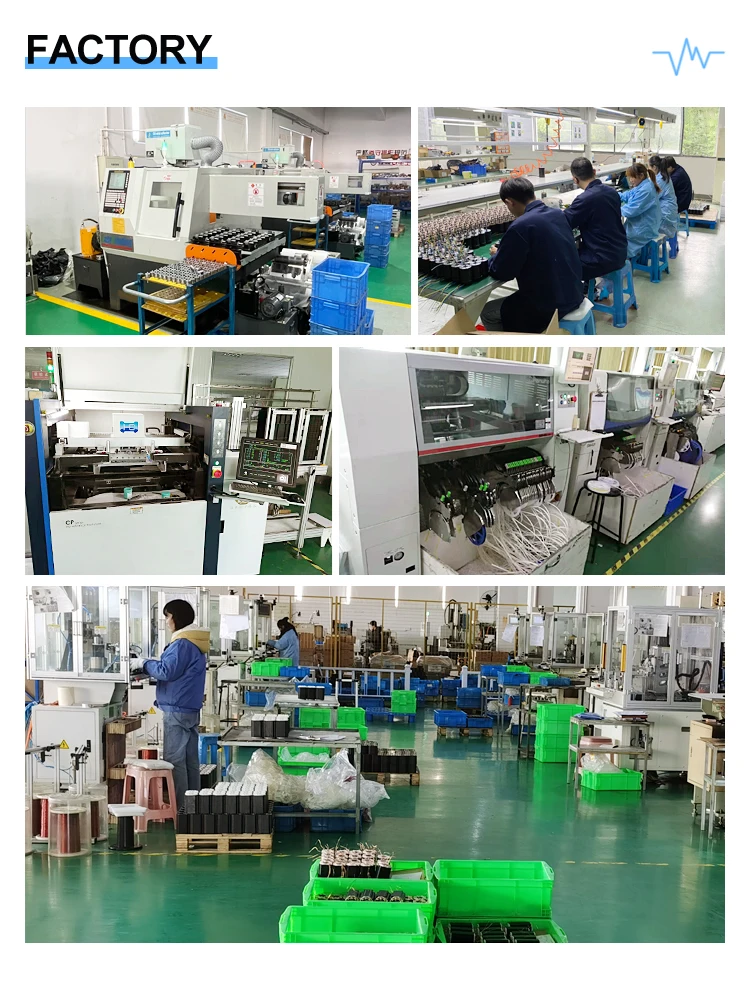

Factory Photos

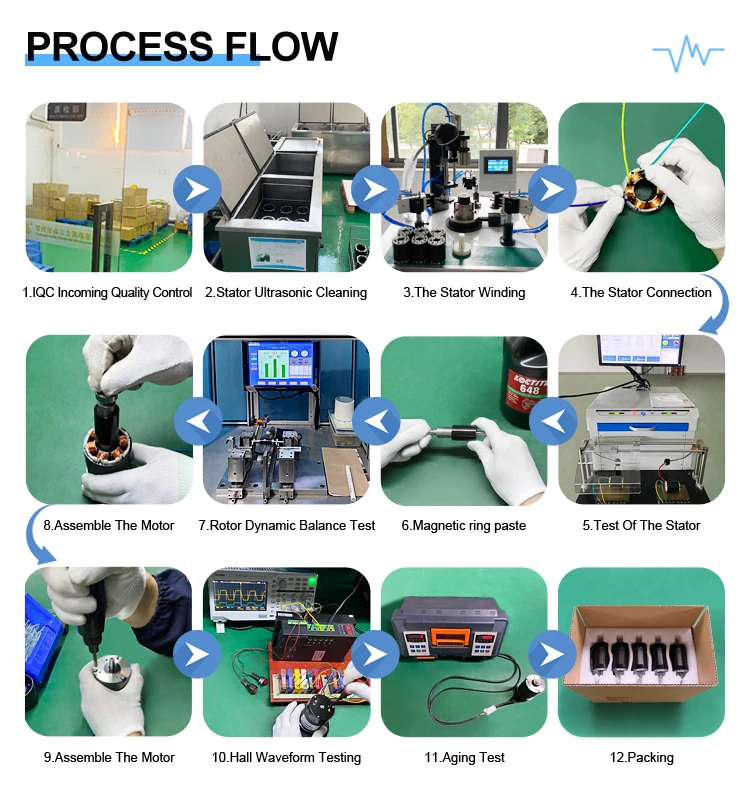

Process Flow
Certifications

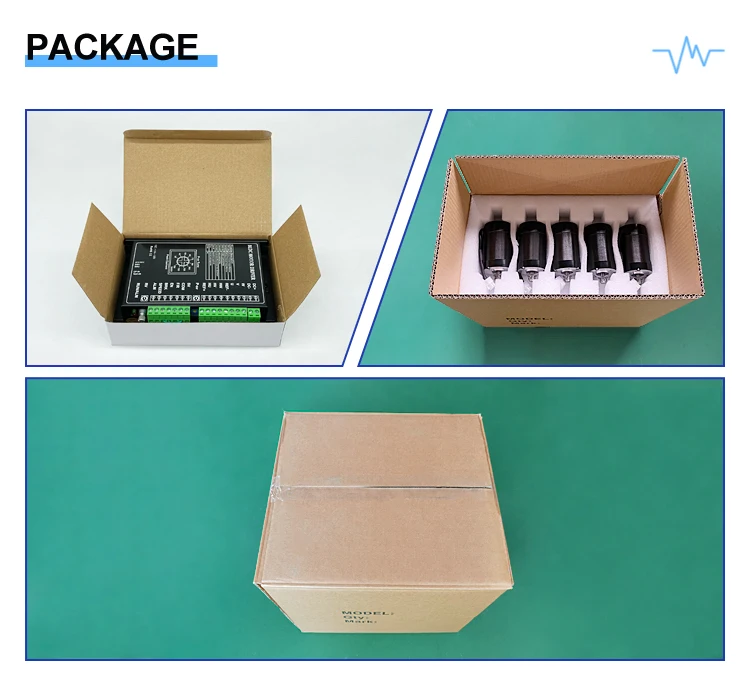

Packaging
