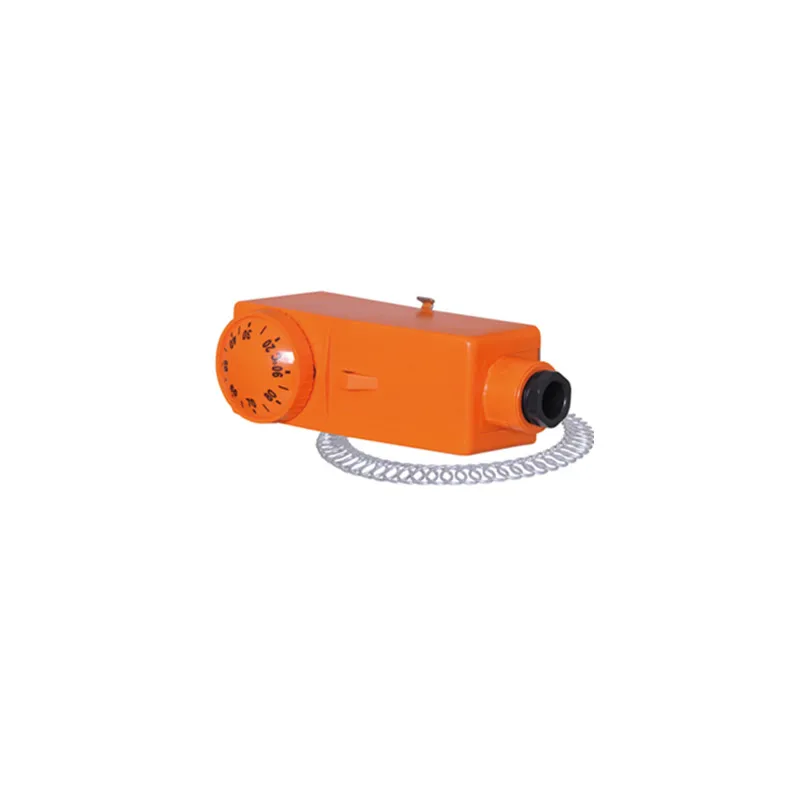

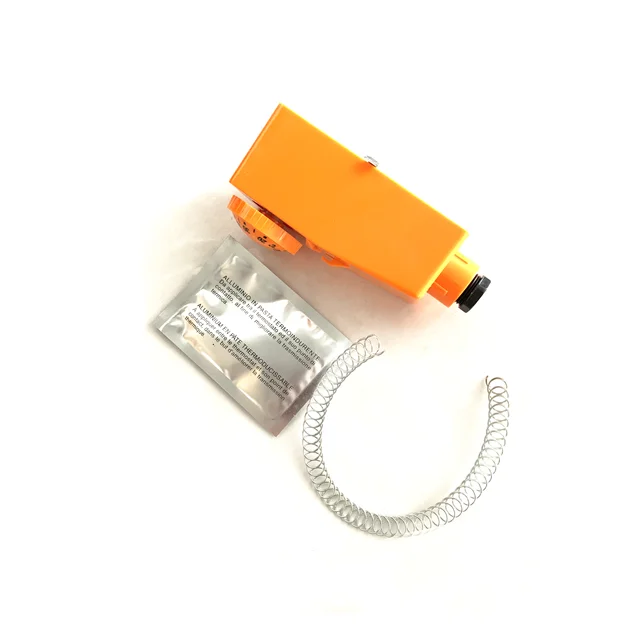

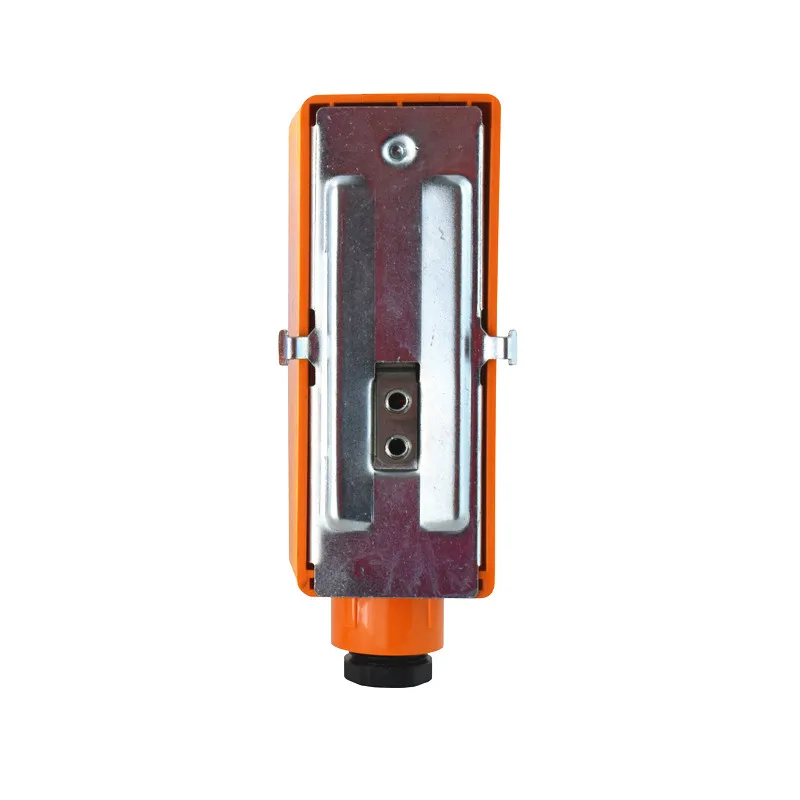

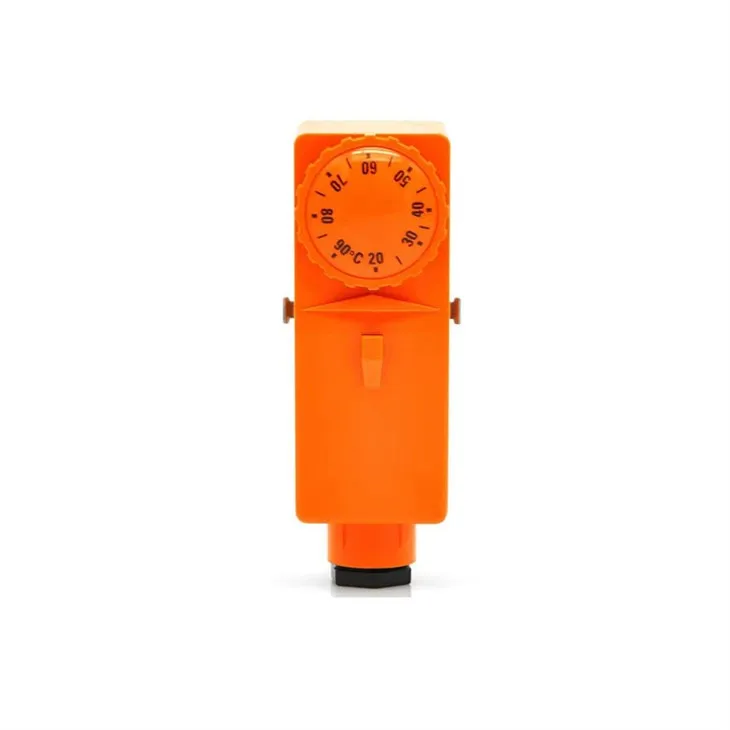

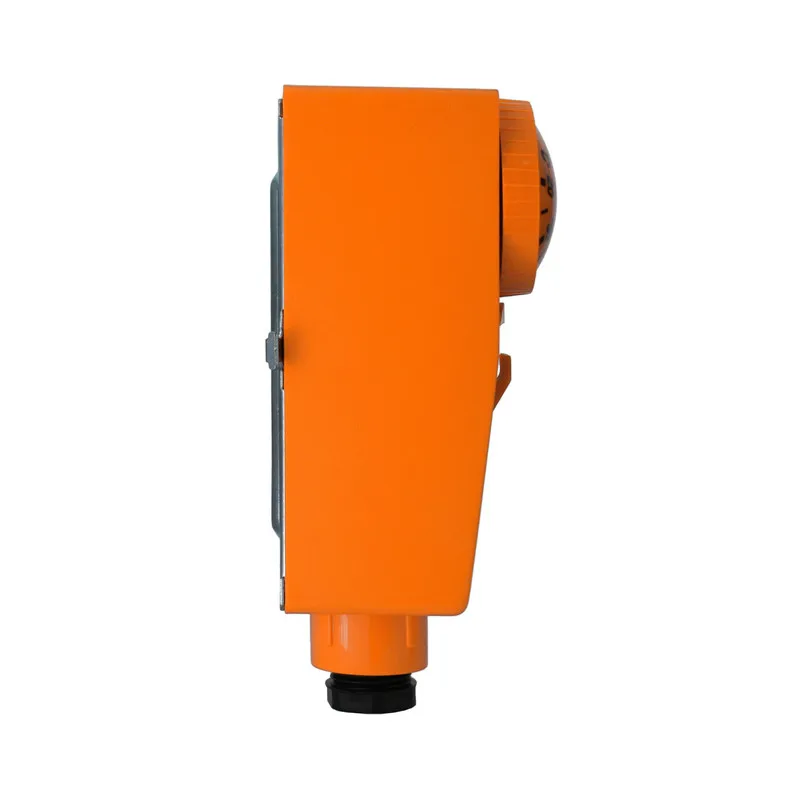

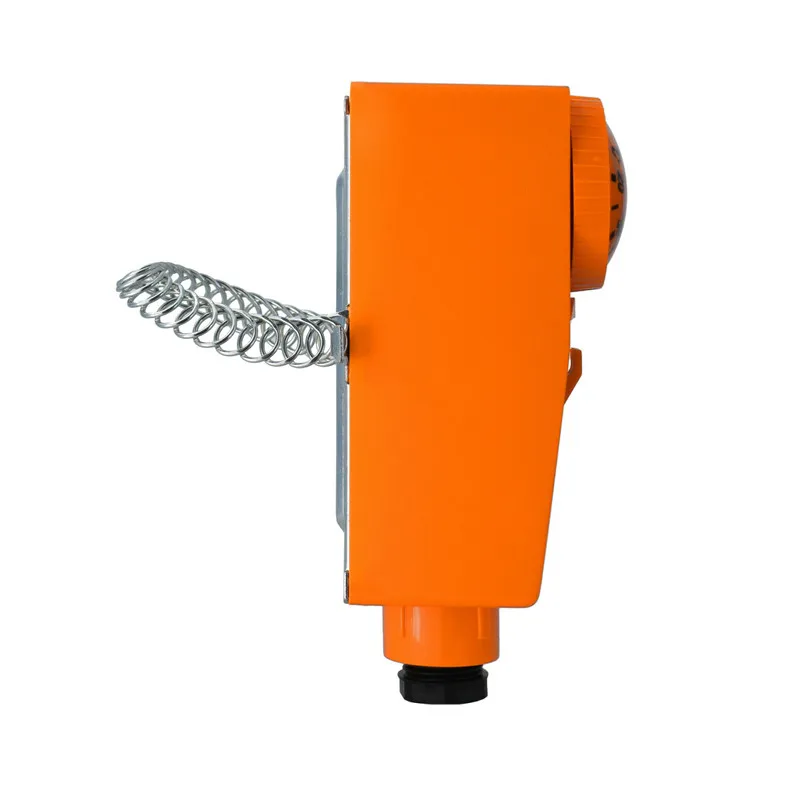

Pump Controller Thermostat boiler Hot water tank cylinder with pipe strap 90 degrees Celsius

Automatic Pipe Stat – For automatic on/off of an electric circulation pump on a back boiler stove

Main Technical Parmeter

Working Voltage: AV220V

Rated Current: 16A/4A

Load Power: 3.5KW

Cotrol Range: 20-90℃

Control Precision: +/-3℃

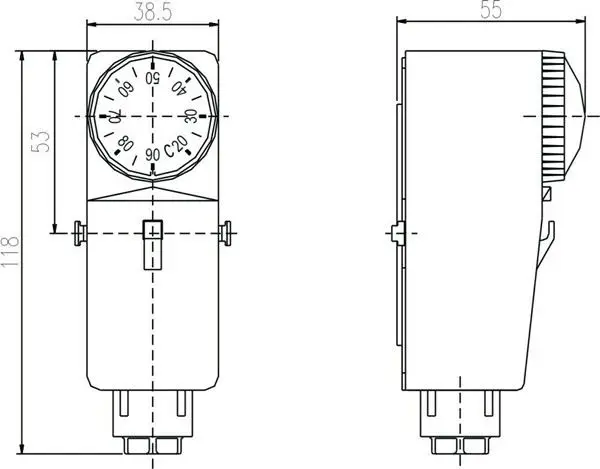

Exterior Dimension: 118*25*39

Output Connector: screw bolt

Application of Electrical Heating Thermostat
For the control of warm-water (floor) heating systems and direct electric heating systems used in Commercial buildings, Residential buildings, Light industrial buildings…
