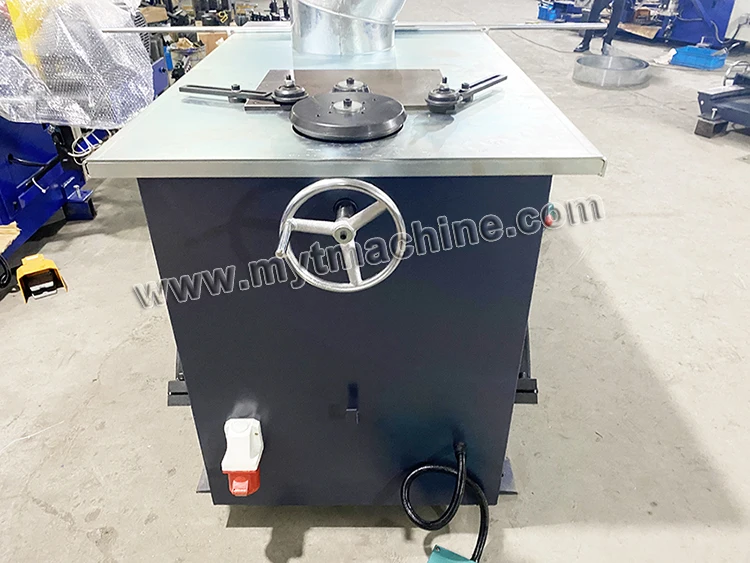

MYT 1000 Electric elbow making machine with manual round elbow flanging forming for round pipe making

Product Overview

Description

MYT Electric elbow making machine with manual round elbow flanging forming for round pipe making

Connect tube by machine with perfect efficiency. good seal and stability. It is easy to operate and process

different diameter, Traditionally, tubes connecting and pressing is finished by handwork. But our company

developed and produced elbow making machine that can connect tubes by machine with prefect effect,

good seal and stability. It’s easy to operate and it can process tubes with different diameter. It replaced the

traditional handwork method totally. It suits such industries as ventilation, refrigeration, environment

protection project. There’re two styles of elbow notching machine: electric and hydraulic, with two working

location both, one is used to process single and double profile, and the other is used to connect and press

Main Technical Parameters:

Type	MYWT-1000	MYWT-1000C	MYWT-1500
Max. thickness	1.2mm	2.0mm	2.0mm
Dia. range	150-1000mm	150-1000mm	150-1500mm
Forming speed	7r/min	7r/min	7r/min
Motor power	1.5kwx2	2.2kwx2	2.2kwx2
Weight	556kg	556kg	610kg
Dimension	2100x820x890mm	2100x820x890mm	2400x820x890mm

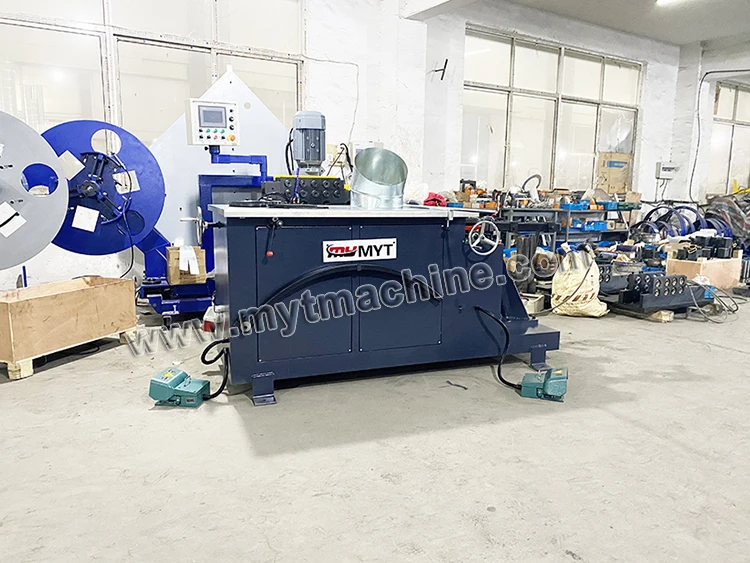

Detailed pictures: for elbow making machine elbow flanging forming machine

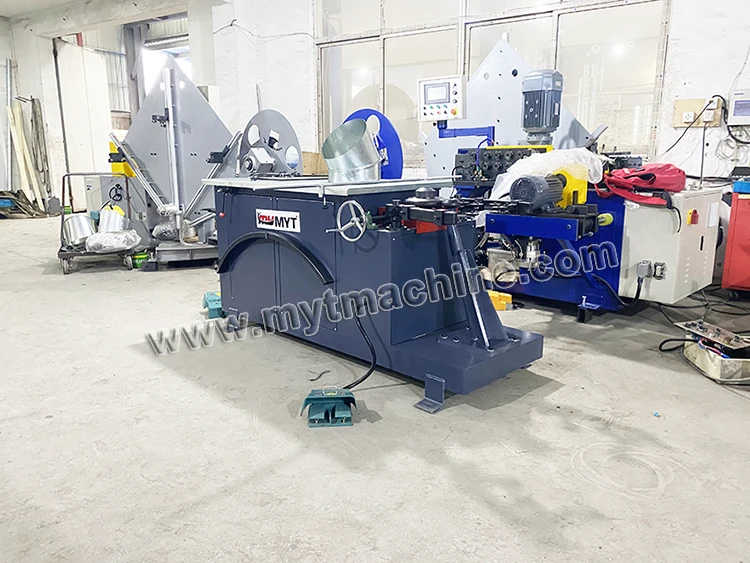

Right side about elbow making machine elbow flanging forming machine :

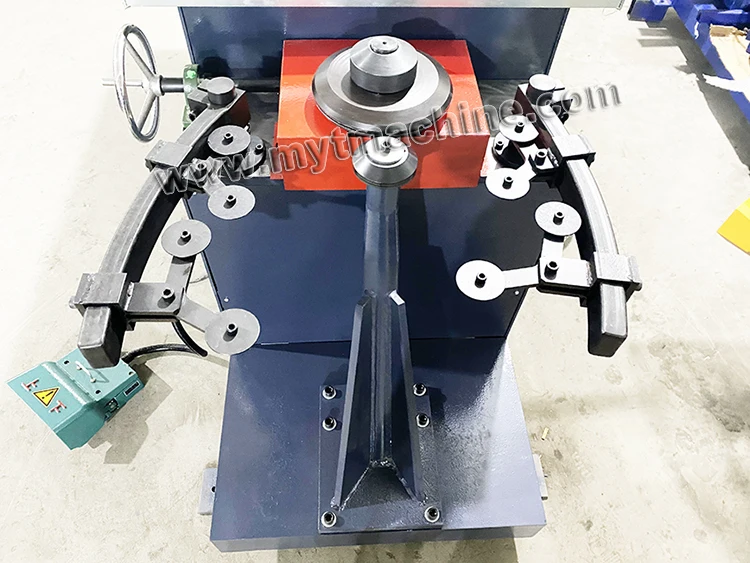

Elbow mould for elbow making machine elbow flanging forming machine:

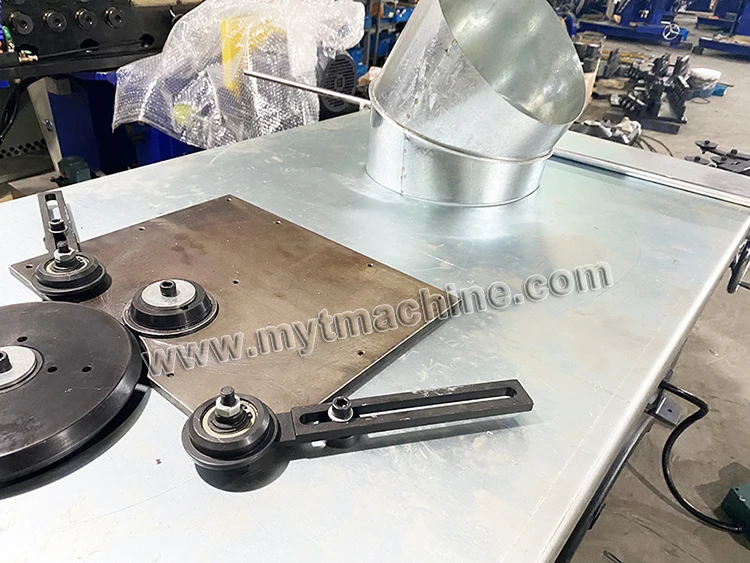

Lock seaming for elbow making machine :
