Tire pressure monitor system tpms sensor external or interal

Share on (62050368355):


Price:$6.00 - $8.00

Quantity:


Product Overview

Description




Tire pressure monitor system tpms sensor external or interal

Product Description



Operating frequency433.92MHz
Operating voltage2.6-3.6V
Sleep current<0.7uA
Operating current<10MA
Temperature in working environment -40℃~125℃
Pressure measurement range0-8Bar
Pressure measurement accuracy±0.1bar(0℃~70℃)
Temperature measurement range-40℃~125℃
Temperature measurement accuracy±3℃(0℃~70℃)
Storage temperature range-40℃~125℃ ( ambient temperature  storage recommended)
Battery model/capacityCR2050W   350mAH
Battery life>5 year

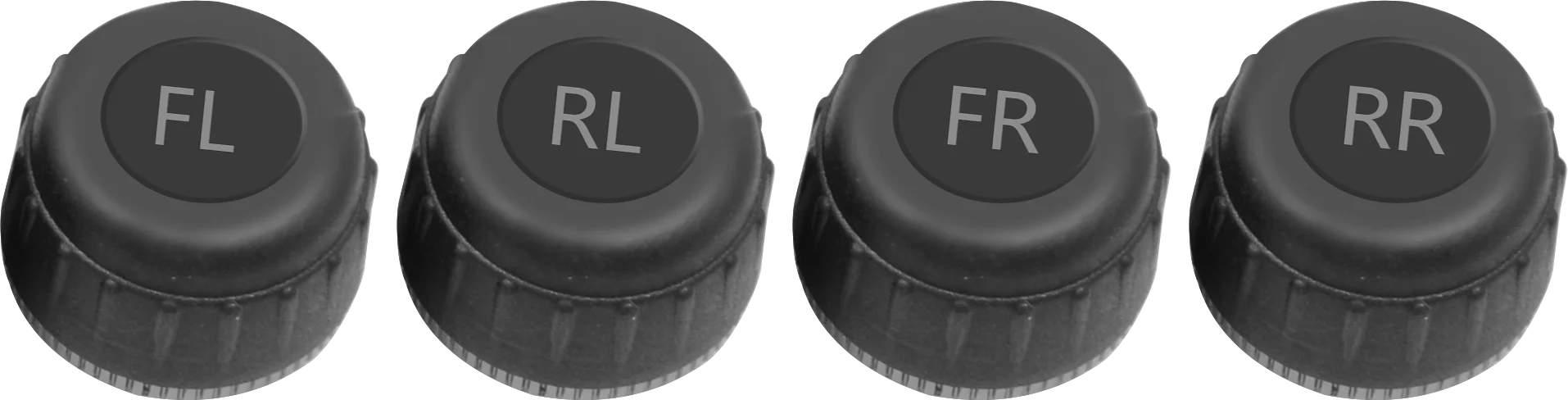

External Tire pressure monitor system tpms sensor:1_1USB

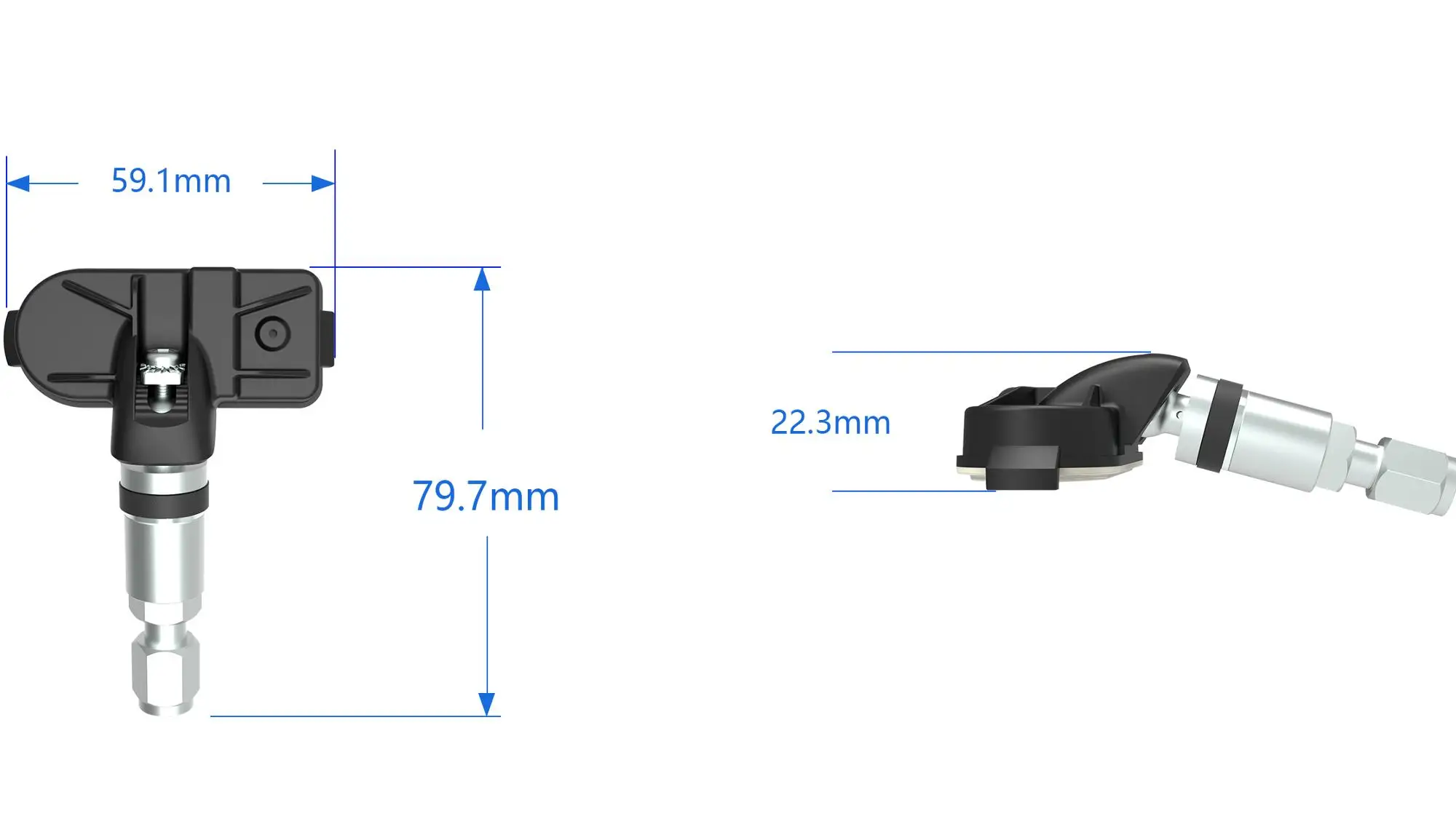

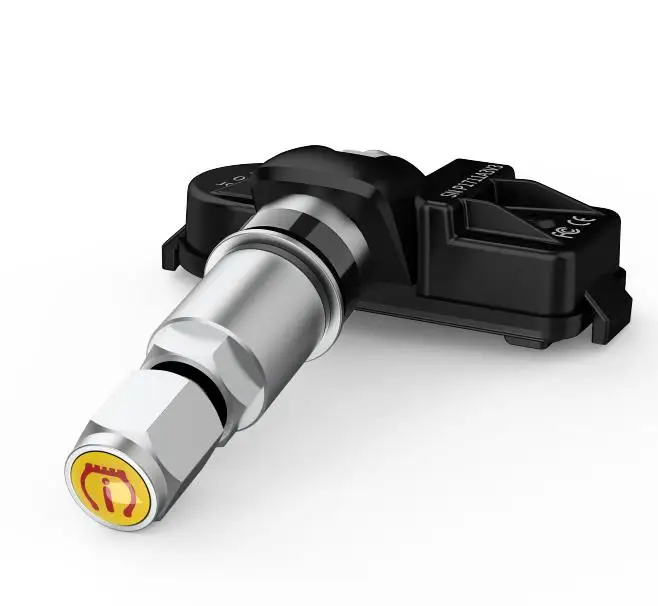

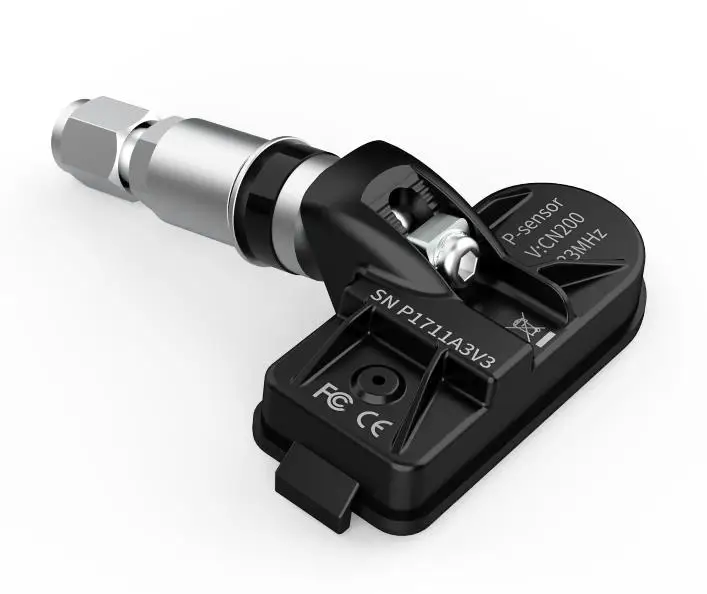

Internal Tire pressure monitor system tpms sensor:QQ201712062000524IMG_0668200-4USB
1. Solar and extra mini USB interface charging, 4 external sensor
2. Solar heat-proof battery, charging fast, lasting power
3. Real-time highly accurate tire temperature and pressure data with four significant
4. The fuel-efficient, forecast leak, extend tire life, tire pressure balance to ensure safe driving
5. PSI, BAR two kinds of pressure unit selection, C and F unit selection two temperatures
6. Each sensor has a unique ID code the position of the tire can function interchangeably
7. The sensor is waterproof, waterproof grade: IP5K4K
8. Korea Certification radio frequency technology, the effective transmission distance of 80 meters open to the sensor data updated in real time, real-time tire pressure and temperature abnormal alarm
9. Switzerland imports Freescale chips and program temperature battery explosion, electric power lasting, more accurate monitoring data, to protect the safety





TPMS Sensors for option:

Packaging & Shipping

User manual *1

Sticker *1

inner sensor or external sensor *4

TPMS Accessories:Display *1
Our Services

 we can provide OEM service,like add the logo on product,custom the package,translate user manuel.



For shipment,we can provide international express,air freight and sea freight.
