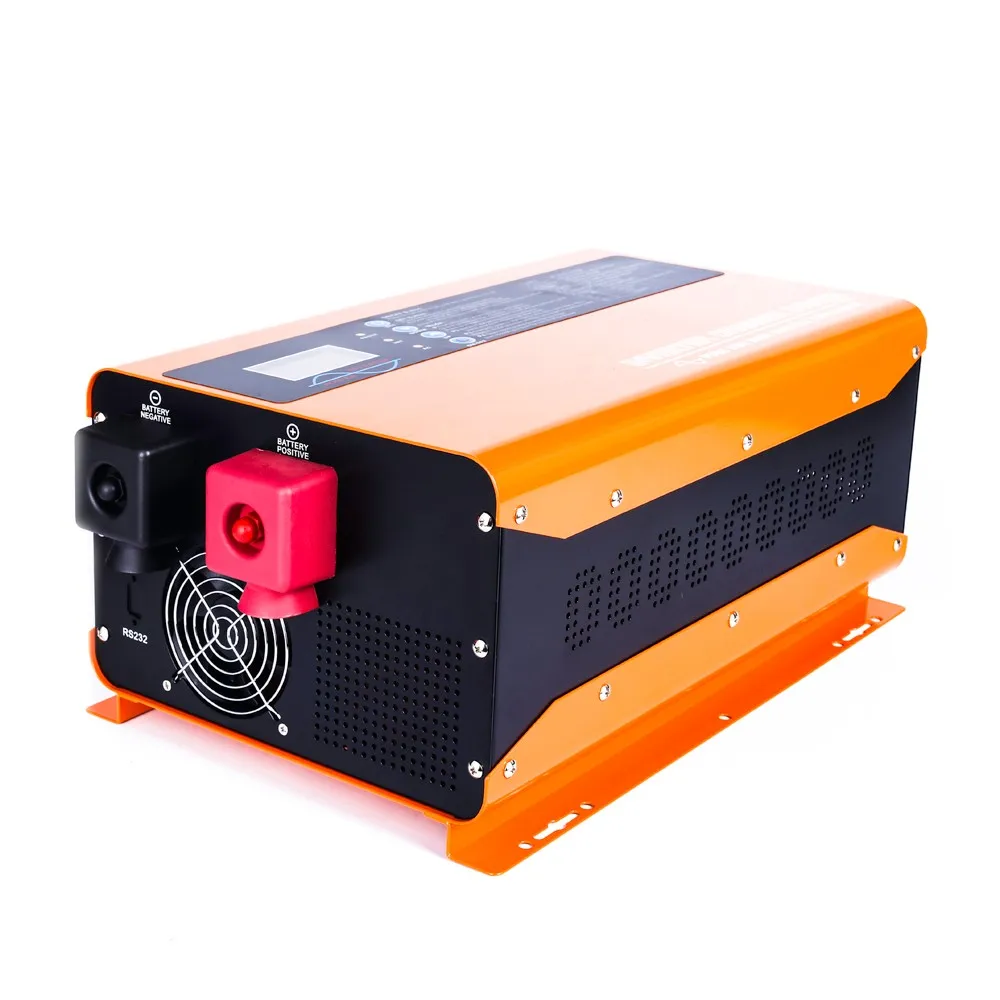

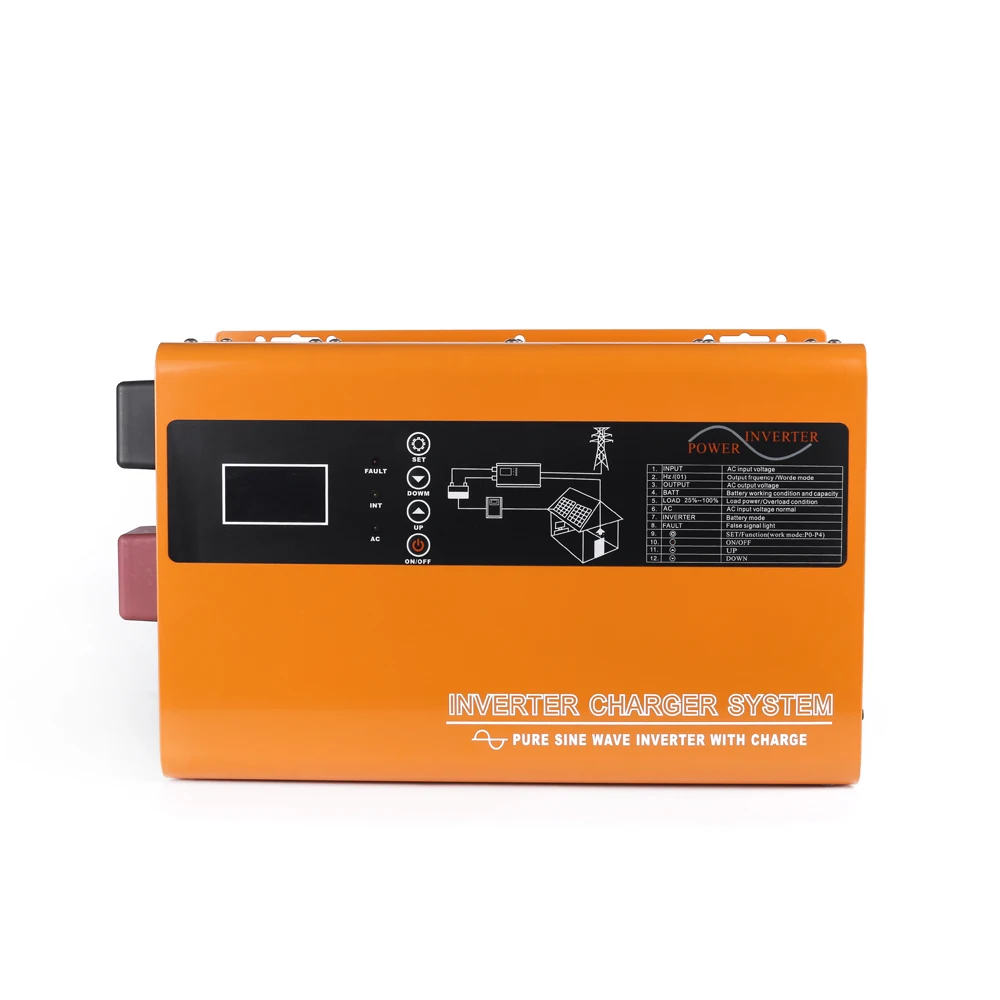

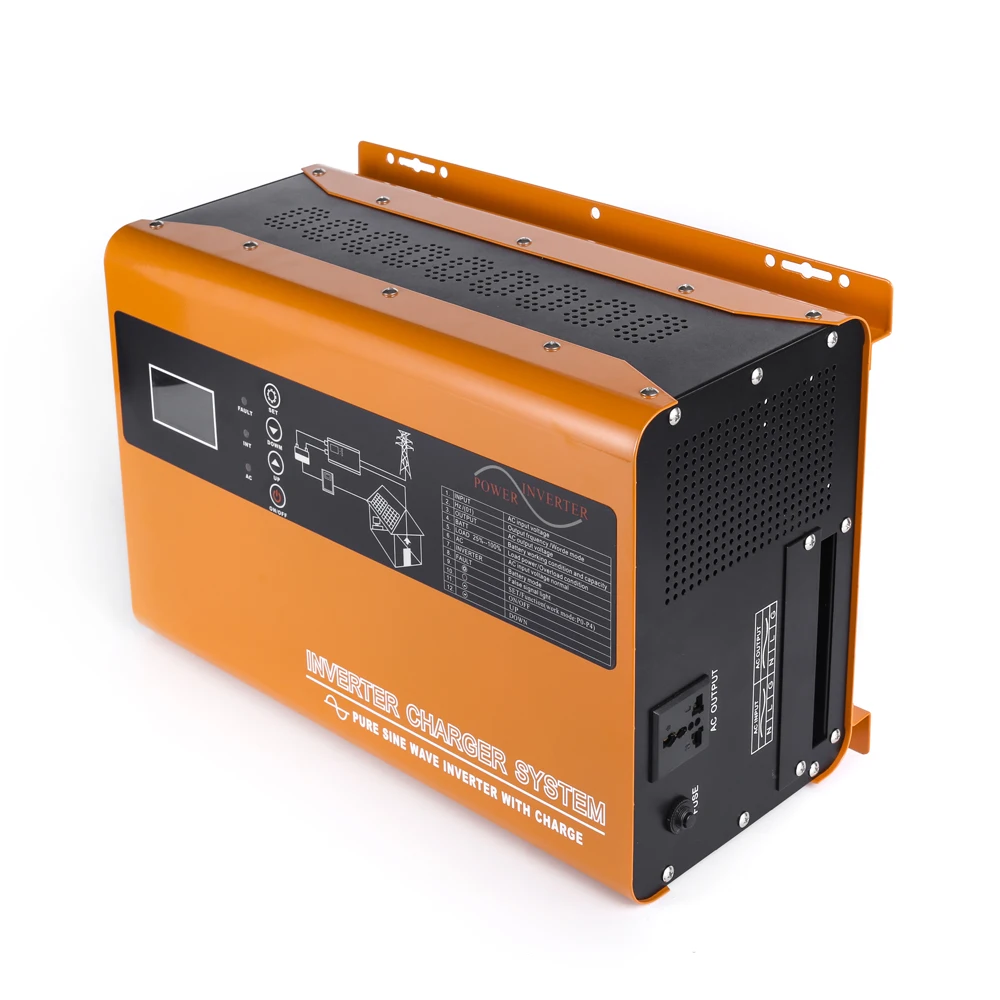

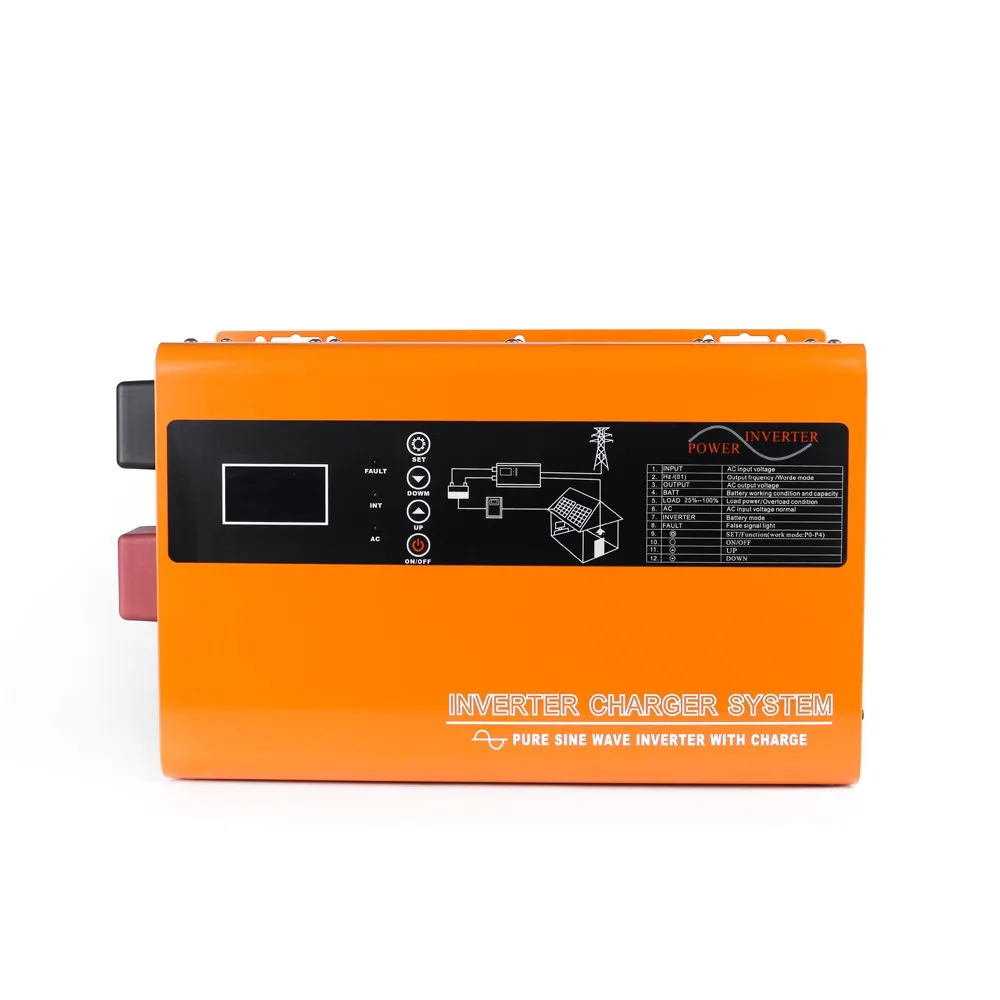

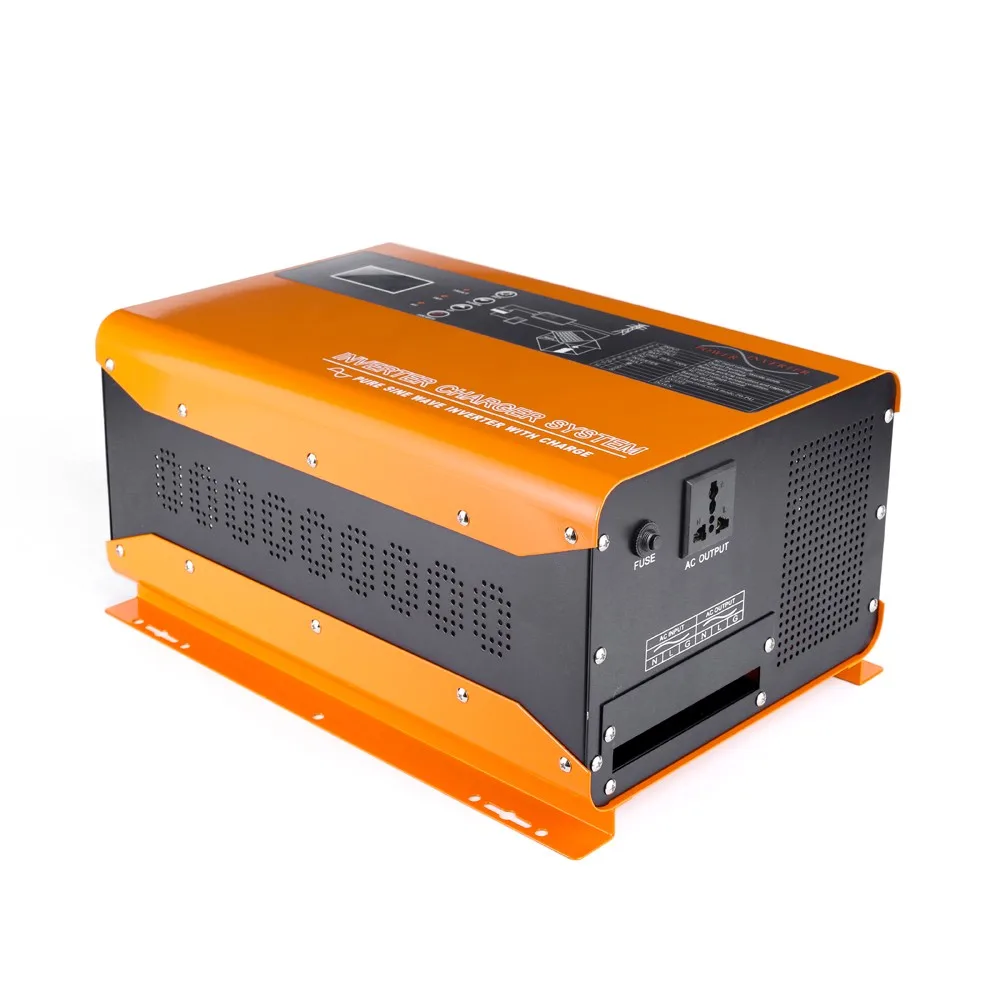

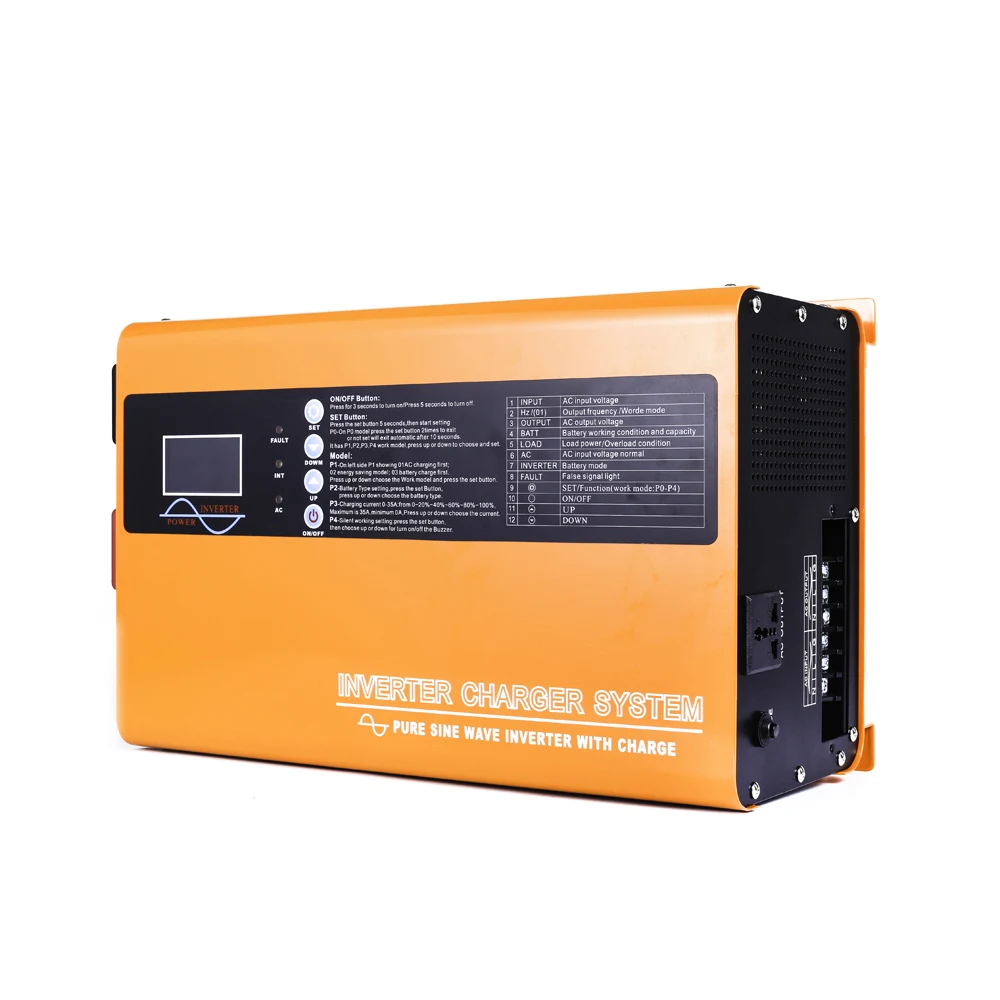

Colombia Solar Pump Inverter 3000 Watts 12V 220V Pure Sine Wave Inverter

Features and function: Colombia Invt Solar Pump Inverter 3000 Watts 12V 220V Pure Sine Wave Inverter
1.Pure sine wave output

2.CPU control technology; SCM control
3.Strong ability of impact resistance
4.Have UPS function and AC charger function
5.Wide input voltage range: 170-275V(AC220V); three step AVR (two step -up, one step -down)
6.Protection against overload, short-circuit, overvoltage, under-voltage and over-temperature, etc.
7.Anti reverse connection protection and high-low voltage protection
8.Special overload protection: when it is overload, it will lock the unit automatically,when it restores,it will restart the unit automatically again.
9.Strong inverter ability. It can change frequency immediately and it is able to drive the inductive load such as air conditioner, refrigerator, motor, etc.
10.LCD display

11.Meet the need of different power supply
12.Use MOSFET
13.Mains supply priority mode/energy saving mode/battery priority mode are settable
14.Battery Type/ utility charging current(0A-35A) are settable,meeting different types of battery charging management

Detailed Images

Specifications

Model	3000W		3000W		3000W
Rated capacity	3000W		3000W		3000W
Peak Power	9000W		9000W		9000W
battery voltage	12VDC		24VDC		48VDC
Input
DC input voltage range	12VDC:10.5-15VDC 24VDC:21-30VDC 48VDC:42-60VDC
Mains input voltage range	AC220V:145-275VAC
Mains input frequency range	45-65HZ
Battery low voltage alarm	12VDC:10.5V 24VDC:21V 48VDC:42V
Battery low voltage protection	12VDC:10V 24VDC:20V 48VDC:40V
Battery over voltage protection	12VDC:16.7V 24VDC:33.4V 48VDC:66.8V
Battery over voltage alarm	12VDC:15V 24VDC:30V 48VDC:60V
Over power protection	110% more than rated capacity
Temperature protection	≥85℃ alarm ≥90℃ machine shut off
Output Efficiency
Output voltage (battery mode)	220VAC±2%
Output frequency (battery mode)	50/60HZ±1%
Output wave form	pure sine wave
Output voltage range (mains mode)	Stabilization output:220VAC±10%
Output voltage range (mains mode)	Tracking automatically
Transfer time	≤8ms
Display	LCD
Thermal method	Cooling fan in intelligent control
	≤42℃ fan rotates slowly to ≥45℃ fan rotates fast
Working mode	P1-p3
inverter alarm setting	when setted to be inverter alarm ON,alarms every 2s-5s;when setted to be inverter alarm OFF,alarms every 3s-5s,it will not alarm
Charging current	0A-35A
Comnunication	Rs232

Packing & Delivery

Size	450*270*205mm
Packing Size	530*350*255mm
N.W	25KG
G.W	27KG
