Professional manufacturer vibrating table price for concrete moulds

Product Overview

Description

Professional manufacturer vibrating table price for concrete moulds



Introduction

1. ZDP vibrating table is also called vibrating platform. Mainly used for material consolidation, air and cracks reduction within material, which makes processing materials more tighter, solider during cast consolidation. Such as lost foam casting, concrete casting and so on.



2. Widely used in metallurgy, casting, foodstuff, chemistry, construction fields and so on.



3. Used for transforming the granule, powders from bulk to block, from shape to form.



4. Different types of vibrating tables are available according to the production characteristics and requirements.





Parameters

ZDP Vibrating Table
Model	Table Size(mm)	Power(kw)	Amplitude (mm)	Max Loading Capacity(kg)
ZDP-500	500*500	2*0.25	2-5	300
ZDP-800	800*800	2*0.4	2-5	500
ZDP-1000	1000*1000	2*0.75	2-5	1000
ZDP-1200	1200*1200	2*3	2-5	1200
ZDP-1500	1500*1500	2*3	2-5	2000
ZDP-2000	2000*2000	4*1.1	2-5	2500
ZDP-3000	3000*3000	6*1.5	2-5	3000
Remarks: The customization is available.



Note: The date in specification table, take two-dimension vibration for an example.



Applications

1. The vibration platform is widely used in metallurgy, mold, food, chemical, building materials and other industries.
2. Vibration table used in the production process to the granules, powder material shift from bulk to block, shape and form.

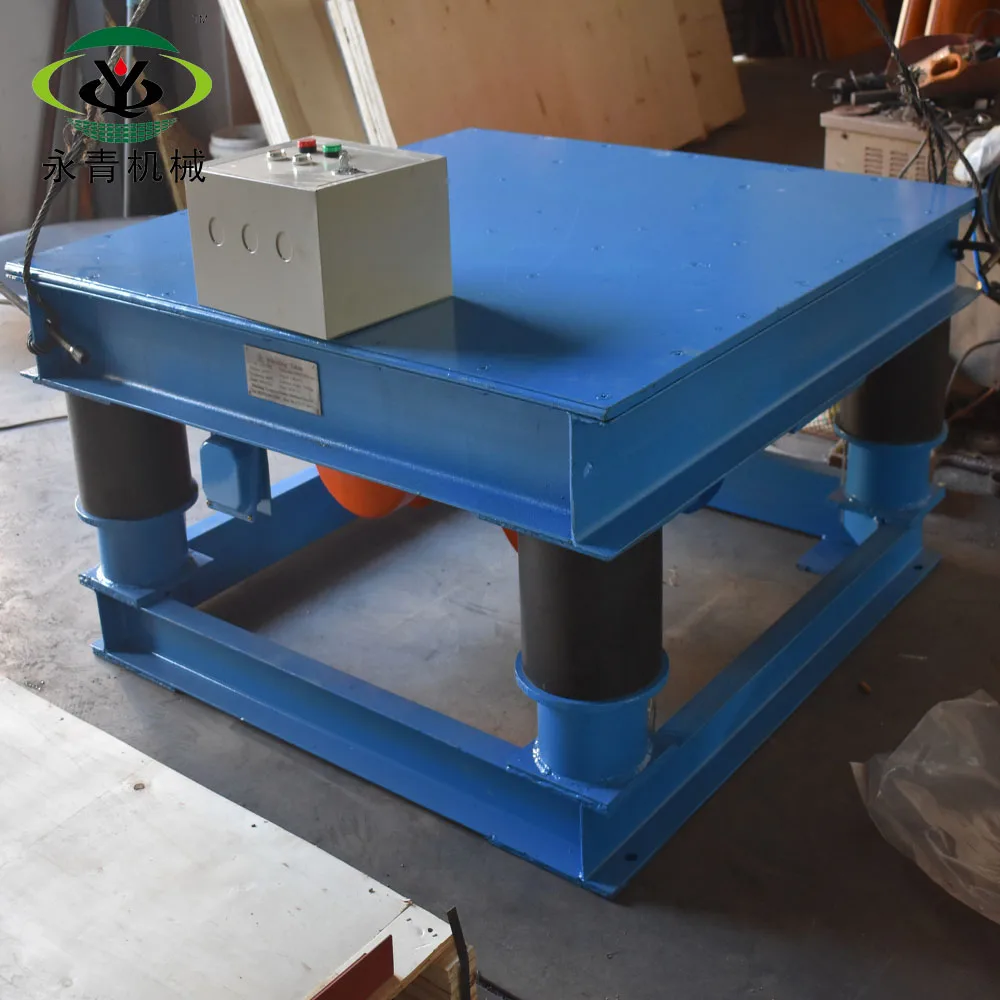

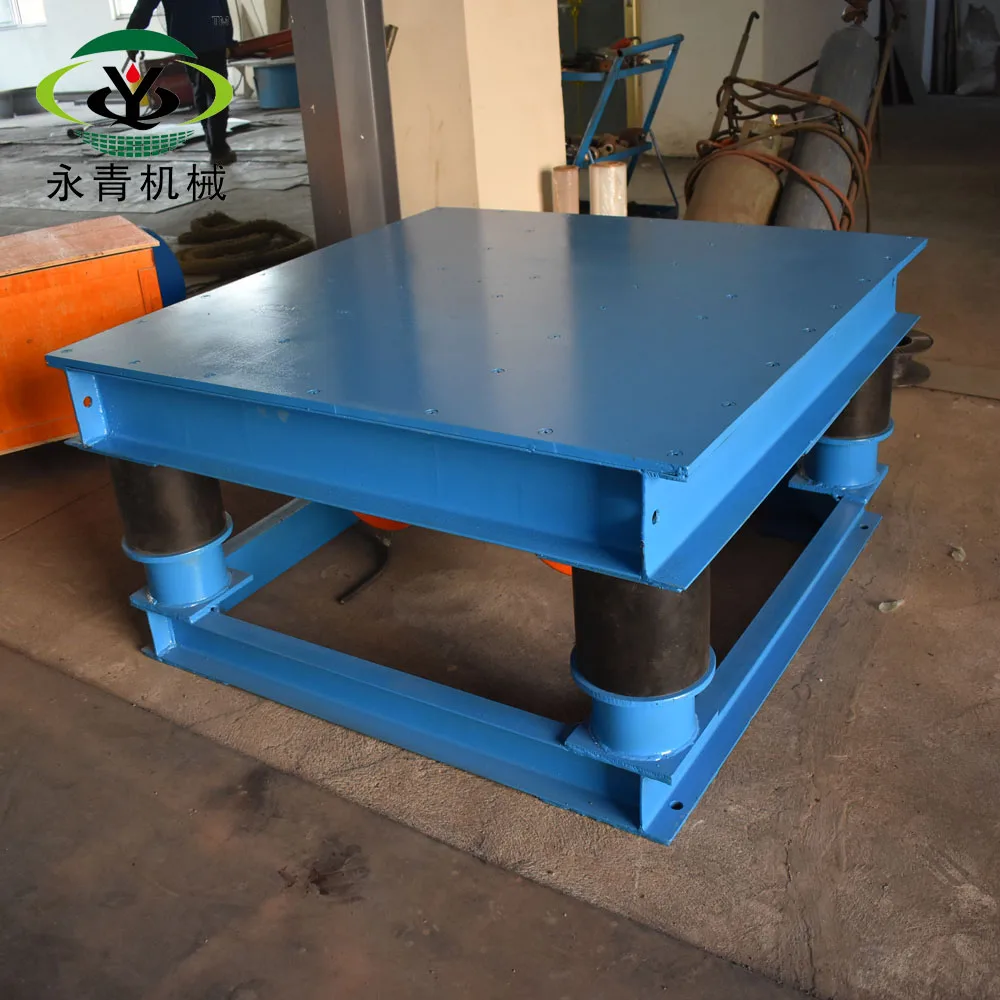

	Name: ZDP-500 vibrating table Usage: brick or concrete moulds making Table size: 500*500mm Height: 450mm Max loading weight: 300kg Machine material: carbon steel Deck thickness: 5mm Motor: YZS3-2 (2 sets) Power: 2*0.25kw, 3KN, 2 pole, 3000RPM Voltage: 380V, 50Hz, 3 phase Amplitude: 2-5mm Weight: 90kg Delivery: 5 workdays after deposit
	Name: ZDP-1000 vibrating table Usage: brick or concrete moulds making Table size: 1000*1000mm Height: 500mm Max loading weight: 1000kg Machine material: carbon steel Deck thickness: 10mm Motor: YZS10-2 (2 sets) Power: 2*0.75kw, 10KN, 2 pole,3000RPM Voltage: 380V, 50Hz, 3 phase Amplitude: 2-5mm Weight: 250kg Delivery: 5 workdays after deposit

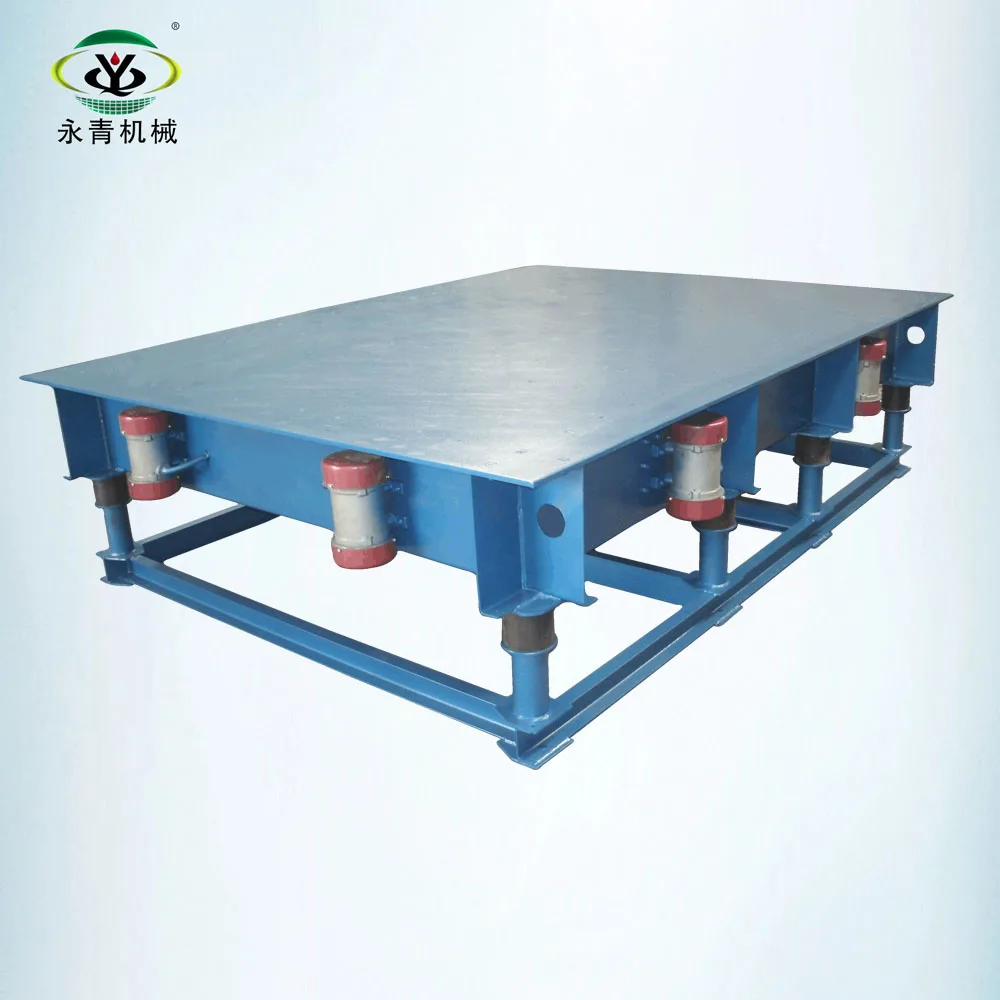

	Name: ZDP-2000 vibrating table Usage: brick or concrete moulds making Table size: 2000*2000mm Height: 600mm Max loading weight: 2500kg Machine material: carbon steel Deck thickness: 15mm Motor: YZS15-2 (4 sets) Power: 2*1.1kw, 15KN, 2 pole,3000RPM Voltage: 380V, 50Hz, 3 phase Amplitude: 2-5mm Weight: 600kg Delivery: 7 workdays after deposit



More Features

1. During use, by adjusting the size of vibration motor excitation force to make the material on the platform to achieve the desired form.
2. Use vibration motor as vibration source, low noise, low power consumption, easy maintenance.
3. ZDP series vibrating table structure is simple, eliable operation, light weight, small size, easy to install.
4. Vibration platform can be divided into upper and lower vibration, spiral vibration and three-dimensional vibration of three modes of vibration.



If you are interested in our products, please kindly provide the below:

1. Table size (L*W*H);

2. Working loading weight (total weight of component and mould);

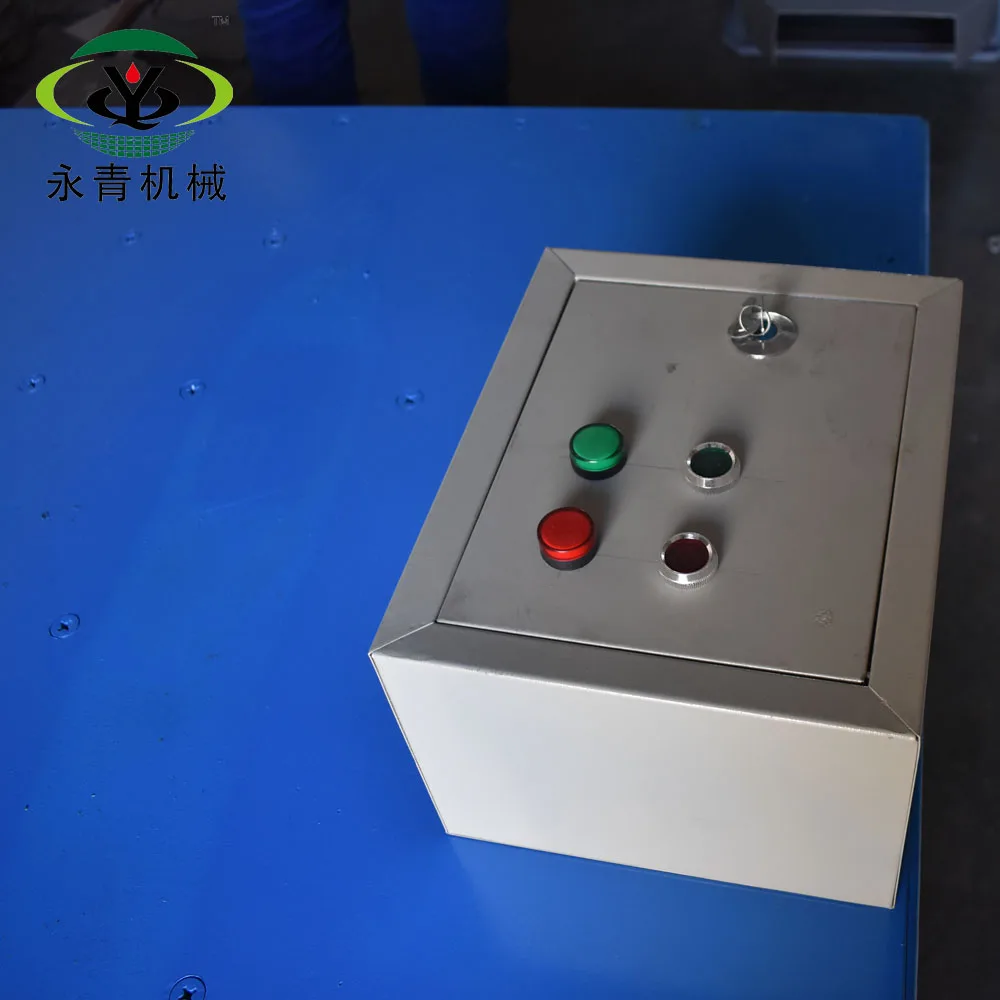

3. Need transducer or control cabinet?

4. The voltage, frequency, power, exciting force and protective grade of motor;



Any needs, please free to contact.
