Never used mini wheel loader 0.8ton Chinese wheel loaders with CE certificate
- Category: >>>
- Supplier: Weifang Kinger Machinery Co. Ltd.
Share on (62050588910):
Product Overview
Description
Never used mini wheel loader 0.8ton Chinese wheel loaders with CE certificate
Product Description
1-Fix Changchai 390 diesel engine is durable, low consumption, easy to start.

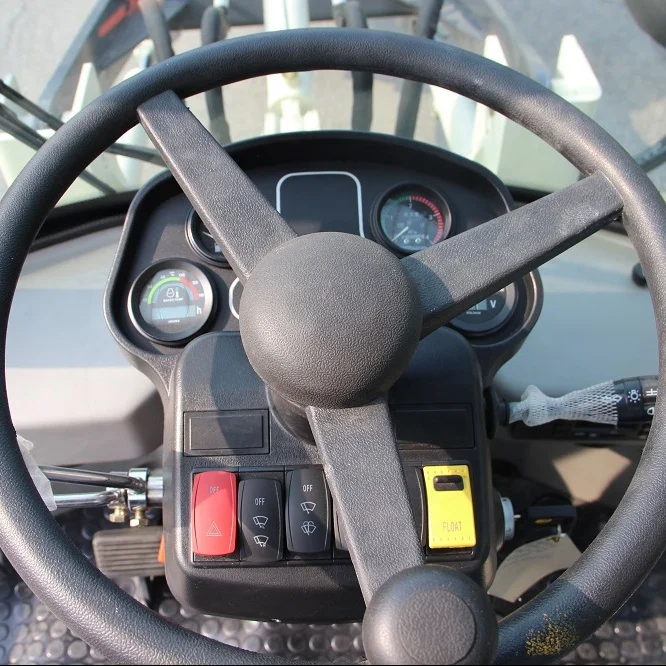

2-Luxury cab appearance, broad vision, the operating environment is more comfortable. having the overall performance and security of CE authentication.

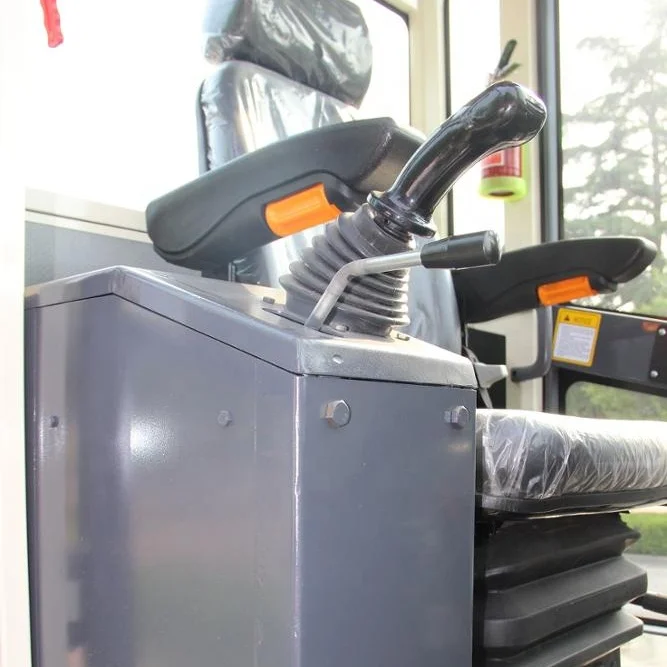

3-The machine adopts the pilot operation, can help users comfortable, simple and quick.
4-The quick change device to meet the users to achieve a multi-purpose vehicle auxiliary function.
5-The strong and reliable drive system and drive axle.
6-The unique link frame, durable.
7-The selection of hydraulic system, high-quality and efficient, strong sealing performance.
8-The optional fork, fork catch, four in one bucket, with large, snow pushing bucket
| ZL08F wheel loader with CE | ||
| 1.0 Engine details: | ||
| 1 | Model: | Changchai 390 |
| 2 | Engine type: | In-line arrangement, water-cooled, three-cycle diesel Engine |
| 3 | Rated Power: | 25KW |
| 4 | Rated Speed: | 2400 r/min (rpm) |
| 2.0 Steering System | ||
| 1 | Cycloid full hydraulic steering system: | BZZ-80 |
| 2 | System Pressure: | 10MPa |
| 3.0 Bucket | ||
| 1 | Bucket Capacity: | 0.4 m3 |
| 2 | Bucket width: | 1300mm |
| 3 | Bucket type: | Heavy-duty bolt on teeth |
| 4 | Max. Breakout Force: | 28KN |
| 5 | Rated Load: | 800kg |
| 6 | Operating Weight: | 2850kg |
| 4.0 Overall Dimensions | ||
| 1 | Overall Length (Bucket on ground position): | 4600mm |
| 2 | Overall Height | |
| a | Ground to Cab Top: | 2450mm |
| b | Ground to exhaust pipe: | It is below from the top of cabin |
| 3 | Overall Width: | 1600mm |
| 5.0 Operating Specifications | ||
| 1 | Drive Means: | 4-wheel drive |
| 2 | Min Turning Radius: | 4600mm |
| 3 | Driving System: | torque converter |
| 4 | Dumping Height: | 2300mm |
| 5 | Dumping Reach at max height: | 750mm |
| 6 | Min the ground distance: | 240mm |
| 7 | Time of raise: | 4sec. |
| 8 | Hydraulic cycle time: | 9sec. |
| 6.0 Brake System | ||
| 1 | Service Brake: | 4 Wheel Hydraulic spread-shoed brake |
| 2 | Parking Brake: | Hand operated |
| 7.0 Tyre | ||
| 1 | Model: | 8.25-16 (optional 31x15.5-15 wider tire) |
| 8.0 Wheelbase: 2170mm | ||
| 9.0. Track: 1285mm | ||
| Warranty: | ||
| 1.For the new machine, within determined limits, the manufacture guarantees for a period of 12 months after bought or 1000 working hours(whichever comes first).Not include tyres,cab,A/C and other electric parts. | ||
| 2.The warranty includes reparation or replace the parts for free which were proved to be defective in origin by the technical department of the manufacture. | ||
| 3.The reparation or replacement for the parts should not exceed the warranty period. | ||
| 4.The warranty is valid on the condition of all the terms listed in the contract was observed. | ||

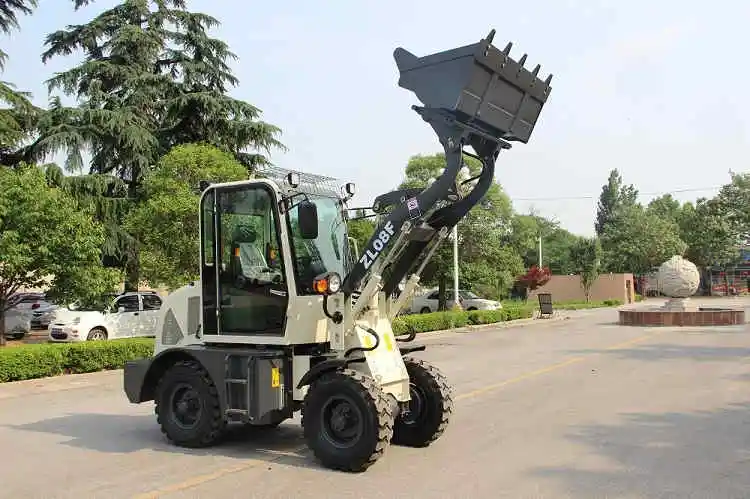

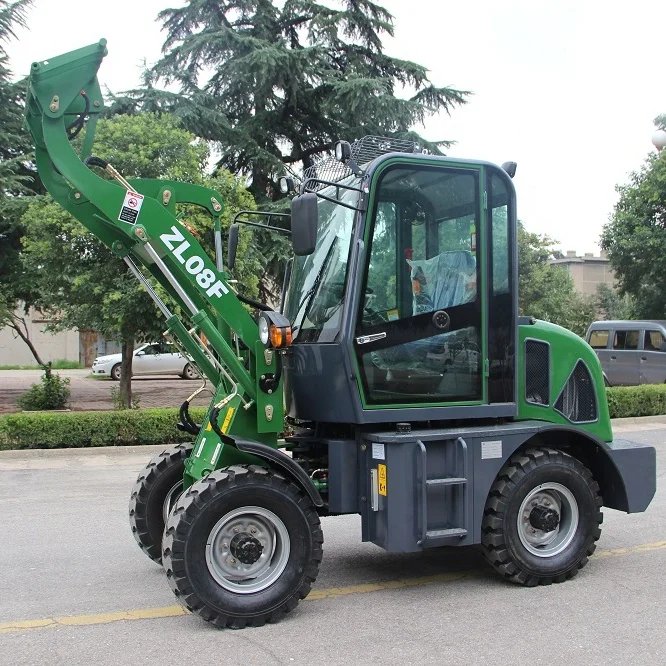

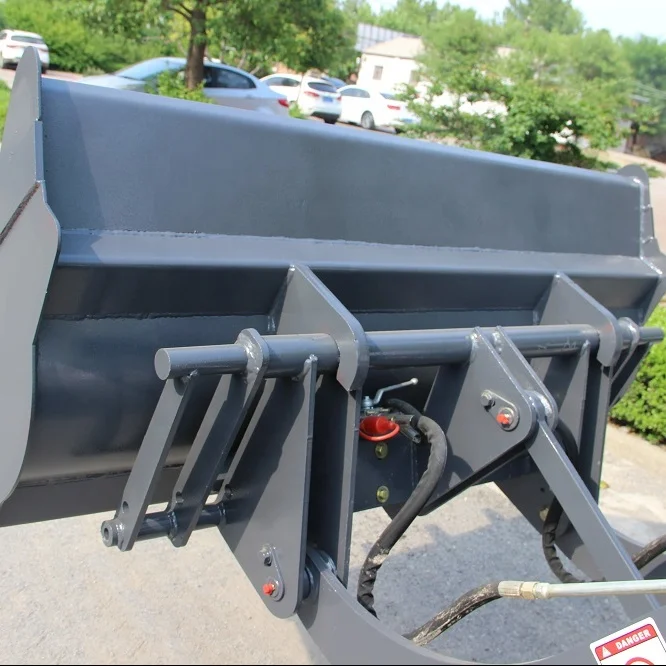

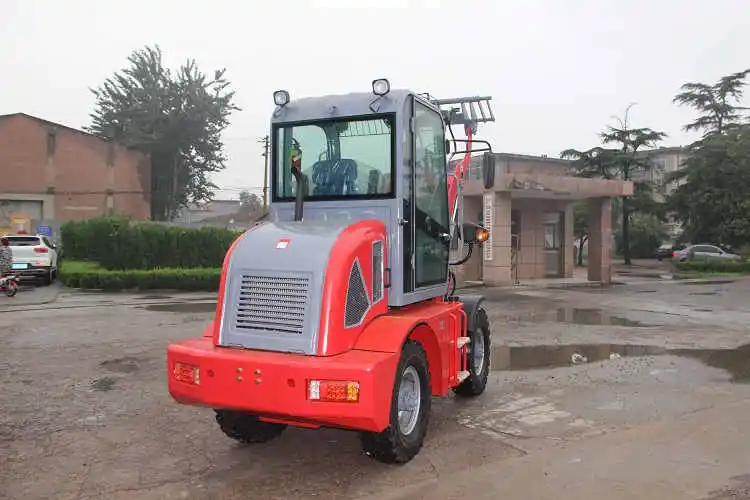

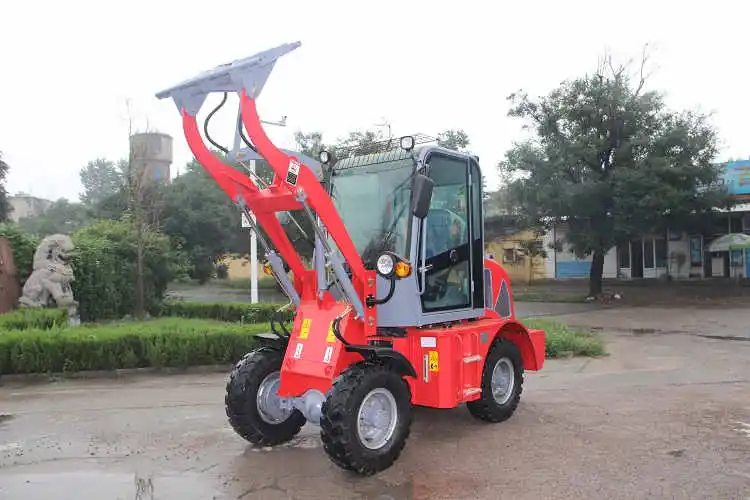

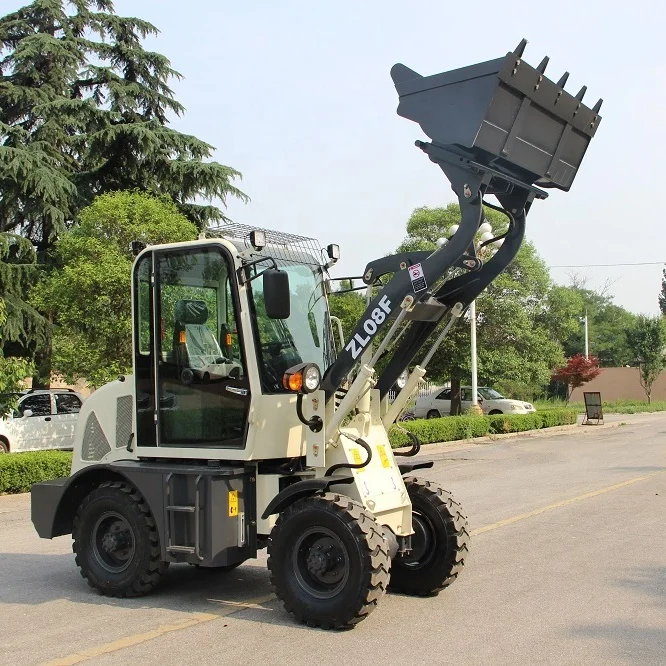

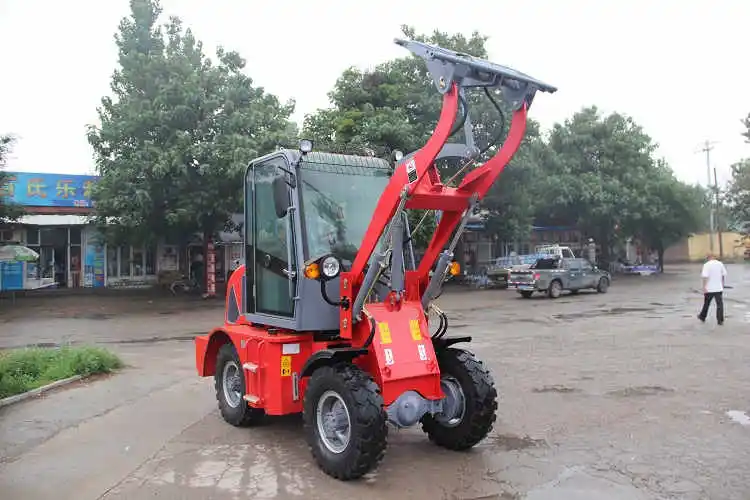

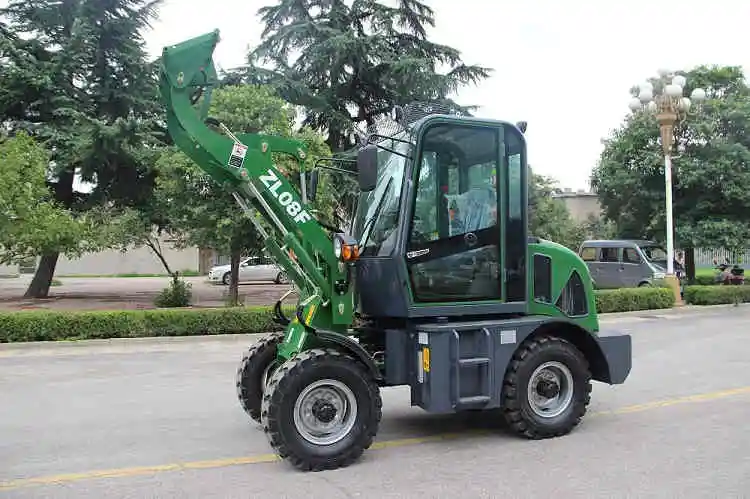

Detailed Images

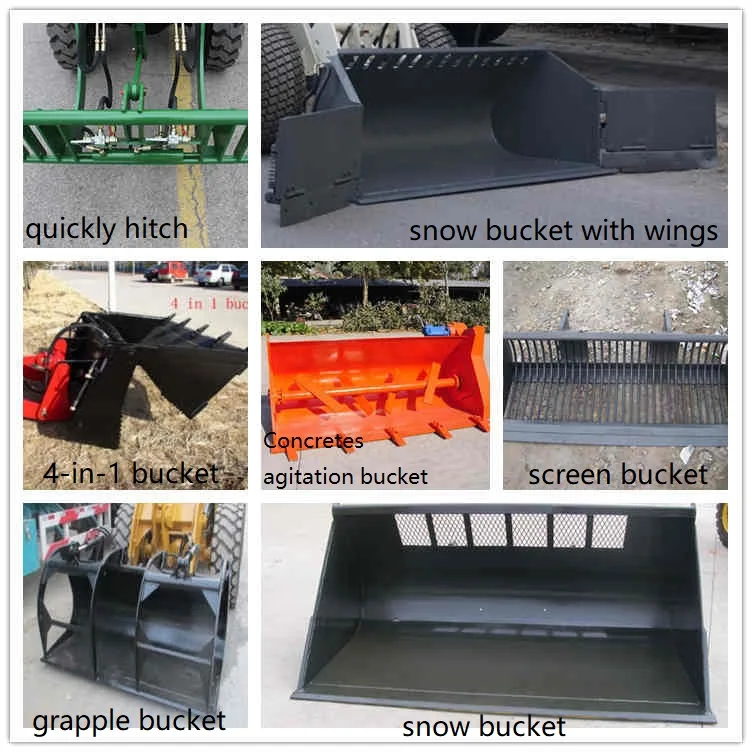

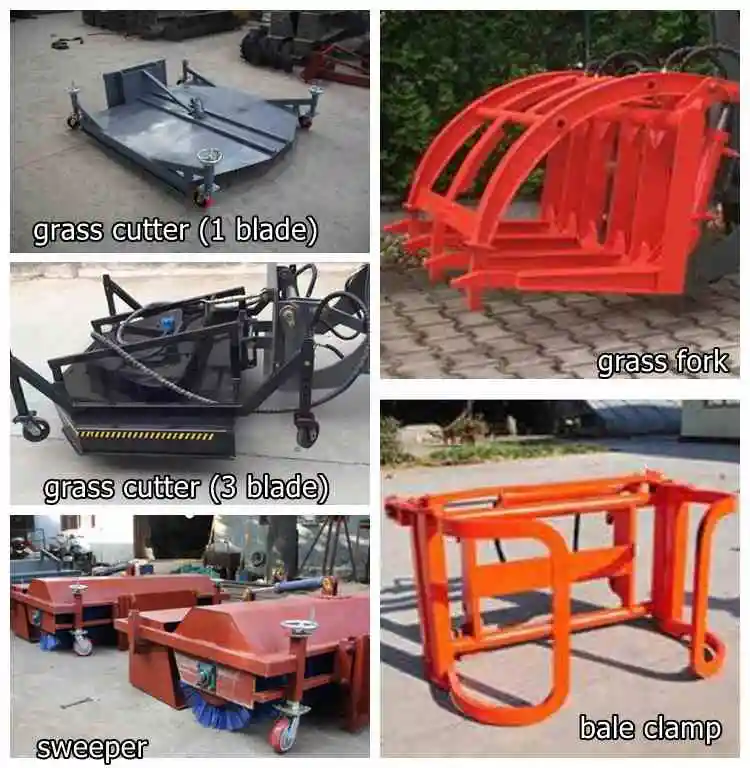

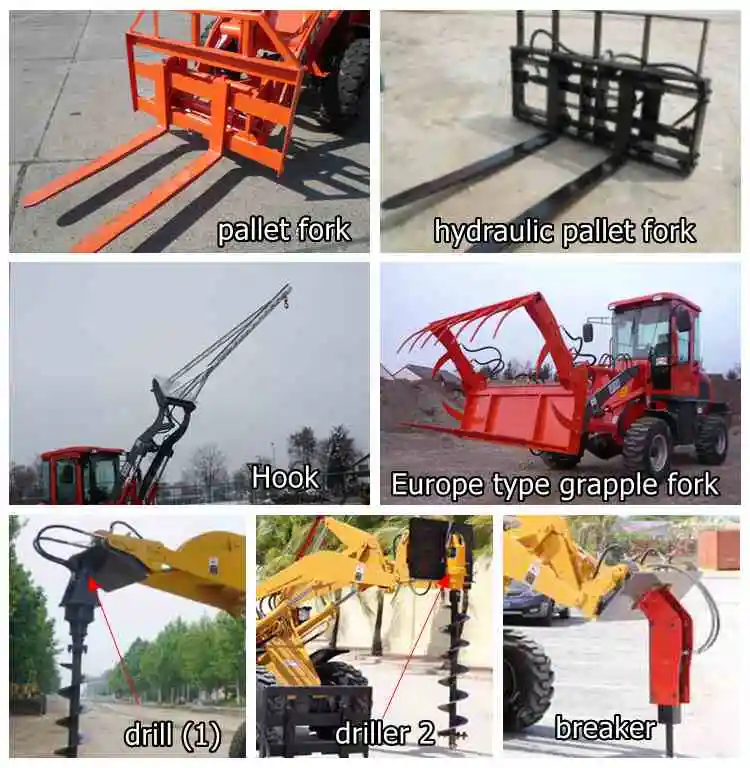

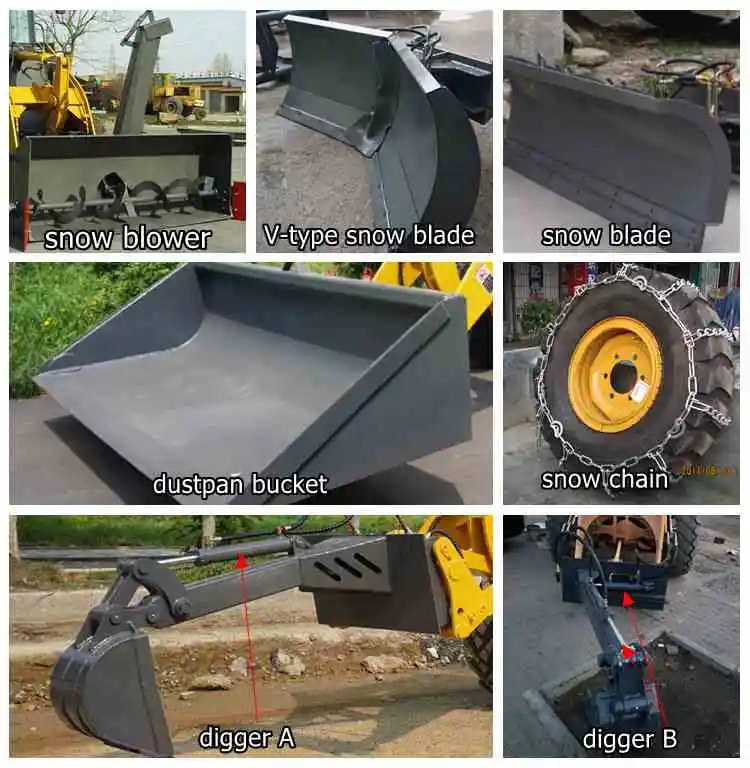

various optional attachments for meeting different working condition requirements:

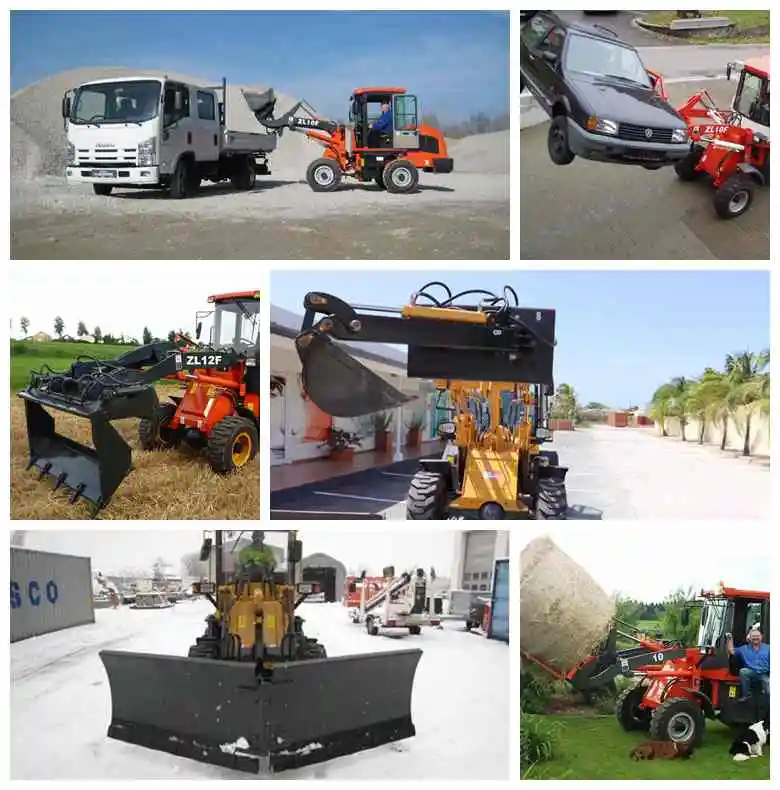

Buyer Feedback
Never used mini wheel loader 0.8ton Chinese wheel loaders with CE certificate

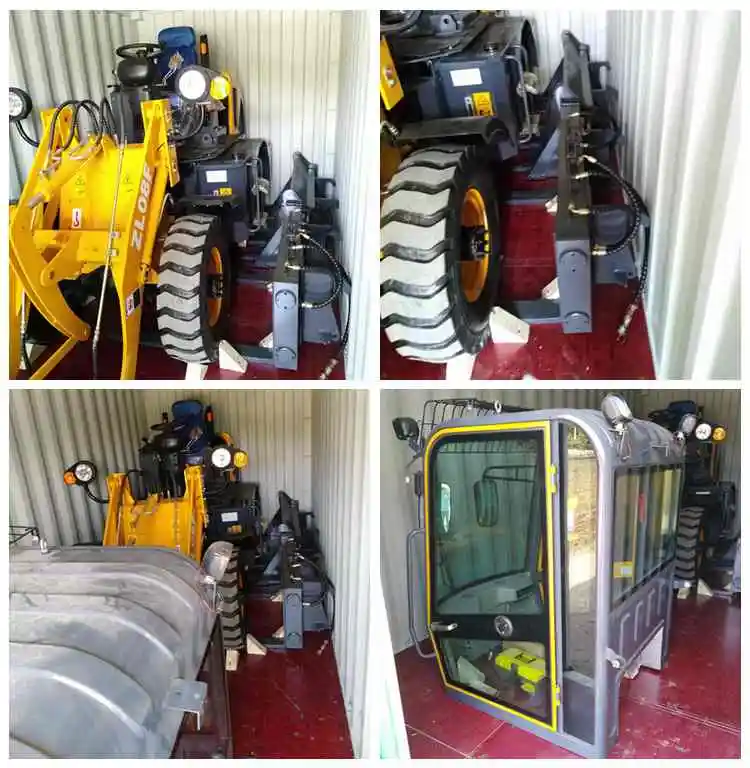

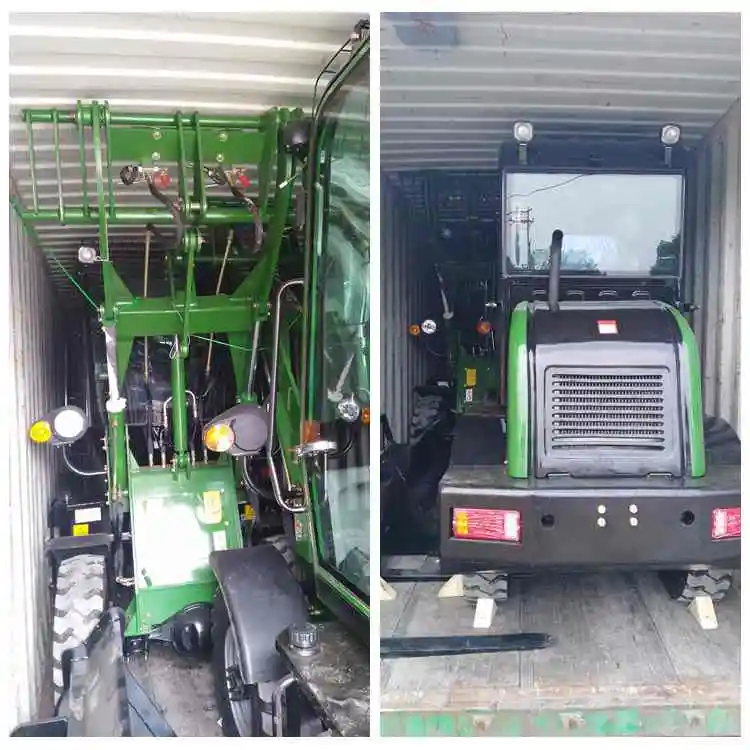

Packaging & Shipping
1 set machine inside 20'GP condition:
4 sets machine inside 40'HQ condition:
Certifications
Never used mini wheel loader 0.8ton Chinese wheel loaders with CE certificate
FAQ
Q1:Why choose Kinger?
A1: * Kinger has 8 years experience in manufacturing argriculture implements,more specialized in bulk production;
*More professional team in purchasing,producing,sales and technology,with excellent equipments;
*Have fast after-sales service ;
*More innovative, 3 new products annually .
Q2: What's the Min. order quantity?
A2: we accept 1set sample for testing.
Now our agri machines are exported in large quantity.
If you need one sample for test, we advise you to get this sample as test
Q3:What is your payment term?
A3: By bank transfer or Alibaba trade assurance(credit card is available).
Q4: How to order?
A4: * first pls tell us which model do you need? or your working requirements?
* we will supply the quotation list and solution;
* we send proforma invoice or start order from Alibaba for payment;
* we will arrange the production and shipment after confirma payment.
Q5: warranty & sales service:
A5: we supply 1 year warranty and machine life sales serive.
If any problems during using, please freely let us know, thanks.
