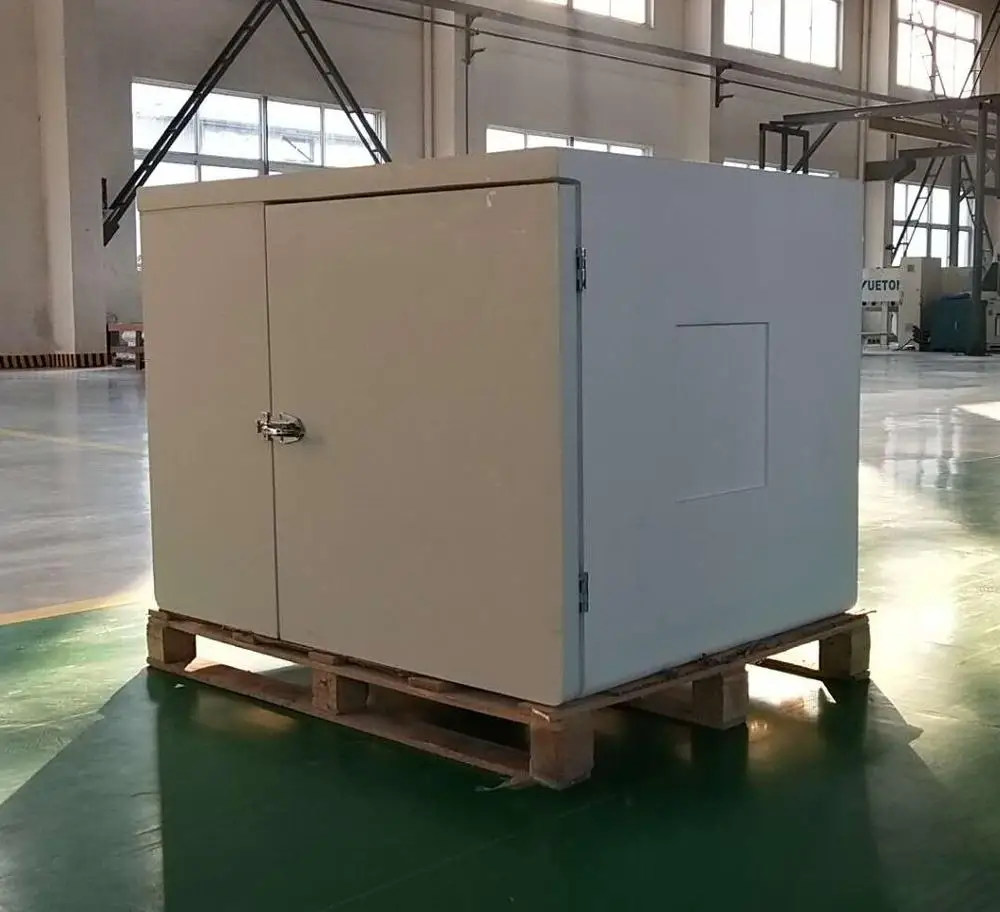

DC Mini Portable Cold Storage Room cold storage box for Refrigeration box truck/Ice cream Van
- Category: >>>
- Supplier: Henan Mega Electronics Co. Ltd.
Share on (62050588974):
Product Overview
Description
DC Food Catering Cooler Freezer Box for Cold Chain Transportation
Technical parameters:
Insulation assembled/integrated box
Configuration | Model& specification |
Standard size | 1500*1000*1000mm(can be customized) |
Form material | PU |
External material | Colored steel plate/GRP/FRP/CFRT |
Wall thickness | 75mm |
Angle wrap | Aluminium alloy |
Thermal conductivity | 0.018~0.024W/(M.K) |
Refrigeration unit
Specifications | Cold storage | Frozen |
Model | MG-Z058-J48 | MG-D150-J48 |
Rotor DC compressor | 48v270W | 48V560W |
Total Power | 380W | 680W |
Rated current | 6.1-7.4A | 10.1-11.4A |
High efficient fin type air-cooled condenser | 1.0L | 1.5L |
High efficient fin type air-cooled evaporator | 1.5L | 2.0L |
DC super wind air cooler | SNOWFAM YY12038H24B | SNOWFAM YY12038H24B |
Microcomputer digital temperature controller | W1308 | W1308 |
Controller button switch | LG | LG |
Refrigeration unit battery | 48V20AH | 48V32AH |
Temperature range | 0-8℃ | -15~20℃ |
Refrigeration temperature | To 0℃by 40~60 minutes(Ambient temperature ≤40℃) | To -20℃ by 50-90 minutes (Ambient temperature ≤40℃) |
Charging time | 8-10hours | 8-10hours |
The refrigerated box main parts are :

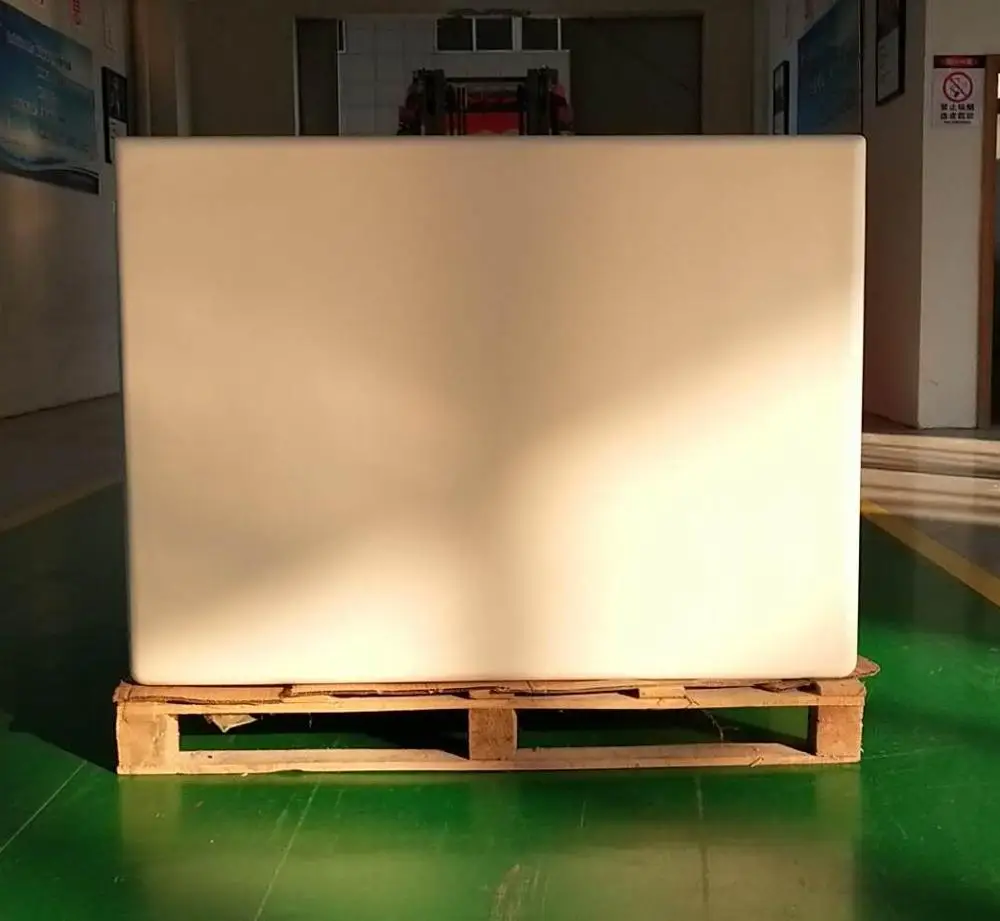

1. Cold storage panels
2. Refrigeration Unit
