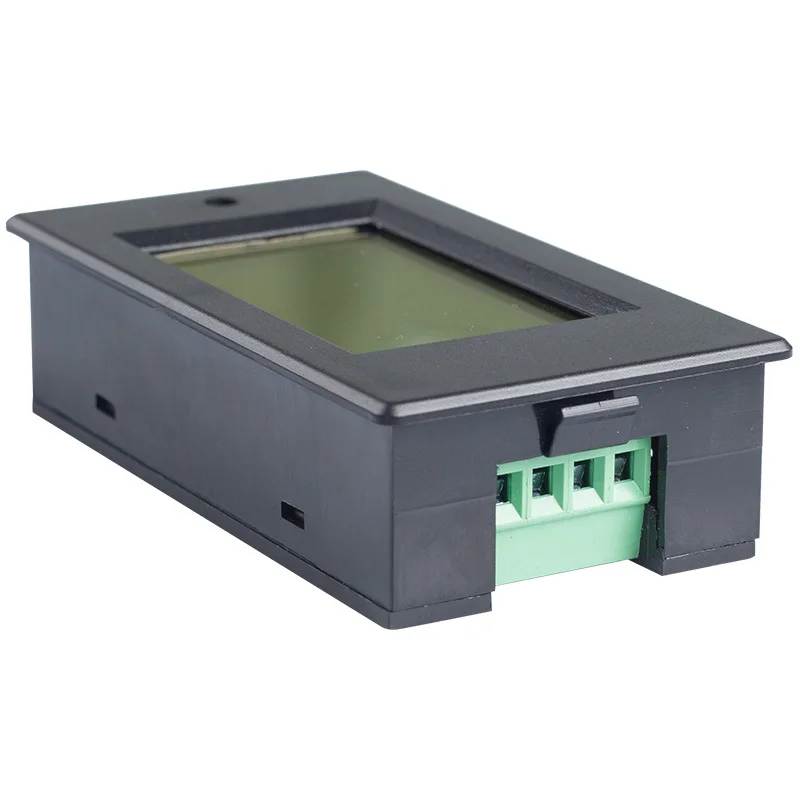

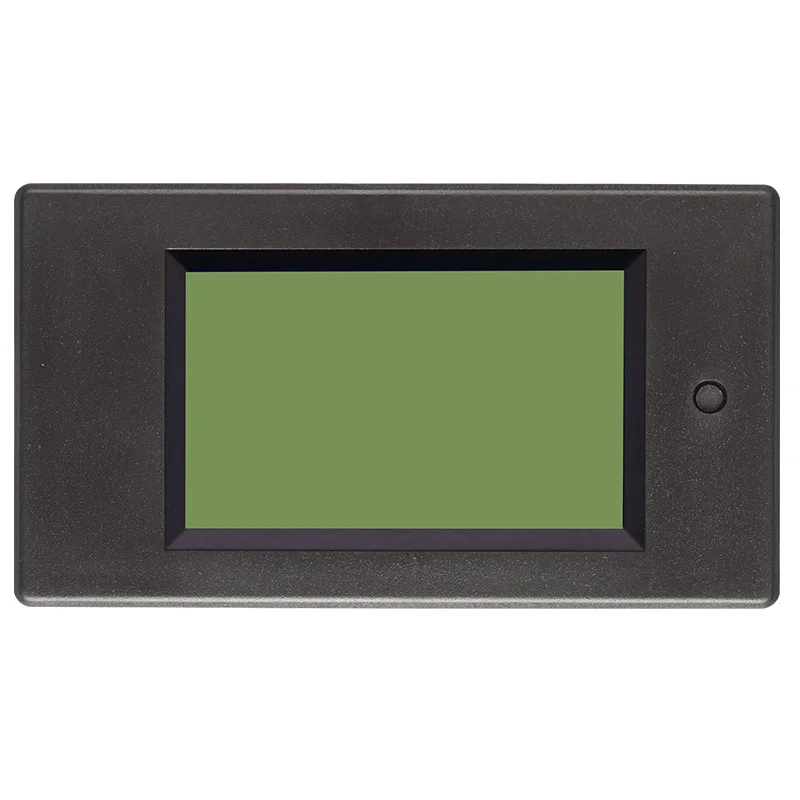

Single Phase 80 260V 20A Voltage Current Power Energy Digital AC Electric Power Monitor

Parameters:
1. Voltage range: 80~260V AC
2. Current range: 0~20A AC
3. Power range 0~4.5kW
4. Energy range: 0~9999kWh
5. Measurement accuracy: 1.0 grade
6. Product size: 89.6*49.6*24.4mm

7. Display Size: 51*30mm

8. Operating frequency: 45-65Hz

Features :

1. Electrical parameter measurement function(voltage, current, active power, energy).

2. Voltage alarm function (When over voltage alarm threshold, backlight and voltage flashing to alarm).

3.The reset function of energy key.

4. Store data when power off.

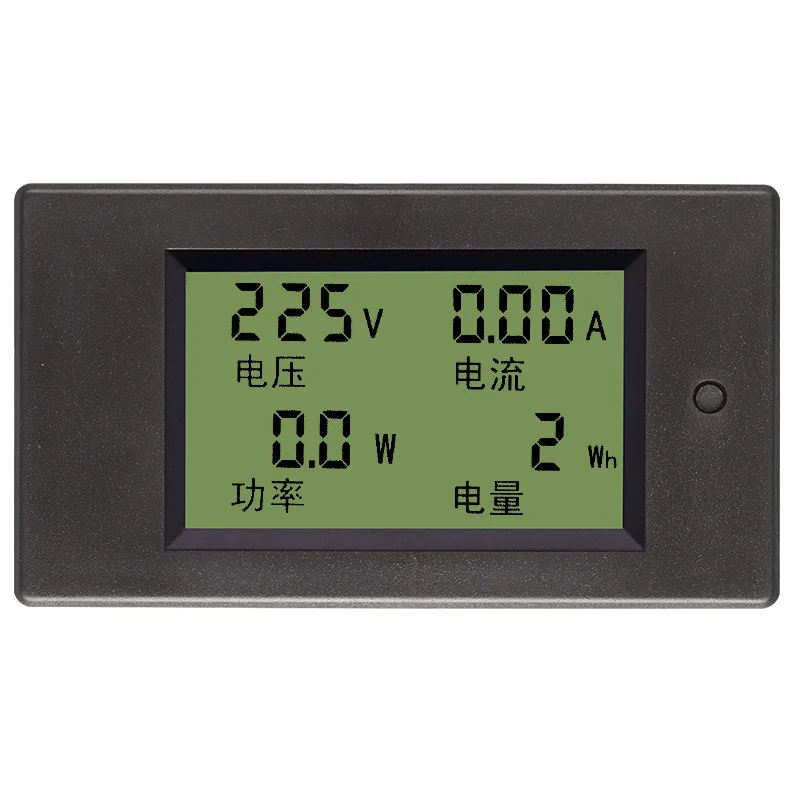

5. Large-screen LCD, (display voltage, current, active power, energy at the same time).

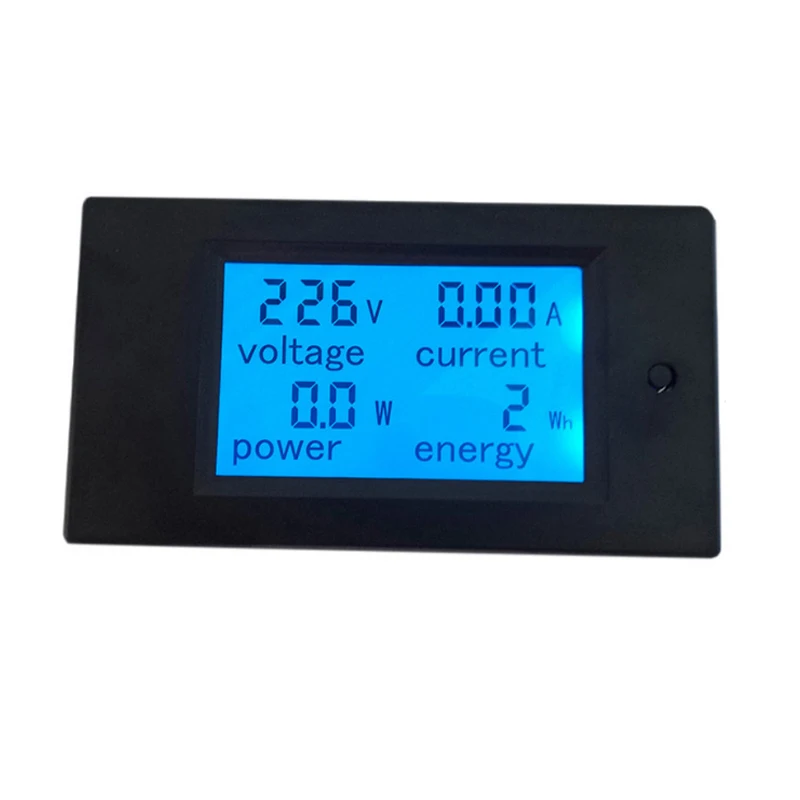

6. Backlight function, Blue color. (It can turn on or off the backlight.)

 Noitce:

1. This module is suitable for indoor, please do not use outdoor.

2. Applied load should not exceed the rated voltage, current.

3. Wiring order can’t be wrong.
