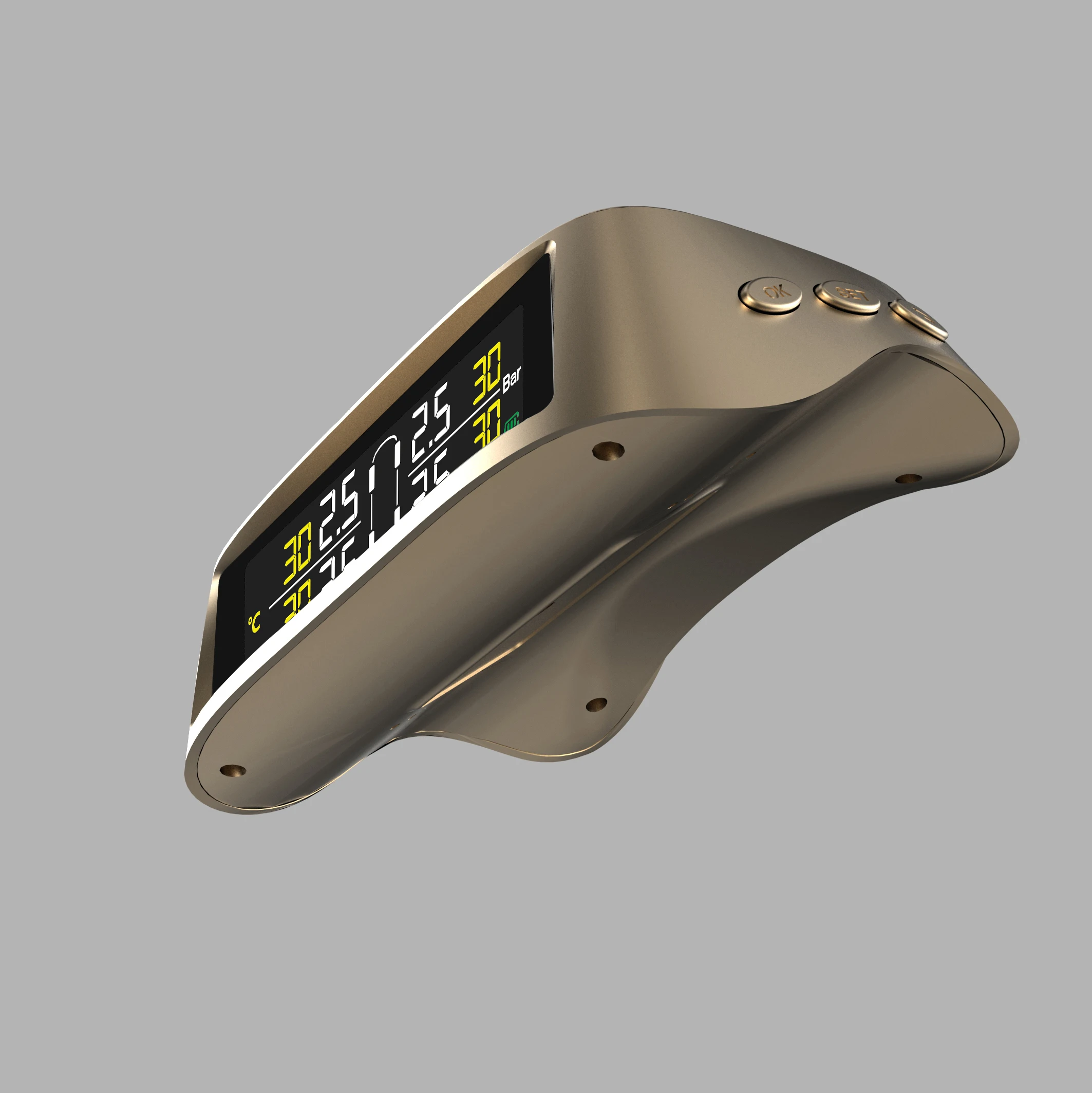

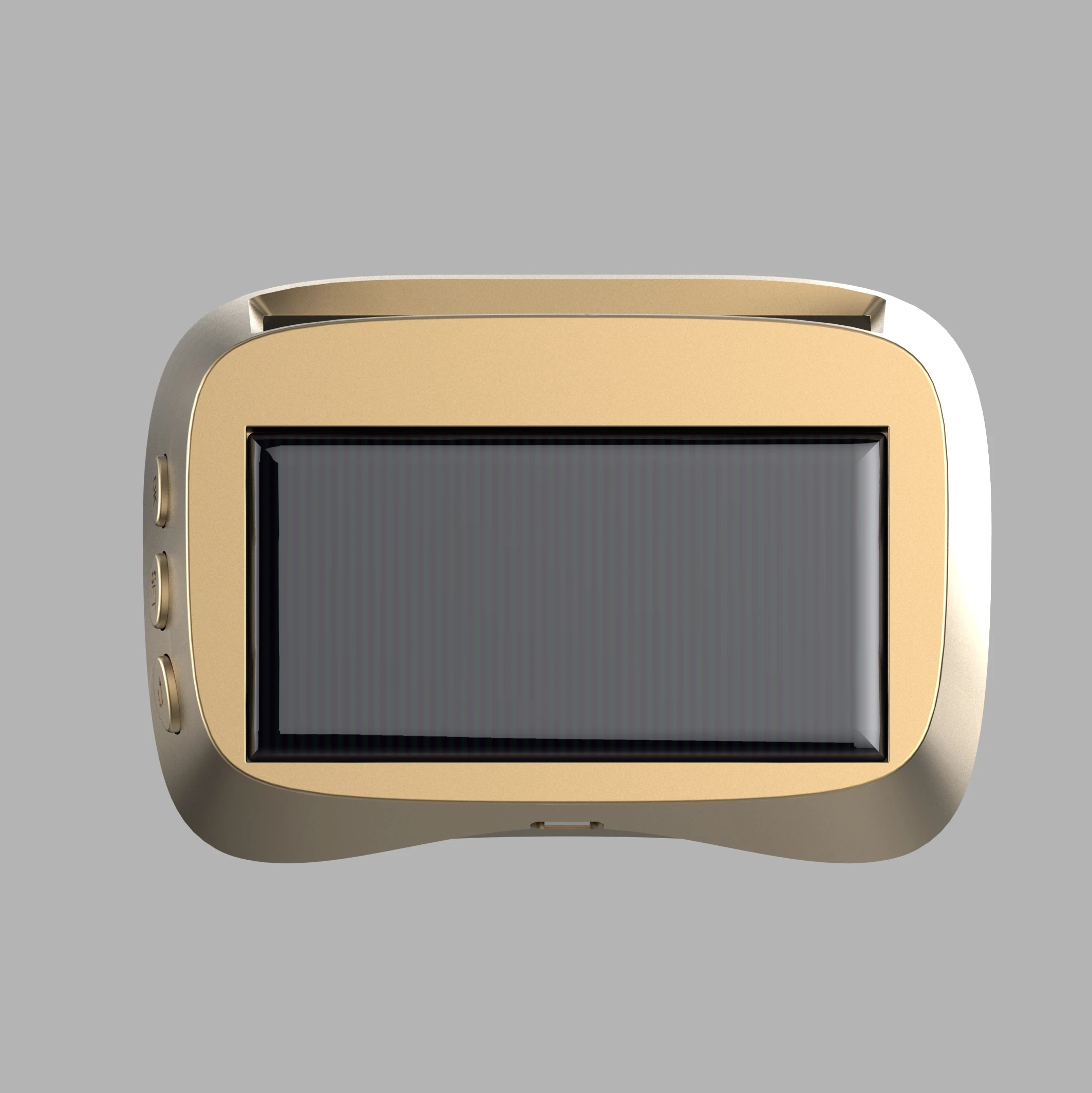

tpms monitor truck 120psi tpms 4 external or internal sensor wheel tpms for bus,trailer, trucks,car

Share on (62050990076):


Price:$29.00 - $35.00

Quantity:


Product Overview

Description




tpms monitor truck 120psi tpms 4 external or internal sensor wheel tpms for bus,trailer, trucks,car

Product Description

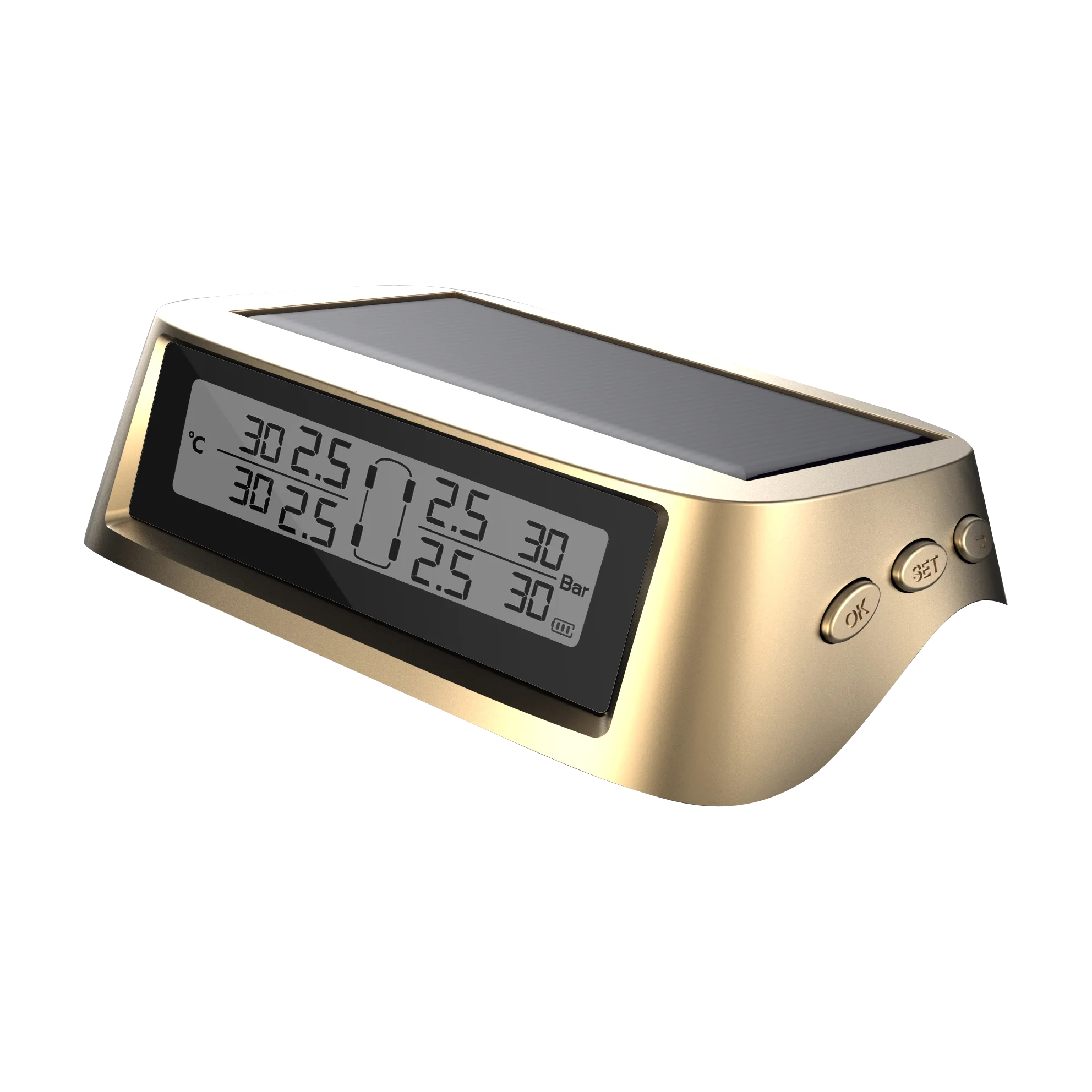

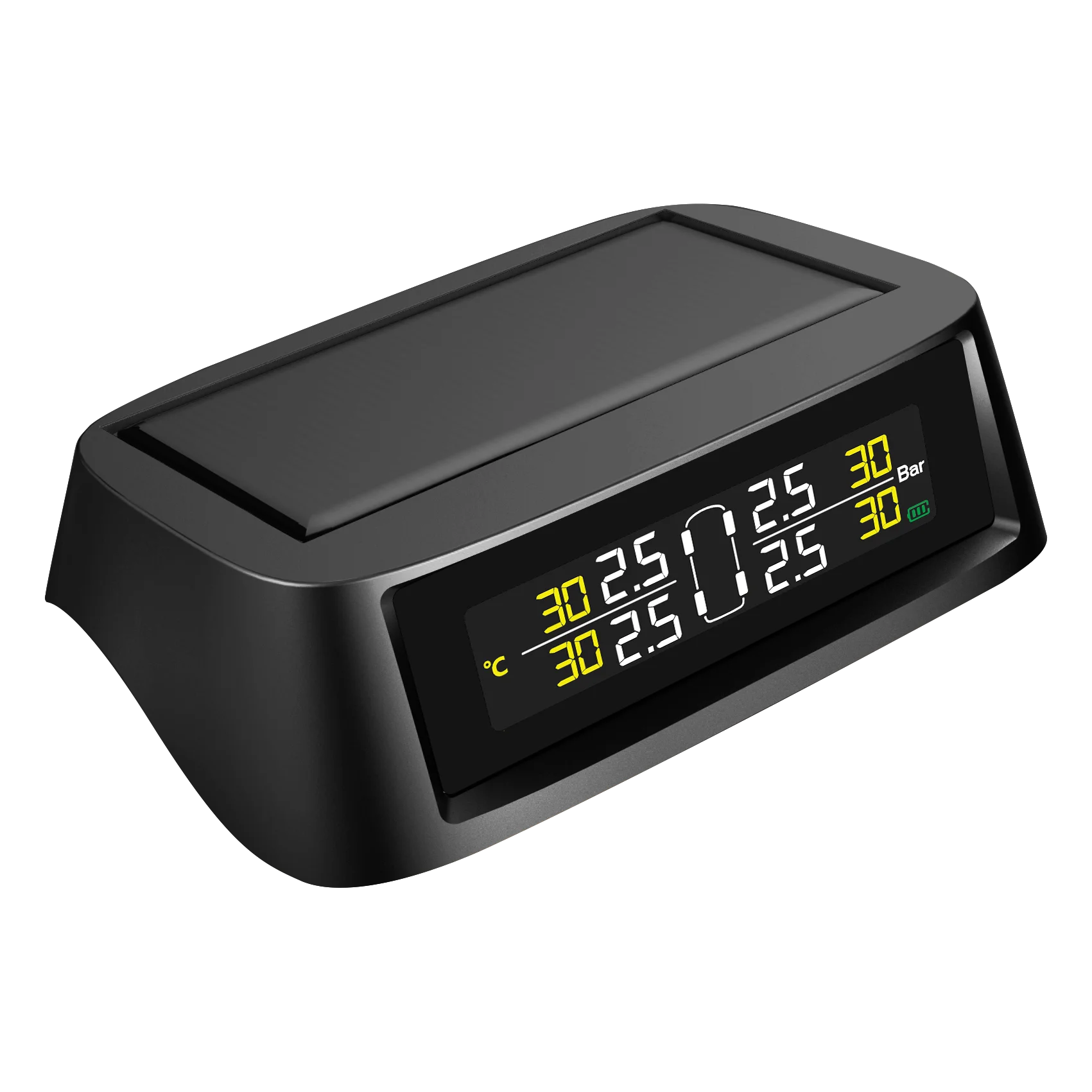

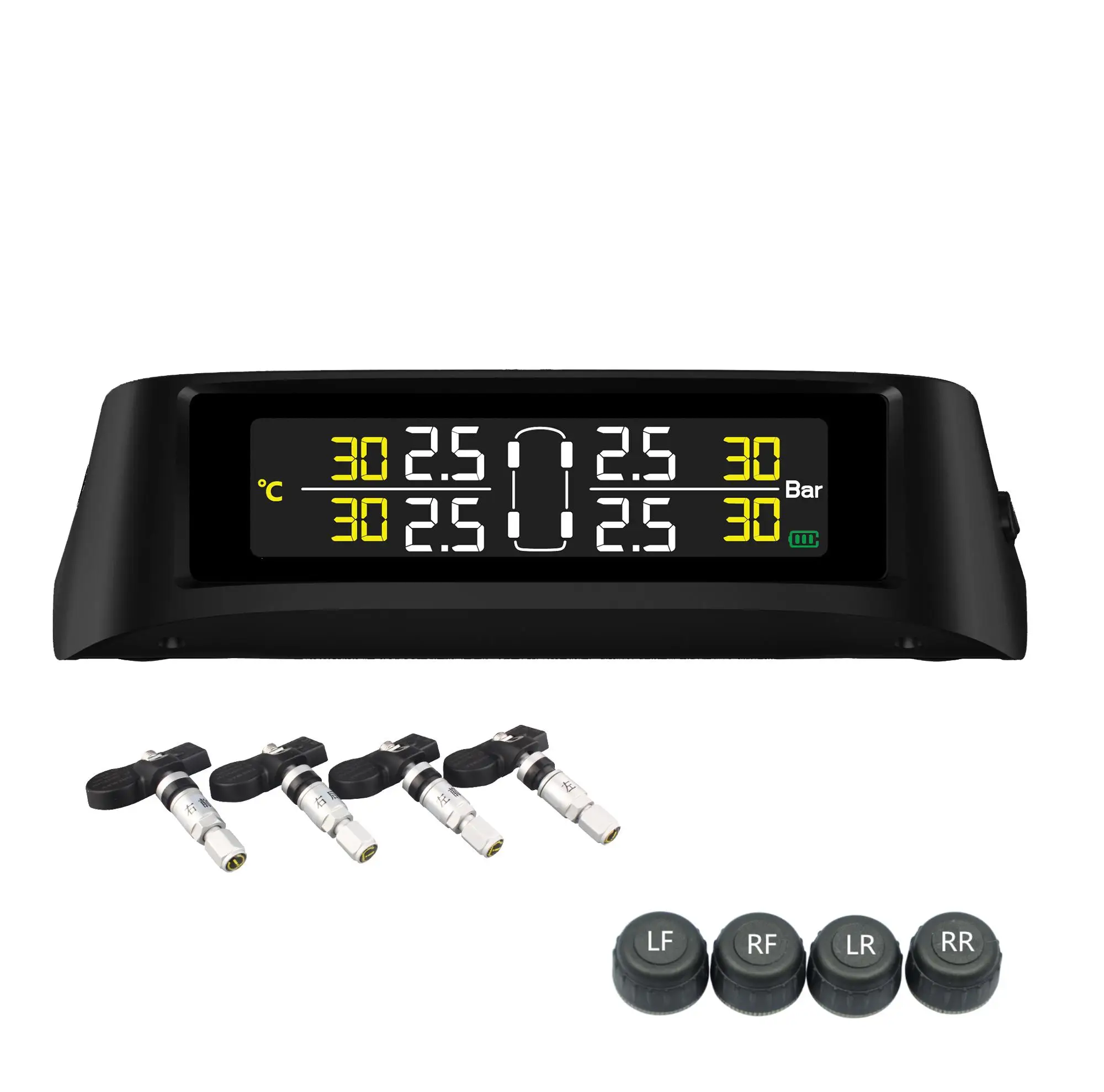

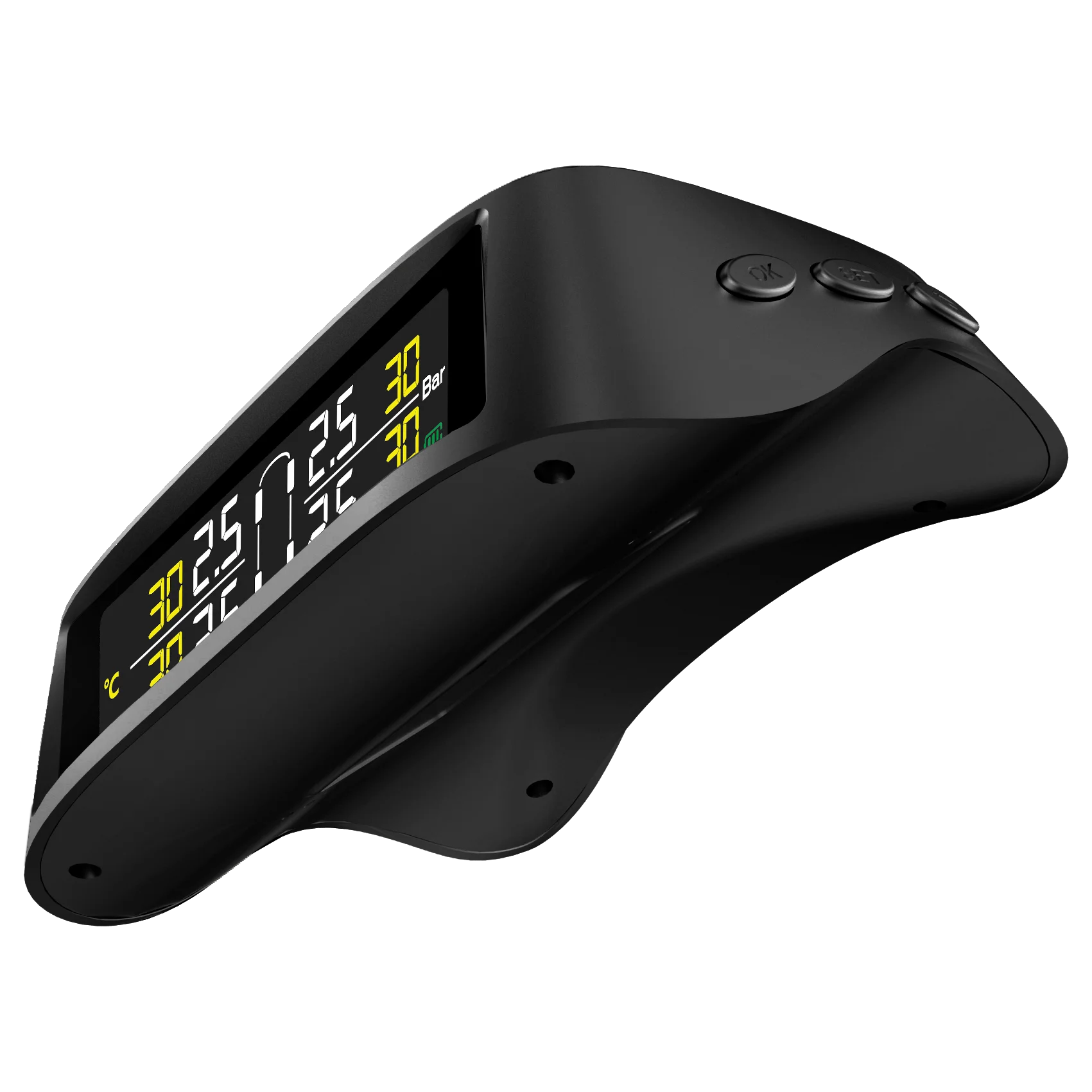

 700(2)700(1)01.16649(2)

Operating frequency433.92MHz
Operating voltage2.6-3.6V
Sleep current<0.7uA
Operating current<10MA
Temperature in working environment -40℃~125℃
Pressure measurement range0-8Bar
Pressure measurement accuracy±0.1bar(0℃~70℃)
Temperature measurement range-40℃~125℃
Temperature measurement accuracy±3℃(0℃~70℃)
Storage temperature range-40℃~125℃ ( ambient temperature  storage recommended)
Battery model/capacityCR2050W   350mAH
Battery life>5 year



TPMS picture:

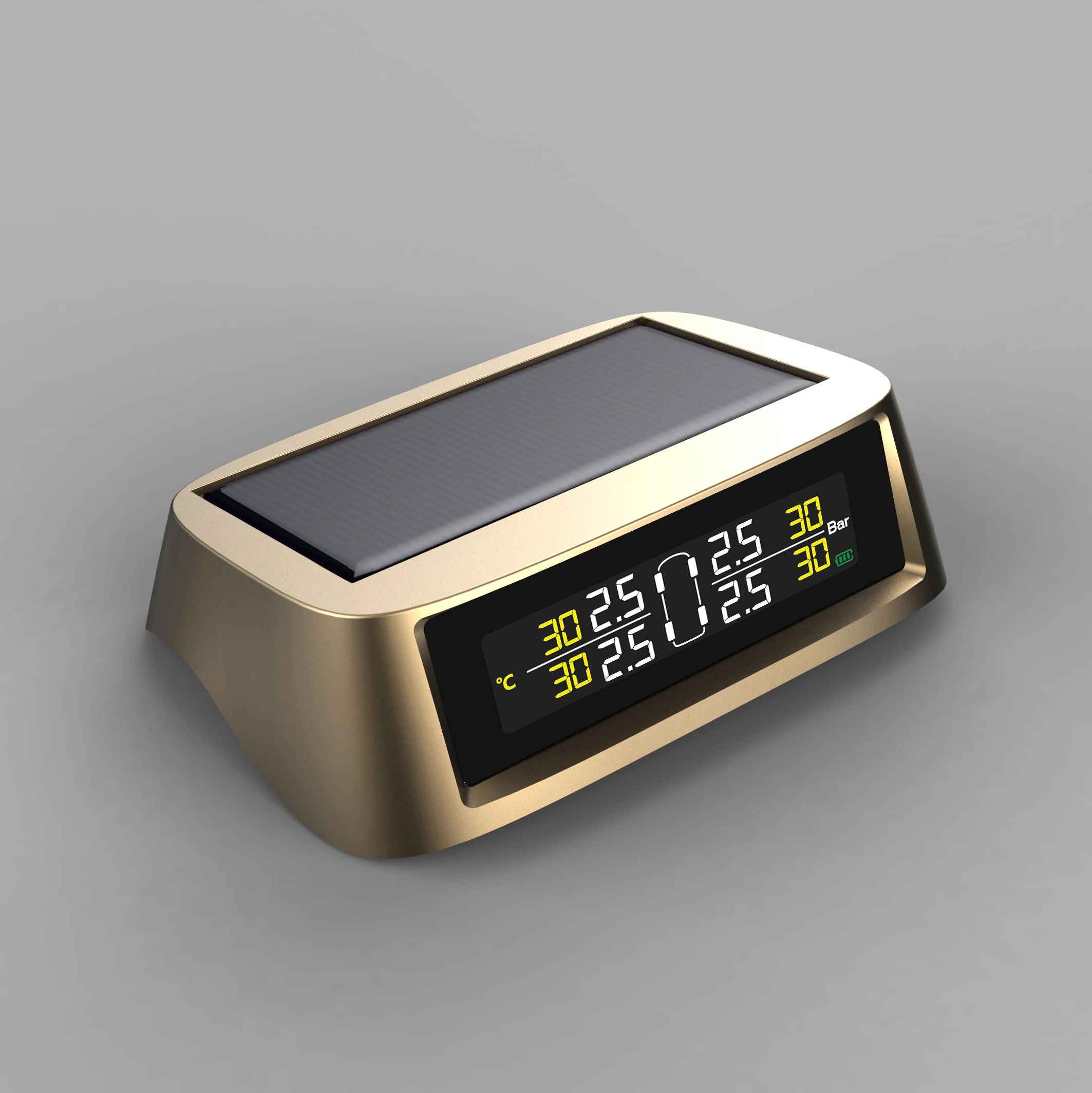

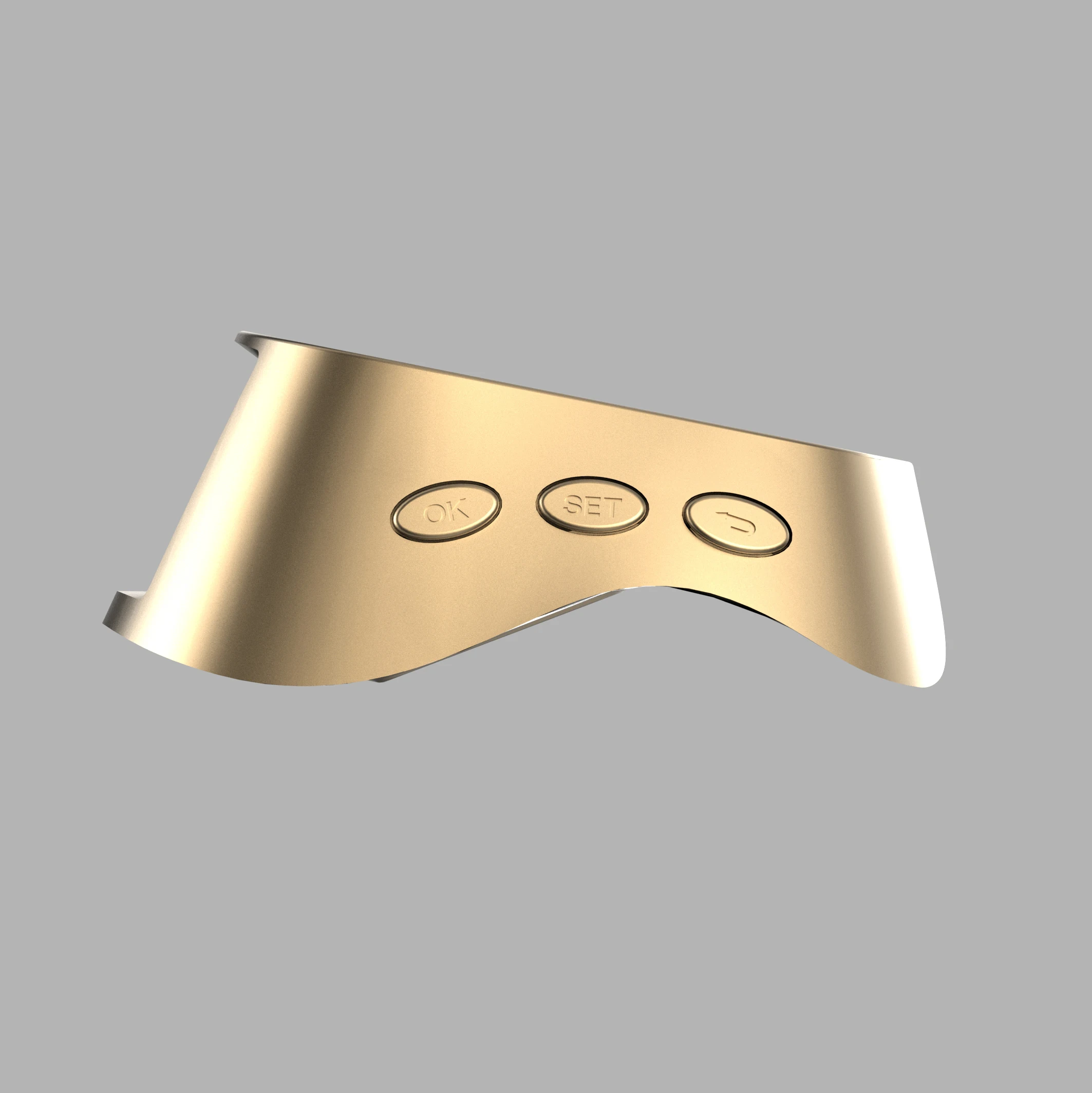

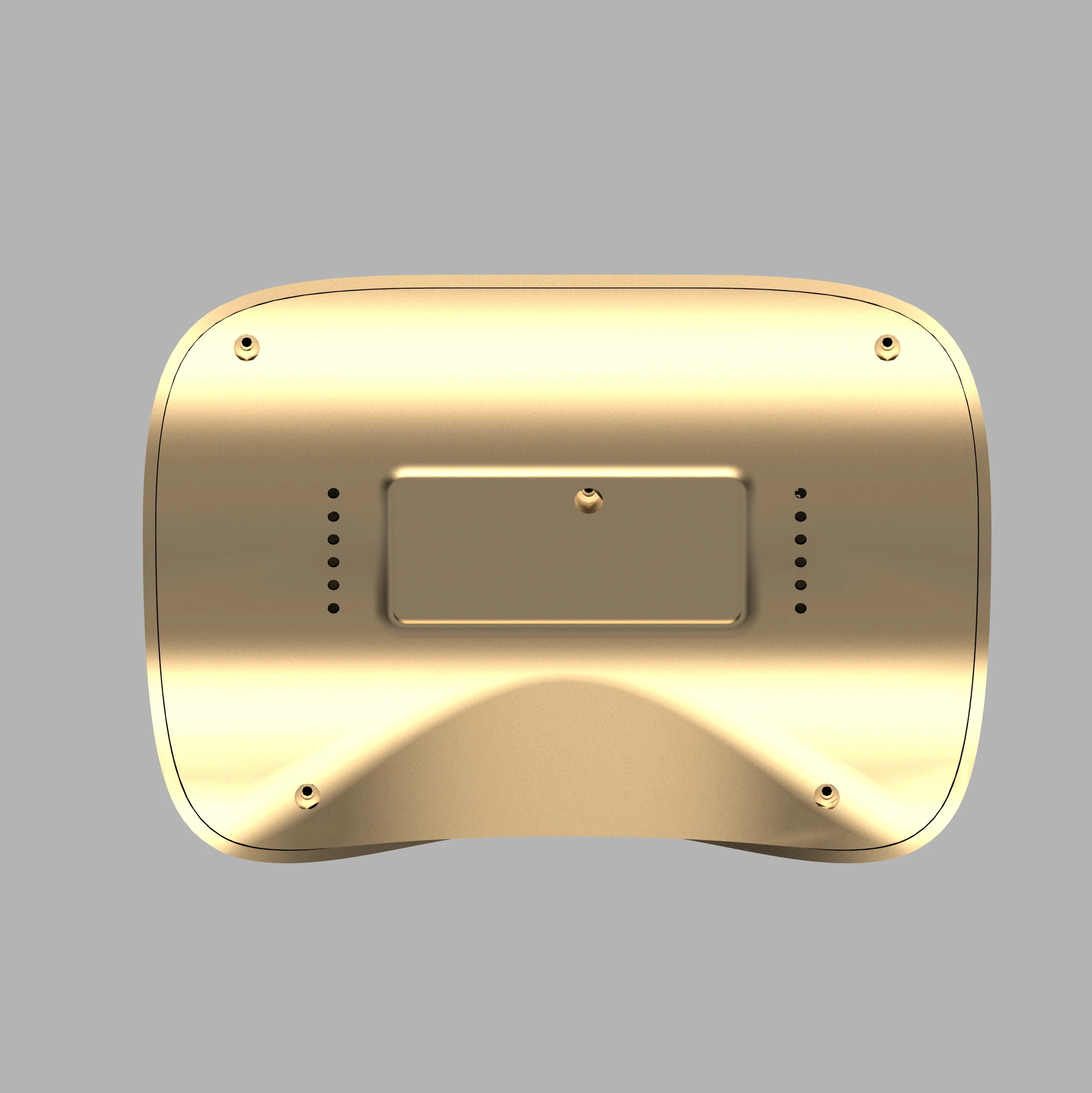

CDS700-601.1665301.1665270001.16648

 TPMS Features:
1. Solar and extra mini USB interface charging, 4 external sensor
2. Solar heat-proof battery, charging fast, lasting power
3. Real-time highly accurate tire temperature and pressure data with four significant
4. The fuel-efficient, forecast leak, extend tire life, tire pressure balance to ensure safe driving
5. PSI, BAR two kinds of pressure unit selection, C and F unit selection two temperatures
6. Each sensor has a unique ID code the position of the tire can function interchangeably
7. The sensor is waterproof, waterproof grade: IP5K4K
8. Korea Certification radio frequency technology, the effective transmission distance of 80 meters open to the sensor data updated in real time, real-time tire pressure and temperature abnormal alarm
9. Switzerland imports Freescale chips and program temperature battery explosion, electric power lasting, more accurate monitoring data, to protect the safety

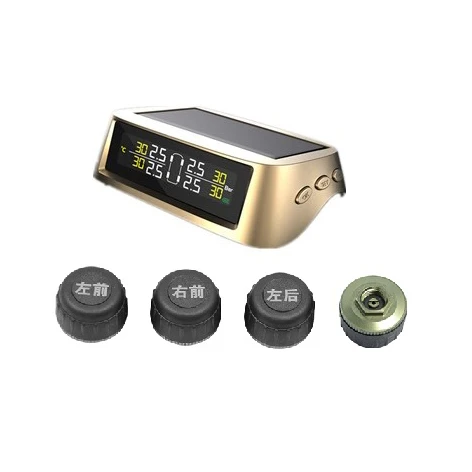

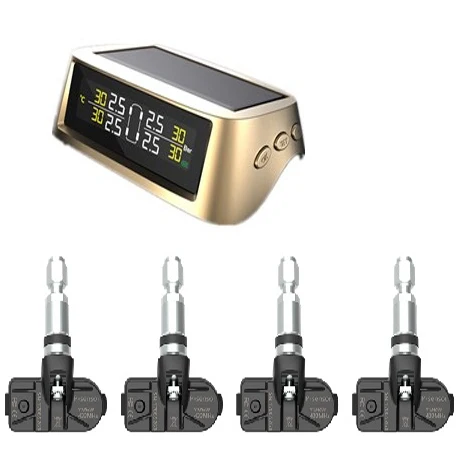

 CDS700G+CN200CDS700G+CW100



TPMS Sensors for option:_14IMG_0668

Packaging & Shipping
USBUSB

TPMS Accessories:

Display *1

User manual *1

Sticker *1

inner sensor or external sensor *4

Our Services

 we can provide OEM service,like add the logo on product,custom the package,translate user manuel.



For shipment,we can provide international express,air freight and sea freight.
