Product Overview

Description

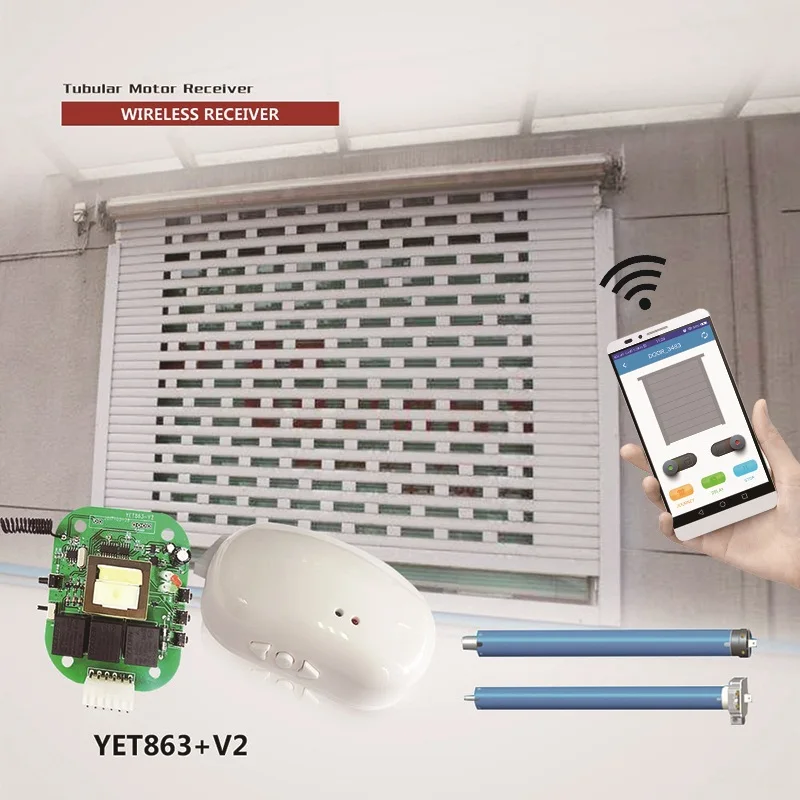

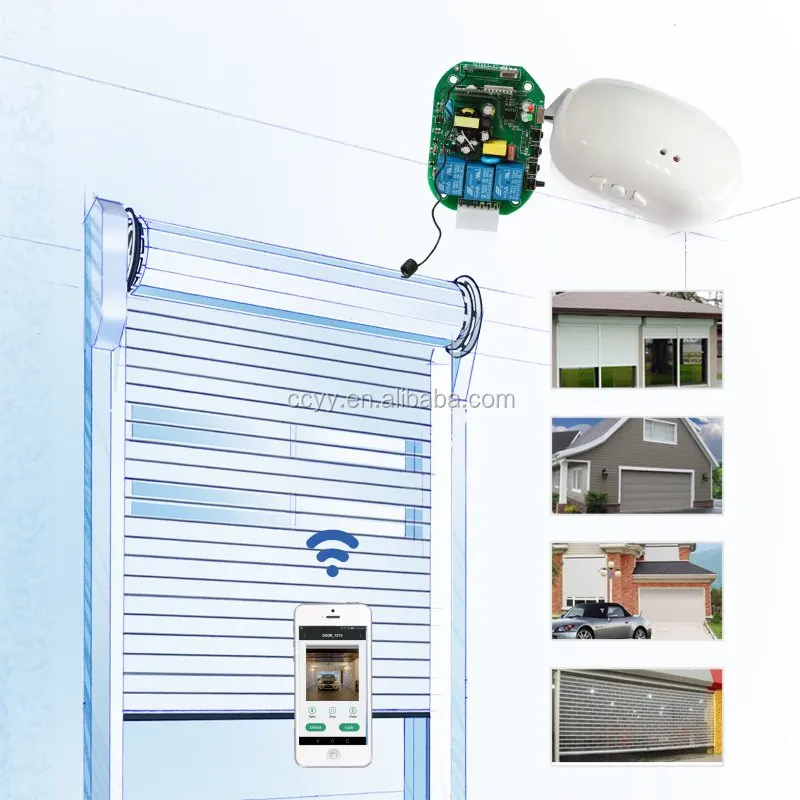

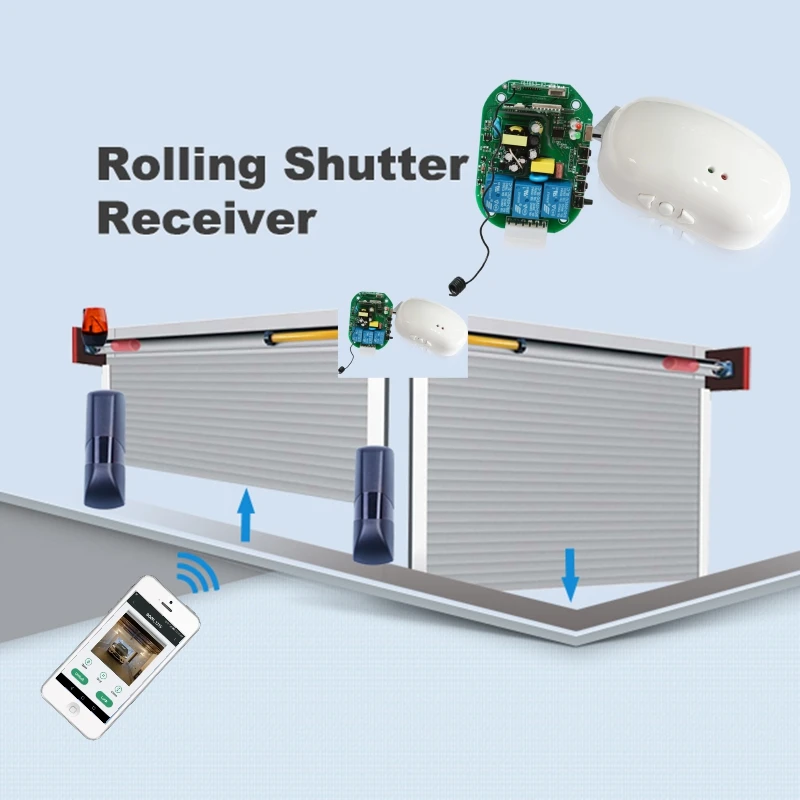

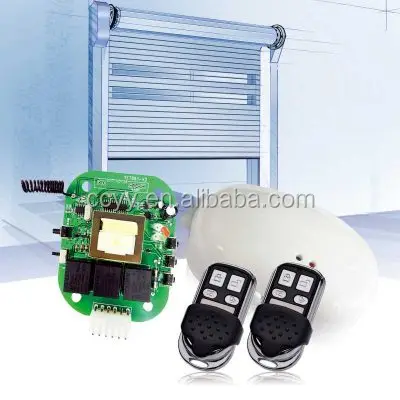

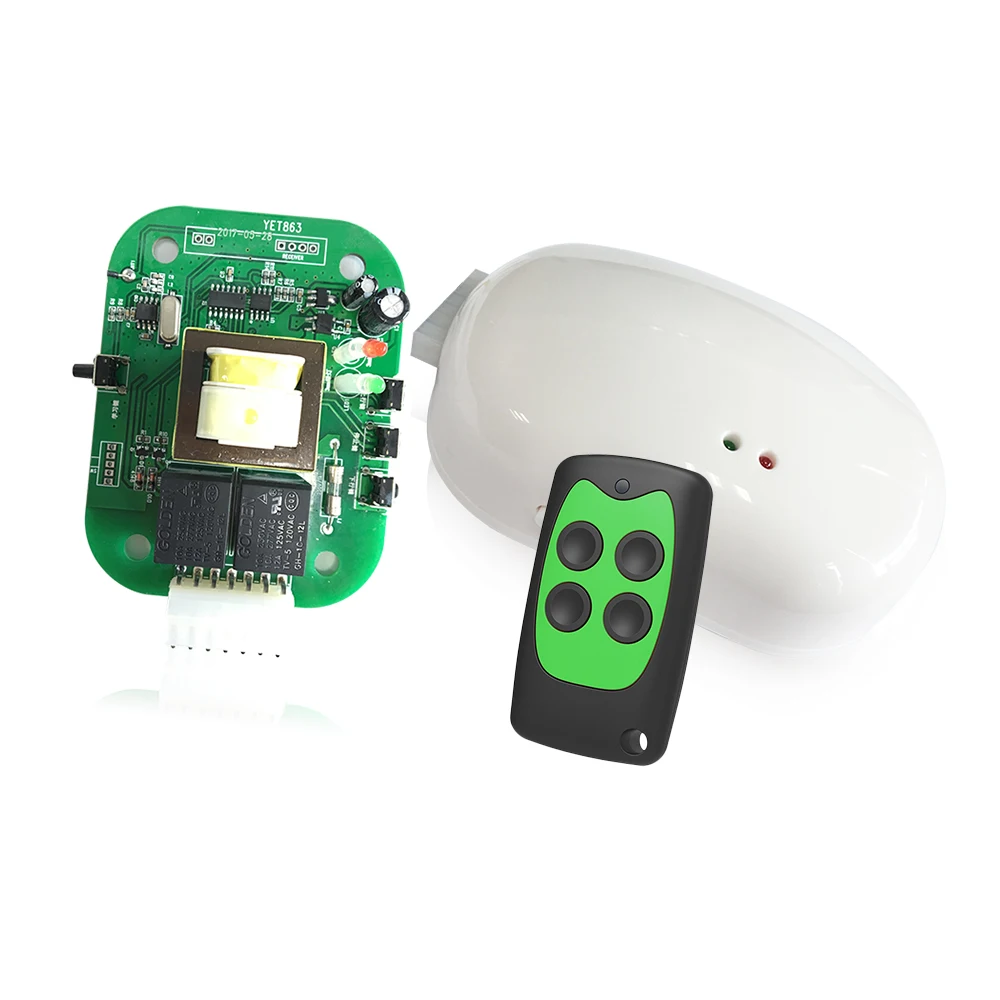

 YET863-WFR auto gate roller shutter door wifi remote controller for tubular motor forwarder reverse home automation

Features:

1.Supporting Wi-Fi intranet or extranet connection: It can be used as a single product or networking [Multi-product] to be      controlled.

2.Supporting Smart Link network technology: Network configuration is simple and convenient

3.Support frequency 433.92mhz & learning code IC 1527

4.With high security, large memory, stable performance, low power consumption

5.Suitable for Single-phase ac asynchronous motor









Specification Parameter

Input voltage	AC220
Contact current	<10A
Wireless standard	IEEE802.11b/g/n
Frequency	2.4G ~2.5G(2400M ~2483.5M)Hz/433/315
Encryption type	WEP/TKIP/AES
Security mechanism	WPA/WPA2
Sensitivity	802.11 b: -91 dbm (11 Mbps) 802.11 g: -75 dbm (54 Mbps) 433/315 :-110 dbm
Static current	<20mA
Work environment	Temperature:-40℃ ~ +80℃ Humidity:20% ~ 93%
Storage temperature	Temperature:-20℃ ~ +70℃Humidity:20% ~ 93%
Storage	<80pcs remote control
Dimension	109*73*40MM







 Our Company:



Shenzhen Yaoertai Technology Co., Ltd. is a highly specialized company, founded in 2005. Our company specializes in the design, development, manufacture and marketing of such RF products as wireless receivers and transmitter modules, wireless remote controls, car alarm systems, home alarm systems and related accessories. We provide both OEM & ODM services.



Our product quality can meet FCC, CE, and RoHS standards. With strong technology, we have produced more than 1,00 types of quality products, which are available to different sectors and can meet a variety of special needs of customers throughout the world. Our products are exported to Australia, Latin America, Southeast Asia, North America, the Middle East and Europe.



Packing Information:



Output means

Signal momentar: N0.1 key learning

Signal toggle: N0.2 key learning..

Signal latch: 4 key learning..

6-circuit momentar and 6-circuit toggle: N0.4 key learning.

(For details, see the wiring diagram)

Study methods and steps

a) Presslearning button-buzzer sounds to enter into the learning state.

b) Pressany button of the remote control-buzzer sounds twice and it indicates that the learning is success.

Clear the saved information

Long press the learning button for 8 seconds until the buzzer stop sounding, which indicates that the saved information has been cleared successfully.

Features

12 / 24v optional

popular appearance design in the world

Interlocking,latching,momentay,3 way latching and 3 way momentary optional

Working with learning code , fixed code

With Super-heterodyne receiver module,sensitivity:-105dB

Terminal and connector optional
