Product Overview

Description


Product Description

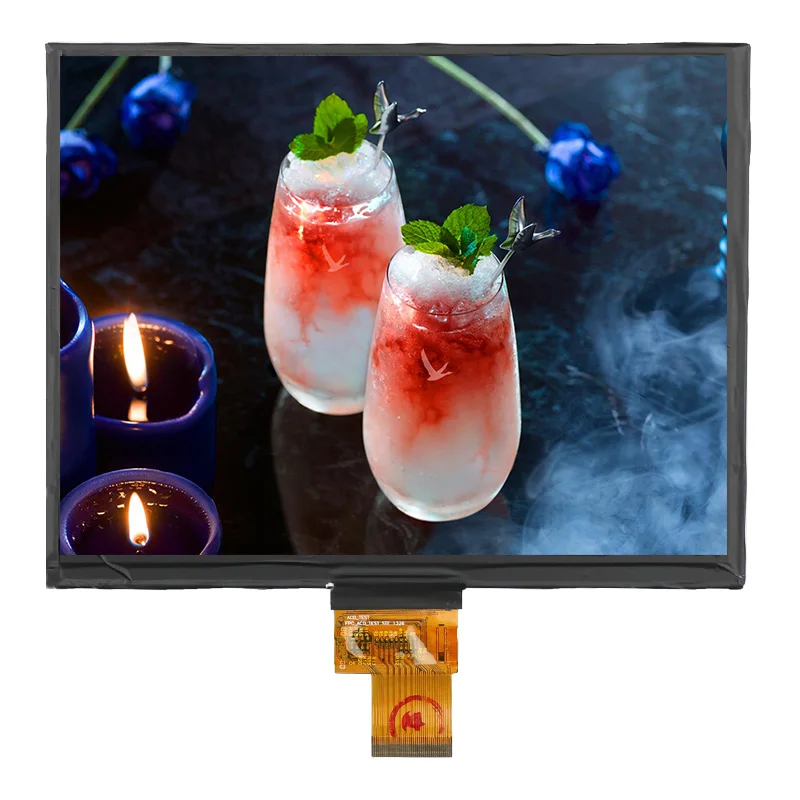

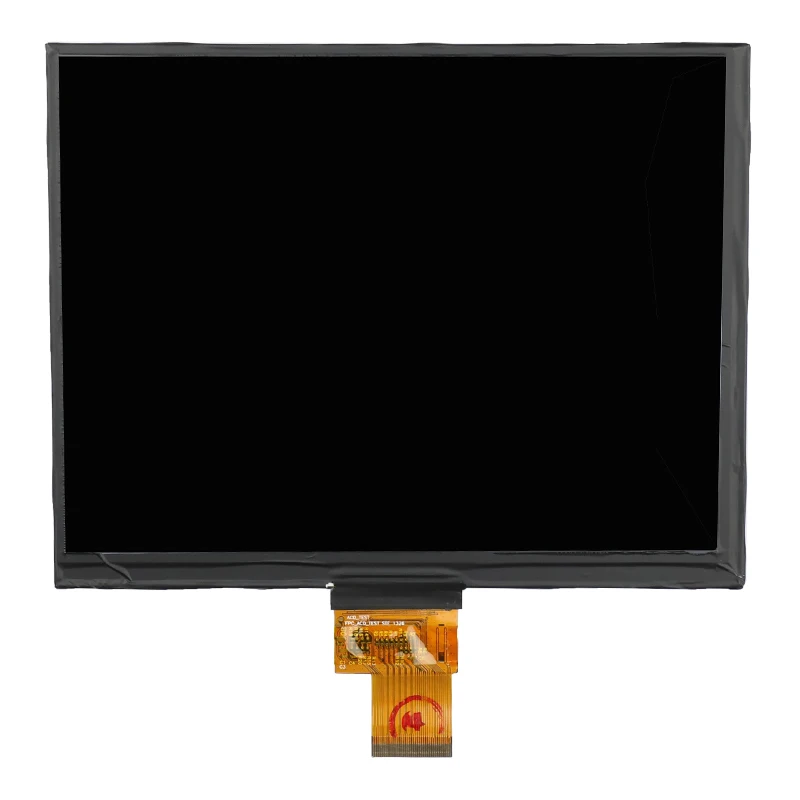

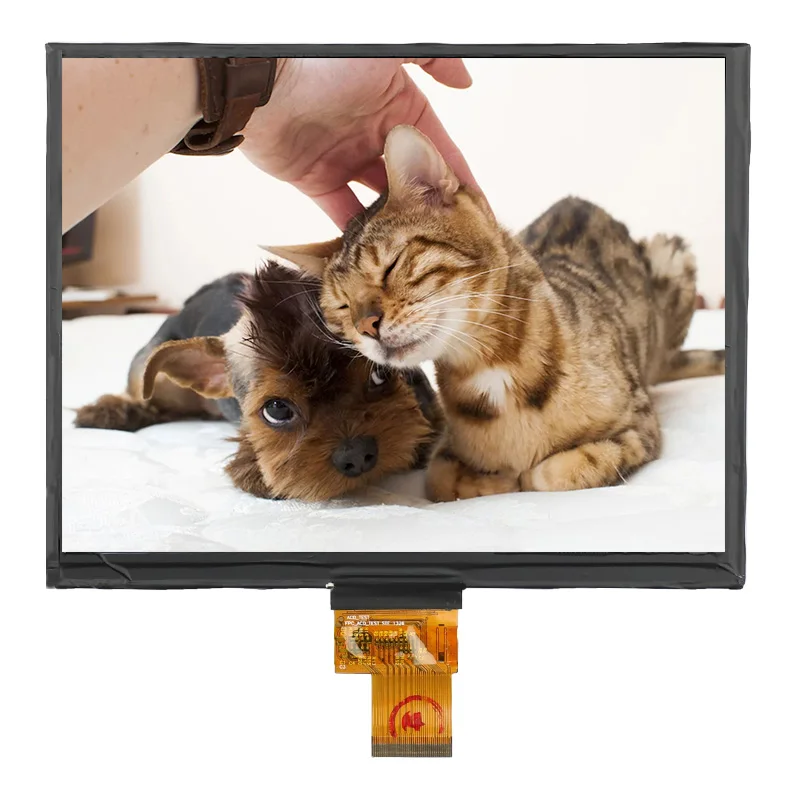

8.0 inch 1024x768 TFT LCD Display module

Mechanical Datas
\t
No.
\t
Item
\t
General feature
\t
1
\t
LCD size
\t
8.0 inch diagonal
\t
2
\t
Resolution
\t
1024 x 3(RGB) x 768
\t
3
\t
Display mode
\t
Normally Black, Transmissive
\t
4
\t
Dot pitch
\t
0.05275(W) x 0.15825(H) mm
\t
5
\t
Active area
\t
162.05(W) x 121.54(H) mm
\t
6
\t
Module size
\t
174.00 (W) x136.00(H) x2.45(D) mm
\t
7
\t
Interface
\t
LVDS
\t
8
\t
Backlight power consumption
\t
2.046W
\t
9
\t
Panel power consumption
\t
0.383W
\t
10
\t
Weight
\t
120g

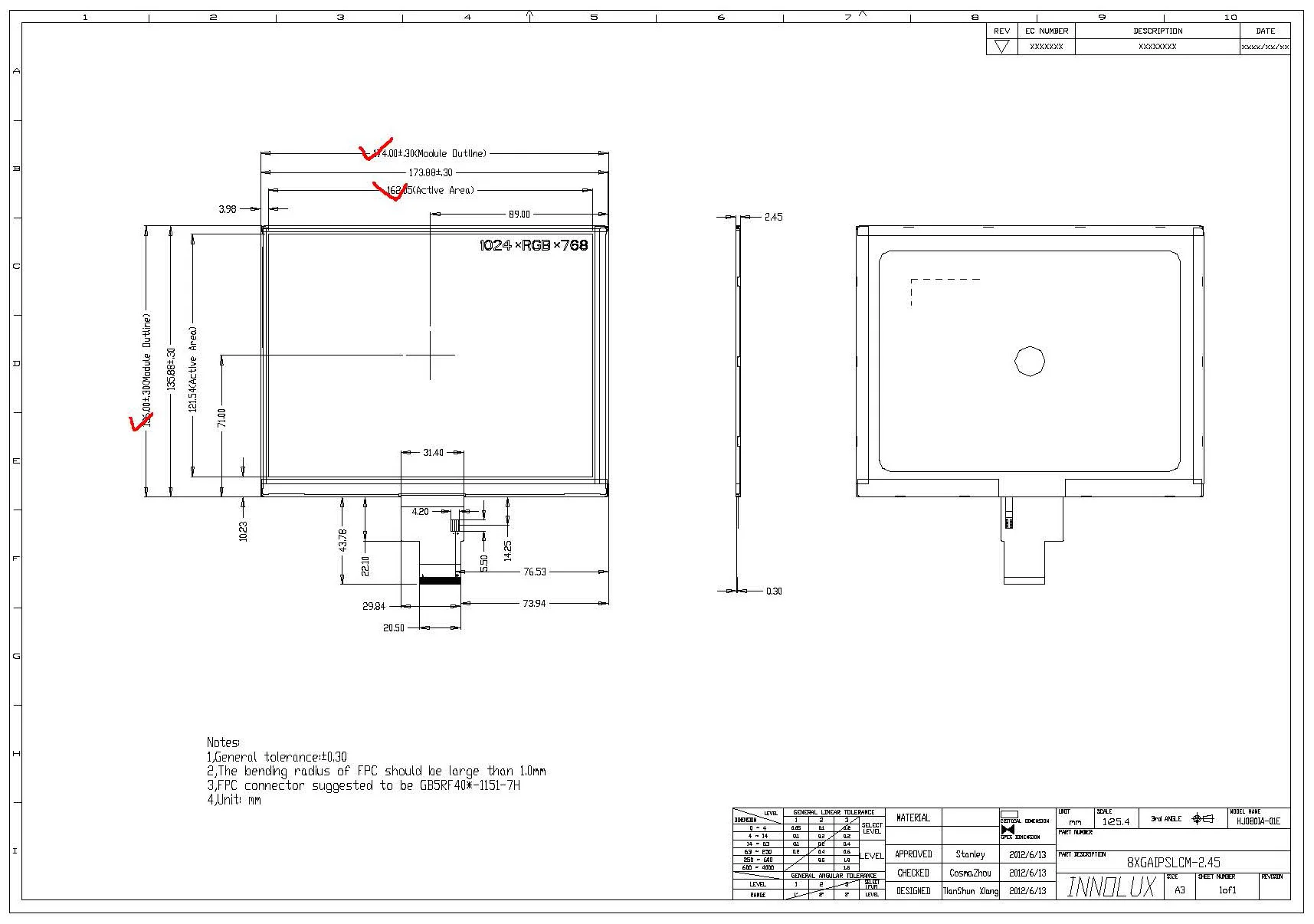

External Dimension
More TFT Modules
\t
\t
\t
\t
\t
\t
\t
\t
Model
\t
Size
(inch)
\t
Resolution
\t
Outline Dimension
(mm)
\t
Active Area
(mm)
\t
Interface
\t
PIN No.
\t
ZH177G2003A
\t
1.77
\t
128*(RGB)*160
\t
34.00*43.70*2.40
\t
28.032*35.04
\t
MCU 8 bit
\t
20
\t
ZH020B2209A
\t
2.0
\t
240*(RGB)*320
\t
36.05*51.80*2.45
\t
30.60*40.80
\t
8 bit_MCU
\t
22
\t
ZH024T3606B
\t
2.4
\t
240*(RGB)*320
\t
42.62*59.26*2.5
\t
36.72*48.96
\t
16bit_MCU
\t
36
\t
ZH027G4002A
\t
2.7
\t
960*240
\t
39.10*67.50*2.43
\t
33.06*58.80
\t
SPI+8bit RGB
\t
40
\t
ZH027C4004A
\t
2.7
\t
960*240
\t
45.80*62.70*2.36
\t
40.50*54.00
\t
SPI+8bit RGB
\t
40
\t
SHX280T37
\t
2.83
\t
240*(RGB)*320
\t
50.00*69.20*2.90
\t
43.20*57.60
\t
8/16bit
\t
37
\t
ZH030C4020A
\t
3.0
\t
960*240
\t
42.64*74.51*2.35
\t
36.84*65.52
\t
SPI+8bit RGB
\t
40
\t
ZH035S4504A
\t
3.5
\t
320*(RGB)*480
\t
54.46*82.94*3.3
\t
48.96*73.44
\t
SPI+18bit RGB
\t
45
\t
SHX35023B
\t
3.5
\t
320*(RGB)*480
\t
54.56*82.94*3.5
\t
48.96*73.44
\t
SPI+18bit RGB
\t
40
\t
SHX043B4001
\t
4.3
\t
480*(RGB)*272
\t
105.5*67.2*3.0
\t
95.04*53.86
\t
24bit RGB
\t
40
\t
FC-50005T
\t
5.0
\t
480*(RGB)*272
\t
120.7*75.8*3.2
\t
110.88*62.83
\t
24bit RGB
\t
40
\t
SH500JO4Z
\t
5.0
\t
800*(RGB)*480
\t
120.7*75.9*3.2
\t
108*64.8
\t
24bit RGB
\t
40
Company Overview


Established in 2004.
Specialized in LCD, TFT, OLED and resistive & capacitive touch panel products.
8,000 square meters of factory workshop.
Over 400 employees, including15 R&D staff and 40 QC personnel.
Our major customers include: HITACHI, EMERSON, SIEMENS, JABIL, WKK and ASTROTECH GROUP etc.
TUV (SUD) certification of ISO9001:2008.

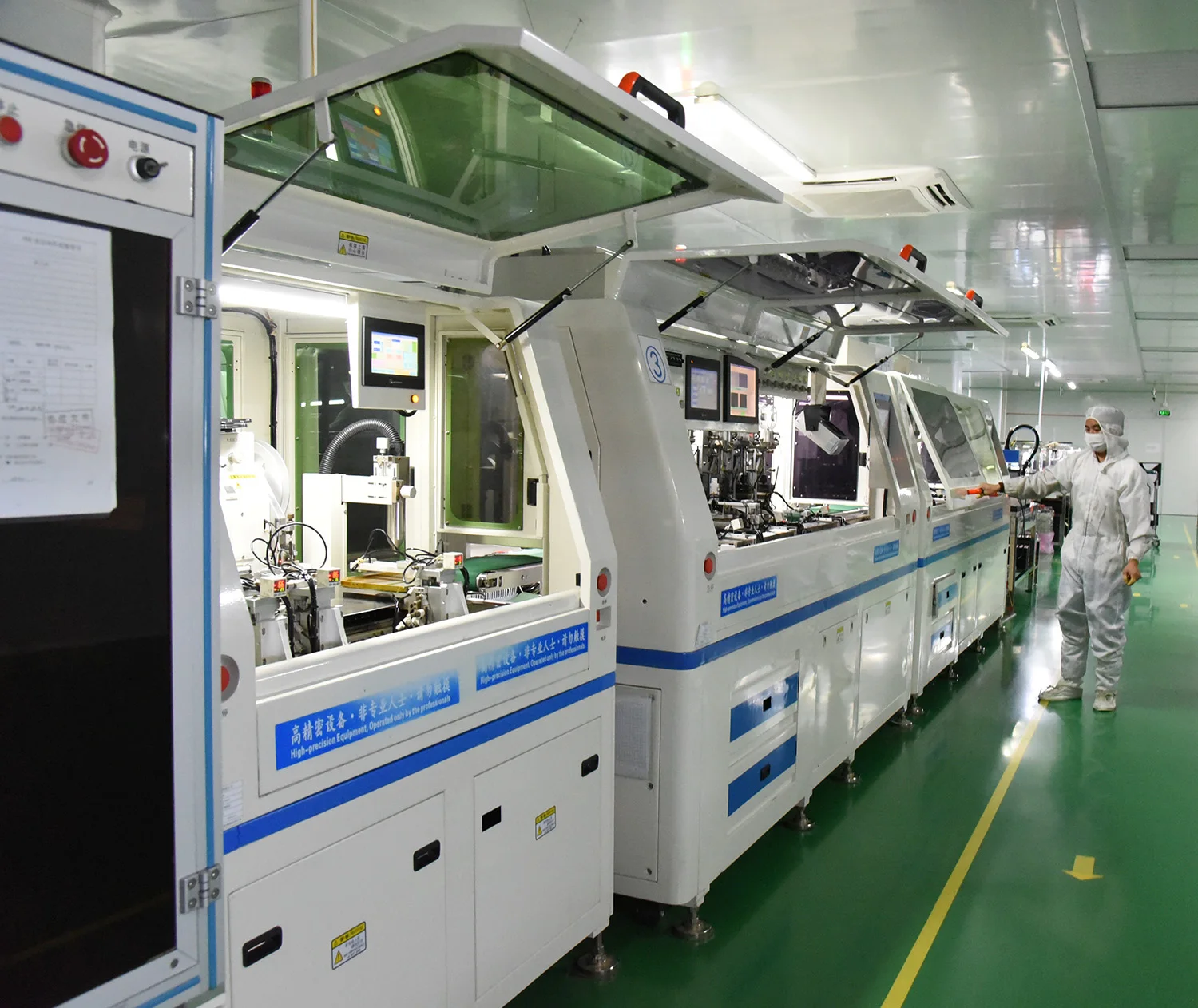

Manufacturing
Why Us

1. AN ISO 9001:2008 Certified company
2. 14 years' experience of LCD display R&D and production.
3. Highly trained and experienced LCD and LCM engineers
4. Professional sales team who can efficiently provide the optimum display solution. Cost and time saving.
5. Quick drawing creation: LCD panel 2 days, LCD module 3 days
6. Quick sample delivery: LCD panel 12 days, LCD module 20 days
7. We have our own LCD glass production line which can guarantee high quality and low cost
8. Warranty period: 100,000 hours for LCD panel. 50,000 hours for LED backlight
