medical sterilizing machine
• The use of coiler the steam circulation indirectly heat or steam directly heat , make the pot temperature more uniform.
• the soup of pan do not need to discharge When cooking, it can be used continuously; The energy is saved.
• There is insulating layer outside of the pot. lt can prevent heating lose and worker operation is scald
• The door is hydraulic type instead of old flange type. lt has the light electricity limit ,safety interlock and interlock function.
• The door is sealed by gland bush. Sight glass is installed on the top , water level used for soup supply.
• One hydraulic station is used by several machines, so it can be operated easily and cost is saved greatly.
A variety of heating modes for optional
• Direct warming up
• Indirect warming up
A variety of ways to open the door optional
• Manual door
• Hydraulic door
Applicable
This machine can be used for traditional Chinese rice-pudding , spiced egges and similar product cooking
Model | RT-900 | RT-1000 | RT-1200 | RT-1300 | ||||||||
1 | 2 | 3 | 1 | 2 | 3 | 1 | 2 | 3 | 1 | 2 | 3 | |
Diameter(mm) | 900 | 1000 | 1200 | 1300 | ||||||||
Cytinders length(mm) | 1800 | 2500 | 3000 | 2200 | 2500 | 3000 | 3000 | 3600 | 4000 | 3000 | 3600 | 4000 |
Total length(mm) | 3000 | 3400 | 3800 | 3300 | 3800 | 4000 | 4200 | 4800 | 5300 | 4300 | 5000 | 5500 |
Total length(mm) | 1750 | 1750 | 1750 | 1800 | 1800 | 1800 | 1900 | 1900 | 1900 | 2000 | 2000 | 2000 |
Total high(mm) | 3000 | 3000 | 3000 | 3200 | 3200 | 3200 | 3400 | 3400 | 3400 | 3600 | 3600 | 3600 |
Material | SUS304/Q235B | |||||||||||
Design temperature | 147°C | |||||||||||
Experiment pressure | 0.44Mpa | |||||||||||
Design pressure | 0.35 Mpa | |||||||||||
Assistant equipment
Model | RT-900 | RT-1000 | RT-1200 | RT-1300 |
Gas storage tank(m3) | 0.5-0.8 | 0.8-1.0 | 1.0-1.5 | 1.5-2.0 |
Air compressor | 0.36/8 | 1.0/10 | 1.0/10 | 1.5/10 |
Storage water tank(m3) | 2.5-3.0 | 3.0-4.0 | 4.0-5.0 | 5.0-6.0 |
Boiler T/H | 0.2-0.3 | 0.3-0.4 | 0.4-0.5 | 0.5-0.8 |
Total power (kw) | 19 | 21 | 21 | 25 |

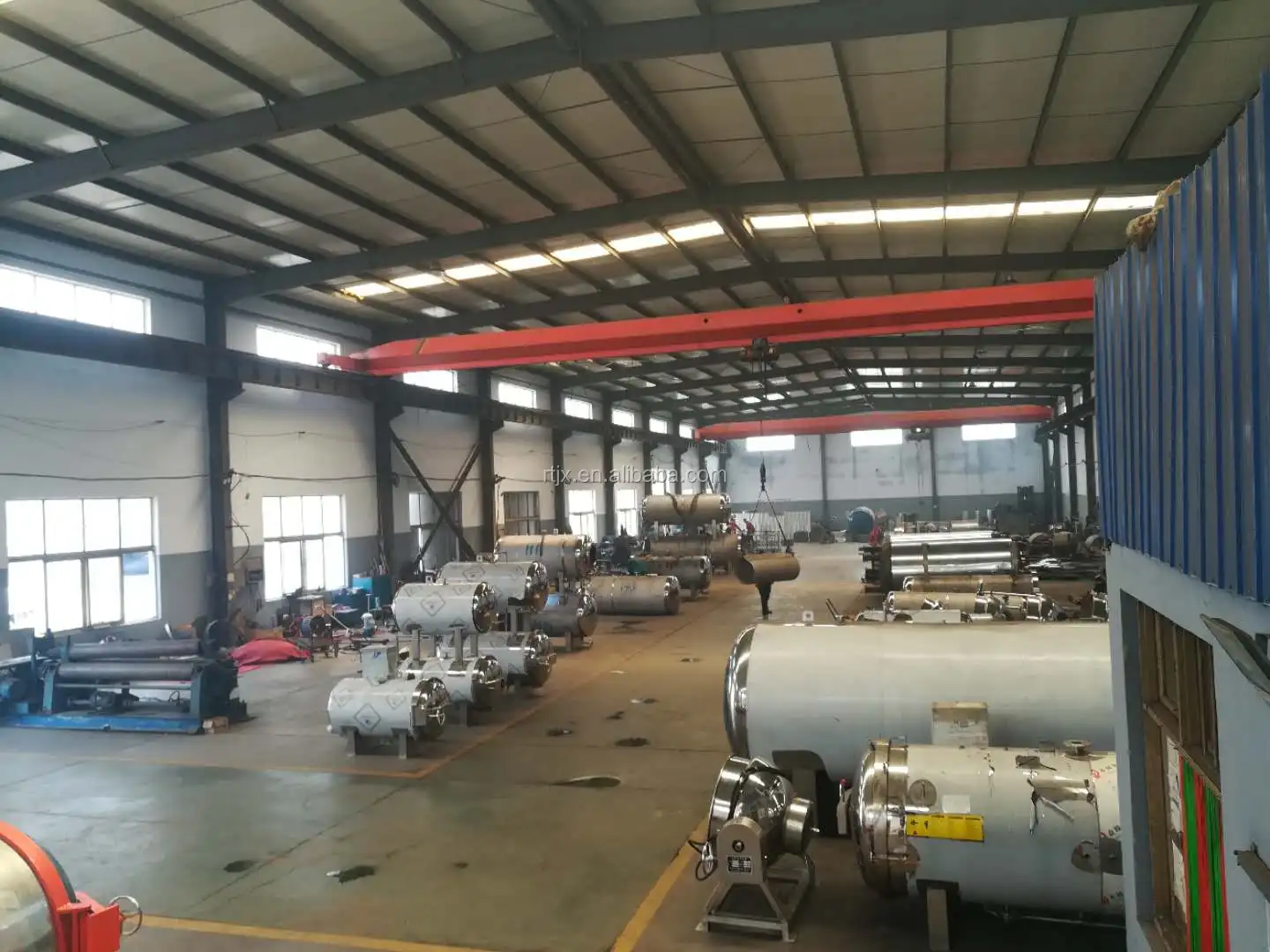

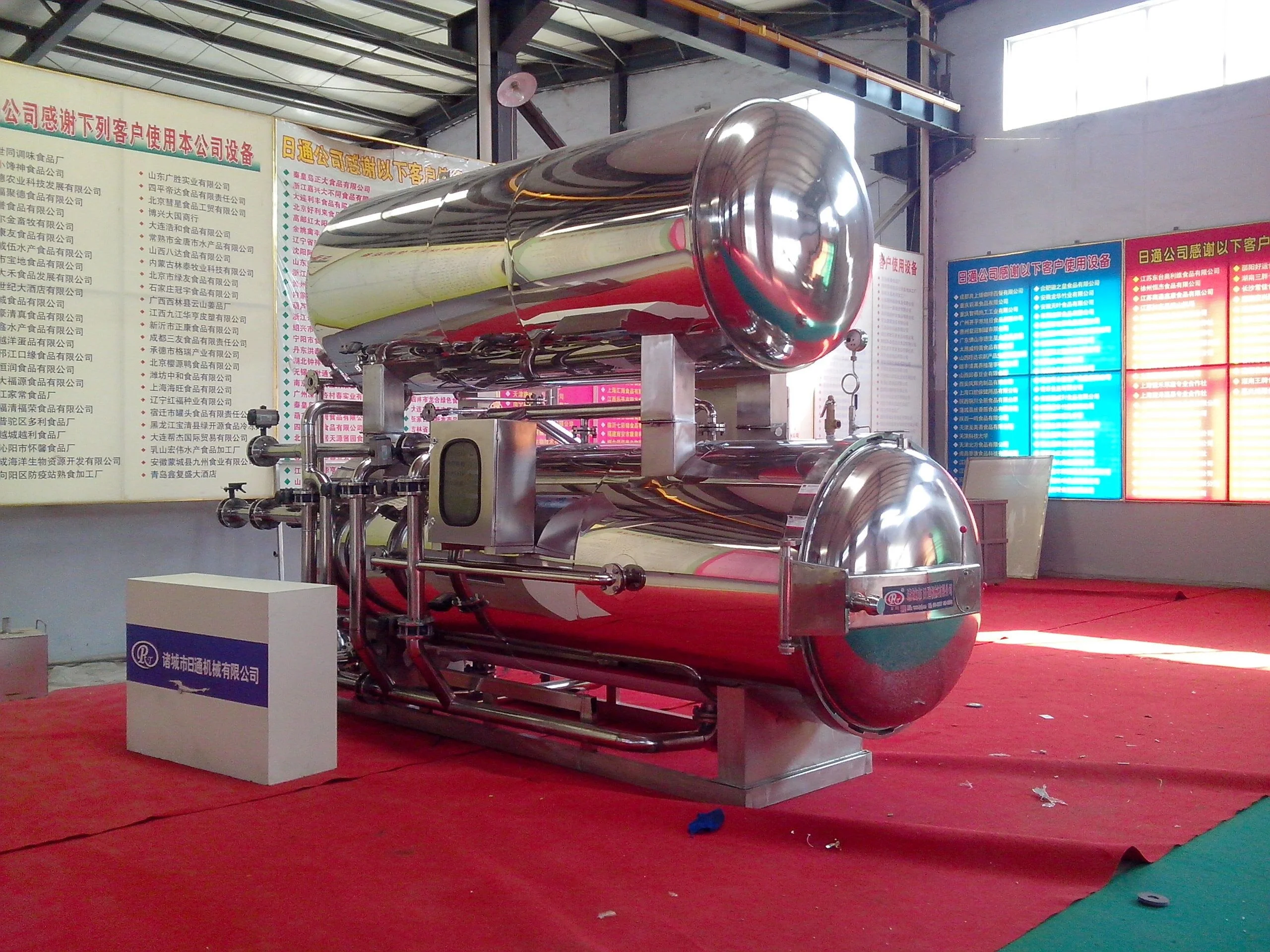

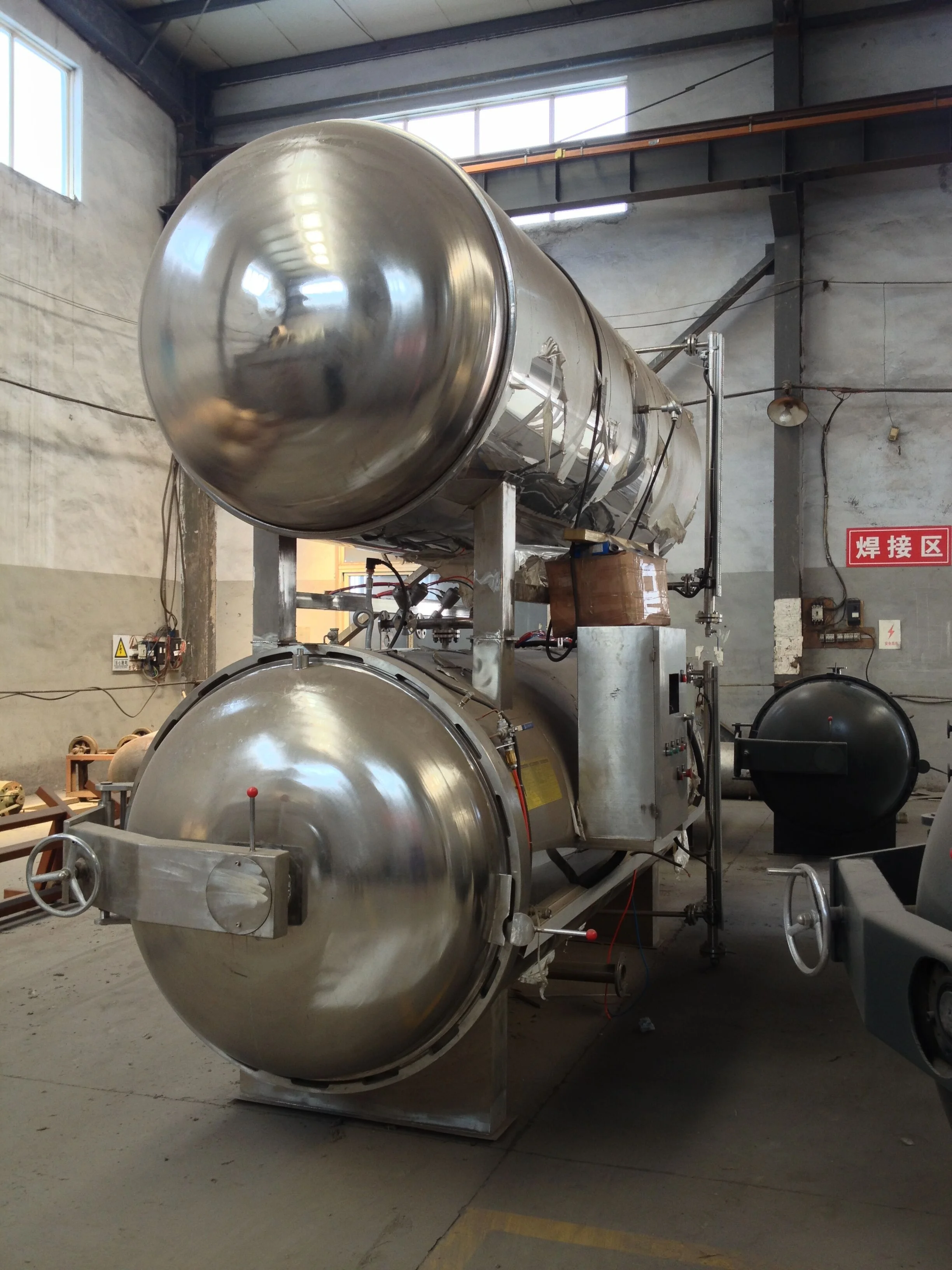

Wokrshop

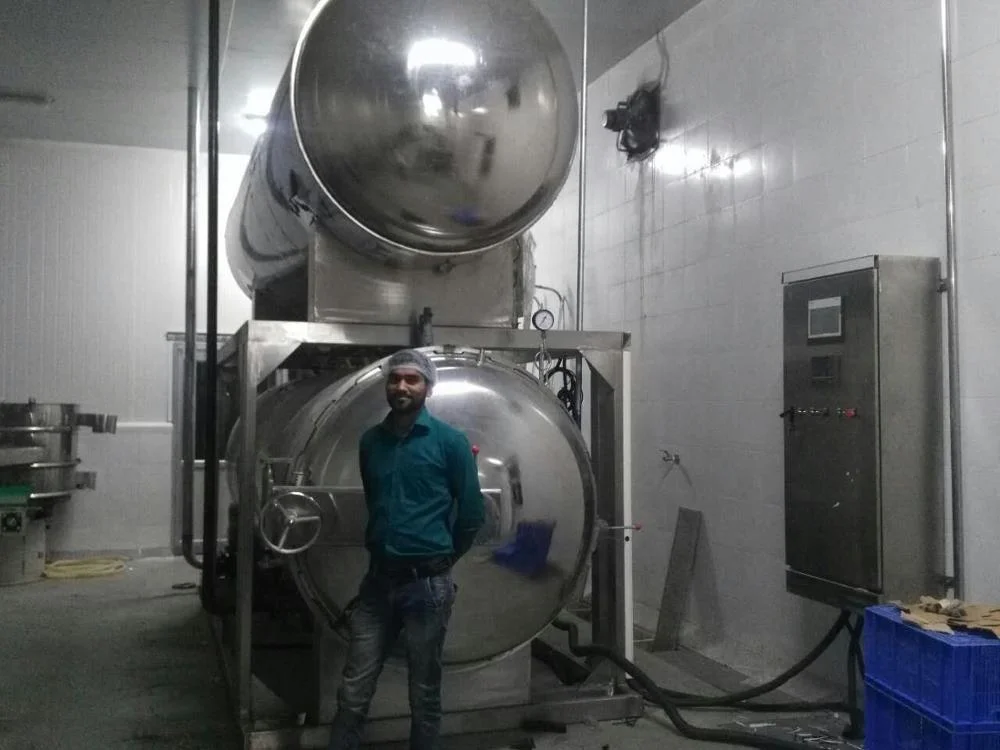

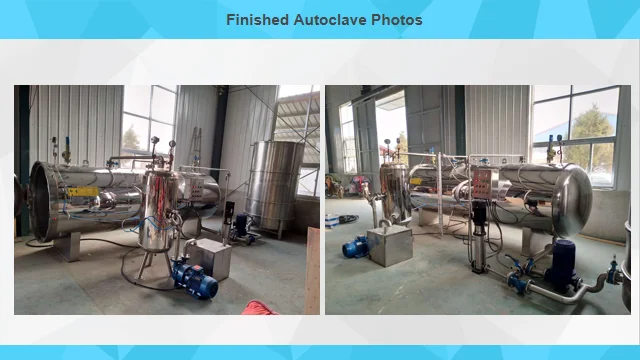

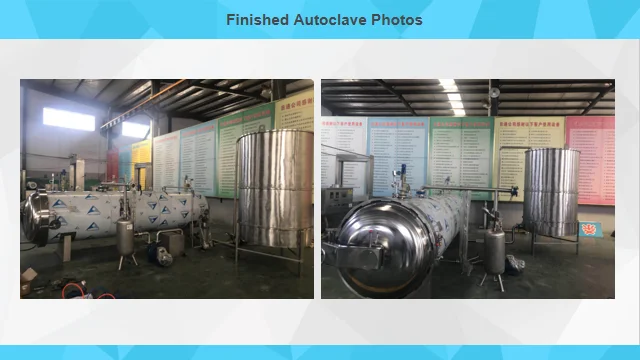

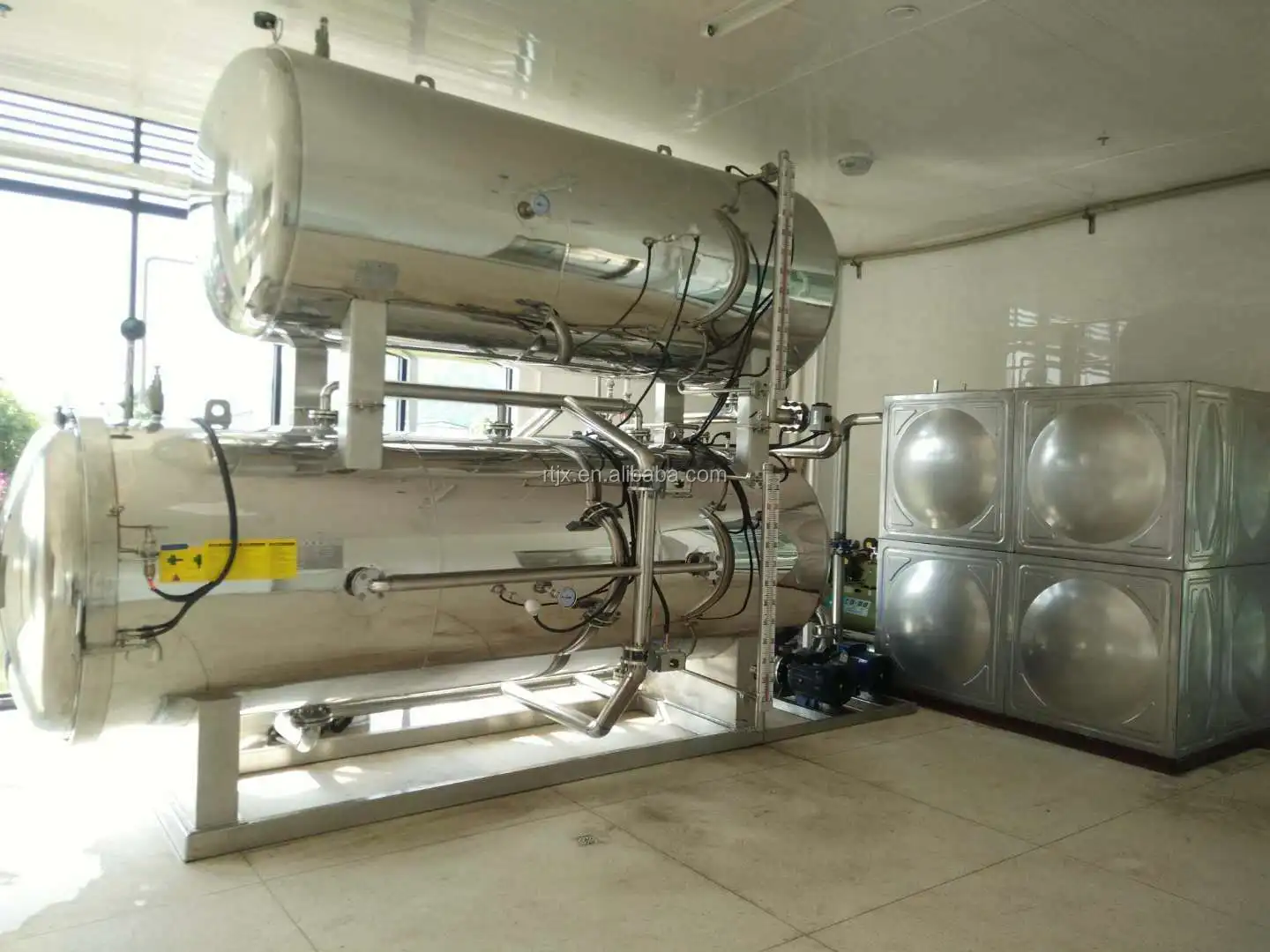

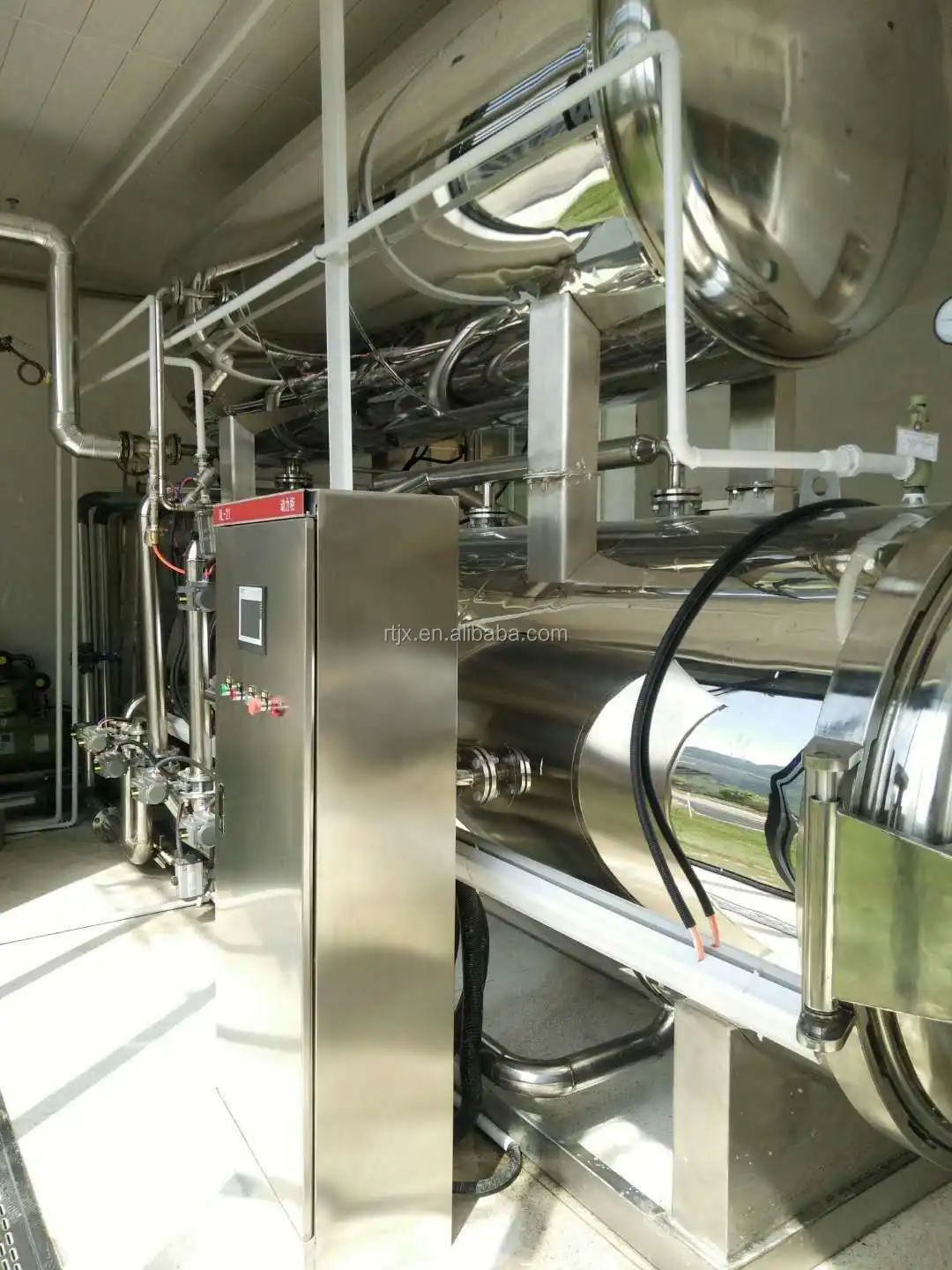

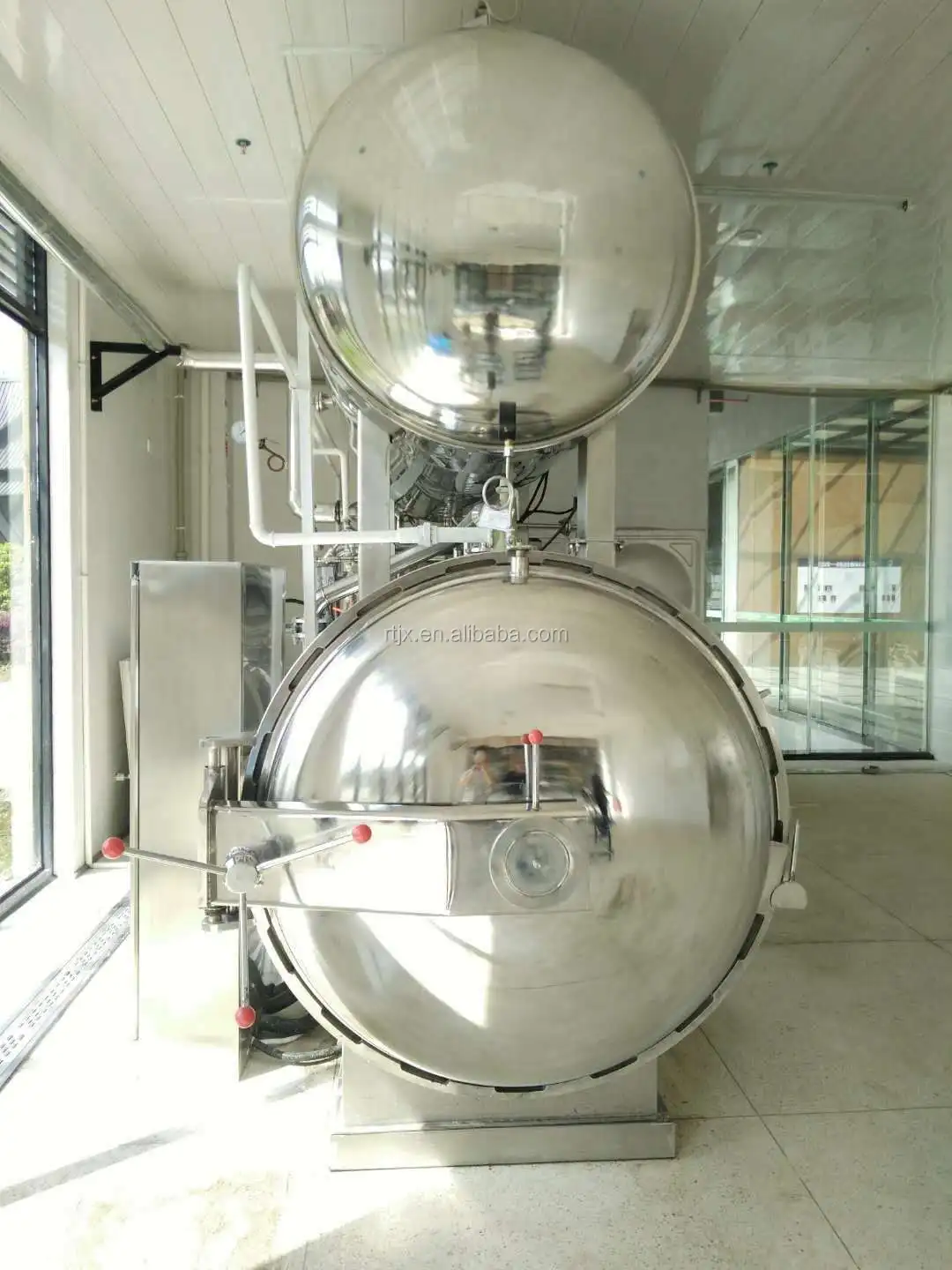

Finished Autoclave In Client's factory







Quality guarantee term is for one year. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer. Other malfunctions which are caused by operation mistakes, man-made problems, etc will be responsible for clients-self.
We will delivery your goods by LCL/20' FCL/40'FCL depending on your order.
Before delivery, our professional engineer will do trial run for each machine to check and confirm everything is workble, you also can come to our factory for tesitngtogether with us.whe loading, our workers will fix the machine tightly in the container to ensure the safety in the transportation.

Service & Installation
a.) Consultation service before, during, and after sales;b.) Project planning and design services;
b.) Debugging of equipment until everything is functional;
c.) Management of equipments' long distance shipping from seller's factory to named place by buyer;
d.) Training of equipment maintenance and operating personally;
e.) New production techniques and formulas;
f.) Provide 1 year complete warranty and life-time maintenance service.
1, Are you manufacturer?
Yes, we are manufacturer with more than 25 years' experience.
2, Can you ship the machine to my address?
Yes, we could use DHL to express the machine. While transport cost will be higher. Also, it is suitable for the small models.So this is suitable of ocean shipping .
3, Where are you? Can we go to China and visit your factory?
Yes, of course. We are in Shandong, China. Welcome to our factory.
4, Do you have manual with the machine?
Yes, of course. It is in English version.
5, Can you offer us the necessary paper to do the customs clearance?
Yes, of course. We will send you the commercial invoice, sales contract, packing list, bill of lading(FOB or CFR, CIF terms), insurance policy (if CIF terms), also CO if you need.
Shandong Zhucheng Ritong Machinery Co. Ltd. is the designated national production enterprises with the pressure vessel, pressure vessel manufacturing qualification, certificate number is TS2237125-2014, and has passed ISO9001:2000 quality management system certification, with self import and export rights. Enterprises existing staff of 220 people, 16 senior titles, intermediate title personnel 15 people, covers an area of 30000 square meters, the production area of 15000 square meters. Mainly engaged in sterilization and cooking equipment, processing equipment and food machinery manufacturing, is a leading supplier of domestic and foreign food processing sterilization equipment.
