DC cross flow fan for vintage artificial decorative wooden electrical fireplace

Share on (62052909950):


Price:$9.00

Quantity:


Product Overview

Description

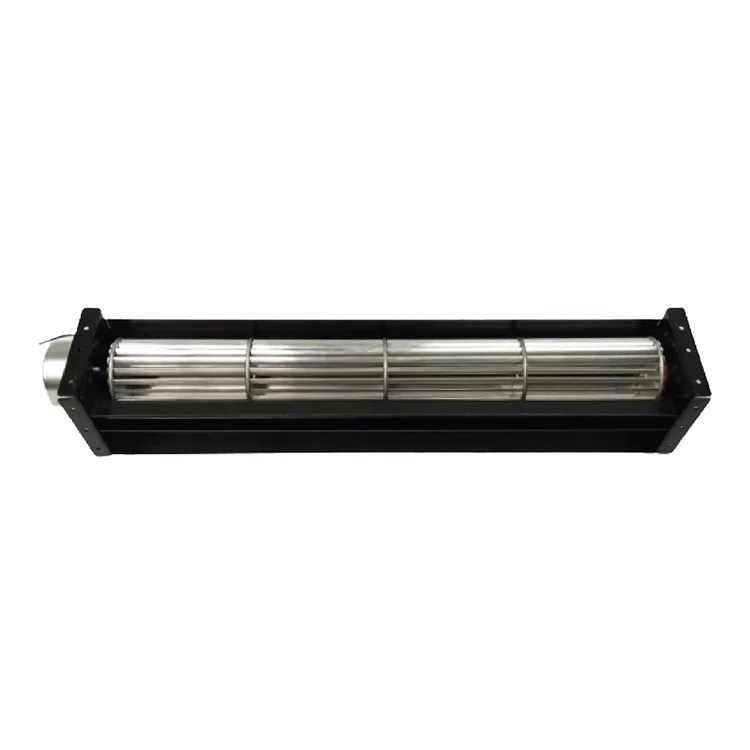

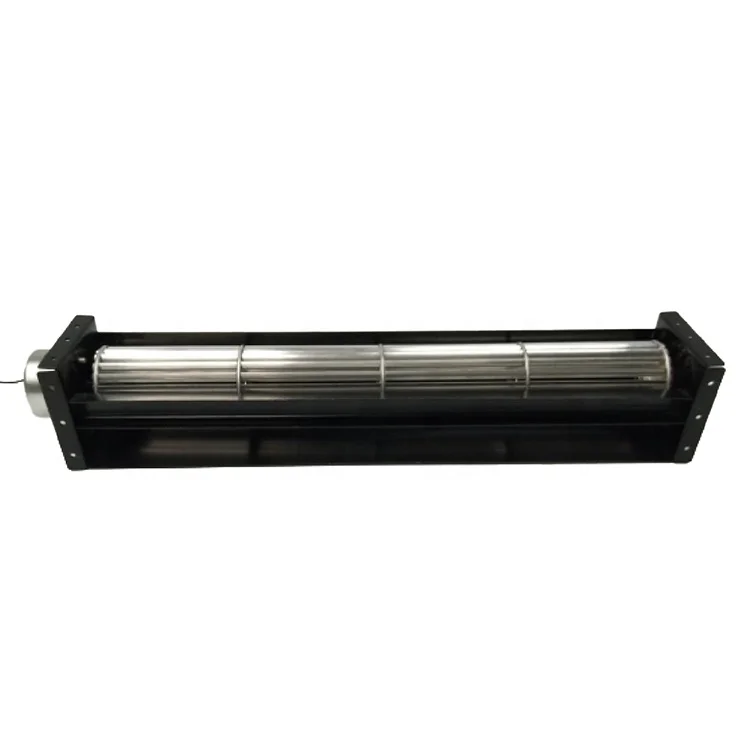

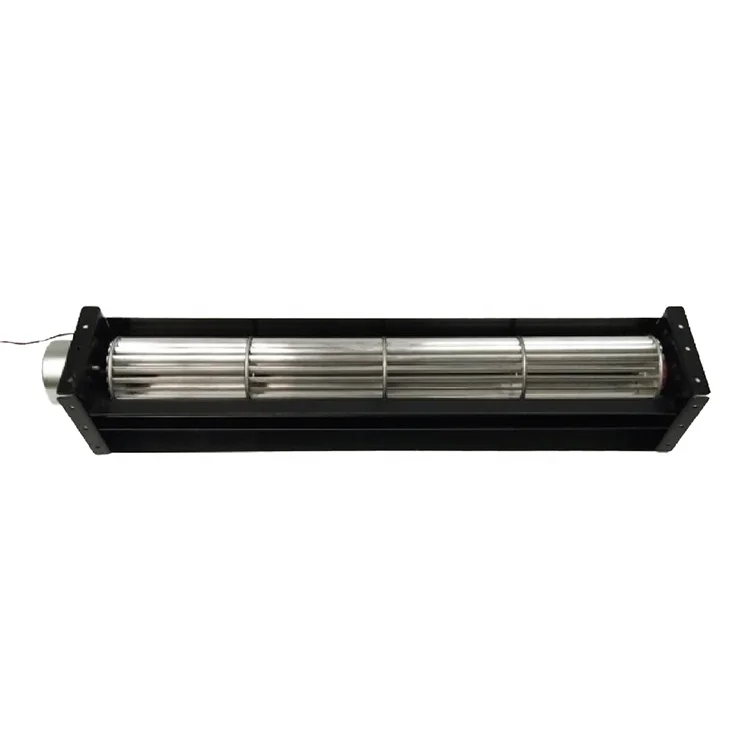

DC cross flow fan for vintage artificial decorative wooden electrical fireplace

Product Description

1. Outlet length is 300mm.

2. The impeller diameter is 30mm.

3. The dc motor is in the left side.



Main Specifications

Model

SF30300S/BL

Item

Fireplace fan
Typical usageAir coolers, air conditioners, heaters, etc.
Voltage12VDC
Operating voltage range6 to 13.5VDC
Bearing system

Japan NMB dual ball bearing

Life time

40000~50000h

Speed2200RPM
Blade MaterialAluminum blade
Cover materialGalvanized iron
Noise34dB-A
CertificationCE, ROHS



Accessory parameters

MotorDC brushless motor
Model3025 series motor
PhaseSingle phase
Poles4-pole
RotorExterior rotor
Voltage12VDC
Installation methodIn the wind outlet left side or right side

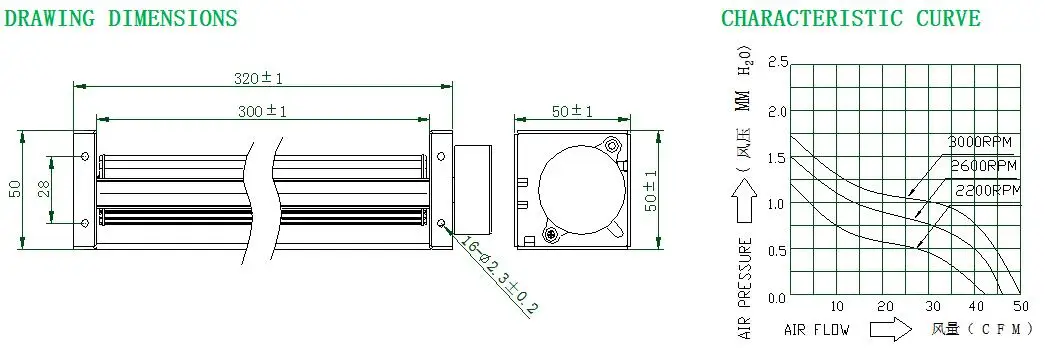

30300 cross flow fan.jpg
