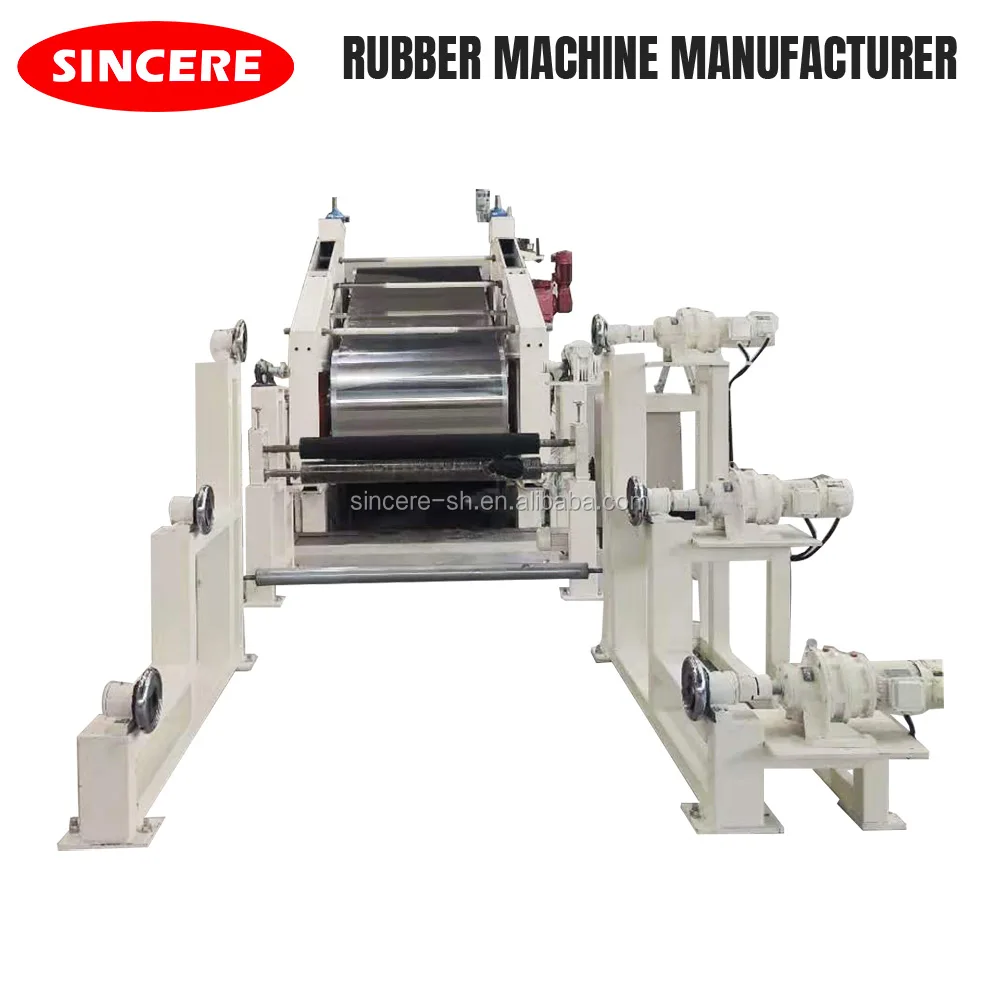

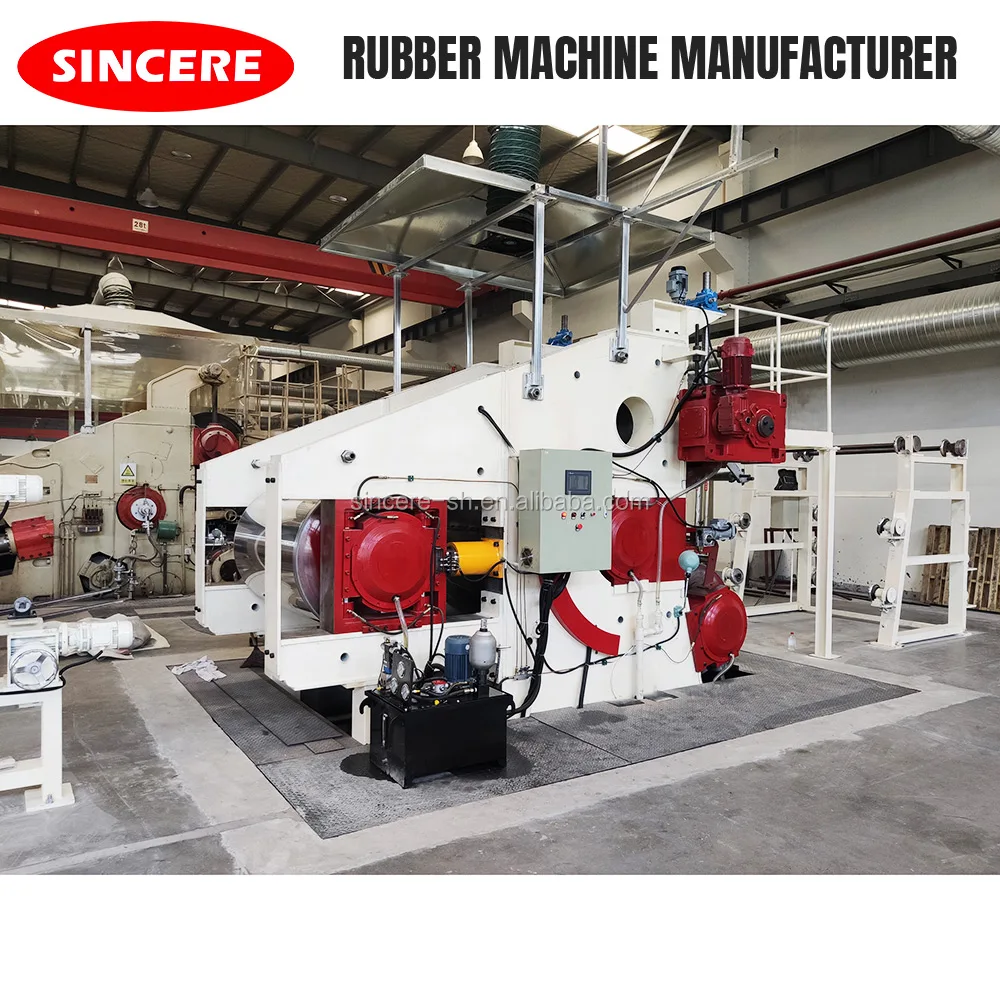

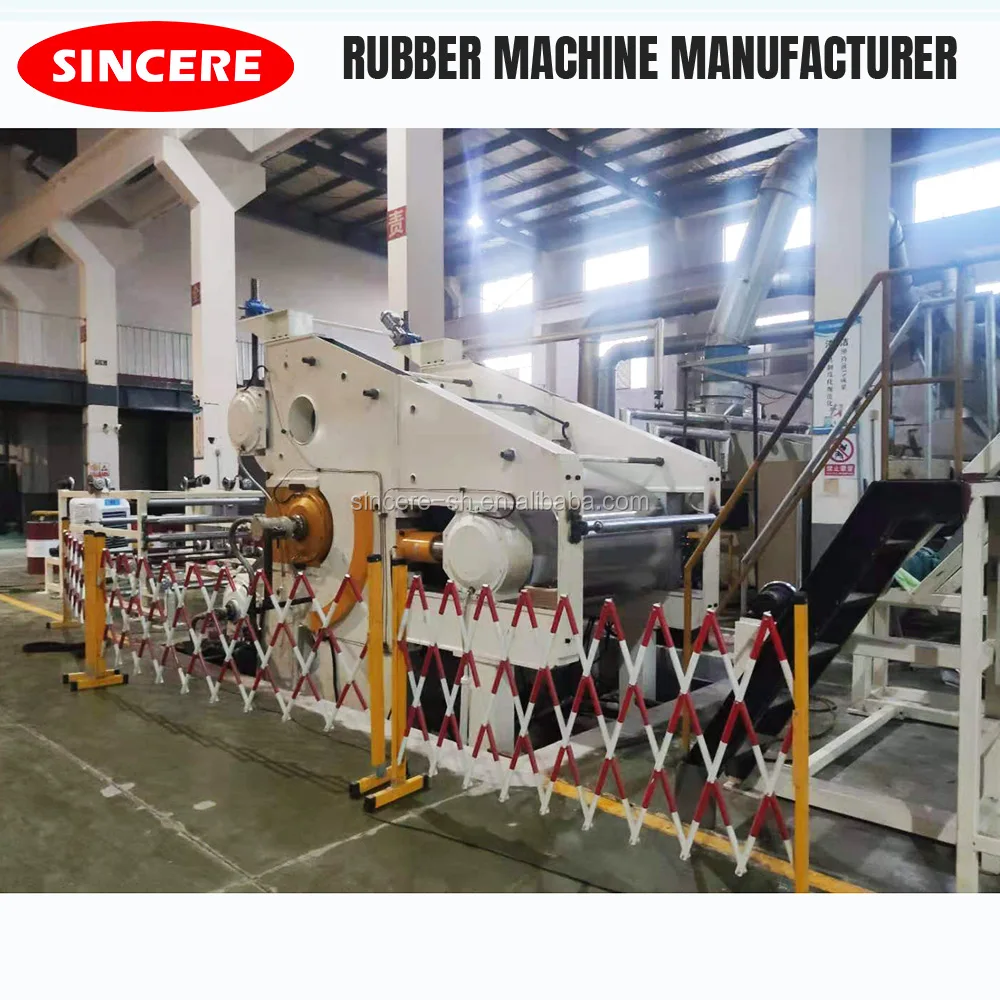

Hot Sale High Quality Rubber Vulcanizing Press Machine

Product Overview

Description

Hot-Sale High Quality Rubber Vulcanizing Press Machine

Main Features

1.Curing drum is cavity roll.

2.Provide automatic deviation rectifier.

3.It has the function of automatic pressure retrieve and when oil pump stops overtime, oil way configure is more reasonable and reliable.
Vulcanization pressure is stable and adjustable.

4.Infered heating on the rear roller

5.Automatic cleaning device for steel belt and curing drum.



6. heating temperature, vulcanize time, vulcanize pressure, pressure compensate can be set, and operating is convenient.



7.Independent oil jar structure, exchange is convenient. Pillar adopts chilled cast iron, has high wearable and long life.





specification	DLG800X1440	DLG1000X1640	DLG1500X1440	DLG1500X2000
Max products width                   (mm)	1200	1500	1200	1900
Max products thickness            (mm)	10	10	12	15
Curing roll dia.                          (mm)	800	1000	1500	1500
Curing roll length                      (mm)	1440	1440	1440	2000
Auxiliary roll dia.                       (mm)	550	550	1000	1000
Steel belt width                         (mm)	1580	1580	1650	1950
Steel belt length                        (mm)	7700	7700	9800	15450
Steel belt thickness                   (mm)	1.2	1.2	1.9	1.9
Steel belt pressure                  (MPa)	10	18	25	25
Vulcanization pressure            (MPa)	≤1	≤1	≤1	≤1
Vulcanization time                     (min)	1-80	1-80	1-80	1-80
Curing roll line velocity          (m/min)	0.06-1.5	0.06-1.8	0.06-2.6	0.06-3.5
Vulcanization interval length       (m)	1.89	2.36	3.53	3.53
Main motor power                       (kw)	1.5	2.2	5	7.5



Packaging & Shipping



Shipping: shipped in 45 workdays after receiving payment.

Packing: normally nude packing, we can also pack it by your request.
