The MP410 Combined Machine has been specifically designed be an industrial standard machine, but at a size intended for the factory and small professional workshop. This industrially rated machine features a planer and thicknesser unit. The cast iron construction, accurate cross cut fence and superb build quality put this machine in a class of its own.

\t
SPECIFICATIONS FOR SURFACE AND THICKNESS PLANER MP410
\t
Max planing width
\t
mm
\t
408
\t
Planing thickness
\t
mm
\t
3-225
\t
Max cutting depth of surface planer
\t
mm
\t
3
\t
Max cutting depth of thickness planer
\t
mm
\t
4.5
\t
Feed speed
\t
m/min
\t
7
\t
Feed rubber roller diameter
\t
mm
\t
32
\t
Planer table size
\t
mm
\t
1660*410
\t
Thicknesser table size
\t
mm
\t
600*408
\t
Min length of workpiece
\t
mm
\t
150
\t
Spindle speed
\t
rpm
\t
5500
\t
Cutter block diameter
\t
mm
\t
70
\t
Blades size
\t
mm
\t
410*25*3
\t
Number of blades
\t
pc
\t
3
\t
Dust outlet diameter
\t
mm
\t
120
\t
Fence tilt angle
\t

\t
45/90°
\t
Overall dimensions
\t
mm
\t
1660*870*1000
\t
Packing size
\t
mm
\t
1670*690*980
\t
Motor power
\t
kw
\t
4.0
\t
Machine weight
\t
kg
\t
260/300
\t
20'/40' CNT
\t
set
\t
20/42

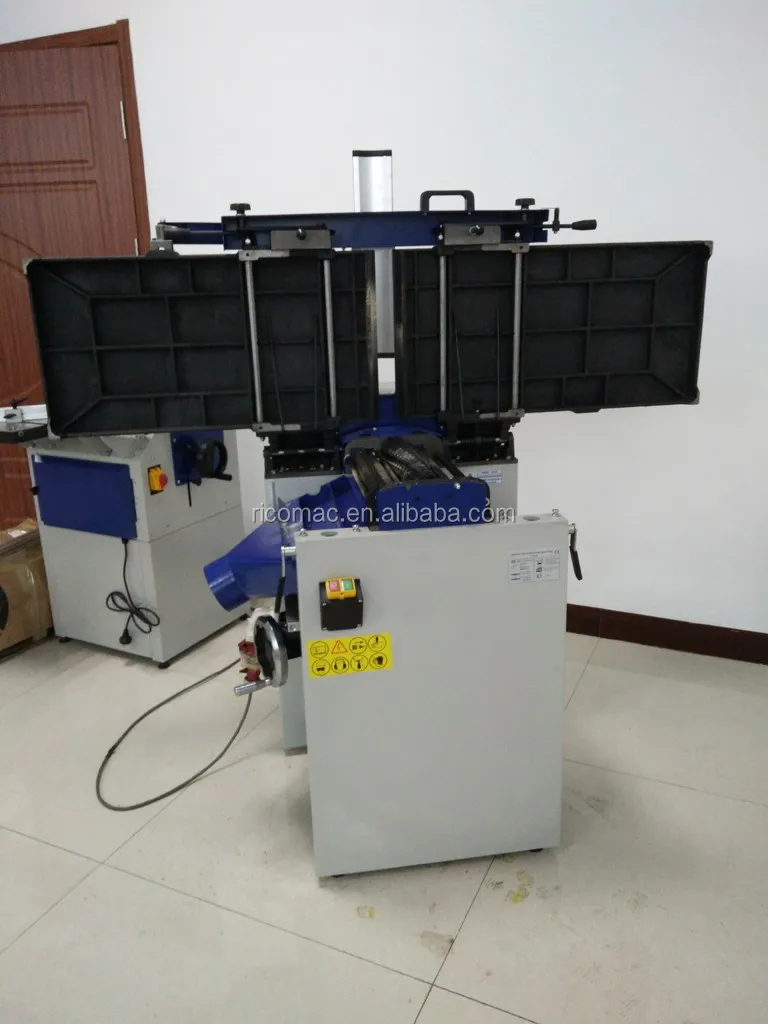

Detailed Images

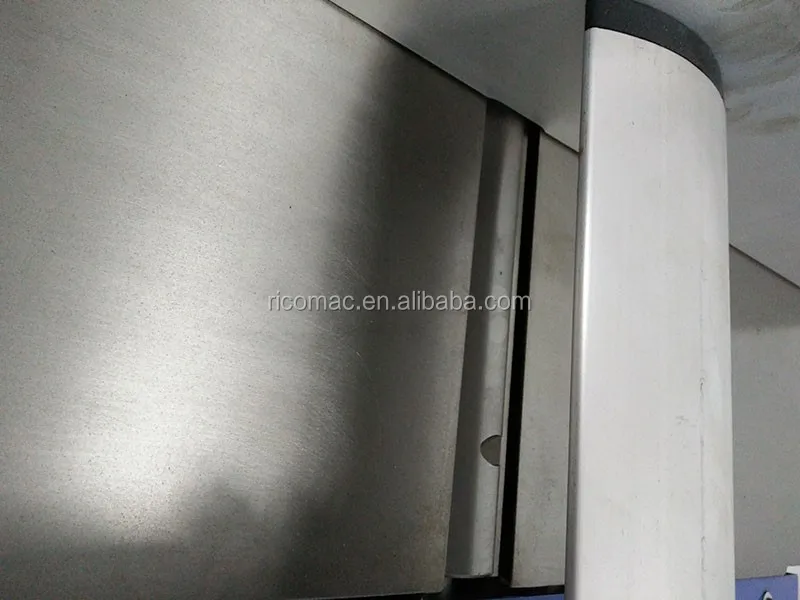

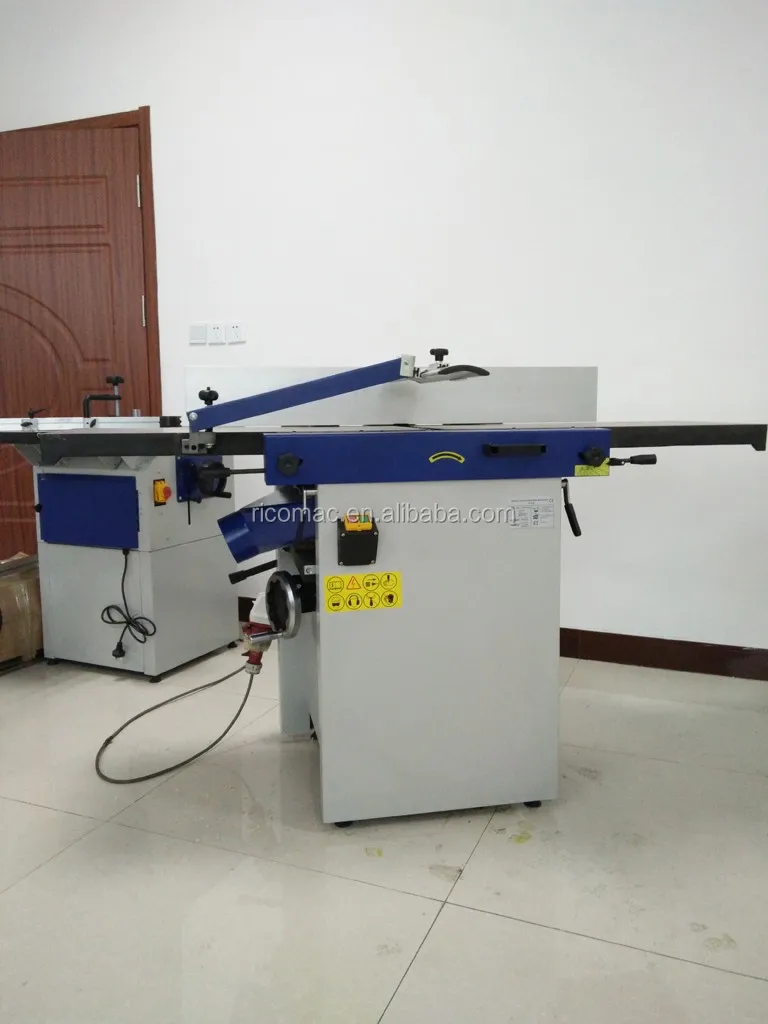

Surface planer
Max working width is 400mm
Spiral cutterhead as optional

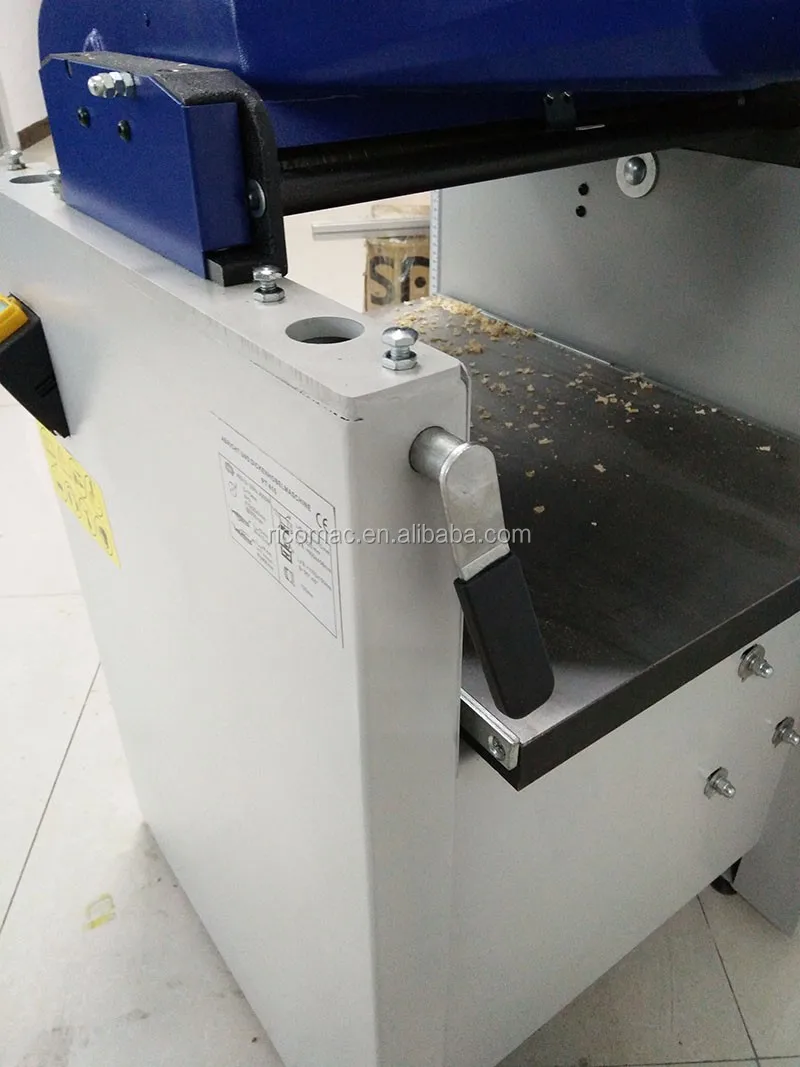

Thickness planer

Working thickness 3-225mm
Spiral cutterhead as optional


Spindle hood

Bridge style spindle hood

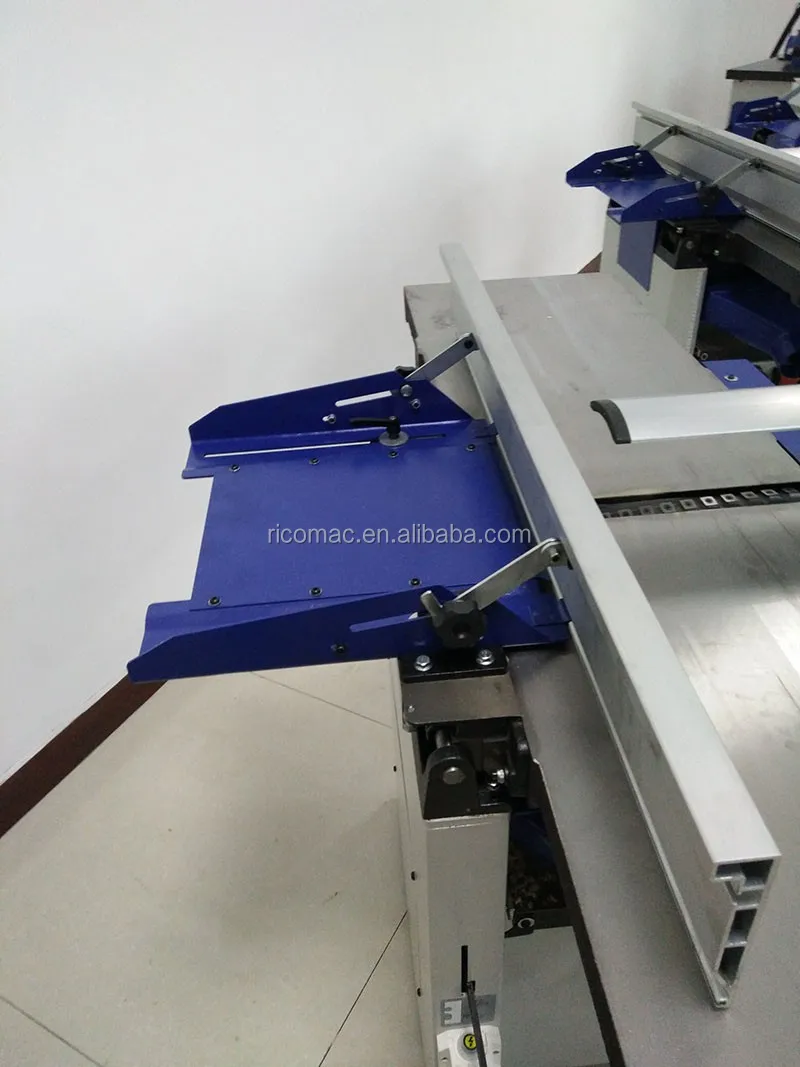

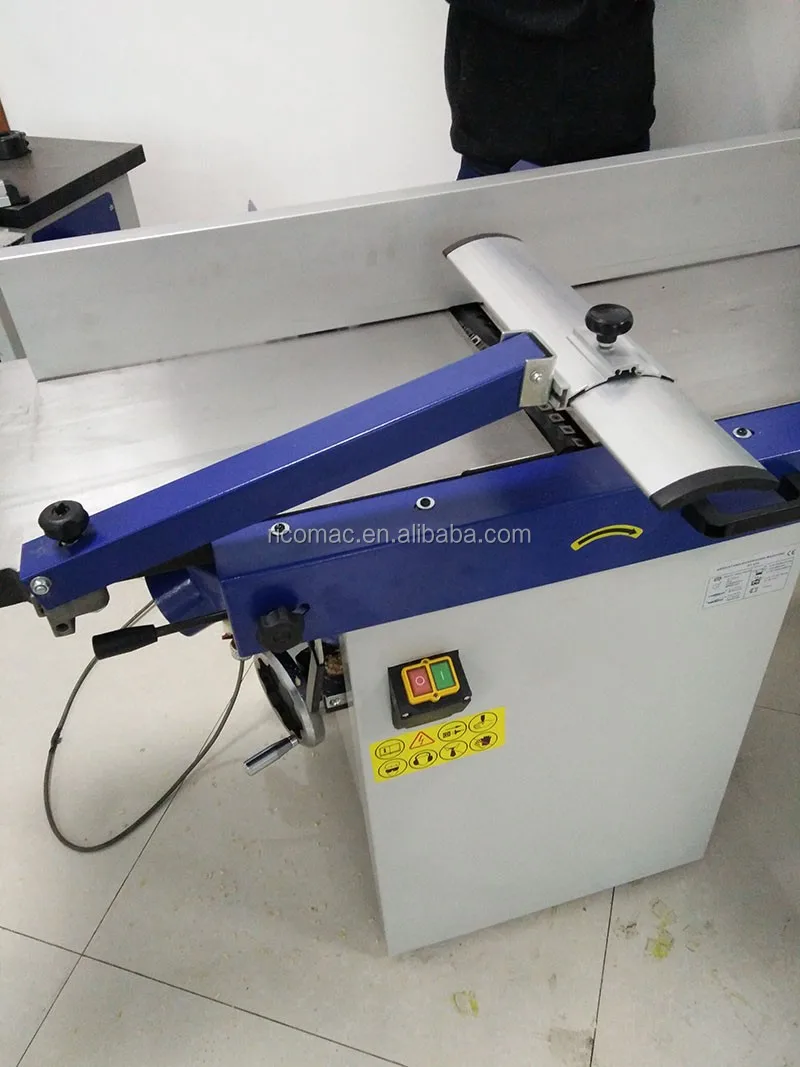

Fence

Can tilt 45degree

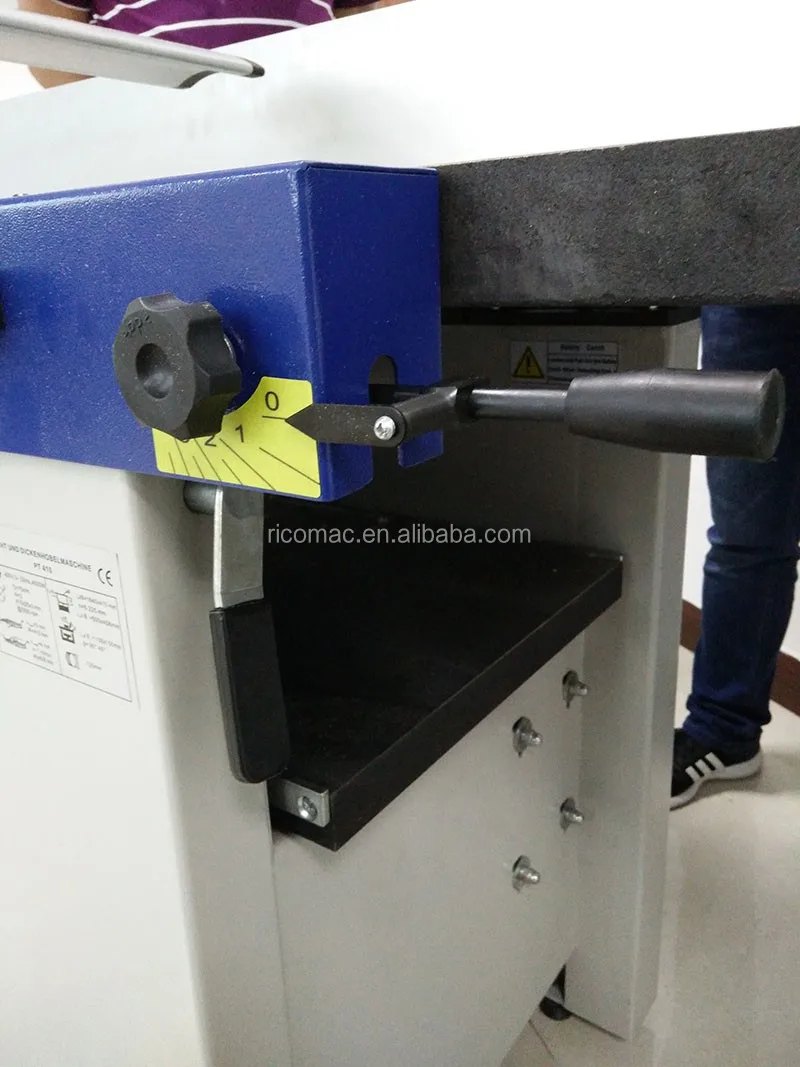

Planing depth adjustment

Surface planer planing depth max 3mm

Packing & Delivery
\t
Packaging
\t
Size
\t
1670 (L) * 690 (W) * 980 (H)mm
\t
Weight
\t
300kg
\t



Packaging Details
\t
The normal package is plywood case .
If container is too tigher,we will use pe film for packing or pack it according to customers special request.
